Регулируемый биметаллический термостат с защелкой для холодильника сертификатом RoHS 250 В переменного
- Категория: >>>
- Поставщик: Weihai,Sunfull,Hanbecthistem,Intelligent,Thermo,Control,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.4 $* | 0.0 $* |
| Aug-20-2025 | 0.63 $* | 0.11 $* |
| Jul-20-2025 | 0.69 $* | 0.97 $* |
| Jun-20-2025 | 0.22 $* | 0.74 $* |
| May-20-2025 | 0.64 $* | 0.8 $* |
| Apr-20-2025 | 0.77 $* | 0.6 $* |
| Mar-20-2025 | 0.14 $* | 0.55 $* |
| Feb-20-2025 | 0.42 $* | 0.58 $* |
| Jan-20-2025 | 0.67 $* | 0.20 $* |
Характеристики
Product Description
Specification
item | value |
Place of Origin | China |
Shandong | |
Brand Name | Sunfull Hanbecthistem |
Model Number | HB-5 |
Warranty | 3months-1year |
Type | temperature control switch |
Certification | CQC UL TUV ISO9001 ISO14001 |
Customized | YES |
Whether the smart | YES |
Product Paramenters

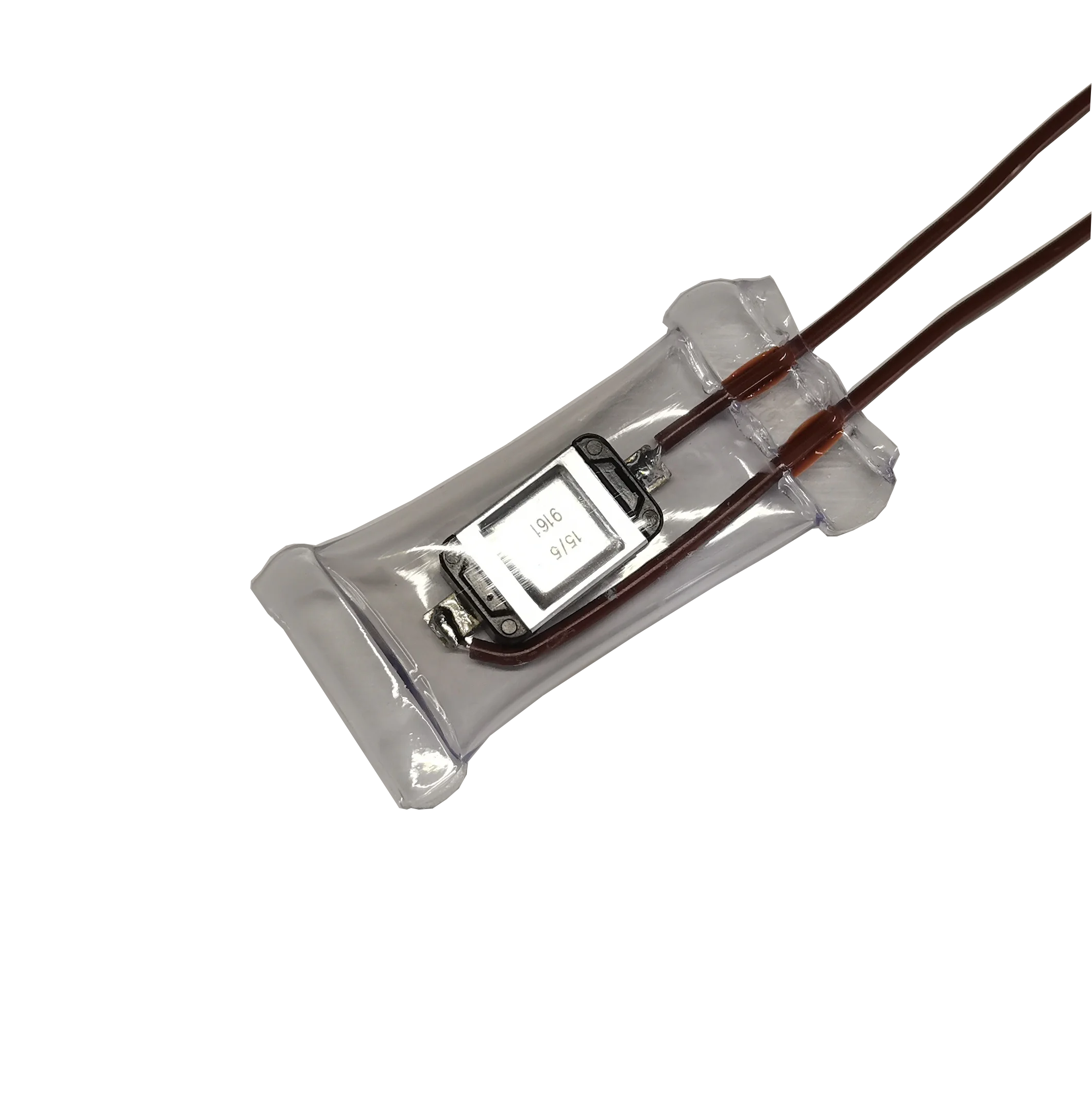

Porduct Name | Adjustable Snap-Action Bimetal Thermostat for Refrigerator with RoHS Certificate 250 VAC |
Use | Temperature control/Overheat protection |
Reset type | Automatic |
Base material | Resist heat resin base |
Electrical Rating | 15A / 125VAC, 10A / 240VAC, 7.5A / 250VAC |
Max. Operating Temperature | 150°C |
Min. Operating Temperature | -20°C |
Tolerance | +/-5°C for open action(Optional +/-3 C or less) |
Protection class | IP00 |
Contact material | Double Solid Silver |
Dielectric Strength | AC 1500V for 1 minute or AC 1800V for 1 second |
Insulation Resistance | More than 100MΩ at DC 500V by Mega Ohm tester |
Resistance Between Terminals | Less than 50MΩ |
Diameter of bimetal disc | Φ12.8mm(1/2″) |
Approvals | UL/ TUV/ VDE/ CQC |
Terminal type | Customized |
Cover/Bracket | Customized |
Features
- Slimmest construction
- Dual contacts structure
- High reliability for contact resistance
- Safety design according to IEC standard
- Environmental friendly towards RoHS, REACH
- Automatic resettable
- Accurate and quick switching snap action
- Available horizontal terminal direction
The Advantage of Automatic Reset Thermostat
- Lightweight but high durability;
- The temperature characteristic is fixed, no adjustment is needed, and -the fixed value is optional;
- High precision of action temperature and accurate temperature control;
- The contacts have good repeatability and reliable snap action;
- The contacts are on and off without arcing, and the service life is long;
- Little interference to radio and audio-visual appliances.
Applications
- White goods
- Electric heaters
- Automotive seat heaters
- Rice Cooker
- Dish Dryer
- Boiler
- Fire Apparatus
- Water Heaters
- Oven
- Infrared Heater
- Dehumidifier
- Coffee Pot
- Water purifiers
- Fan Heater
- Bidet
- Microwave Range
- Other Small Appliances
- Slimmest construction
- Dual contacts structure
- High reliability for contact resistance
- Safety design according to IEC standard
- Environmental friendly towards RoHS, REACH
- Automatic resettable
- Accurate and quick switching snap action
- Available horizontal terminal direction
The Advantage of Automatic Reset Thermostat
- Lightweight but high durability;
- The temperature characteristic is fixed, no adjustment is needed, and -the fixed value is optional;
- High precision of action temperature and accurate temperature control;
- The contacts have good repeatability and reliable snap action;
- The contacts are on and off without arcing, and the service life is long;
- Little interference to radio and audio-visual appliances.
Applications
- White goods
- Electric heaters
- Automotive seat heaters
- Rice Cooker
- Dish Dryer
- Boiler
- Fire Apparatus
- Water Heaters
- Oven
- Infrared Heater
- Dehumidifier
- Coffee Pot
- Water purifiers
- Fan Heater
- Bidet
- Microwave Range
- Other Small Appliances
Packing & Delivery
Packaging Details Standard Export Packing
Port Qingdao, Shanghai
Lead Time 20-30Days
Lead Time 20-30Days
Company Profile
Weihai Sunfull Hanbecthistem Intelligent Thermo Control Co., Ltd. is a joint venture company established by Hanbecthistem Co., Ltd., which is the leading company in temperature controller field from Korea and Weihai Sunfull Electronics Group Co., Ltd. We are specialized in development, design and manufacture of thermostats and electronic sensors which are applied to cars, refrigerators, air-conditioners, washing machines, micro-wave ovens, electric cookers, coffee makers and other consumer appliances or HVAC appliances. Current annual manufacturing capacity is over 20,000,000pcs. We carry out the strict quality management system, and win the global customers' satisfaction by the stable quality and reliable performance products at the most competitive price. Our products are exported to Europe, America, Australia and Korea etc. We have built long-term cooperation with Electrolux, LG, Samsung, etc.
With sincere services, we are expecting to link your hands to create a better tomorrow.
With sincere services, we are expecting to link your hands to create a better tomorrow.
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(50.00%),South Asia(12.00%),Southeast Asia(9.00%),Western Europe(9.00%),North America(9.00%),Oceania(9.00%),Eastern Asia(2.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Defrost Thermostat,Bimetal Thermostat,Thermal Protector,Wire harness,NTC Temperature Sensor.
We are based in Shandong, China, start from 2003,sell to Domestic Market(50.00%),South Asia(12.00%),Southeast Asia(9.00%),Western Europe(9.00%),North America(9.00%),Oceania(9.00%),Eastern Asia(2.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Defrost Thermostat,Bimetal Thermostat,Thermal Protector,Wire harness,NTC Temperature Sensor.
And we can also provide customize service according to your demand.
4. why should you buy from us not from other suppliers?
We are a joint venture company from Korea and China, Thermostats and Electronic Sensors are our main products. With the stable quality and reliable performance, our products won the global customers' satisfaction, such as Electrolux, LG, Samsung, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Russian,Korean,Hindi
4. why should you buy from us not from other suppliers?
We are a joint venture company from Korea and China, Thermostats and Electronic Sensors are our main products. With the stable quality and reliable performance, our products won the global customers' satisfaction, such as Electrolux, LG, Samsung, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Russian,Korean,Hindi
