RF коаксиальный Штекерный зажим PL259 увч разъем для кабеля
- Категория: Connectors >>>
- Поставщик: Four,Star,Communication,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.4 $* | 0.33 $* |
| Aug-18-2025 | 0.97 $* | 0.66 $* |
| Jul-18-2025 | 0.13 $* | 0.92 $* |
| Jun-18-2025 | 0.44 $* | 0.86 $* |
| May-18-2025 | 0.37 $* | 0.25 $* |
| Apr-18-2025 | 0.70 $* | 0.40 $* |
| Mar-18-2025 | 0.2 $* | 0.87 $* |
| Feb-18-2025 | 0.42 $* | 0.90 $* |
| Jan-18-2025 | 0.4 $* | 0.31 $* |
Характеристики
Product Description
TYPE UHF products is one kind of video frequency coaxial connectors with screw coupling and adopt tooth of end gearing. Impedance is not strictly defined, but usually applied at the frequency of 500MHz. This products are very suitable for the civil wave band communication system, closed-circuit television, the car radio device products etc. These connectors have characteristics of reliable connection, good vibration performance, and reasonable price.

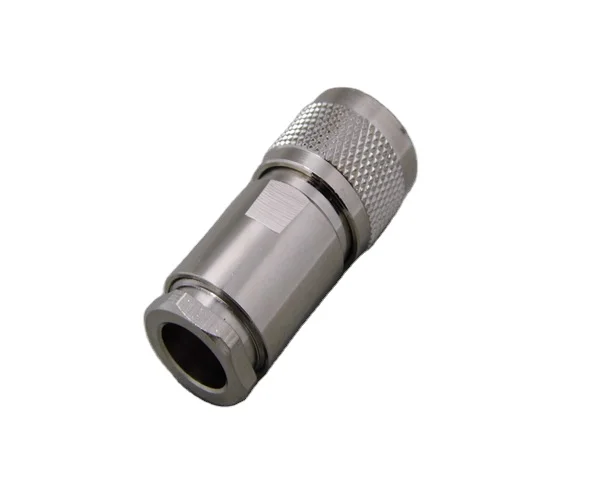

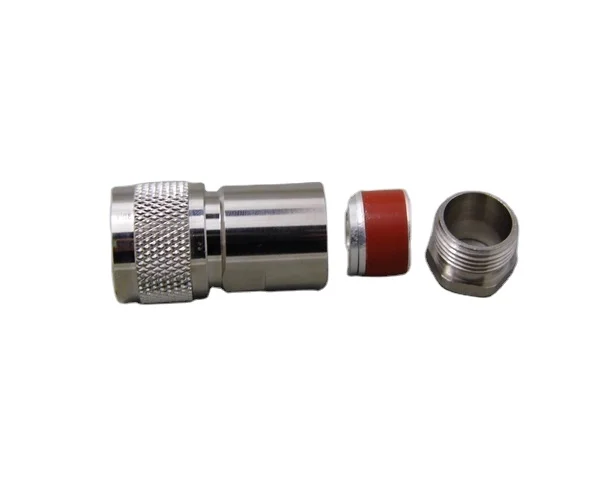

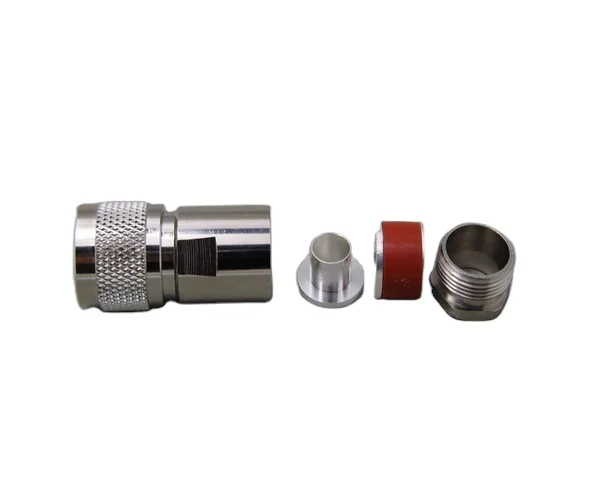

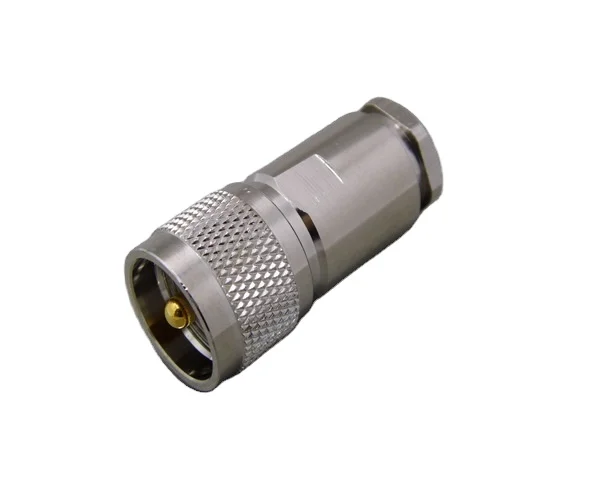

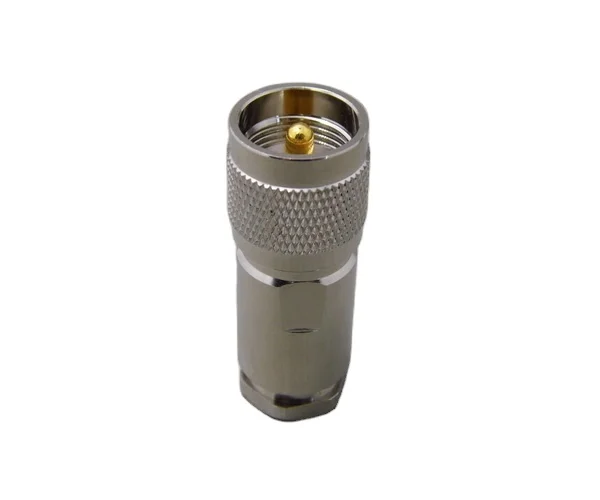

RF Coaxial UHF PL259 Male Plug Clamp Connector for 7D-FB Cable
| Model No. | UHF-J7D-A | |
| Interface | IEC 60169-12 | |
| Electrical | ||
| Characteristic Impedance | Non-constant | |
| Frequency Range | DC-300MHz | |
| VSWR | ≤1.15@DC-300MHz | |
| Working Vlotage | 750V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥2000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤5mΩ | Outer Contact ≤5 mΩ |
| Mating | — | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PBT | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Cable Clamp | Brass | Ni |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | 7D-FB Cable | |
Product usage
Production Process
Packaging & Shipping
Our Services
Our Service
1.Reply your enquiry within 24 hours. |
2.Payment model: T/T, L/C,Paypal and Western Union |
3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...) |
4.Lead(Delivery) time: Normally 14 days after getting order |
5.Port of loading: Shanghai, Ningbo and Shenzhen. |
6.Guarantee Period : Within 12 months after shipment. |
7.Operating guide(Instruction)upon request. |
8.Customized drawing ,sample and package can be done |
FAQ
Q:What about the quality of your products? |
A: Our production process is in conformity with ISO 9001:2008. All products we supplied are strictly tested by our QC department before shipment. |
Q:Can you offer samples to test before placing one formal order? |
Samples for test purpose can be presented free provided that you bear the shipping cost. |
Q:How long is usually your delivery time? |
A: Our delivery time is usually within 14 days after we receive your order . |
Q:What’s your Shipping Methods? |
A: By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc. |
Q: Can you send a sample for us to develop? |
A: Yes, we can. The samples can be delivered within 7 business days. |
Q: Can we have our logo or company name to be printed on your products or the package? |
A: Yes, you can. Logo and company name can be printed on our products . You can send us the artwork by email in JPEG or TIFF format. |
Q: Is the MOQ fixed? |
A: The MOQ is flexible and we accept small order in the first time as trial order. |
Company Information
Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai).
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly(Jumper Cable)
Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.
