Пластиковая машина для литья под давлением 240 тонн
- Категория: Injection Molding Machines >>>
- Поставщик: ZHEJIANG,HANYU,AUTOMATION,TECHNOLOGY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.82 $* | 0.49 $* |
| Aug-20-2025 | 0.66 $* | 0.34 $* |
| Jul-20-2025 | 0.67 $* | 0.88 $* |
| Jun-20-2025 | 0.37 $* | 0.15 $* |
| May-20-2025 | 0.98 $* | 0.49 $* |
| Apr-20-2025 | 0.95 $* | 0.32 $* |
| Mar-20-2025 | 0.81 $* | 0.42 $* |
| Feb-20-2025 | 0.21 $* | 0.86 $* |
| Jan-20-2025 | 0.28 $* | 0.49 $* |
Характеристики
Product Description
HY-2400 INJECTION MACHINE | |||||
Injection Unit | Model | A | B | ||
Screw Diameter | 60mm | 65mm | |||
Screw L/D Ratio | 1:20 L/D | 1:18.5 L/D | |||
Injection Volume | 707 cm³ | 830 cm³ | |||
Shot Weight | 643g | 755g | |||
Plasticizing Capacity | 220 g/s | 242 g/s | |||
Injection Pressure | 30 g/s | 34 g/s | |||
Screw Speed | 142 MPA | 121 MPA | |||
Clamping Unit | Clamping Force | 2400KN | |||
Opening Stroke | 480MM | ||||
Space Between Tie-bars | 520*520MM | ||||
Max. Mould Height | 520MM | ||||
Min. Mould Height | 220MM | ||||
Ejector Stroke | 110MM | ||||
Hydraulic Ejection | 70KN | ||||
General | Pump Pressure | 16MPA | |||
Motor Power | 22KW | ||||
Heater | 14.75KW | ||||
Machine Dimension(L*W*H) | 5.8*1.5*2.2M | ||||
Machine Weight | 8T | ||||
Related Products
Preform mold
Cap mold

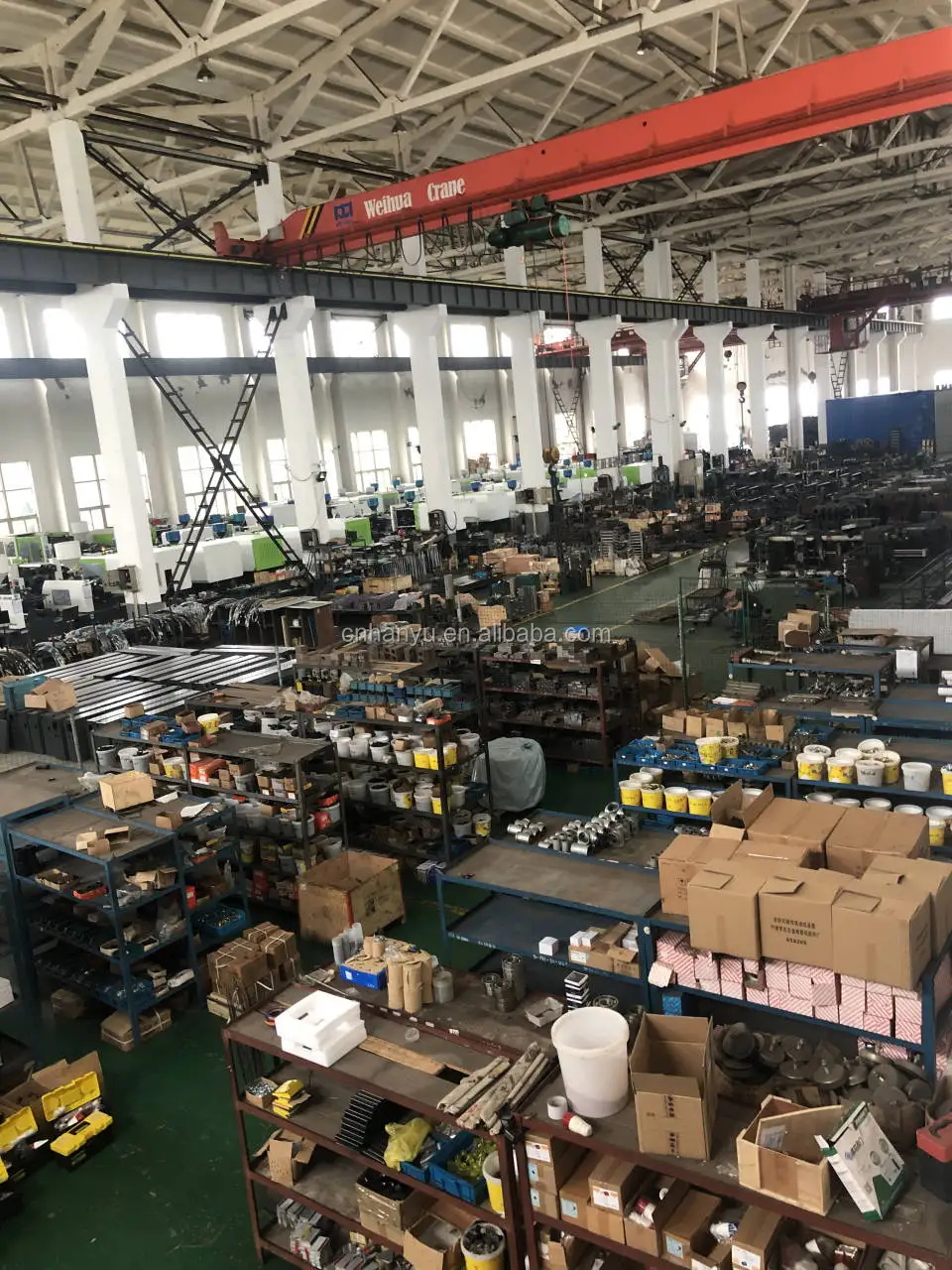

Our Factory
Related Products
5 gallon PET preform injection mould
91.8% Response Rate
5 GALLON BOTTLE MOULD
91.8% Response Rate
5 gallon filling machine
91.8% Response Rate
BACK TO >>https://cnhanyu.en.alibaba.com/
FAQ
Q:Have the blow molding machine in stock
A:semi-automatic blow molding machine in stock ,and the fully autoamtic are newly,the mold according your samlp to make .
Q:What is the delivery time?
A:30 days for this machine.
Q:What is the payment team?
A:T/T.L/C
Q:Can i trust you?
A:YES.We are "Alibaba" verified supplier
Q:May i visit your factory?
A:Of course,welcome any time,we can also pick you up at airport or station,
Back to >>>https://cnhanyu.en.alibaba.com/
