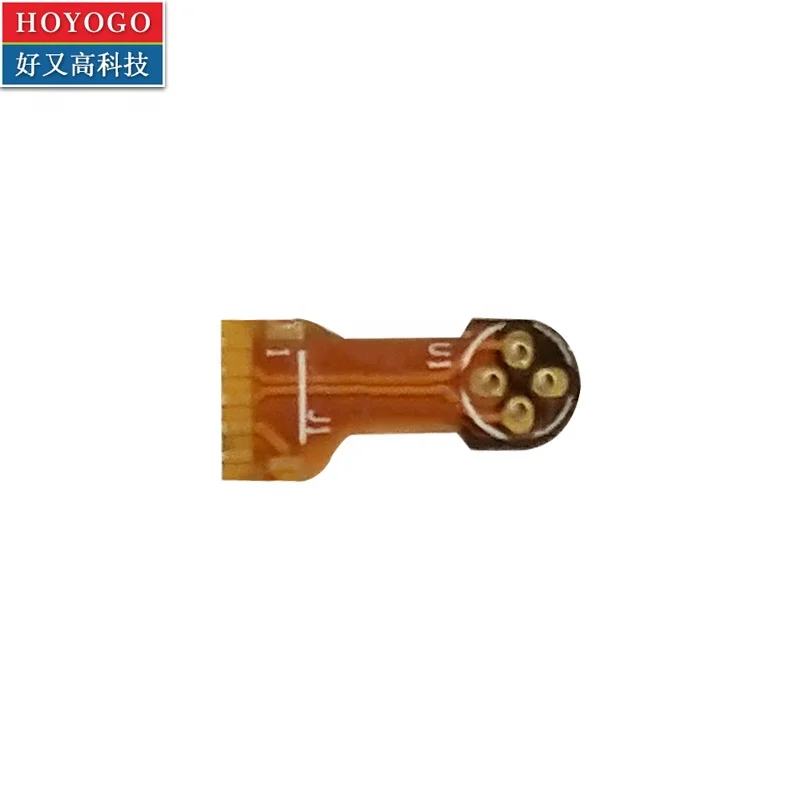

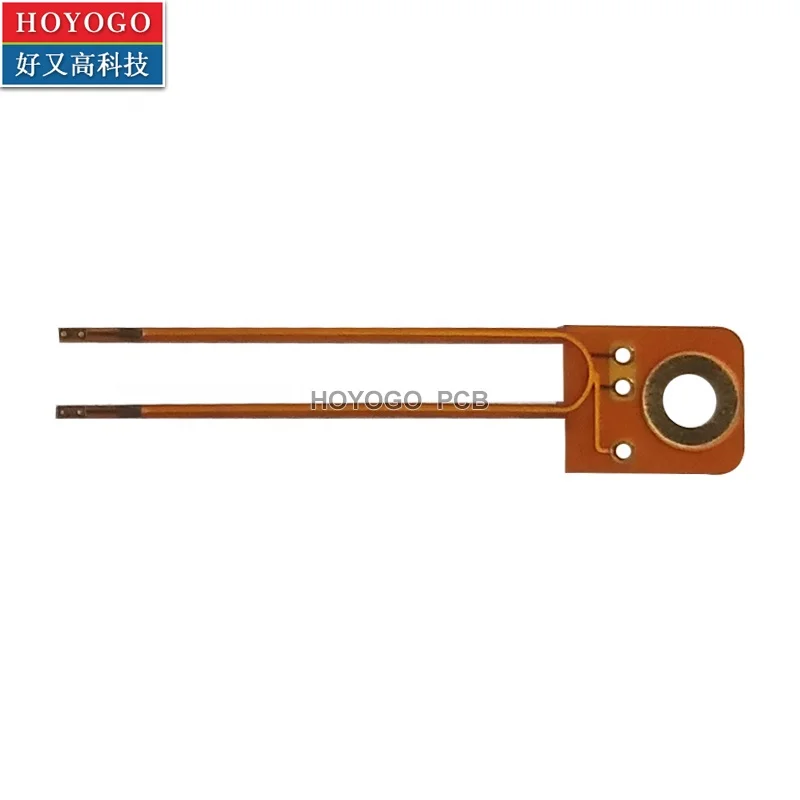

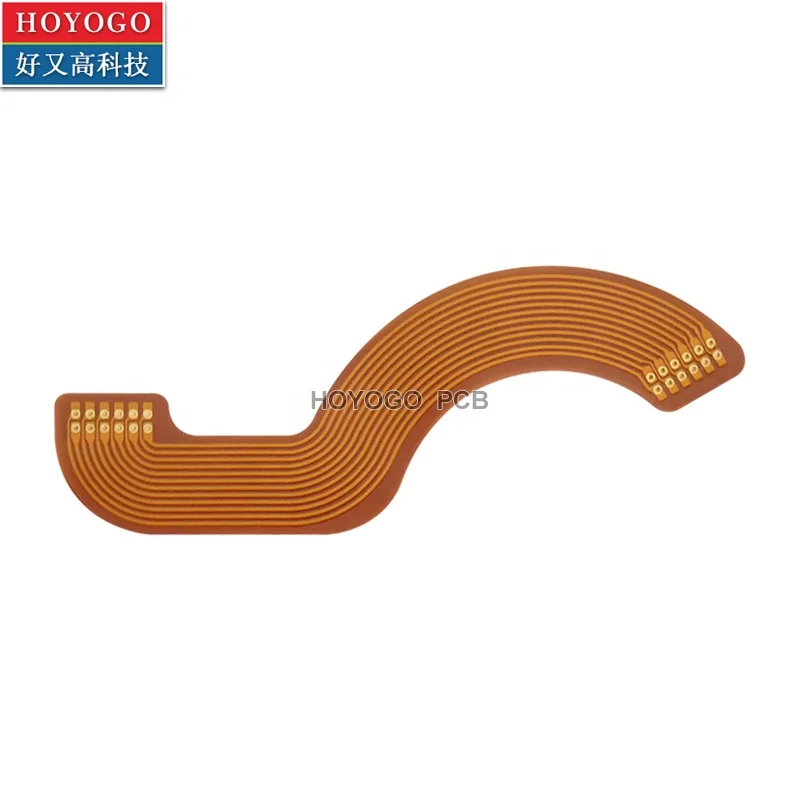

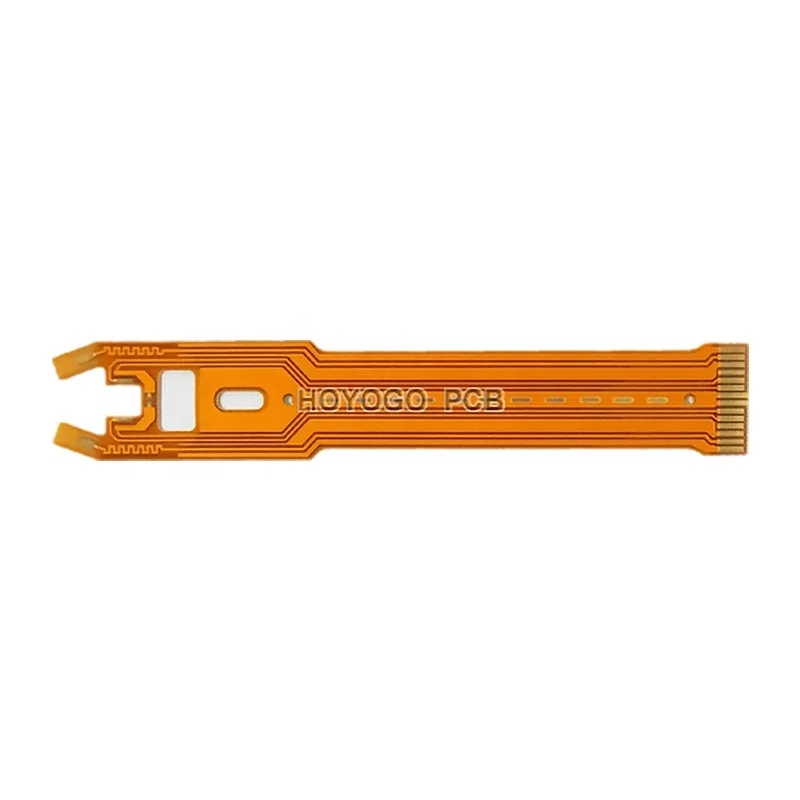

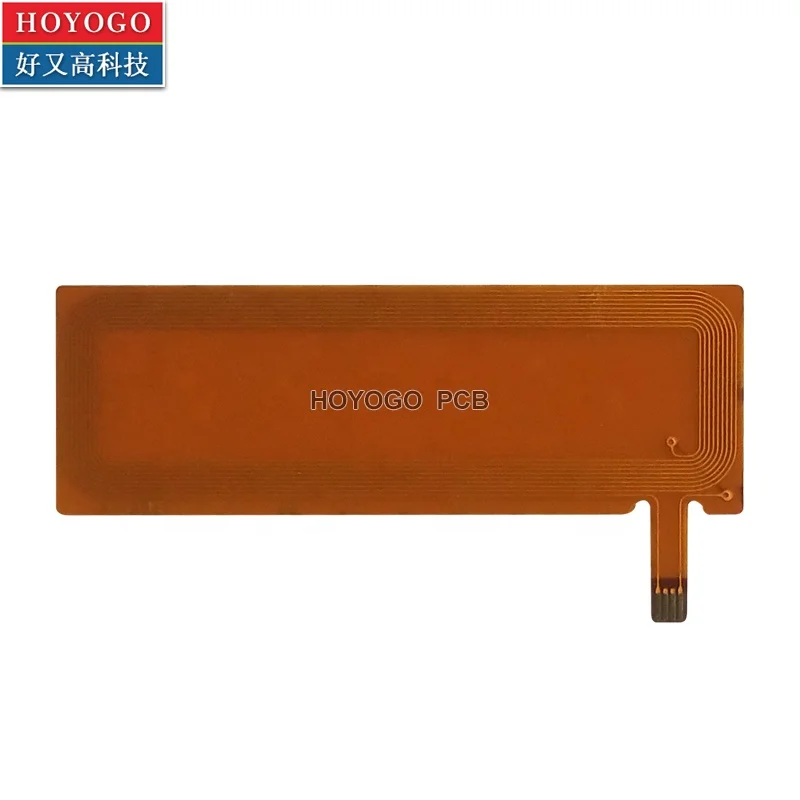

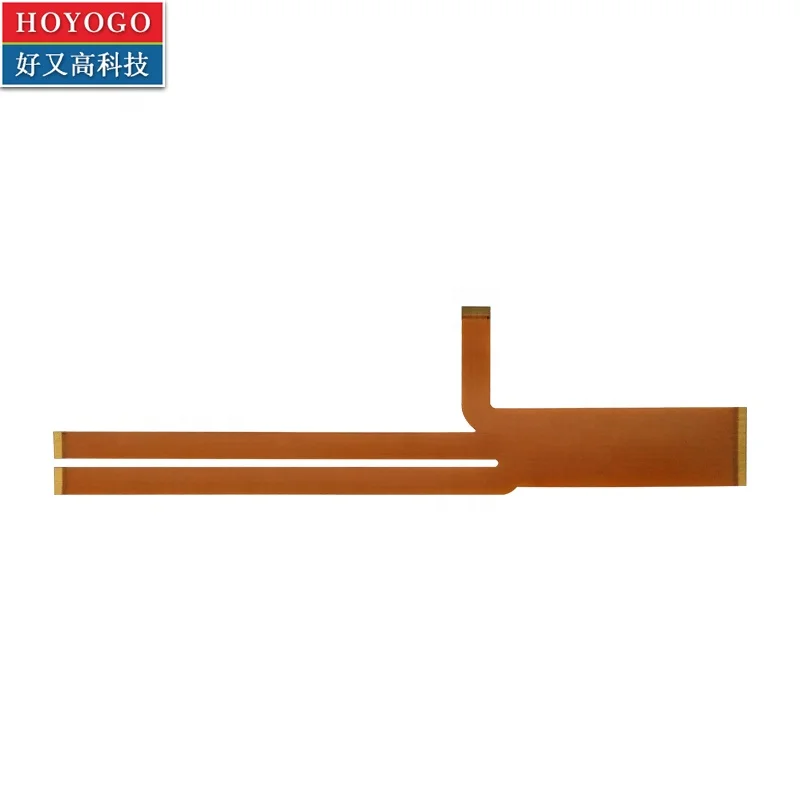

Китайский профессиональный завод по производству печатных плат Высококачественная Гибкая светодиодная печатная плата fpc и
- Категория: >>>
- Поставщик: Shenzhen,Hoyogo,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.99 $* | 0.70 $* |
| Aug-15-2025 | 0.52 $* | 0.57 $* |
| Jul-15-2025 | 0.45 $* | 0.91 $* |
| Jun-15-2025 | 0.74 $* | 0.17 $* |
| May-15-2025 | 0.53 $* | 0.56 $* |
| Apr-15-2025 | 0.17 $* | 0.27 $* |
| Mar-15-2025 | 0.66 $* | 0.65 $* |
| Feb-15-2025 | 0.95 $* | 0.26 $* |
| Jan-15-2025 | 0.85 $* | 0.57 $* |
Характеристики
FPC Production Capability
Item | Flex PCB | ||
Material | PI, PET | ||
Layers | 1-12 | ||
Base Copper Thickness | 1/4-2OZ | ||
Board Thickness(Min.) | Single-sided | 0.05mm | |
Double-sided | 0.10mm | ||
Board Dimension(Max.) | 500mm*1000mm | ||
Width/Space(Min.) | Copper Weight: up to 0.2OZ | 0.04mm | |
Copper Weight: up to 0.5OZ | 0.06mm | ||
Copper Weight: 0.5-1OZ | 0.075mm | ||
Copper Weight: over 1OZ | 0.10mm | ||
Via Type | Through Hole, Blind, Buried | ||
Silkscreen Width/Space(Min.) | 0.10mm | ||
Solder Mask Bridge(Min.) | 0.2mm for coverlay, 0.12mm for LPI | ||
Hole(Min.) | Drill | 0.15mm | |
Punching | 0.5mm | ||
Slot(Min.) | 0.5mm(Punching), 0.8mm(Routing) | ||
Dimension Tolerance | Line Width | ±0.03mm(W≤0.3mm), ±10%(W＞0.3mm) | |
Hole | ±0.05mm(NPTH) | ||
±0.075mm(PTH) | |||
Outline | ±0.10mm, Special±0.05mm with high-precise hard tool | ||
Conductor to Outline | ±0.10mm, Special±0.05mm with high-precise hard tool | ||
Surface Treatment | Ni/Au Plating | Ni: 2-8um(80-320u") Au: 0.05-2um(2-80u") | |
ENIG | Ni: 2-6um(80-240u") Au: 0.05-0.10um(2-4u") | ||
Tin Plating | 5-20um | ||
Immersion Silver | 0.2-0.4um | ||
Immersion Tin | 1um(Min.) | ||
OSP | 0.2um(Min.) | ||
Hard Gold | Hardness over 150HV | ||
Others | Gold Plating+ENIG; ENIG+OSP; ENPIG | ||
Special Techniques - Blind & Buried via, via in pad, hard gold and gold fingers, Flash gold, Ni/Pd/Au finish, Edge plating, Depth control routing, countersunk holes, etc.
Special Service - FPC, Rigid-flex, quick turn, heavy copper mass production, IMS boards(Copper,Alu,Steel).
PCBA Assembly Services - Medium and small volume, mass production.
Special Service - FPC, Rigid-flex, quick turn, heavy copper mass production, IMS boards(Copper,Alu,Steel).
PCBA Assembly Services - Medium and small volume, mass production.
Why Choose Us
1. 2 PCB Production bases, 500,000sqm monthly capacity, best cost-optimization.
2. High level Automation and dedicated automotive production line(Automotive accounts for 30%).
3. China's largest FPC, R-FPCB manufacturer, with 147 assembly lines supporting service. Floor space: 60000oSqm.
4. Products range: Rigid, FPC, R-F, HDI, cooper base, steel base, Alu, Glass base and all special PCB.
5. Long board and thin board specialist: up to 1.5meter, 0.15mm.
6. Fast&on time delivery, prototype in 1 day or 2days.
7. Sales team with 7 languages (Chinese, Japanese, English, French, German, Spanish and Portuguese), offer in 1 hour nearly 0 time-difference service worldwide.
8. Management team with average 25 years industry experience.
3. China's largest FPC, R-FPCB manufacturer, with 147 assembly lines supporting service. Floor space: 60000oSqm.
4. Products range: Rigid, FPC, R-F, HDI, cooper base, steel base, Alu, Glass base and all special PCB.
5. Long board and thin board specialist: up to 1.5meter, 0.15mm.
6. Fast&on time delivery, prototype in 1 day or 2days.
7. Sales team with 7 languages (Chinese, Japanese, English, French, German, Spanish and Portuguese), offer in 1 hour nearly 0 time-difference service worldwide.
8. Management team with average 25 years industry experience.
About Us
HOYOGO is an international, professional and reliable PCB Manufacturer with own production base in China since 2006, which focus on exporting PCBs to mainly European and North American market.
We can support for small-medium-mass production flexibly with fast response and professional service.
Based on its rich experience and technology understanding, with own production capability, we are able to offer you one-stop service with small, medium to mass production with competitive terms, quality and delivery assurance that customized all your request.
Our extensive PCB product portfolio offers from conventional FR4, Aluminum PCB, FPC, Rigid‐Flex PCB, HDI, heavy copper, long board, thin board and other exotic PCBs in standard delivery time and quick‐turn service.
Besides, we have a professional and well-experienced technical team to support you value added service of PCBA SMT and Global world class PCB designer.
We can support for small-medium-mass production flexibly with fast response and professional service.
