High-altitude Operation Trucks

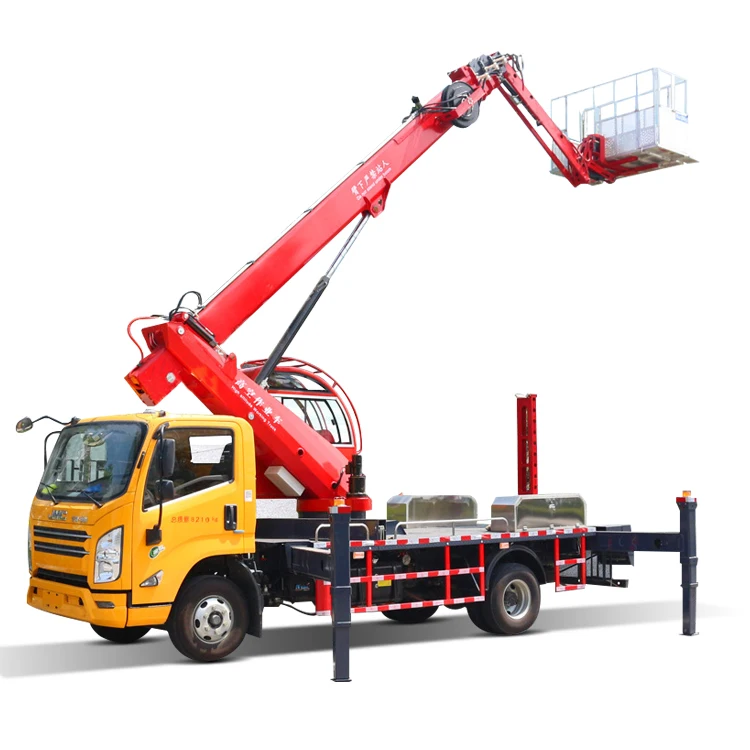

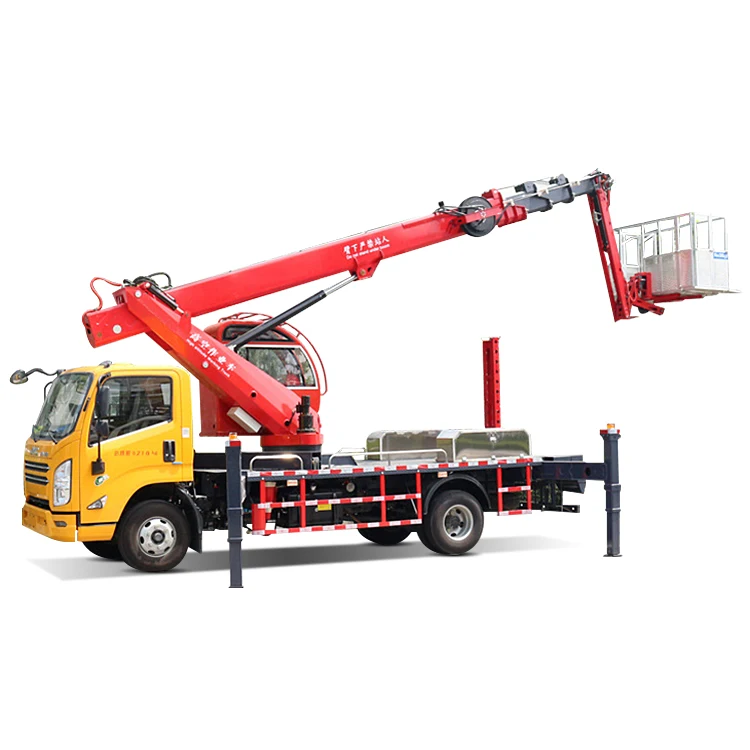

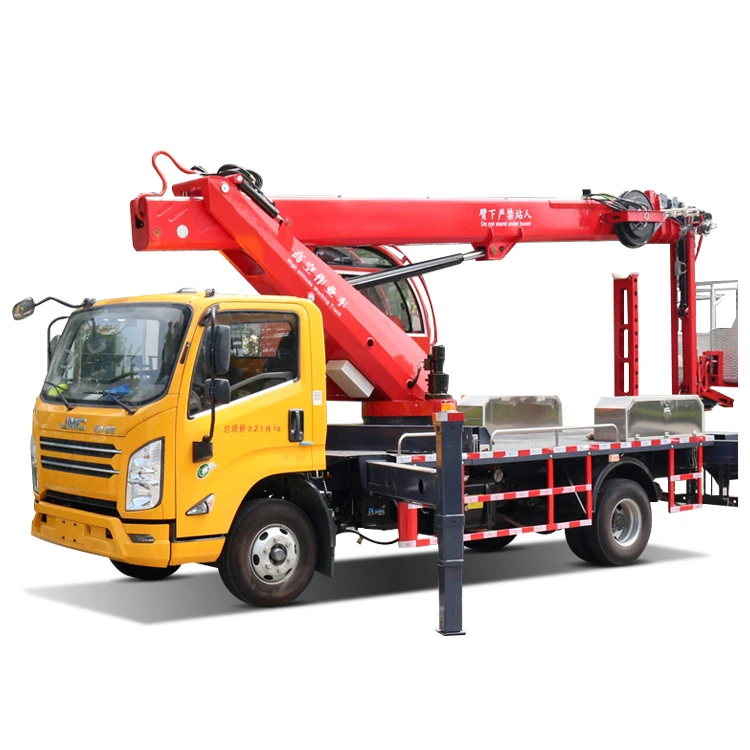

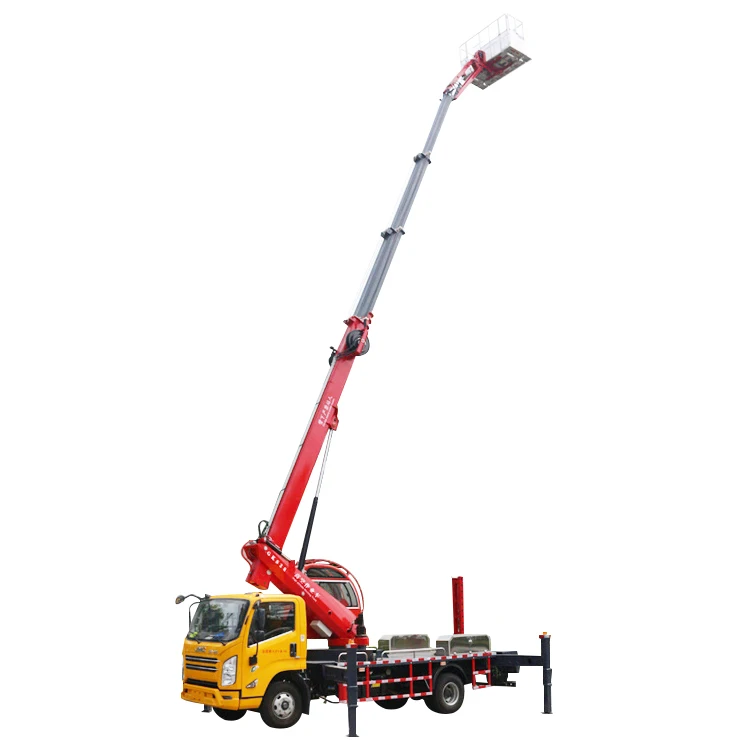

Подъемная платформа arms articulating boom lift work truck

Подъемная платформа arms articulating boom lift work truck

Категория: High-altitude Operation Trucks >>>
Поставщик: Shandong,Beijun,Heavy,Industry,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.64 $*	0.36 $*
Aug-16-2025	0.6 $*	0.19 $*
Jul-16-2025	0.0 $*	0.19 $*
Jun-16-2025	0.83 $*	0.12 $*
May-16-2025	0.43 $*	0.53 $*
Apr-16-2025	0.6 $*	0.71 $*
Mar-16-2025	0.65 $*	0.22 $*
Feb-16-2025	0.17 $*	0.96 $*
Jan-16-2025	0.65 $*	0.80 $*

Характеристики

Product Overviews

Basic functions and security configuration

Automatic interlock device for loading and unloading: used for loading and unloading interlock, to prevent the risk of misoperation
Manual emergency pump: In the event of engine and main pump failure, personnel can be sent back to the surface through the emergency system
Work platform emergency stop device: for emergency stop operation and limit boom operation
Automatic limit working range: when the working range reaches the specified value, automatic limit dangerous direction work
"Ungrounded" limit work: When the ungrounded leg (soft leg) occurs, the lifting boom will limit work in the dangerous direction
Night safety warning device: there are engineering strobe lights and LED lights on the vehicle
Engine flameout: the controller can start the engine and flameout control
Leakage protector: when the mains is supplied with 220V external power supply, it is equipped with leakage protector to ensure the safety of the vehicle power supply and power tools
"Forced" operation function: used for loading and unloading interlock, to prevent restricted work, can be expanded through the "forced" function to stop misoperation

Specification

Main technical parameters	Configuration instructions
Chassis: Jiangling Shunda	Rated load of working platform :200kg
Drive mode: rear drive	Maximum operating height :23m
Number of front tires :2	Operating range at maximum operating height :3m
Number of rear tires :4	Maximum operating range :12m
Braking mode: oil brake	Maximum operating range :16.5m
Cab number: 2 persons per row	Maximum operating height :14.5m
Steering assist: steering assist	Outrigger span (transverse):4350mm
Temperature regulation: air conditioning	Outrigger span (longitudinal):4050mm
Engine: Isuzu engine	Force extraction system: mechanical operation
Engine horsepower :115	Optional working platform :2400X850X1200mm
Emissions: Country 6 emissions	Frame type: four hexagon type working arm
Overall size: 5995 * 2000 * 3000 mm	Rotation device :360 degrees continuous rotation
Total quality: 4495 kg	Legs: Front V and back H, individually adjustable (control)

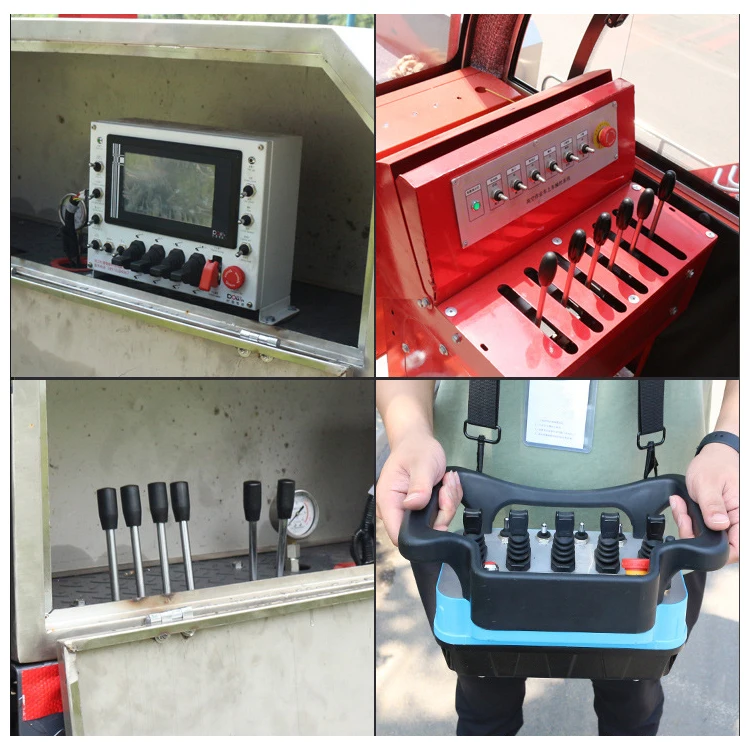

Before hanging: 1065 mm	Operation mode 1: Remote control operation with digital display
After the suspension: 1440 mm	Operation mode 2: manual rocker control
The wheelbase: 3360 mm	Emergency operation: equipped with manual emergency operation
Maximum driving speed :99Km/h	Control system :CAN bus control system
Approach Angle: 27 °	Leveling system: static automatic leveling
Departure Angle: 11	Control voltage :12V
