Высококачественный новый гравийный станок для руды/гранита/известняка китайская заводская цена дробильная машина мелких щеток


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.40 $* 0.68 $*
Aug-16-2025 0.24 $* 0.5 $*
Jul-16-2025 0.33 $* 0.17 $*
Jun-16-2025 0.27 $* 0.95 $*
May-16-2025 0.8 $* 0.8 $*
Apr-16-2025 0.1 $* 0.26 $*
Mar-16-2025 0.55 $* 0.31 $*
Feb-16-2025 0.21 $* 0.53 $*
Jan-16-2025 0.61 $* 0.84 $*

Характеристики

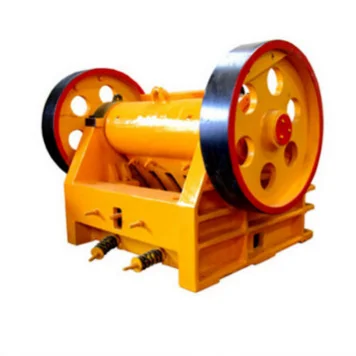

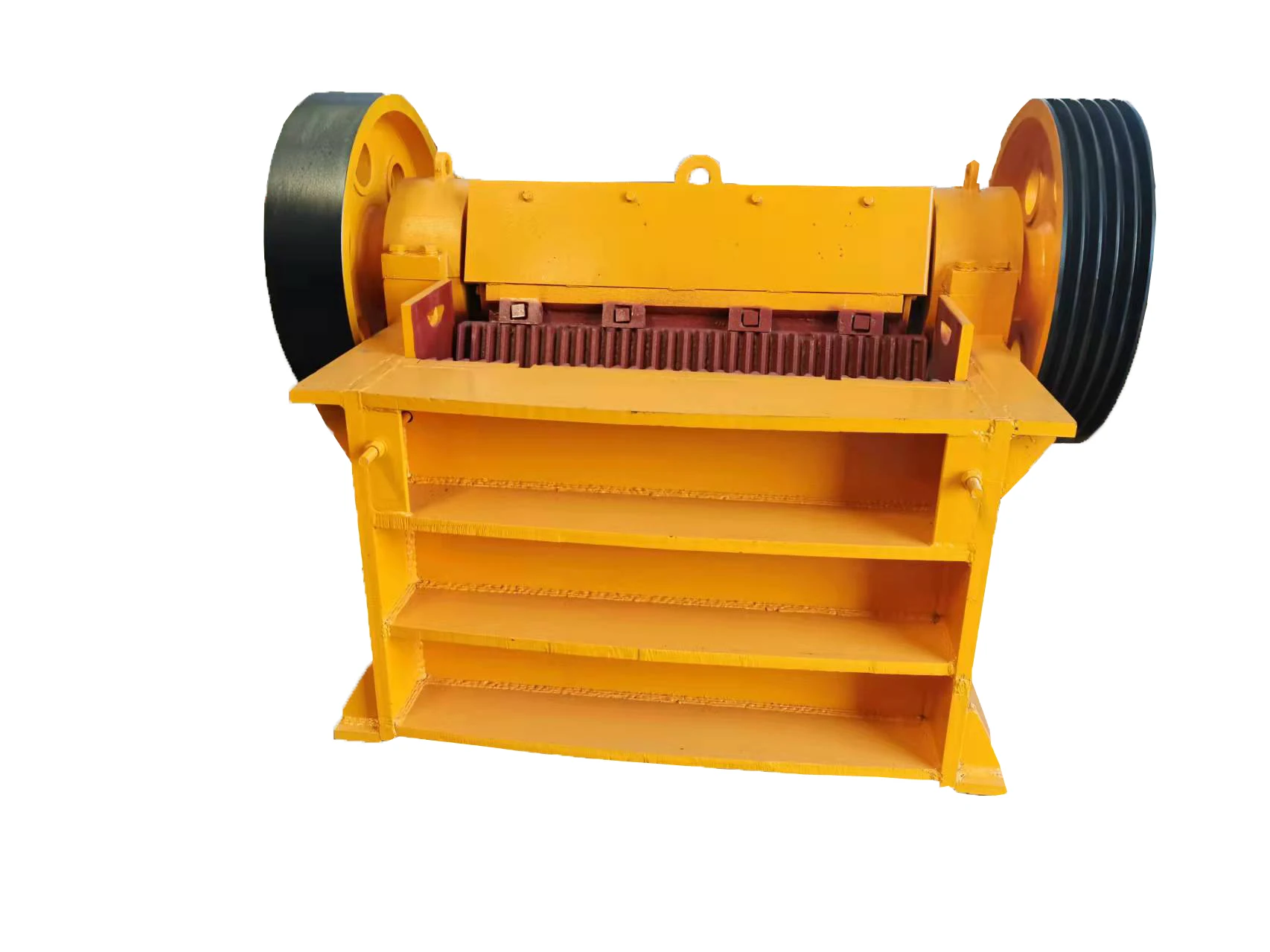

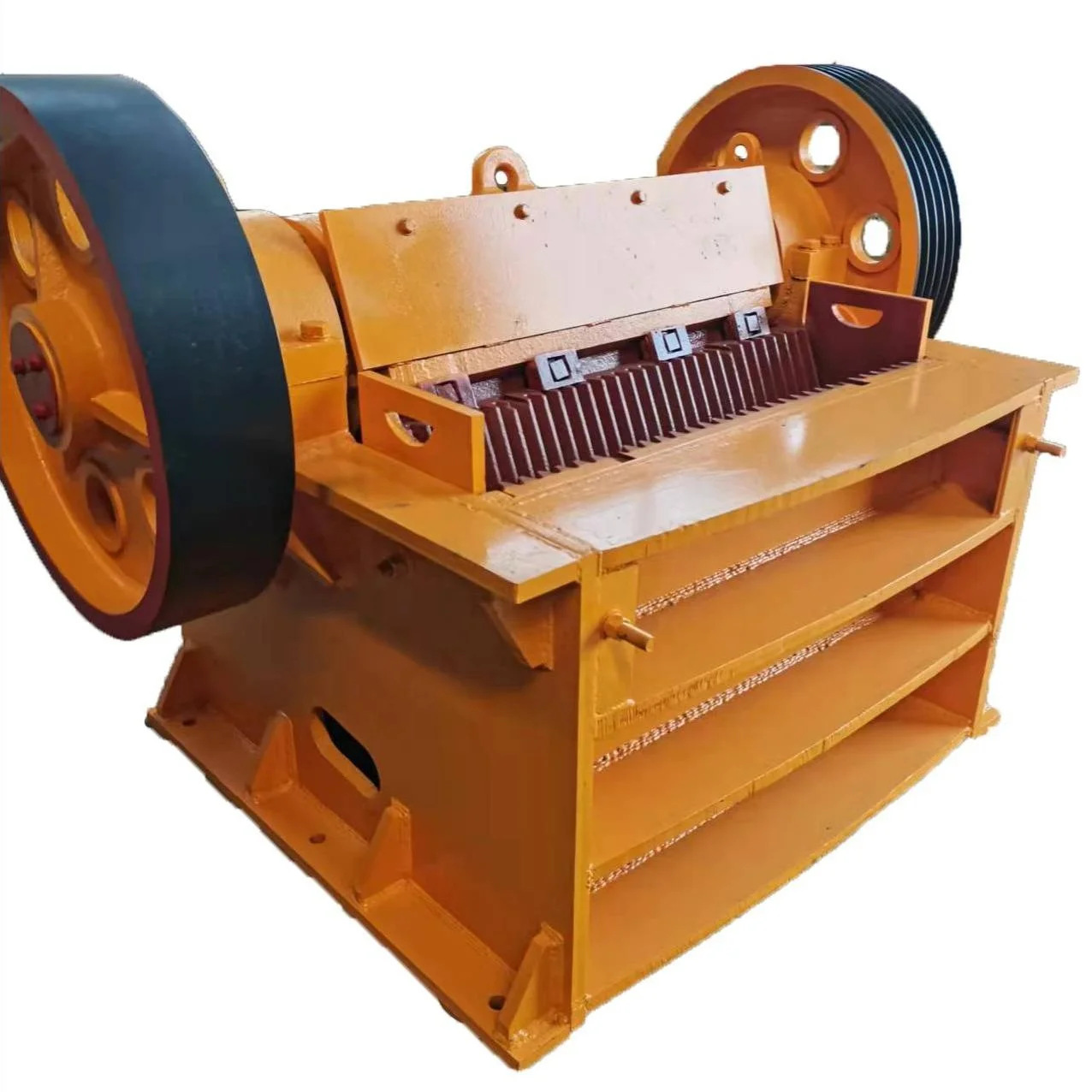

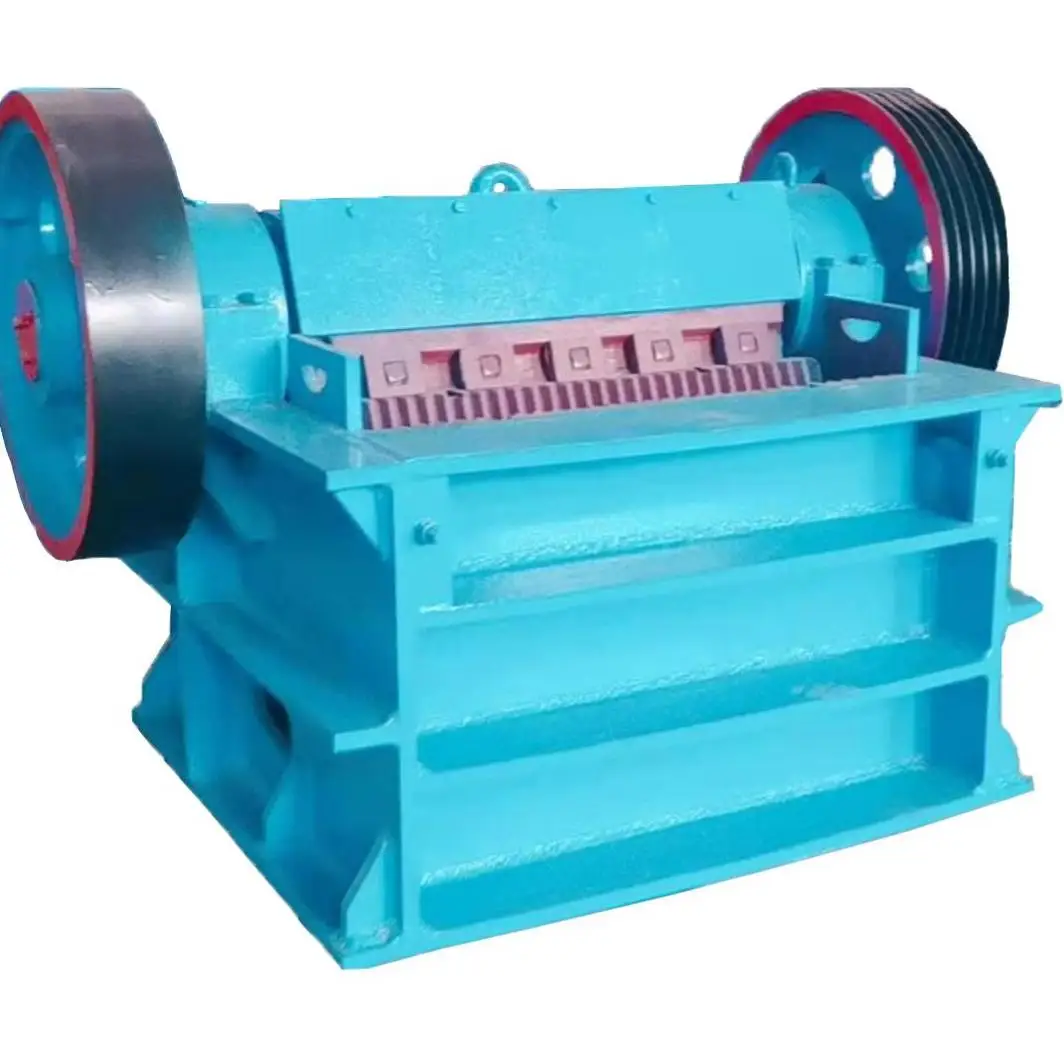

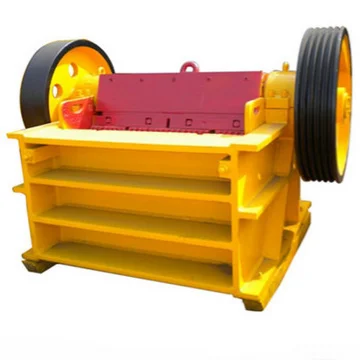

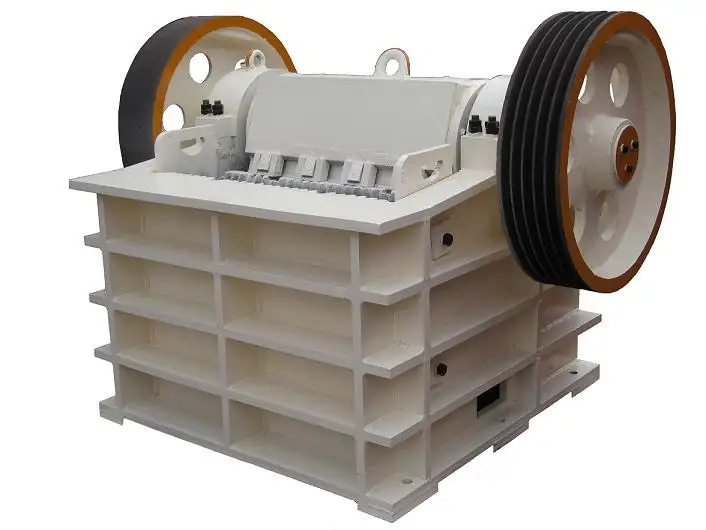

Jaw Crushers have two types: PE and PEX series.PE series jaw crusher is mainly used as coarse crusher. PEX series Jaw crusher(fine jaw crusher), usually used in secondary crushing process for fine crushing, with a capacity of 5-100 tph, feeding size 125-250 mm, output size 10-90 mm, which is suitable for the production of various fine aggregates.It is made of advanced technology and high-quality wear-resistant raw materials. The equipment has good performance, large crushing ratio and high output. It mainly deals with high strength and hardness materials. It is the primary equipment of mine crushing production line and lays a good foundation for subsequent equipment.The design of this new type of jawbone structure is more scientific and reasonable,and the operation parameters,structural form, maintenance and adjustment of the equipment have more advantages.








Material: Granite, marble, basalt, limestone, quartzite, river pebble, iron ore, copper ore, etc
Application field: Sand and gravel yard, mining, coal mining, concrete mixing plant, cement processing and other fields.






About spare parts of the fine jaw crusher
Fine jaw crusher is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate,toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.






About working principle of the fine jaw crusher
When fine jaw crusher machine works, the motor drives the belt and pulley to make the moving jaw move up and down through the eccentric shaft. When the moving jaw rises, the angle between the elbow plate and the moving jaw becomes larger, so as to push the moving jaw plate close to the fixed jaw plate, and at the same time, the material is crushed or split to achieve the purpose of crushing; When the movable jaw goes down, the angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring. At this time, the crushed materials are discharged from the lower opening of the crushing cavity.




model
specification (mm)(width*long)
max feed size (mm)
discharge range (mm)
capacity (t/h)
speed (r/min)
moter power (kw)
weigh (kg)
PE-150
150*250
125
15-45
1.7-5.6
285
5.5
500
PE-200
200*300
180
20-50
3.5-13.5
285
7.5
800
PE-250
250*400
210
20-60
5-22
300
15
2000
PE-400
400*600
340
40-80
18-60
275
30
6000
PE-500
500*750
425
50-100
43-102
275
55
9500
PE-600
600*900
500
65-180
51-145
250
75
16500
PE-750
750*1060
630
80-180
122-223
250
90
25000
PE-900
900*1200
780
95-180
285-430
200
132
38000
PEX-150
150*750
120
18-48
8-25
8.5-28
15
2700
PEX-250
250*750
210
25-60
13-40
22-60
22
5000
PEX-250
250*1000
210
25-60
15-50
25-65
30
6000
PEX-250
250*1200
210
25-60
20-60
30-78
37
7500
PEX-300
300*1300
250
20-90
25-75
45-110
55
11500


   Besides the jaw crusher machine 50-80 t/h, our factory also has the other optional capacities, smaller capacities like 20-50t/h, 10-20 t/h, 3-10 t/h, bigger capacities like 80-120 t/h, 120-200 t/h, welcome to send us your inquiry with your detailed requirements, our team will prepare a complete solution for you with our factory price.













                                        ABOUT US
Zhengzhou Jiangtai Heavy Industrial Machinery Co., LTD, which is a the famous manufacturer of crusher and screen equipment for clients in the following industries: cement industry, crushing and screening industry, beneficiation industry, AAC block industry,and the main equipment mainly include jaw crusher, vertical shaft impact crusher(VSI crusher), impact crusher, cone crusher,vibrating screen, cone crusher, portable crushing plant, sand washing machine, rotary dryer, rotary kiln, magnetic separator, ball mill, flotation machine, rotary dryer, rotary kiln, vertical shaft kiln, cement ball mill, dust collector, and some auxiliary equipment, such as belt conveyor, screw conveyor, bucket elevator, and so on. We have many technical experts for the above mentioned industries, which can make sure the solution we provide can meet the client`s requirements, and possesses the powerful ability in developing the new products. Demands of clients are deemed as our motility, we endlessly develop the new products with high performance, which could satisfy the demands of clients and reach the world level. We highly regard the quality of products,pursue excelsior on the quality of products, and guarantee to produce the high quality product with strict ISO9001:2000 quality management systems. We have perfect after-sale service network. After strict training, the after-dale service engineer could offer clients the rapid maintenance service on demand. Moreover, we have our own foundry plant where lots of spare parts of the crushing and screening equipment are manufactured and plenty stored, which could offer clients spare parts conveniently. As the occupation ratio in domestic market increases, our products have been exporting to Russia, Mongolia, Chile, Media Asia, East Asia, Africa etc. Country and region. We insist innovating constantly, keeping improvement of products, enhancing the reliability of products,aspire to be the global brand in the crushing and screening filed, and be deeply aware of our success is based on the success of clients.
Our company used to be called Zhengzhou Jiangtai Heavy Industrial Machinery Co., Ltd. and now it is called Henan Mingyuan Heavy Industrial Machinery Co., Ltd. Welcome new and old customers to visit our factory!








When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.




We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
