Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-15-2025 | 27370.77 $* | 28739.73 $* |
Aug-15-2025 | 27140.67 $* | 28497.8 $* |
Jul-15-2025 | 22770.2 $* | 23909.34 $* |
Jun-15-2025 | 26680.32 $* | 28014.60 $* |
May-15-2025 | 23230.36 $* | 24392.52 $* |
Apr-15-2025 | 26220.14 $* | 27531.69 $* |
Mar-15-2025 | 25990.93 $* | 27290.12 $* |
Feb-15-2025 | 25760.36 $* | 27048.96 $* |
Jan-15-2025 | 25530.49 $* | 26807.5 $* |
Manufacturer | Shandong Shengrun Automobile CO., LTD. | |

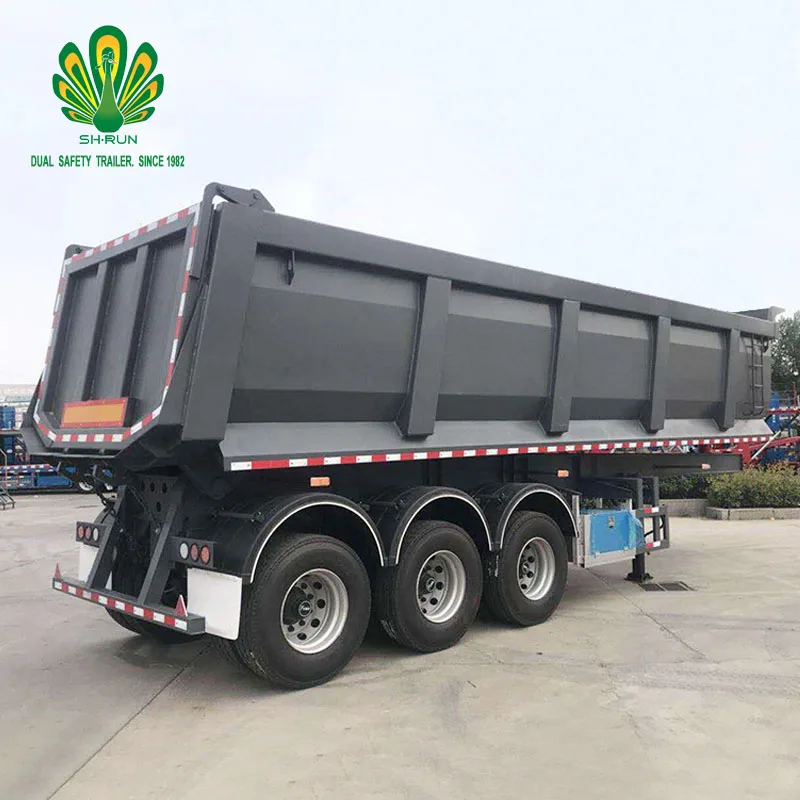

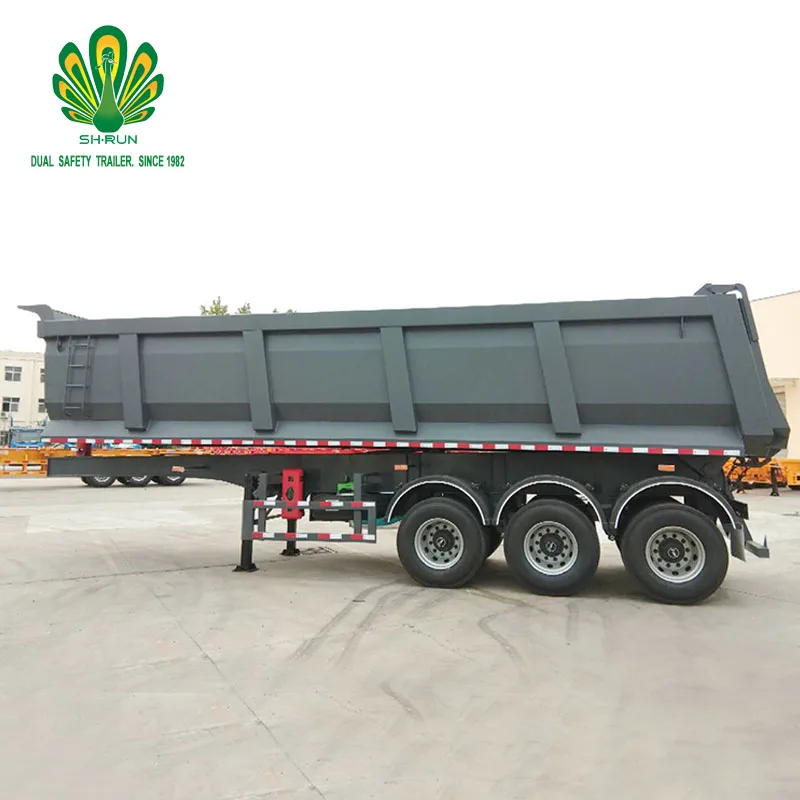

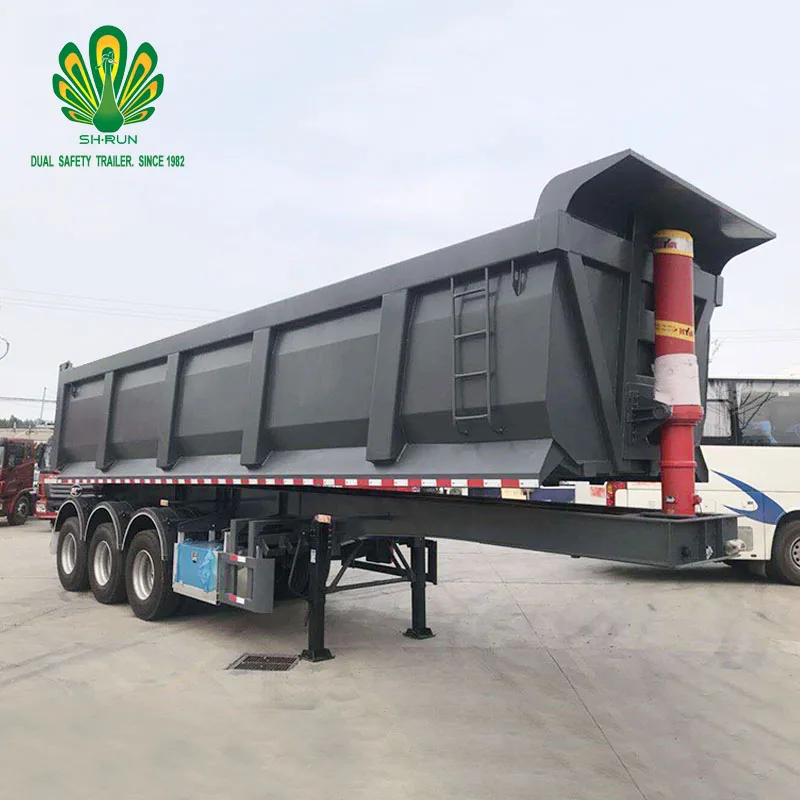

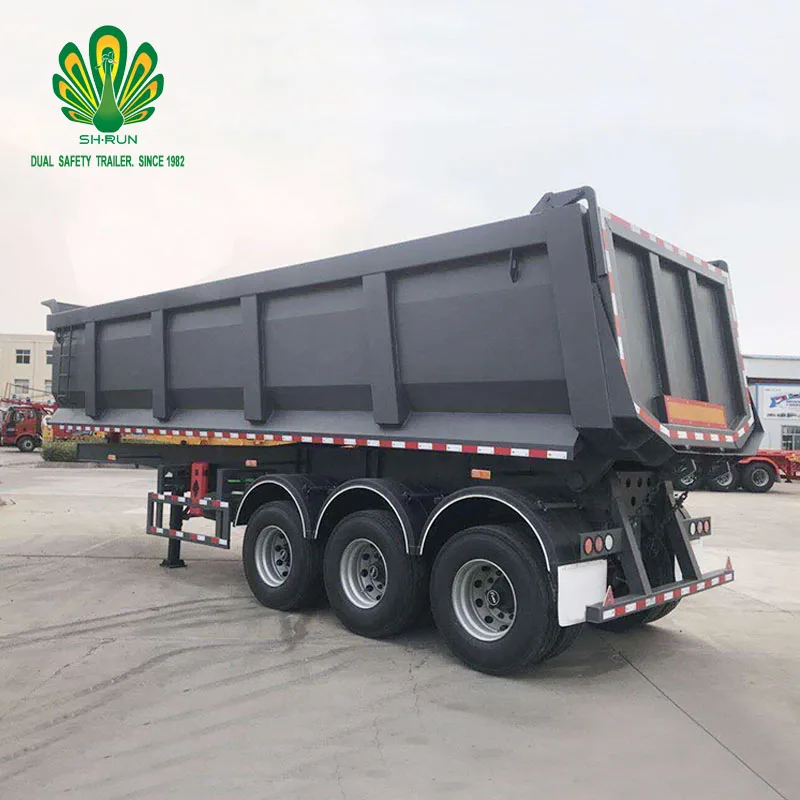

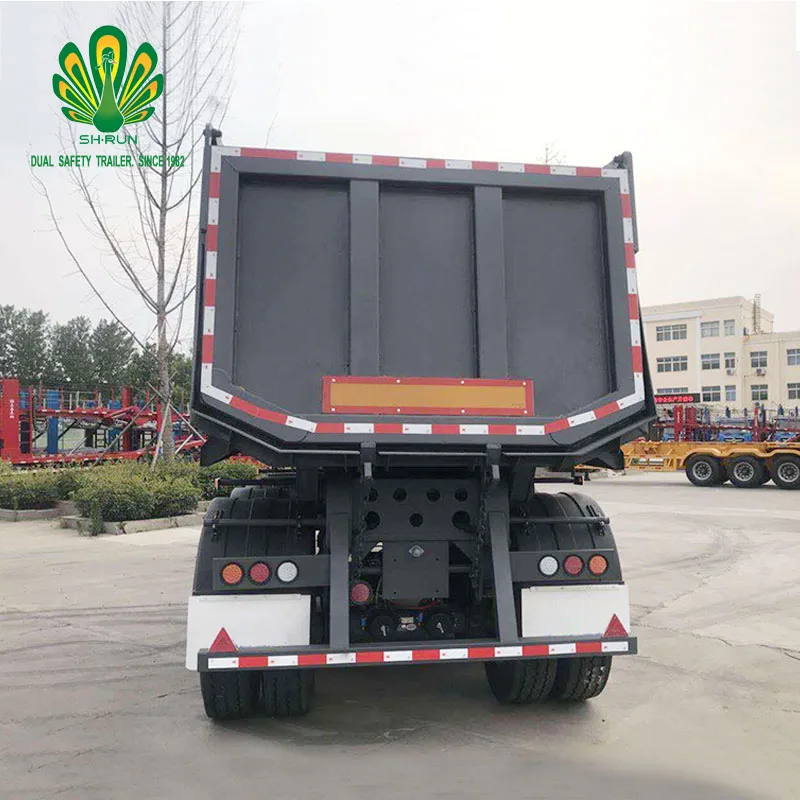

Type | Dump semi trailer | |
Semi trailer Dimension | 11280*2495*3970mm(Outside Dimension)10500*2300*1700(Inside Dimension) | |
Tare Weight | About 10-15T | |
Total Volume | 37m3 or less than 80tons | |
Side wall thicknes(mm) | 3mm-6mm Q235 steel | |
Bottom plate thickness(mm) | 5mm-8mm Q235steel or can be optional | |

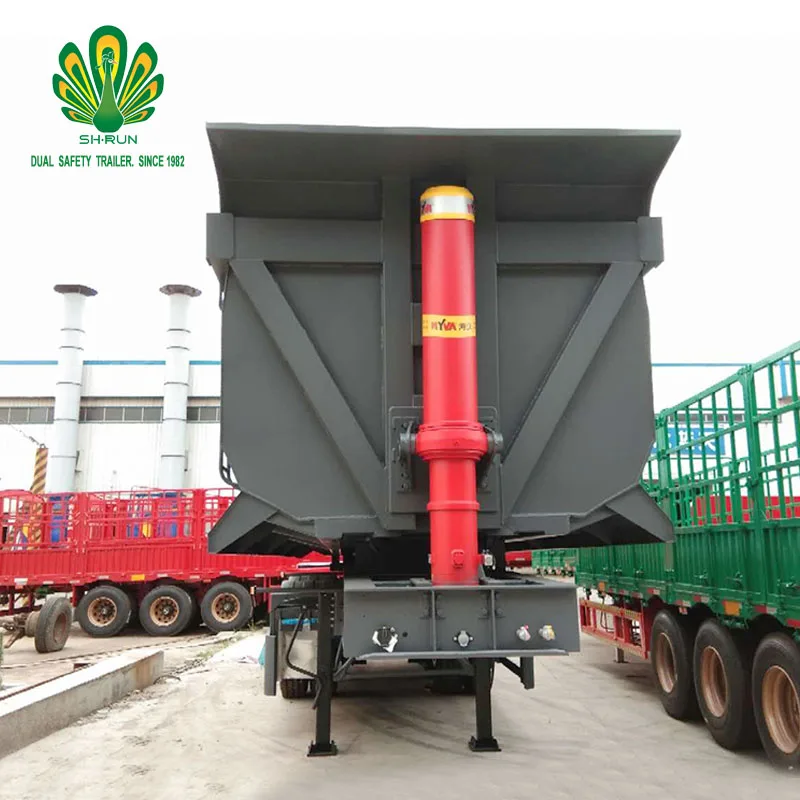

Lifting system | Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder | |
Chassis | ||
Main beam | Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm;Material is Q345B Steel | |
Axle | 13T/16T,FUWA/BPW/Huajing Brand | |
Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 | |
King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type | |
Landing Gear | JOST brand C200T or China brand 28Tons (Double speed) | |
Suspension | Mechanical suspension/America Type/Germany Type | |
Rim | 9.00-22.5/8.00-20/8.5-20China Brand | |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available | |
Pneumatic Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank | |
ABS | Optional | |
Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint | |
Shipping term | Transport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your dump semi trailer |
