Изготовление на заказ для спортивной экшен-камеры 4K DisplayPort IP KVM удлинитель головок и лекарственных средств (FDA с одной головкой V-USB 2 0 аудио виртуальная машина
- Категория: KVM Switches >>>
- Поставщик: Shenzhen,Caratar,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.65 $* | 0.61 $* |
| Aug-18-2025 | 0.58 $* | 0.2 $* |
| Jul-18-2025 | 0.25 $* | 0.7 $* |
| Jun-18-2025 | 0.56 $* | 0.65 $* |
| May-18-2025 | 0.36 $* | 0.55 $* |
| Apr-18-2025 | 0.63 $* | 0.3 $* |
| Mar-18-2025 | 0.58 $* | 0.13 $* |
| Feb-18-2025 | 0.94 $* | 0.9 $* |
| Jan-18-2025 | 0.87 $* | 0.54 $* |
Характеристики

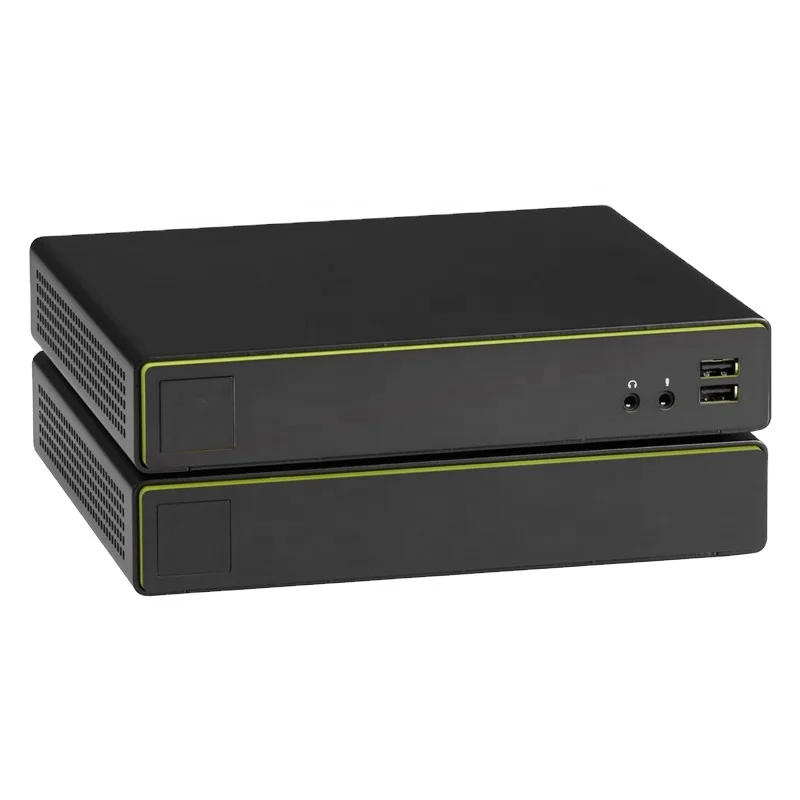

4k DisplayPort IP KVM Extender Kit - Single-Head, V-USB 2.0, Audio, Virtual Machine Access
Everything you need for KVM extension with pixel-perfect 4K60 fps video.
Product Description
PRODUCT FEATURES
- Everything you need for next-generation KVM extension with pixel-perfect 4K 60 fps video is included in this kit: Emerald 4K60 DisplayPort KVM-over-IP Transmitter and Receiver and two SFP+ modules
- 4K video, 10-bit color at 60 fps
- Pixel-perfect video – mathematically lossless
- Transparent USB – connect any USB
- Support audio over DisplayPort, USB and Analog
High-performance KVM extension
Get the industry's highest-quality KVM extension. The 4K Extension Kit gives you everything you need for KVM extension of HD or up to 4K60 DisplayPort 1.2 video as well as transparent USB 2.0 and audio signals over multimode fiber cable.
Digital video at its best
video quality is eye-catching. This KVM system supports pixel-perfect 4K DisplayPort video at 60 Hz. The solution provides image transmission with mathematical lossless compression that visualizes every single pixel at 60 fps with 10-bit color depth.
Simple system access
This kit is perfect for firms looking for compatible KVM extenders to secure workstations in a separate location from their monitors. This gives you easier system access for IT maintenance. Additionally, it reduces fan noise, heat emissions, and electric interference in the workplace.
Two Powerful SFP+ included
These SFP+ optical transceivers enable you to adapt SFP+ slot to a fiber interface for faster network speeds. They are compact, interchangeable, and hot-swappable. The SFP+ modules feature a metal enclosure that helps shield communications from EMI interference.
| Humidity | Transmitter & Receiver: 5 to 95% non-condensing |
| Encryption | Transmitter: Secure Sockets Layer (SSL) over a TCP/IP up to 128-bit for transmitter to receiver with virtualized targets, depending on configuration; Receiver: Secure Sockets Layer (SSL) over a TCP/IP up to 128-bit for transmitter to receiver with virtualized targets, depending on configuration |
| EDID Support | Transmitter: Internal EDID table in transmitter (can be updated from a receiver or manager) Receiver: Internal EDID table in transmitter (can be updated from a receiver or manager) |
| Operating Temperature | Transmitter & Receiver: 32° to 104°F (0° to 40° C) |
| Operating Systems Supported | Transmitter & Receiver: Microsoft Windows Vista, XP, Windows 7, Windows 8, Server 2003, Server 2008, Server 2012, Linux, Solaris, Mac OS |
| Storage Temperature | Transmitter & Receiver: -4° to 140°F (-20° to 60° C) |
| Industry Certifications | Transmitter & Receiver: FCC, CE, RoHS |
| Power | Transmitter: External desktop-style adapter, 100–240 VAC input, 12VD C, 3A connection to unit; Receiver: External desktop-style adapter, 100–240VAC input, 12VDC, 3A connection to unit |
| Imported | |
| Distance Supported Imported | Transmitter: Distance between TX and RX: In IP mode : Unlimited using IP rules; In DX mode: CATx: 3 2 8 ft. (100 m); Fiber: 9 8 4. 2 ft. to 6 .2 mi. (300 m to 10 km) , based on SFP used; Receiver: Imported Distance between TX and RX: In IP mode: Unlimited using IP rules; In DX mode: CATx: 3 2 8 ft. (100 m); Fiber: 9 8 4. 2 ft. to 6 .2 mi. (300 m to 10 km) , based on SFP used |
| Operation Imported | Transmitter: Default IP Address: 192.16 8.1.22; Default Username: admin; Default Password: Blank password by default, just press Enter key; Encryption: Secure Sockets Layer (SSL) over a TCP/I P up to 128-bit for transmitter to receiver with virtualized targets , depending on configuration; Receiver: Default IP Address: 192.16 8.1.22; Default Username: admin; Default Password: Blank password by default, just press Enter key; Encryption: Secure Socket s Layer (SSL) over a TCP/I P up to 128-bit for transmitter to receiver with virtualized targets, depending on configuration |
| Resolution Imported | Transmitter: 4096 x 2160 @ 60 Hz Receiver: 4096 x 2160 @ 60 Hz |
| Item Specifications | |

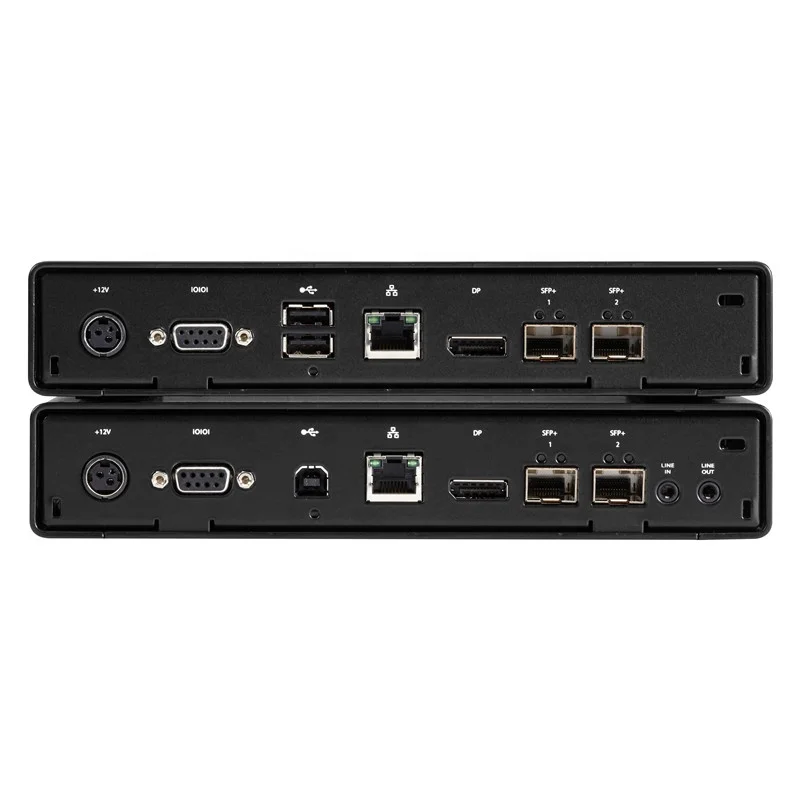

| Connectors | Transmitter: (1) DisplayPort, (1) USB Type B, (2) 3.5mm audio jack, (1) DB9 serial, (1) RJ45, (2) SFP+ slot, (1) Power; Receiver: (1) DisplayPort; (4) USB Type A, (2) 3.5mm audio jack, (1) DB9 serial, (1) RJ45, (2) SFP+ slot, (1) Power |
| Dimensions | Transmitter: 1.5"H x 8.5"W x 7.4"D (3.9 x 21.6 x 18.7 cm); Receiver: 1.5"H x 8.5"W x 7.4"D (3.9 x 21.6 x 18.7 cm) |
| Indicators | Transmitter: (1) single bi-color LED (red/green); Receiver: Imported (1) single bi- color LED (red/green) |
| Weight | Transmitter: 2.55 lb (1.16 kg); Receiver: 2.55 lb (1.16 kg) |
| Physical | |
| Housing | Transmitter: Aluminum outer case with plastic bezel Receiver: Aluminum outer case with plastic bezel |
Product Includes:
- Transmitter
- Receiver
- (2) SFP+ (LSP421)
This product works with:
NOTE(s):
Compatibility Note:
- 4K_Firmware_v6.0 firmware is compatible with other 6.0 endpoints.
- can connect to SE/PE Transmitters using 6.x firmware or higher, but not to an Emerald SE/PE Receiver
- Firmware 6.0 is not compatible with Firmware 1.4.
- cannot be accessed by any version of RemoteApp to date.
