Electric Adjusted Light Size  Brain Surgery Equipment Ceiling Mounted LED Surgical Lights



Light (Focus)Size adjusted by electric controlling

Green Light ENDO Mode

ENDO Mode

R9 Mode

Automatically Illumination Compensation: (*Setting Illumination in middel level)when some body standing ender the lamp head ,the probe will find it and adjust the illumination up



1. Using LEDs to illuminate demanding environments is becoming ever more common.

2. Low heat generation, minimal power consumption and an almost unlimited life expectancy.
3. Light emitting diodes have a whole range of technological, economic and ecological advantages.



Main Features:

1. Precise: Uniform, homogeneous lighting in surface and deep cavity procedures.
2. Simple: Ergonomic, sterile operating concept allows for the simple and flexible control of all functions.
3. Efficient: Environmentally proactive, low power consumption and durable, minimizeresources impact.
4. Durable: Almost unlimited LED life expectancy delivers tremendous reliability and minimize resources impact.



Advantages:

1. Unmatched shadow management optimizes concentration and surgical team efficiency.
It has harnessed the far-reaching potential of the multi-lens matrix to virtually eliminate shadows. Its overlapping fields of light and multiple patterns - selectable based on the surgical situation - minimize shadows and redirect the full selected intensity to the surgical site.The result is up to 25% more light in deep cavity situations.
2.Sterile control operations
One of the innovative characteristics: The sterile control concept enables the surgical team to operate all important functions intuitively, quickly and simply - either on the light heads or via a wall control panel.
3. On and off-switch
Dimming with integrated Endo mode
Shadow management
Optimized air flow design for better hygiene

4.The R9 mode : raise the R9  index, to meet the surgery when there's a lot of bleeding

5.The green light ENDO: be suitable for brain surgery

6. 160,000 Lux for L4 LED lamp head





Main Tech	HF-L4C LED
Illuminance	L4C  :≥160,000Lux
Color temperature	3500±300K,4000±300K,  4500±300K,5000±300K
Color reduction index(Ra)	96 ,R9 97, R13.98
Total irradiance	LED4:380W/m²
Size of light field	125~250mm
Dimming type	Analog dimming
Total LED bulb  quantity	224pcs
Green ENDO	YES
R9 Mode (Red)	YES
Service life of illuminant	50,000h
Power supply voltage	AC110-240v,50/60Hz

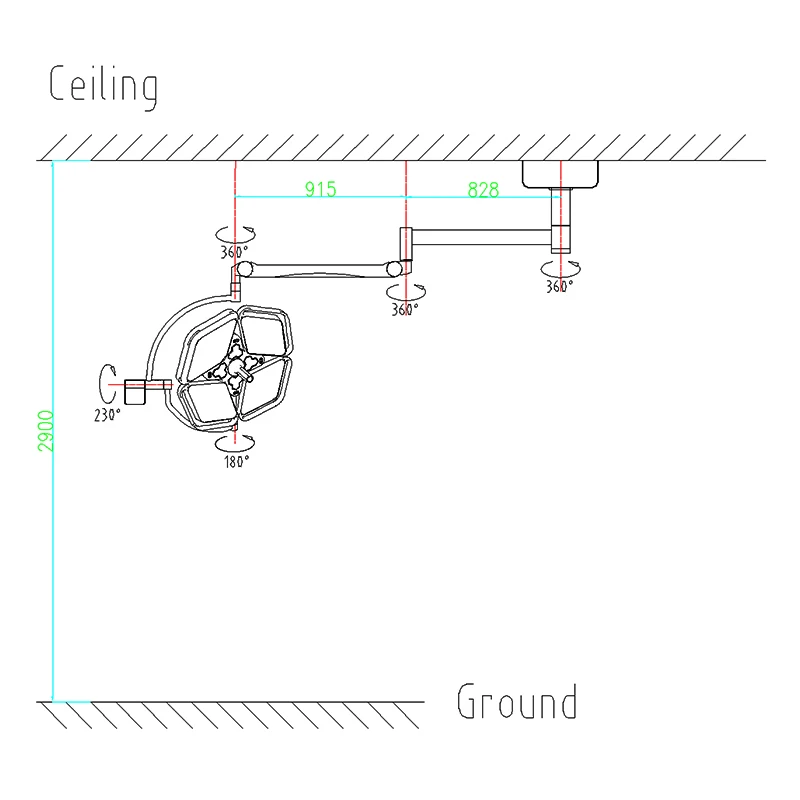

Lowest height of installation	2900mm
