Мини-выключатель MCB
- Категория: Circuit Breakers >>>
- Поставщик: Zhejiang,Zhiyi,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.41 $* | 0.6 $* |
| Aug-17-2025 | 0.65 $* | 0.2 $* |
| Jul-17-2025 | 0.31 $* | 0.99 $* |
| Jun-17-2025 | 0.24 $* | 0.30 $* |
| May-17-2025 | 0.71 $* | 0.4 $* |
| Apr-17-2025 | 0.7 $* | 0.72 $* |
| Mar-17-2025 | 0.62 $* | 0.69 $* |
| Feb-17-2025 | 0.38 $* | 0.86 $* |
| Jan-17-2025 | 0.72 $* | 0.78 $* |
Характеристики
General Introduction
DZ47-63 series miniature circuit breaker is used in lighting distribution system or motor distribution system. The product is neoteric in structure, light in weight, reliable and excellent in performance. The frame and parts adopt plastic of high fire-resistant and shockproof. The products comply with IEC60898.
Specification
| Design according to | IEC/EN 60898-1 |
| Characteristic | B, C, D |
| Rated voltage | AC 230 / 400V |
| DC 48V Single-pole, 2 pole in series: 96VDC | |
| Rated frequency | 50/60Hz |
| Rated current | 6,10,16,20,25,32,40,50,63A |
| Rated current interrupting rating | B,C,D curve----6000A |
| Number of poles | 1,1P+N, 2, 3, 3P+N, 4 |
| Endurance | ≥ 20,000 operations |
| Power inlet mode | Upcoming |
| Allowable ambient temperature range | -40ºC~75ºC |
| Per pole width dimension | 13mm |
| Installation method | IEC standard rail 35mm |
| Enclosure protection grade | IP20 |
| Dual function terminals on both sides | Open type / lift type |
| Terminal protection | Finger and hand safe |
| Terminal wiring capacity | 1-25 mm² |
| Terminal screw tightening torque | 2-2.5 Nm |
| Busbar thickness | 0.8-2 mm |
| Installation angle | function is independent of position |
Dimension

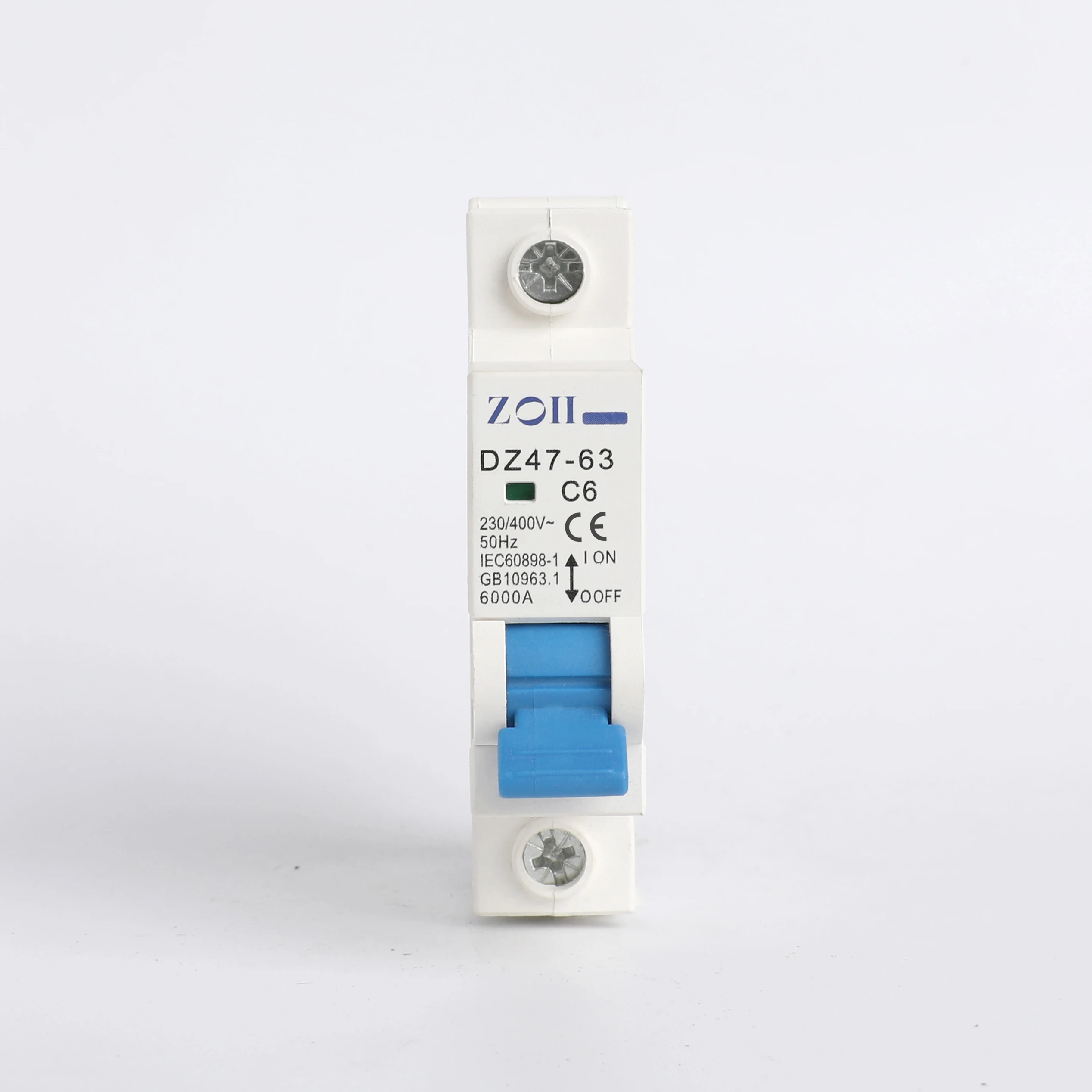

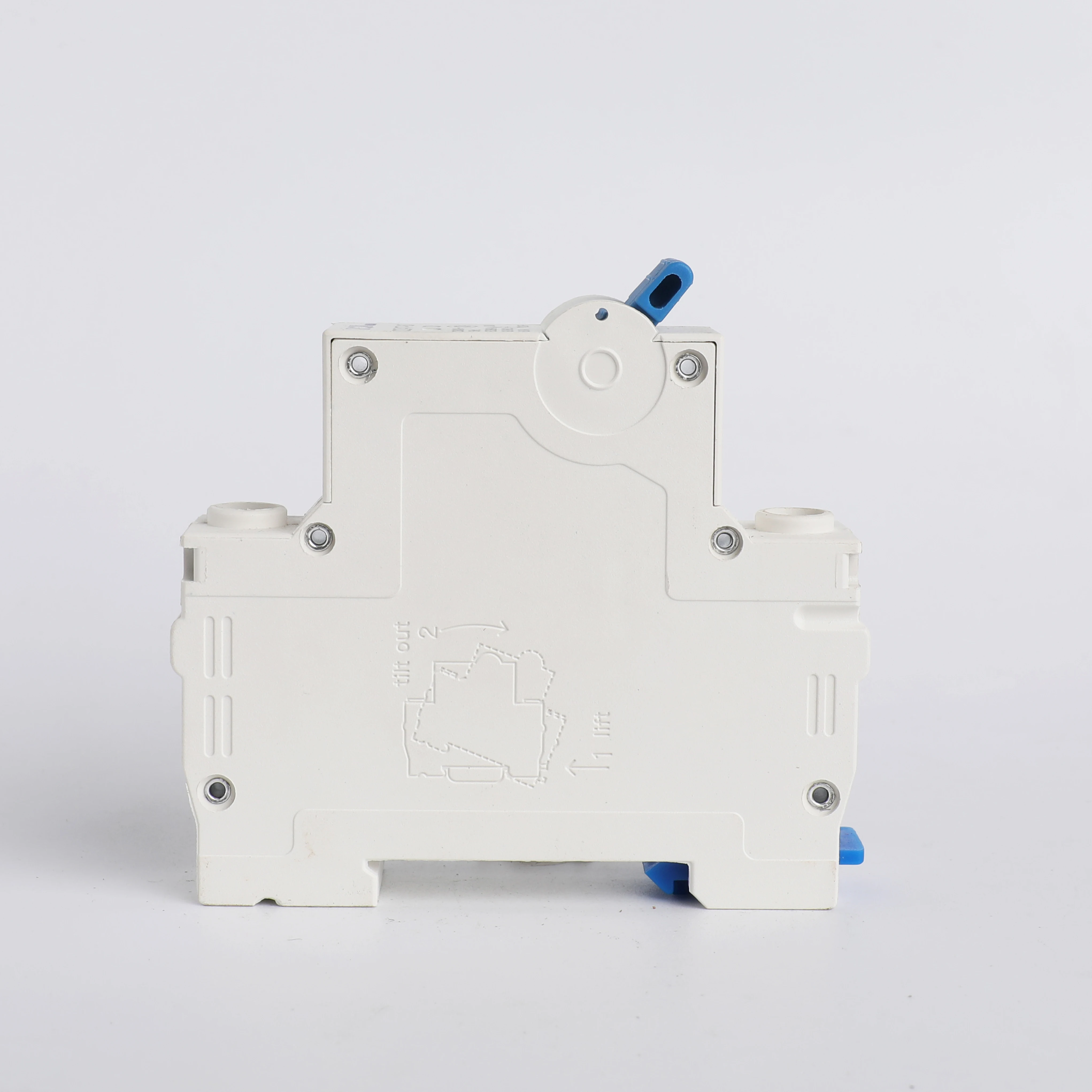

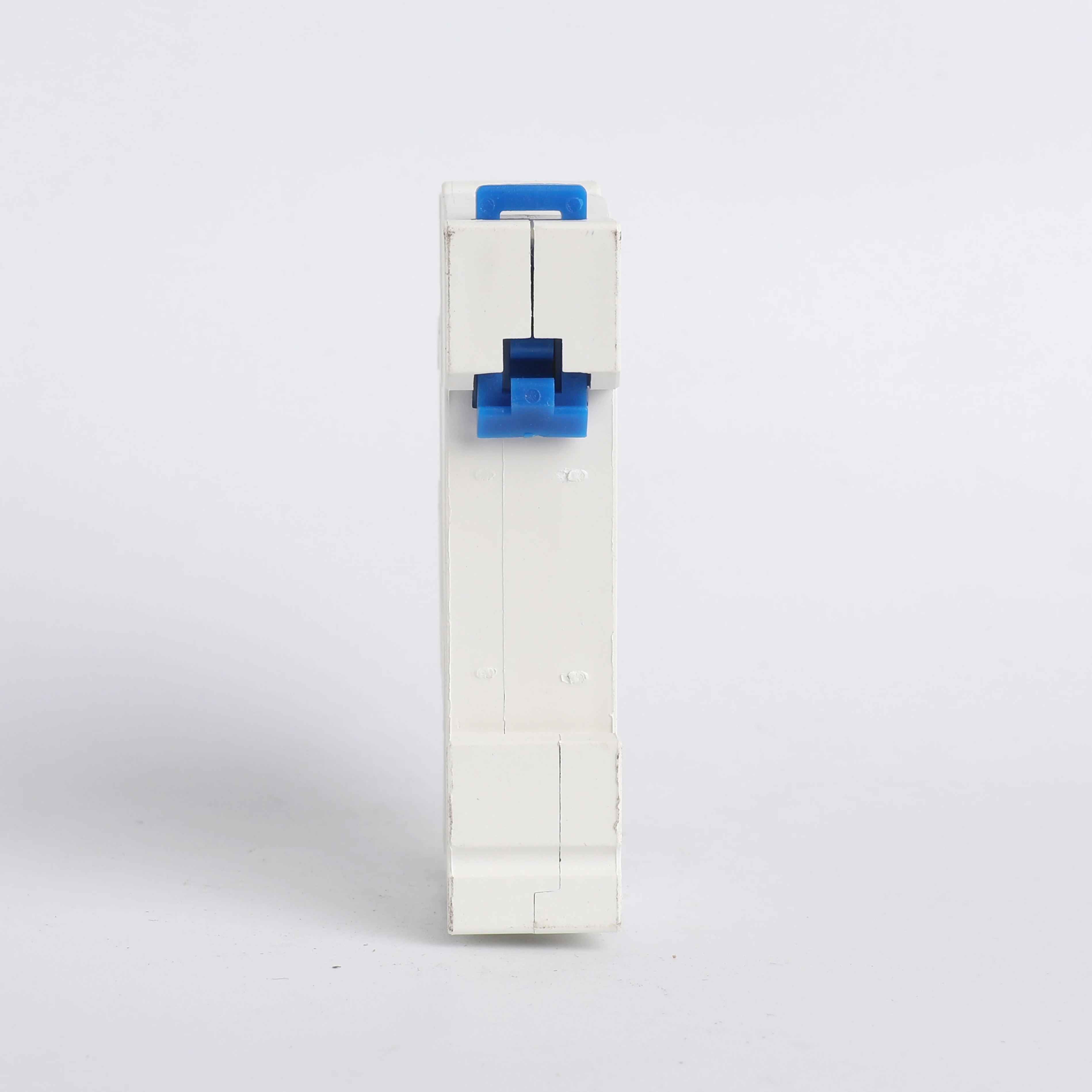

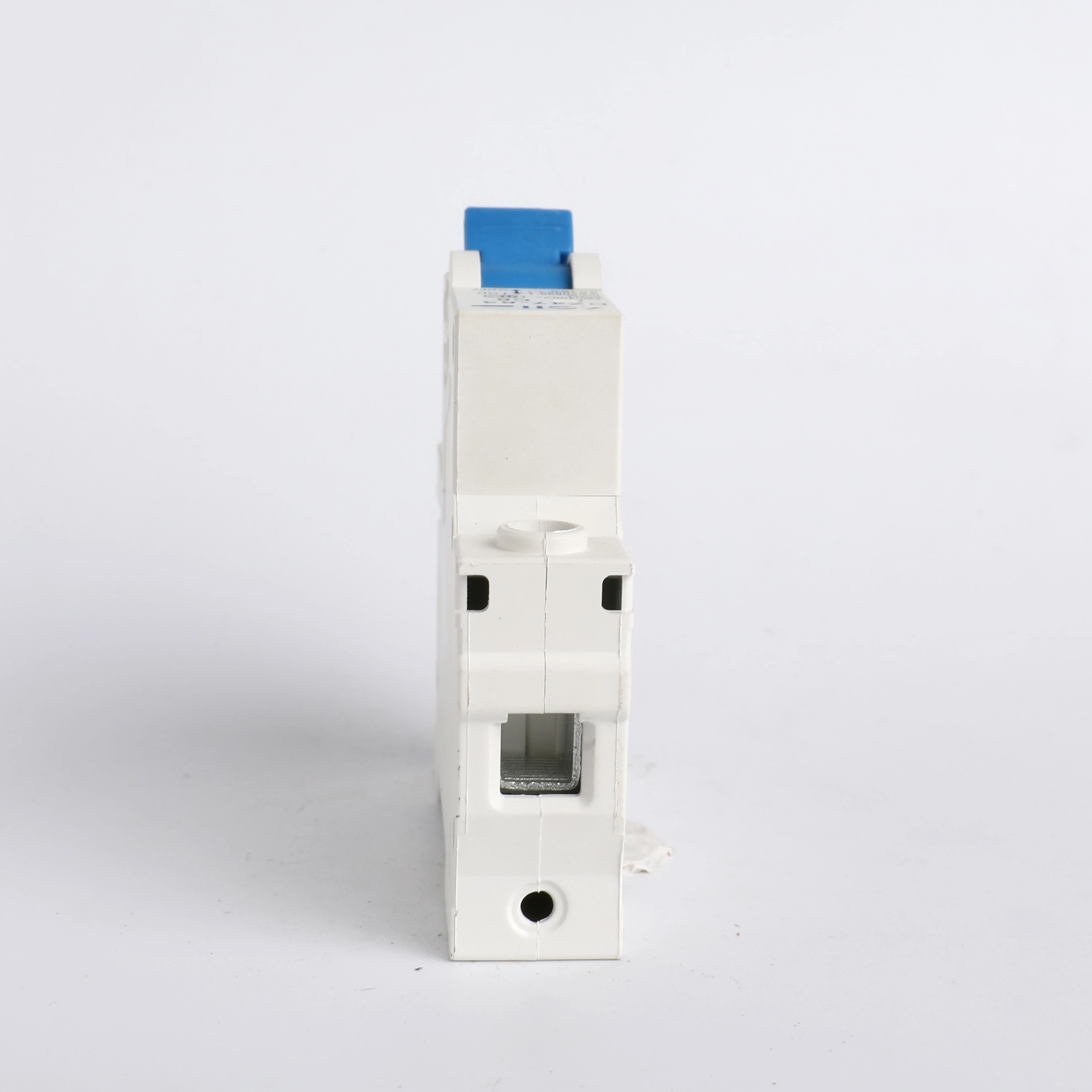

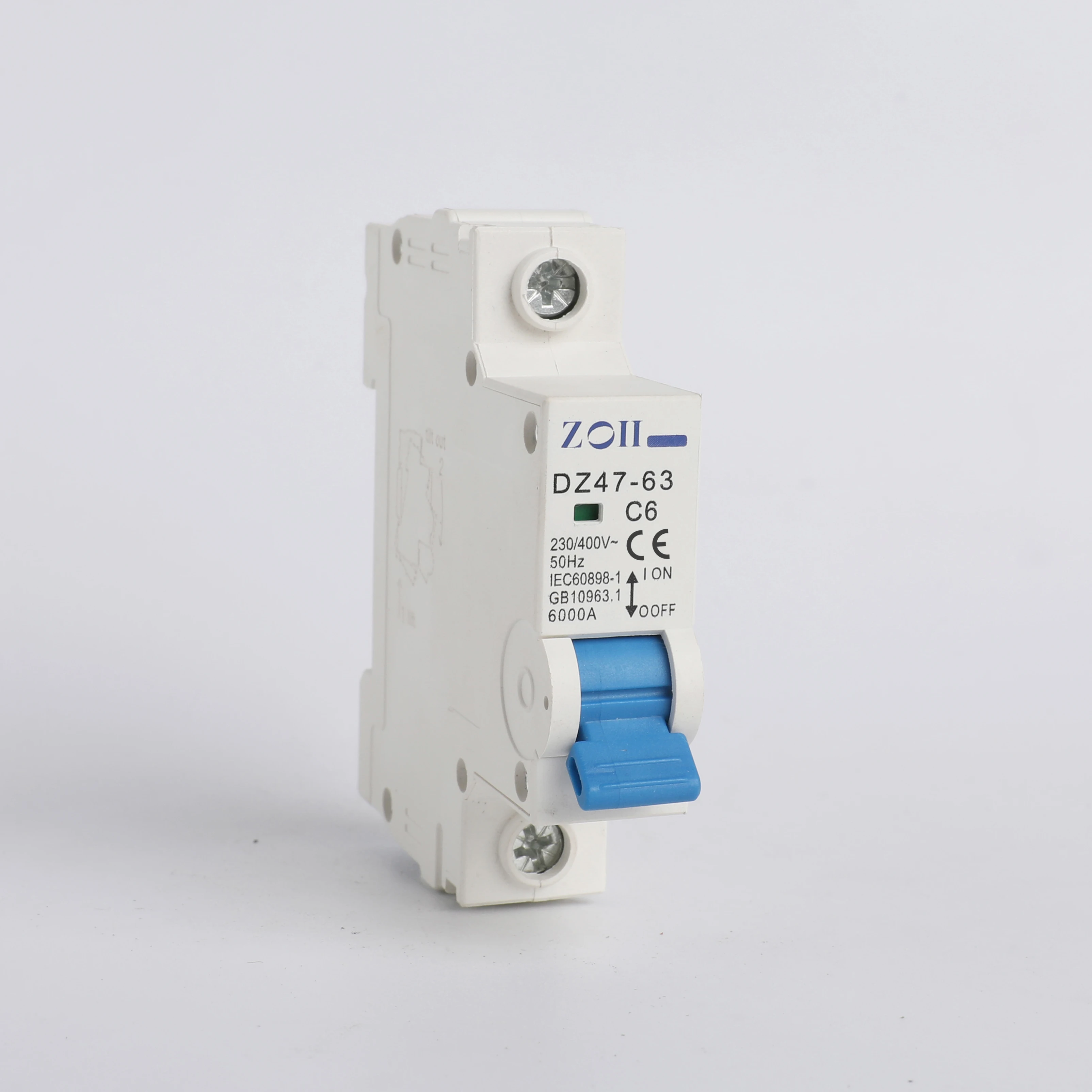

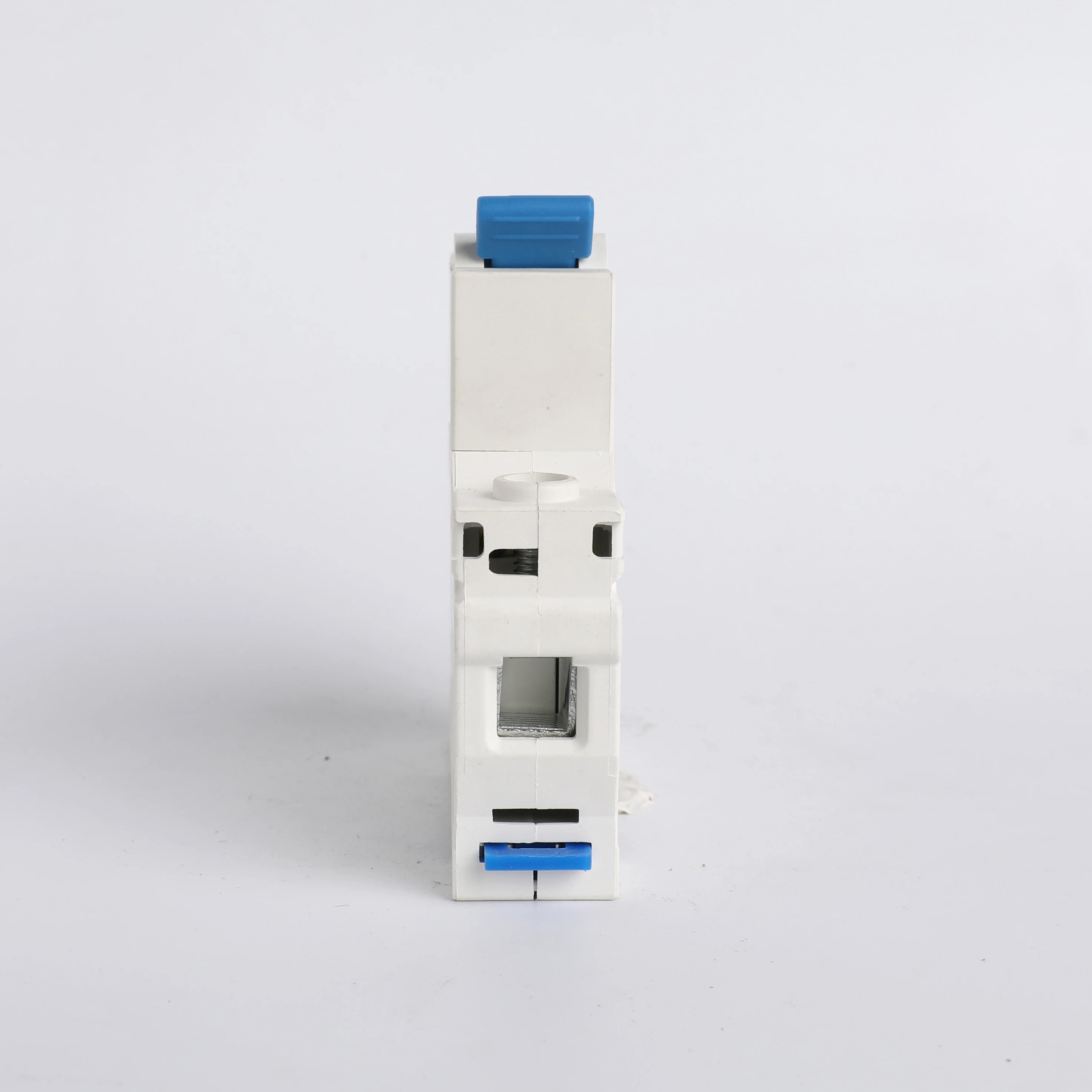

Images
Feature
The handle being sealable or equipped with padlock bracket avoids dangerous operation changes (ON / OFF)
Clear indication of the contact position
Energy limiting class: 3
The emission of ionized gases is limited to the severest restrictions: 45 mm grid distance
Suitable for household or similar applications in accordance with:
IEC 60898-1, tripping characteristics B, C and D.
