Product Overview
Meat sausage making machine

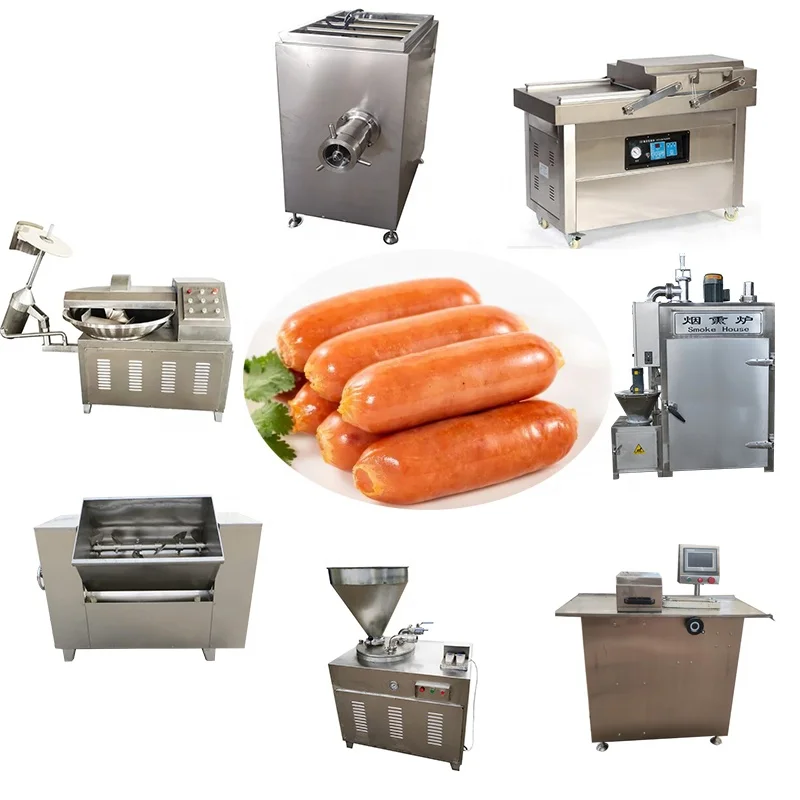

The sausage processing plant is included meat grinding machine,meat mincer machine,sausage filling machine,sausage tying machine,sausage smoking machine.The capacity range is from 100kg/h to 500kg/h.We can customized the production line according to your sausage processing technique.
PRODUCT SPECIFICATIONS

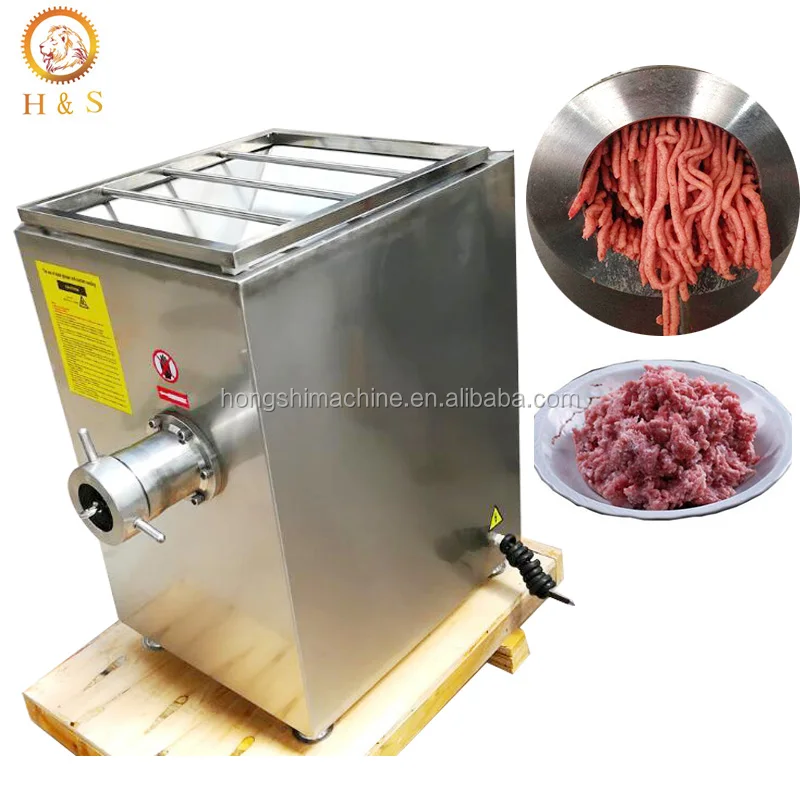

1.Meat grinder machine
The meat grinder machine push the raw meat in the hopper to the pre-cut plate in the cutter box by the rotating screw, and cuts the meat by the shearing action formed by the rotating cutting edge and the orifice of the orifice plate. And under the action of the screw pressing force, the finished meat is continuously discharged outside the orifice plate.
Model | HS-G100 |
Power | 5.5kw |
Capacity | 500kg/h |
Dimension | 850*500*860mm |
Weight | 500kg |
Material | stainless steel |
2.Meat mincer machine
The machine adopts cutting function of stripping-comb's high speed, bowl cutter chops meat and accessories into meat paste or the meat mud, can also auxiliary materials, borneo, water and meat or meat mix together evenly. It ensures that the meat product has good cutting fineness, small temperature rise and short mixing time, which improves the emulsification effect, elasticity, fineness and yield of meat products.
Model | HS-M20 | HS-M40 | |
Power | 2.75kw | 5.5kw | |
Capacity | 20KG/batch | 30KG/batch | |
Mincer time | 10minutes/batch | 10minutes/batch | |
Material | stainless steel | stainless steel | |
Cutting speed | 1440/2980RPM | 1440/2980 | |
Dimension(mm) | 800*650*900 | 1100*865*1200 | |
Weight | 220kg | 480kg | |
3.Meat mixing machine
Meat mixing machine has the feature of high efficient and easy to operate.The machine can be stirred and mixed with stuffing, bulk and sauce. The meat after stirred is more viscosity and elastic, and the special-designed fan-shaped agitator can make meat more tender.
Model | BX-50L | BX-100L |
Power | 1.1KW | 1.5kw |
Capacity | 50KG/batch | 100KG/batch |
Stirring speed | 75rpm | 75rpm |
Voltage | 380v | 380v |
Size | 800x350x760mm | 200x450x850mm |

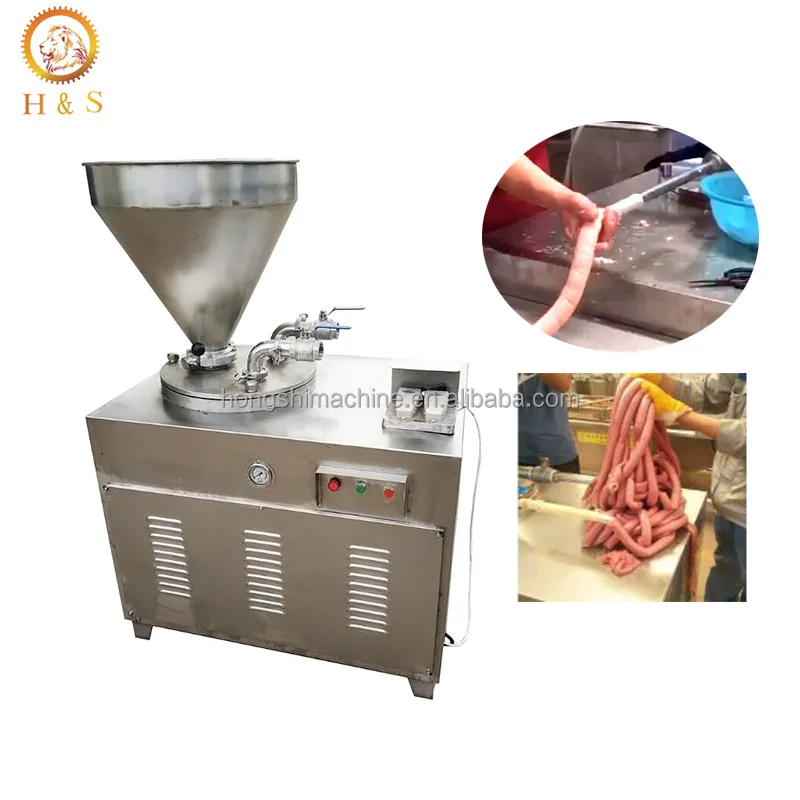

4-1.Sausage filling machine
Sausage filling machine is one of the most important machine to make sausages.It can be used for filling large, medium and small sausage with various specifications.The machine has the feature of beautiful appearance, excellent workmanship, convenient operation and safe and reliable use. The hopper, valve, enema tube and machine outer are made of high quality stainless steel which meet food hygiene requirements.
Model | HS-F30 | HS-F50 |
Power | 1.5kw | 1.5kw |
Hopper volume | 30L | 50L |
Sausage diameter | 12-48mm | 12-48mm |
Capacity(kg/h) | 200-300 | 500-600 |
Dimension(mm) | 1050*670*1300 | 1050*700*1400 |
4-2.Automatic pneumatic sausage filling and kinking machine
Pneumatic sausage kinking machine use advanced pneumatic and photoelectric control principles, it realizes continuous, quantitative and automatic filling of various intestinal foods, which is more accurate and more efficient.
Model | HS-P100 |
Kinking speed | 100pcs/minute |
Filling range | 3-500g(adjustable) |
Air compressor | 0.5Mpa |
Hopper volume | 57L |
Dimension | 700x570x1480 |

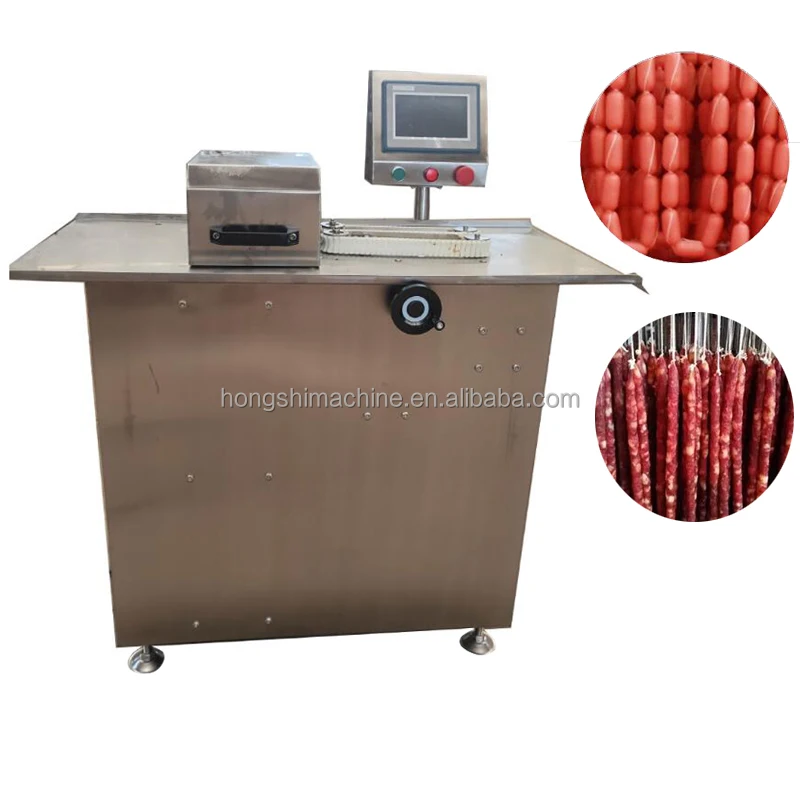

5.Sausage tying machine
Sausage knotting machine adopts servo motor and automatic control system, which has the advantages of high efficiency, easy control, and saving production materials.The length and diameter of the product can be adjustable according to customer requirements.
Model | HS-SA1 | HS-SA2 |
Capacity | 300-500 section/h | 500-700 Section/minute |
Sausage diameter(mm) | 9-40 | 10-35 |
Sausage length(mm) | 20-400 | 20-400 |
Dimension | 1150*500*750 | 1200*850*1300 |
Weight | 100kg | 130kg |

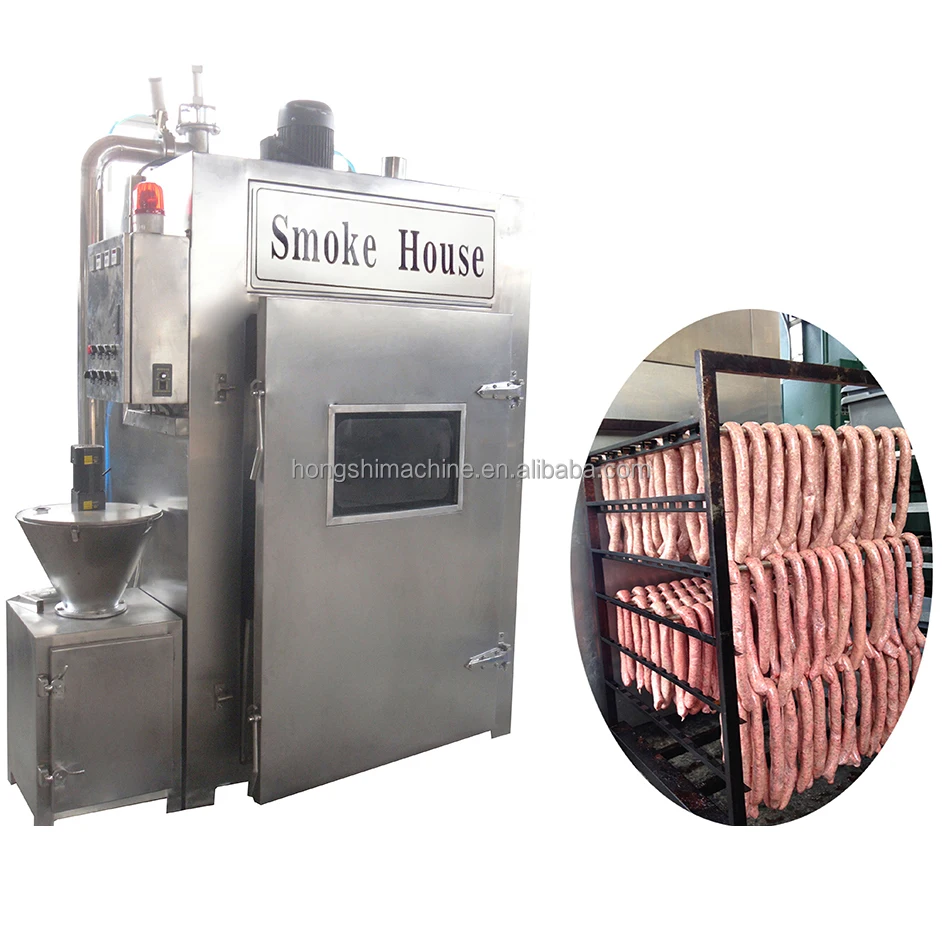

6.Sausage smoking machine
Sausage smoking machine is consisted of a smoke stove, control cabinet,generator, and trolley. The key components are a complete circulation system consisting of pipes, heat exchangers and outlet passages. The mixture of smoke and hot air in the tank forms a vortex area under the action of two sets of circulating fans, so that the mixed gas is balanced and evenly distributed at an appropriate speed,thus can make suspended meat mature and sterilized.
Model | HS-M50 | HS-M100 |
Capacity | 50kg /time | 100 kg/time |
Electricty power | 9.2 kw | 10.5 kw |
Steam pressure | 0.1～0.2 Mpa | 0.1-0.2 Mpa |
Furnace temperature | <100℃ | <120℃ |
Size (mm) | 1200*1000*1680 | 1700*1050*1978 |
Weight | 670kg | 870kg |
