ALION высококачественный Промышленный автоматический механический переключатель времени для лестницы
- Категория: Timers >>>
- Поставщик: Alion,Holding,Group,Zhejiang,Imp.&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.0 $* | 0.54 $* |
| Aug-17-2025 | 0.11 $* | 0.69 $* |
| Jul-17-2025 | 0.82 $* | 0.10 $* |
| Jun-17-2025 | 0.72 $* | 0.70 $* |
| May-17-2025 | 0.89 $* | 0.11 $* |
| Apr-17-2025 | 0.20 $* | 0.60 $* |
| Mar-17-2025 | 0.37 $* | 0.86 $* |
| Feb-17-2025 | 0.69 $* | 0.0 $* |
| Jan-17-2025 | 0.62 $* | 0.45 $* |
Характеристики
Products Description
Focus On Time Control For 24 Years

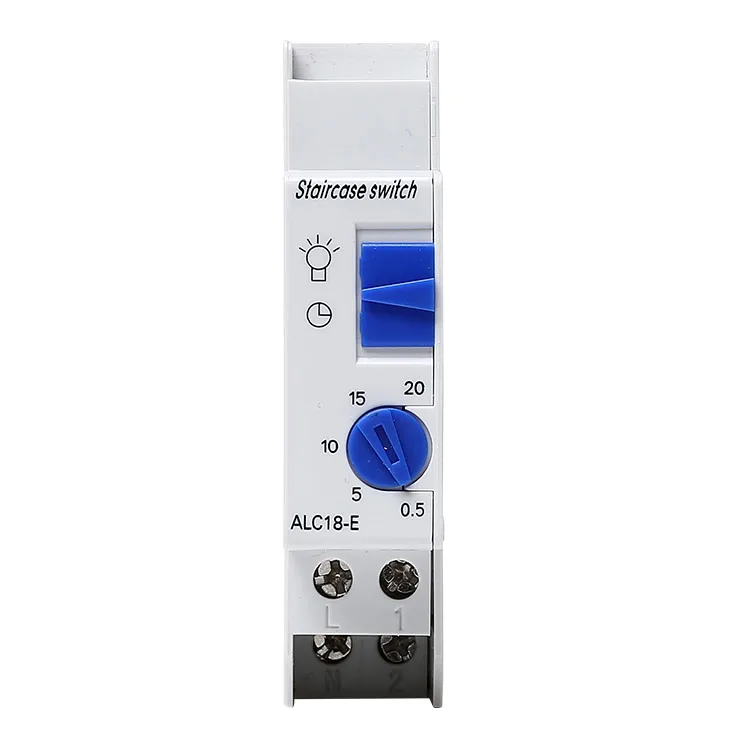

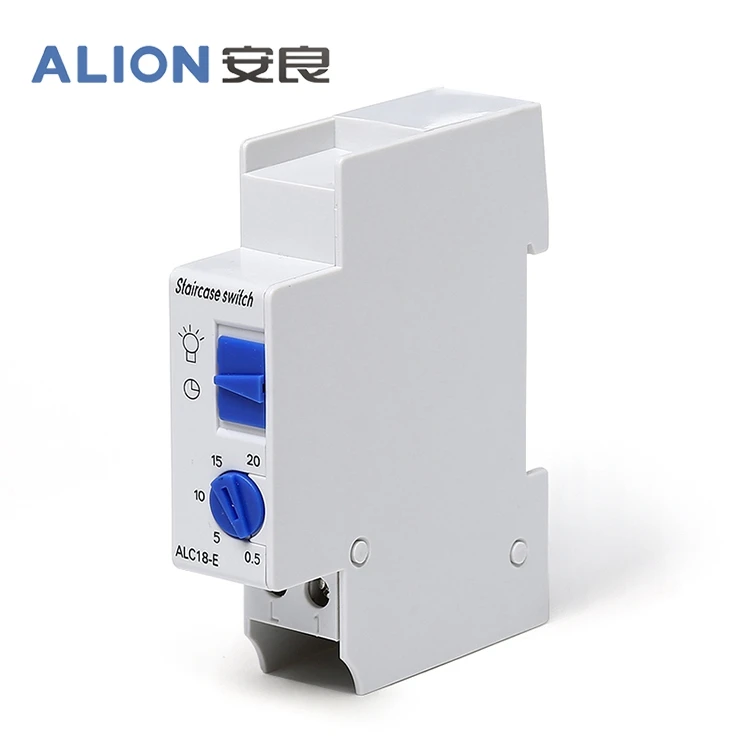

The ALC18 serive staircase time switches from ALION are available in DIN rail. It runtime is between 30 seconds and 20 minutes,and fitted with electronic overload protection.
Description
Common Function
- Din rail staircase time switch
- Toggle switch for permanent light
- External push switch control
Countdown period: 30s~20m
0~20m: +/- 150s
0~30s: +/- 3s
- Screw terminals
ALC18E:
- Input with electronic overload protection
- Connected glow lamp in parallel
Glow lamp load : 150mA Max
- Din rail staircase time switch
- Toggle switch for permanent light
- External push switch control
Countdown period: 30s~20m
0~20m: +/- 150s
0~30s: +/- 3s
- Screw terminals
ALC18E:
- Input with electronic overload protection
- Connected glow lamp in parallel
Glow lamp load : 150mA Max
Applications
- Staircase
- Corridor
- Lobby
- Corridor
- Lobby
Technical Data
Product Type | ALC18 | ALC18E | |
Operating voltage | 230V AC | ||
Frequency | 50Hz | ||
Width | 1 modules | ||
Installation type | Din rail | ||
Glow lamp load | NC | 150mA | |
Setting range time | 0.5-20 min | ||
Terminal Quantity | 4 | ||
1/2-way conductors | Automatic | ||
Switching output | Potential-free and phase-independent | ||
Method of connection terminal | Screw terminals | ||
Incandescent/halogen lamp load 230V | 2300W | ||
Fluorescent lamp load (conventional) lead-lag circuit | 2300W | ||
Fluorescent lamp load (conventional) | 400 VA 42uF | ||
parallel-corrected | |||
Energy saving lamps | 90W | ||
LED lamp < 2 W | 20W | ||
LED lamp 2–8 W | 55W | ||
LED lamp > 8 W | 70W | ||
Fluorescent lamp load (electronic ballast) | 350W | ||
Switching capacity | 10A (at 230V AC cos φ = 0.6 ) ,16A (at 230V AC cos φ = 1 ) | ||
Consumed power | 4VA | ||
Test approval | CE | ||
Type of protection | IP 20 | ||
Protection class | II according to EN 60 730-1 | ||
Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic | ||
Work temperature: | -10 ~ +50 °C (non-icing) | ||
Ambient humidity: | 35~85% RH | ||
Production Process
Company Profile
Certifications

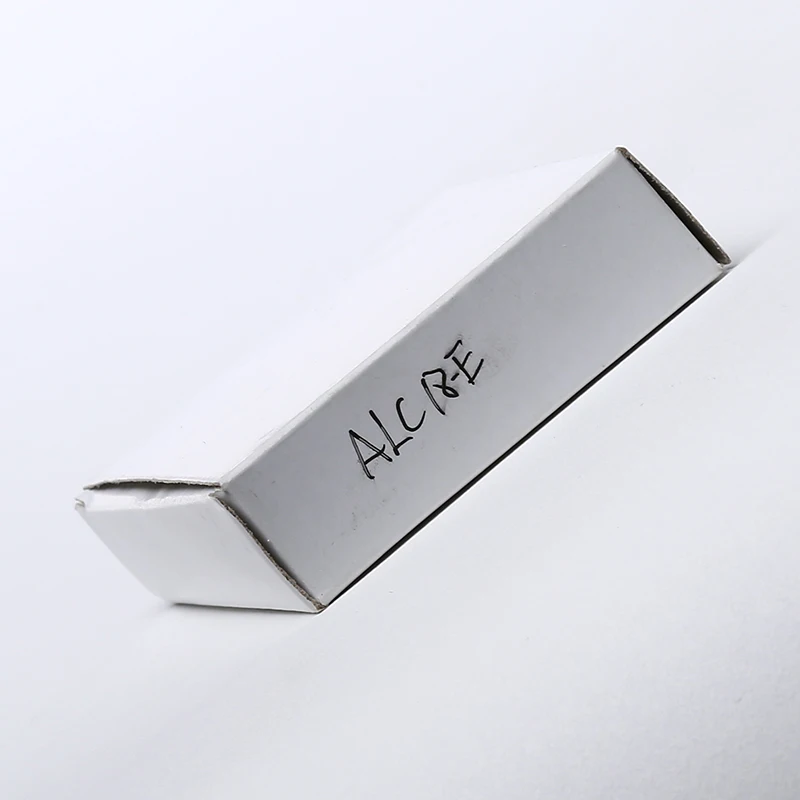

Product packaging
Our Services
1. Exclusive service-a professional Support Team will be in charge of your order.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging
and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full
coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging
and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full
coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
FAQ
Q1: Why choose ALION?
1.ALION is a professional manufacturer that has focused on time control for 20 years.
2.ALION provides complete certification, such as CE, ROHS, ISO and so on.
3.ALION is strict accordance with the following points.
High quality -all of our products are produced according to international standard, we will provide full coordination to your QC testing if necessary.
Great service - a professional Service Team will be in charge of your order and help to solve your questions timely
whether before or after you purchase.
Q2: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about
function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q3: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q4: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q5: What is the MOQ for ALION product?
There is no MOQ, we deal with any quantity of your order.
Q6: What is the payment term?
We accept T/T, L/C, Western Union and paypal.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
1.ALION is a professional manufacturer that has focused on time control for 20 years.
2.ALION provides complete certification, such as CE, ROHS, ISO and so on.
3.ALION is strict accordance with the following points.
High quality -all of our products are produced according to international standard, we will provide full coordination to your QC testing if necessary.
Great service - a professional Service Team will be in charge of your order and help to solve your questions timely
whether before or after you purchase.
Q2: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about
function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q3: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q4: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q5: What is the MOQ for ALION product?
There is no MOQ, we deal with any quantity of your order.
Q6: What is the payment term?
We accept T/T, L/C, Western Union and paypal.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
