Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-18-2025 | 6902.72 $* | 7247.67 $* |
Aug-18-2025 | 6844.81 $* | 7186.10 $* |
Jul-18-2025 | 5742.46 $* | 6029.0 $* |
Jun-18-2025 | 6728.60 $* | 7064.84 $* |
May-18-2025 | 5858.64 $* | 6151.7 $* |
Apr-18-2025 | 6612.1 $* | 6943.97 $* |
Mar-18-2025 | 6554.5 $* | 6882.22 $* |
Feb-18-2025 | 6496.43 $* | 6821.2 $* |
Jan-18-2025 | 6438.86 $* | 6760.26 $* |

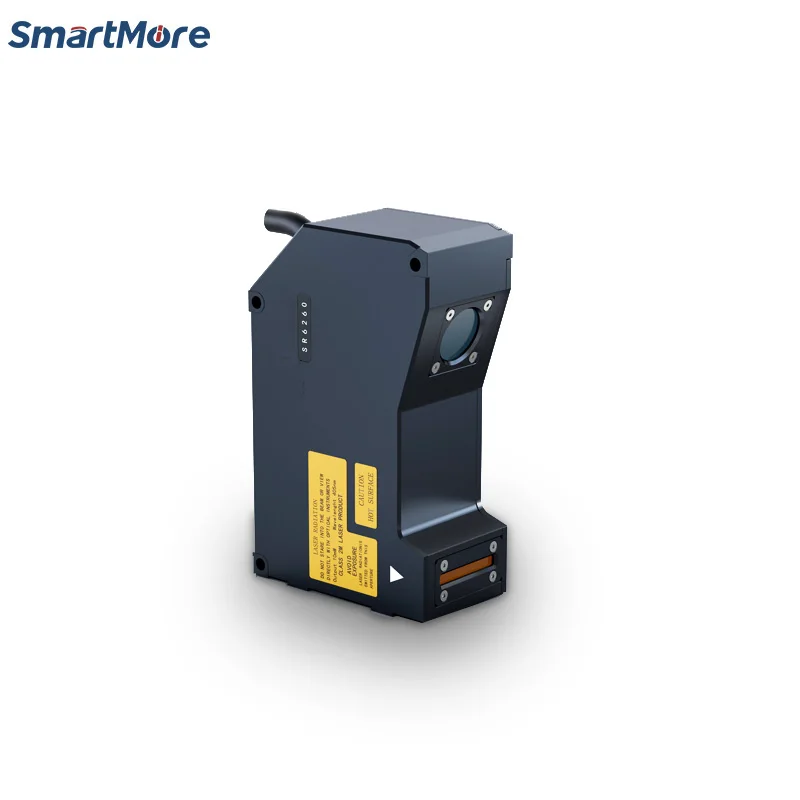

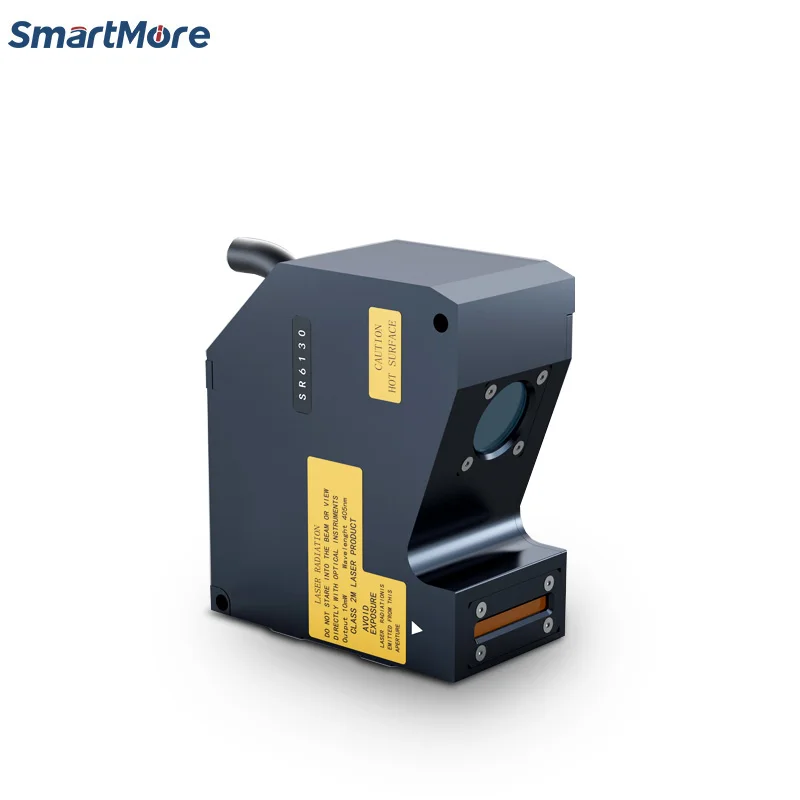

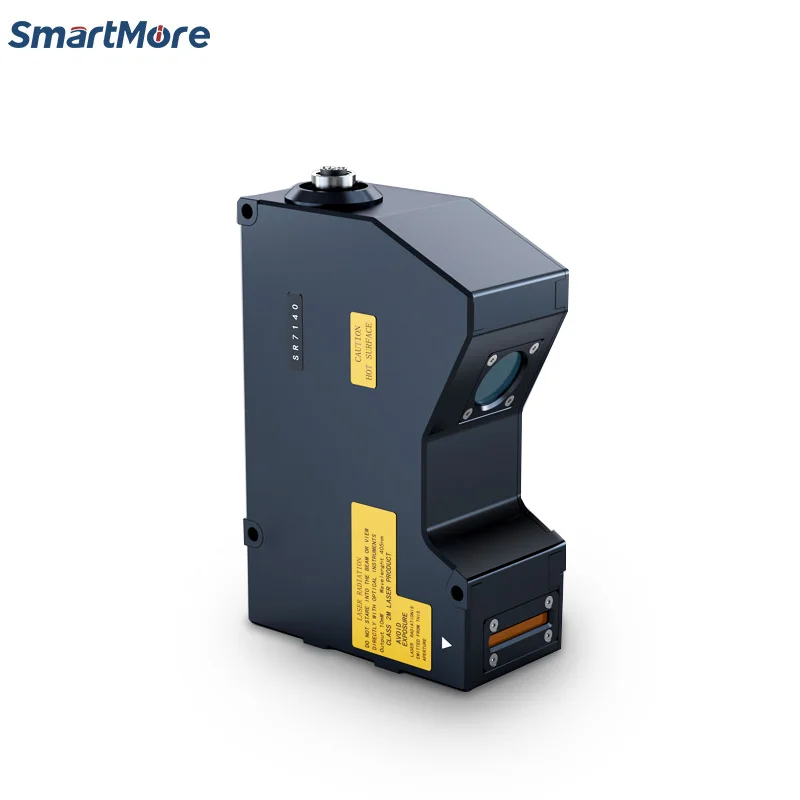

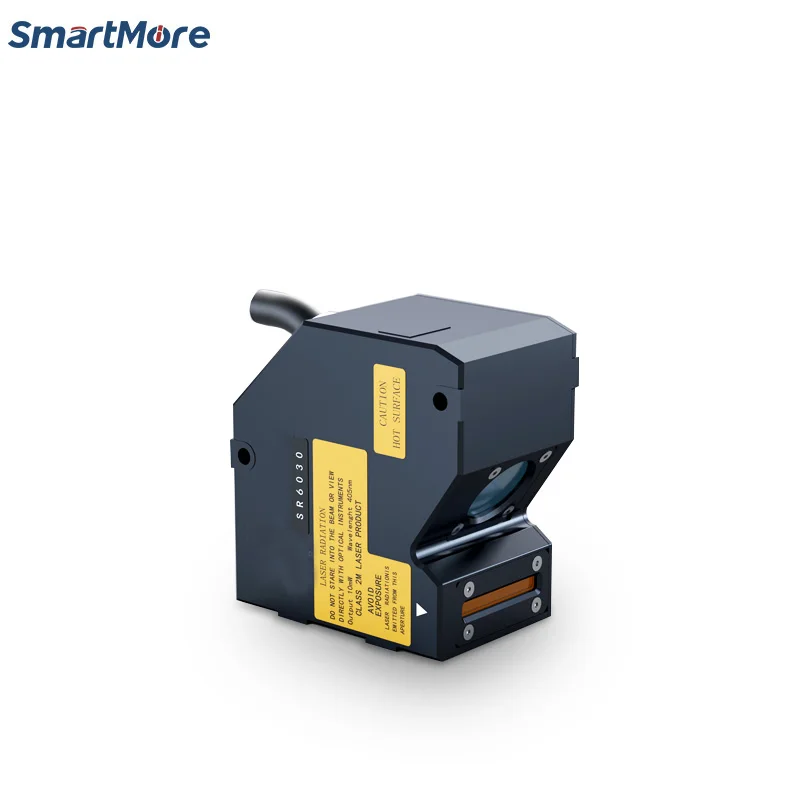

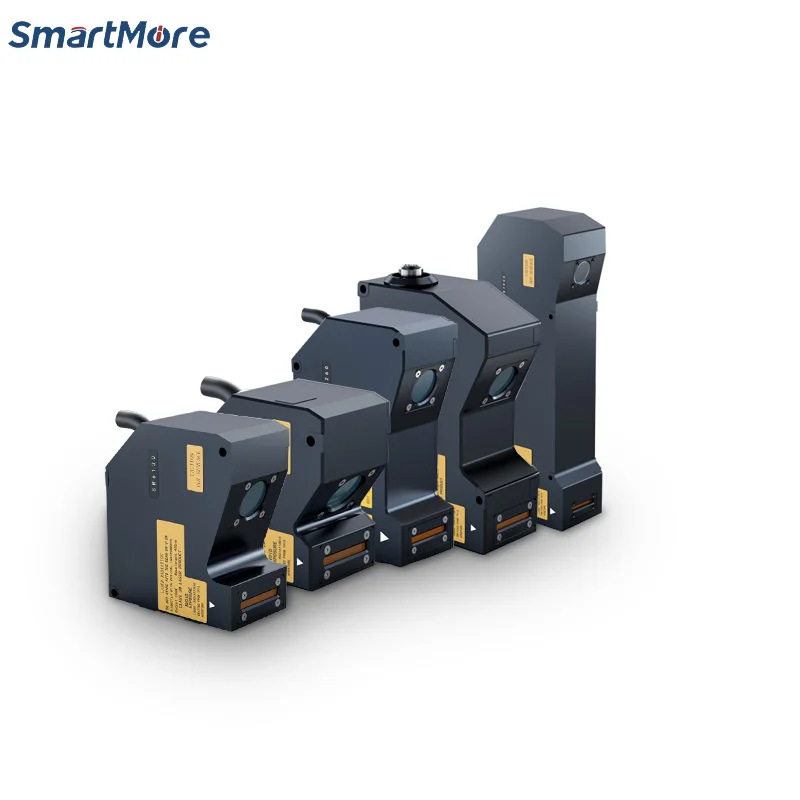

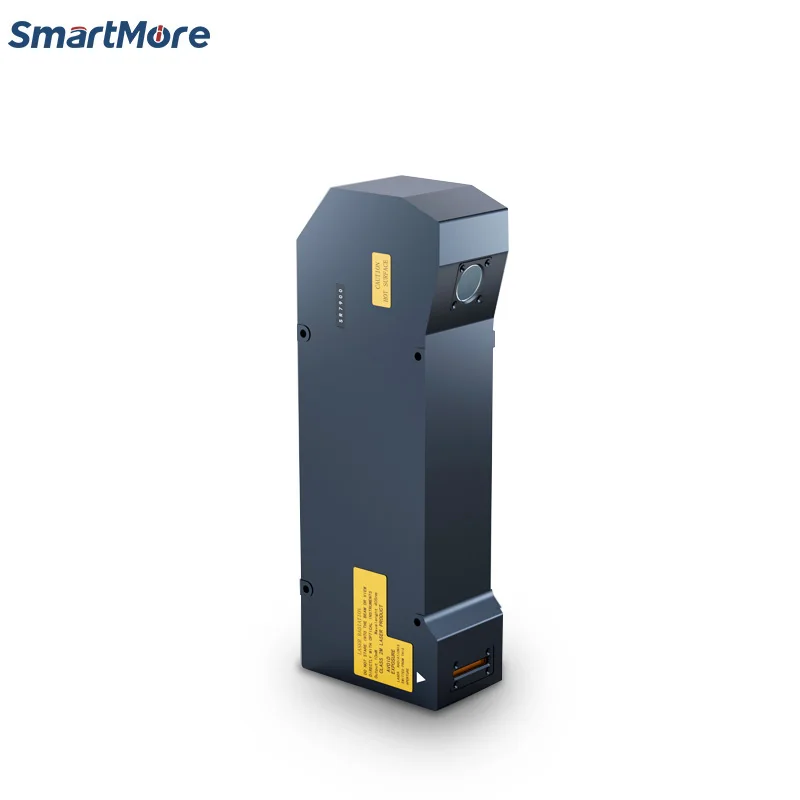

item | SmartMore High-speed 2D Laser Profiler CMOS Optical Laser Distance Measuring Sensor Laser Measure Sensor |
Model Number | SR7000 |
Usage | Object detection, light sensor |
Theory | Laser |
Output | digital signal |
Brand | Laser sensor |
Amplifier Type | Laser sensor |
Voltage - Supply | 12~24V DC±10% |
Output Type | NPN |
Current - Supply | ≤20mA |
Operating Temperature | -10°C~+50°C |
Mounting Type | DIP |
Resolution (Bits) | none |
Features | low voltage |
Current - Supply (Max) | 20mA |
Package / Case | AB glue |
Product name | Laser Distance sensor |
Application | Industrial, detection object |
Detection method | Retro-reflection |
Type | Atuomatic |
Keywords | Laser Distance Sensor |
Weight | 400g |
Features | High Accuracy |
Packing | 1set/box |
Warranty | 1 Year |
Payment | T/T |
Model | SR7300 | SR7900 | SR71600 | ||||
Reference distance (CD) | 300mm | 900mm | 1600mm | ||||
Z-axis height(FS) | 288mm | 500mm | 1500mm | ||||
X-axis width | Proximal | 175mm | 359mm | 1000mm | |||
Reference distance | 290mm | 489mm | 1600mm | ||||
distal | 320mm | 576mm | 1600mm | ||||
Light source | Blue light | ||||||
Z-axis linearity | ±0.05%of F.S | ||||||
X-axis linearity | 8µm | 12µm | 100µm | ||||
X-axis data intervals | 45µm | 40µm | 500µm | ||||
X-axis profile points | 100µm | 180µm | 500µm | ||||
Scanning speed | 3200 | 3200 | 3200 | ||||
Enclosure protection rating | Ip67 in accordance with IEC60529 | ||||||
Size | 192*105*59 | 275*98*59 | 290*100*59 | ||||
Weight(g) | 800 | 1300 | 1500 |
