Профессиональный Производитель Цена по прейскуранту завода Мини Бетонный бум насос грузовик установлен бетонные насосы бетонный

Профессиональный Производитель Цена по прейскуранту завода Мини Бетонный бум насос грузовик установлен бетонные насосы бетонный

Категория: Concrete Pumps >>>
Поставщик: Taian,Minle,Machine,Manufacture,Co.,Ltd.Taian,Ltd.

Цена:8 510 209,08-9 620 170,71 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	10807965.46 $*	11024124.0 $*
Jul-18-2025	8765515.46 $*	8940825.85 $*
Jun-18-2025	10637761.54 $*	10850516.33 $*
May-18-2025	10552659.89 $*	10763712.68 $*
Apr-18-2025	8425107.99 $*	8593609.1 $*
Mar-18-2025	10382455.16 $*	10590104.76 $*
Feb-18-2025	10297353.94 $*	10503300.91 $*
Jan-18-2025	10212251.55 $*	10416496.51 $*

Характеристики

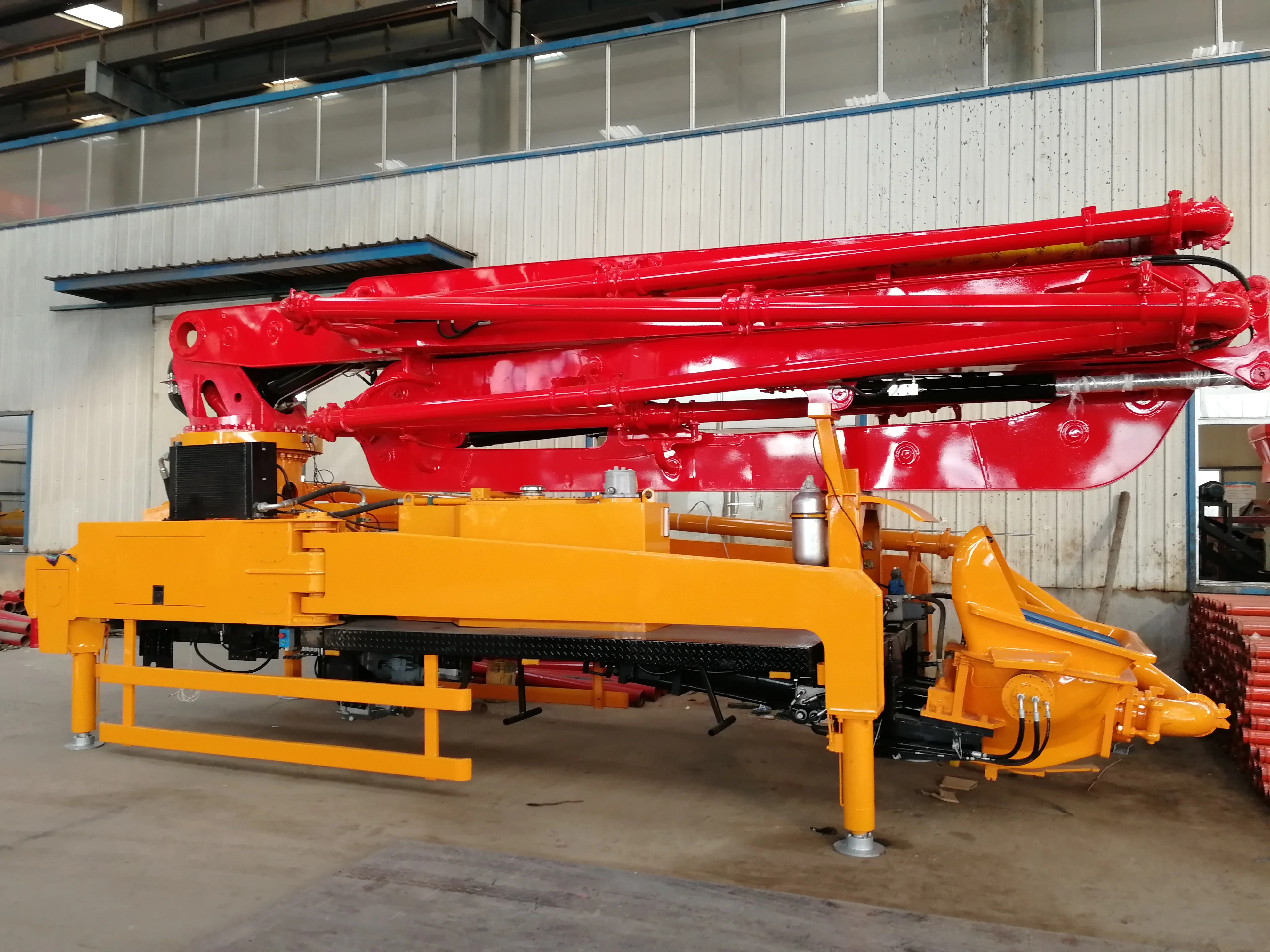

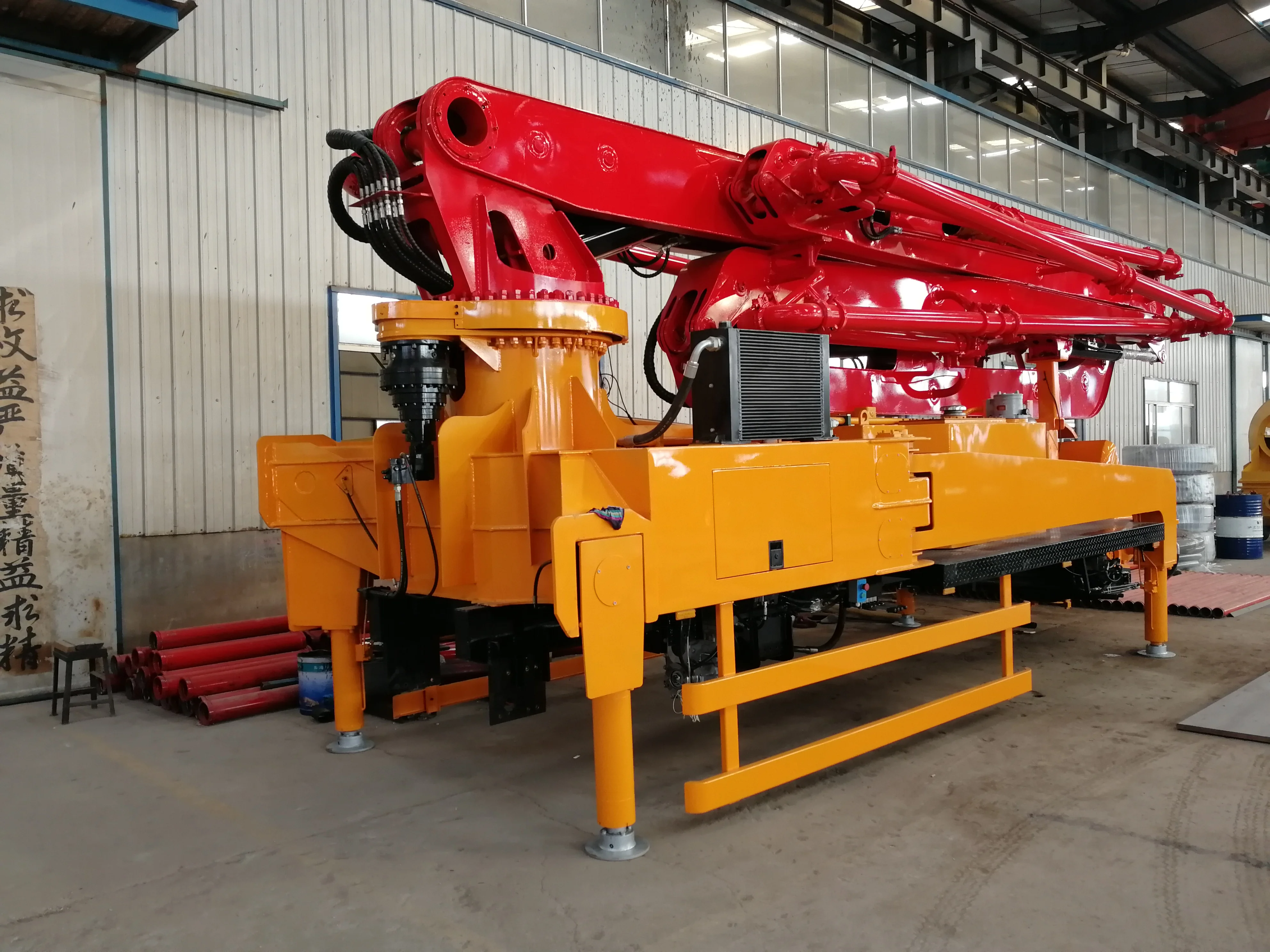

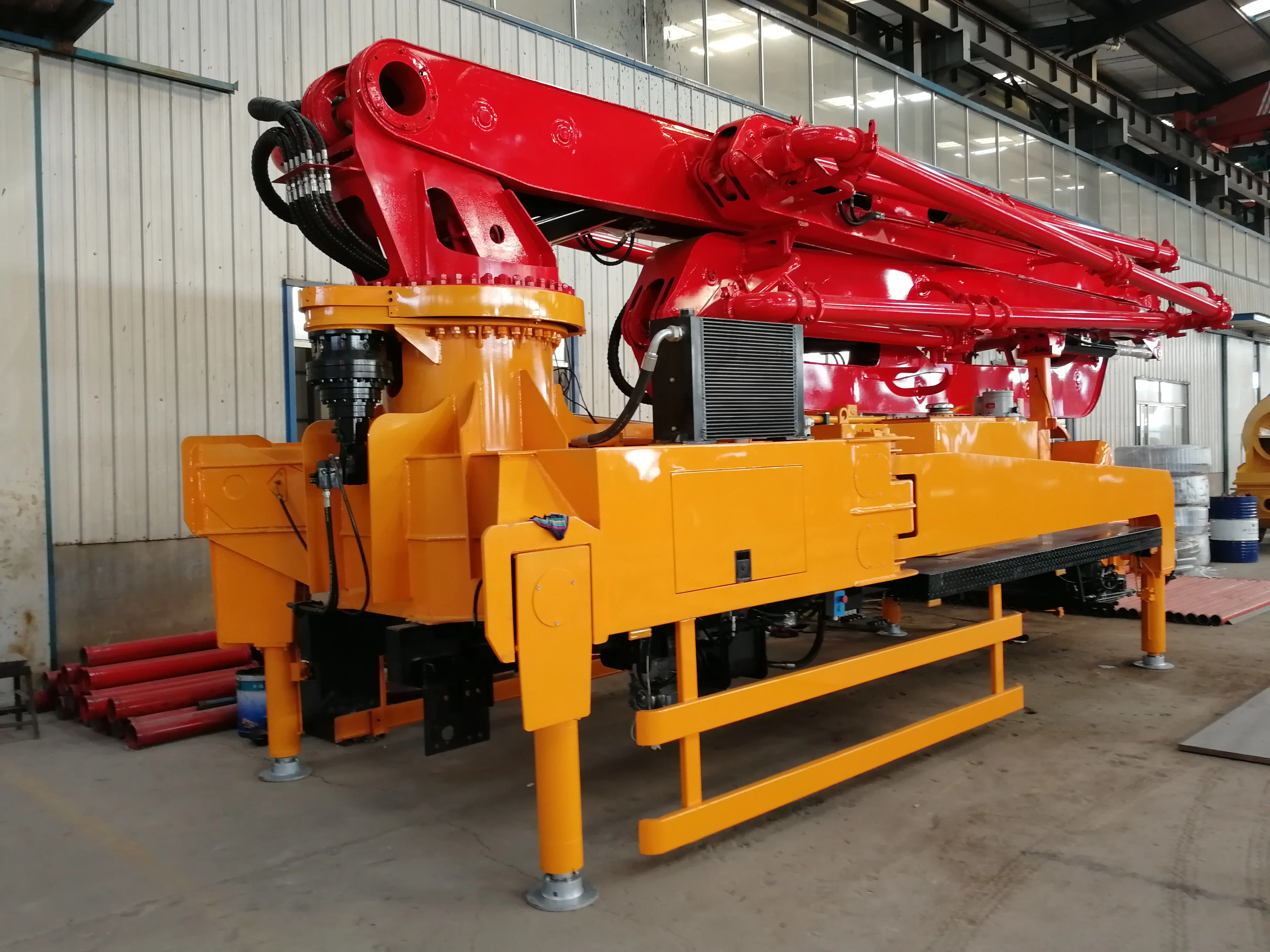

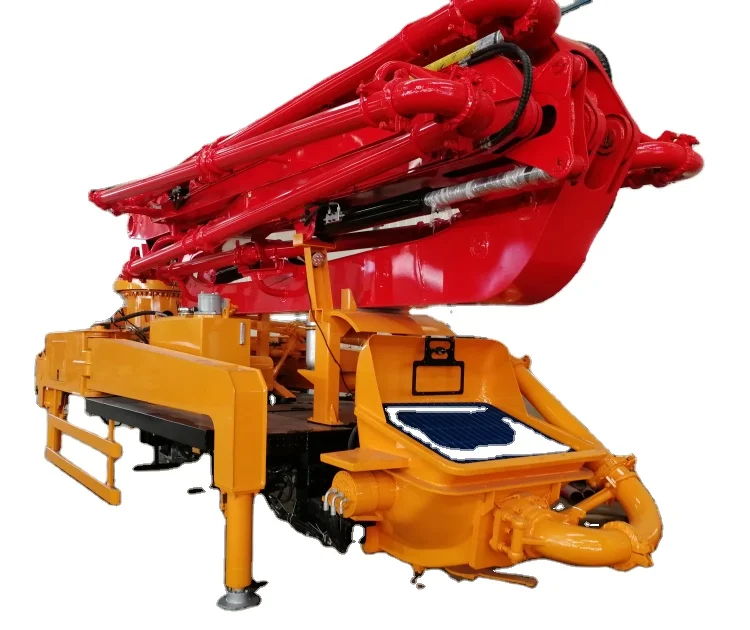

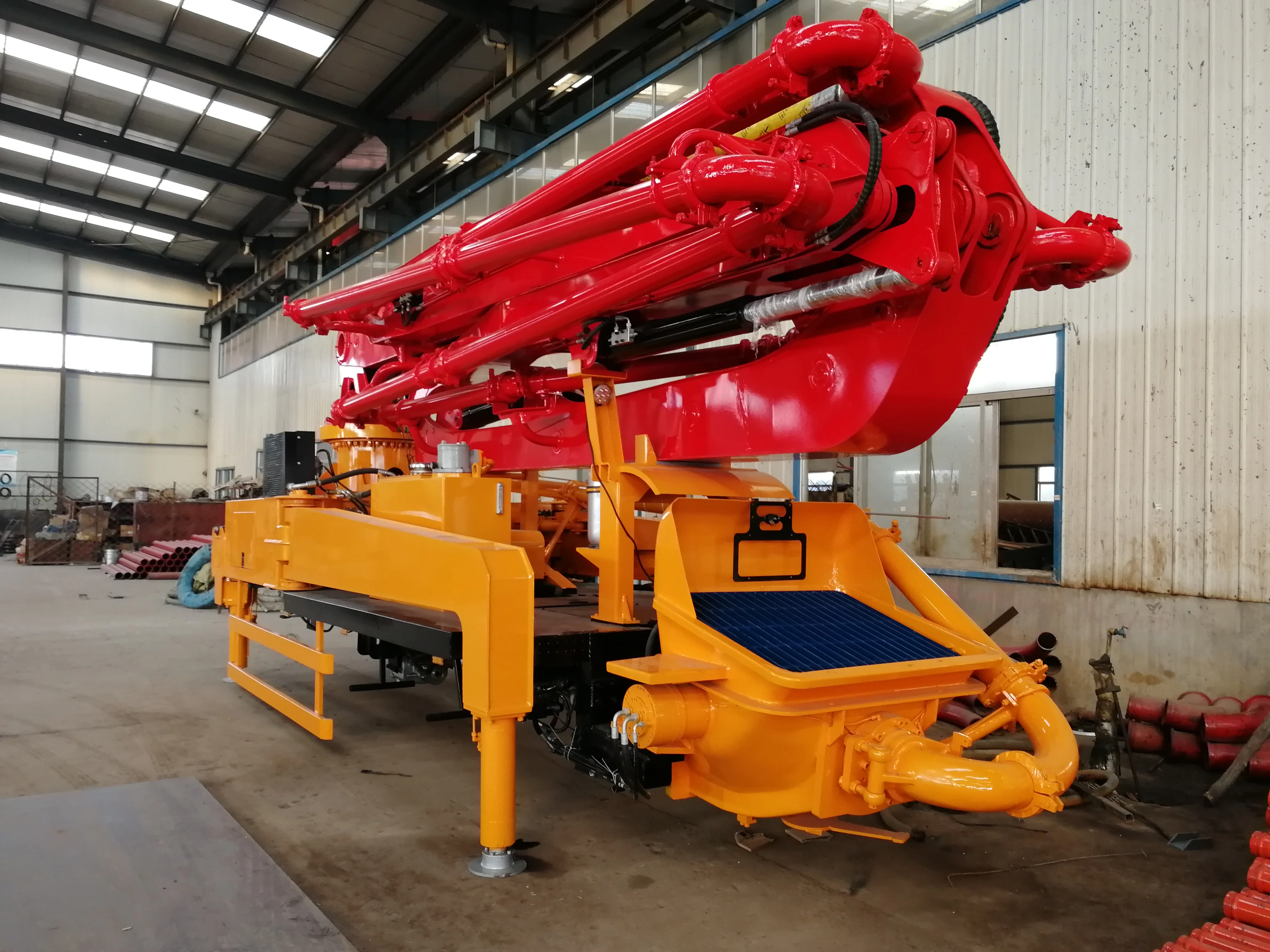

Professional manufacturer factory price mini Concrete boom pump ,Truck mounted concrete pumps,Concrete boom pump truck for sale!

contact:sara mao mobile/wechat/whatsapp:86-15866001919

.jpg

concrete boom pump, also called concrete pump truck, concrete boom pump truck, is extensively used to place concrete to hard-to-reach places accurately with controlled articulating robotic arm (boom) mounted on the truck. Concrete boom truck is the ideal concrete machine to convey the heavy, viscous, abrasive and gravel mixed concrete along the discharge pipe to long distance with quick setup, high efficiency, excellent uptime.

Features of concrete boom pump

Specifications of concrete boom pump

30m concrete boom pump truck
Boom system	Max concrete placing height	29.7m
	Max concrete placing radius	25.9m
	Each Arm foldable angle	90/180/240/180
	Boom control system	Electric proportion
	Arm folding form	M
	Turret rotation angle	360°
	front leg spans the distance	5840
	Rear leg spans the distance	5840
	Front and rear leg longitudinal distance(MM)	6300
	Leg opening type	X
	End hose length	3000mm
	Diameter of pipeline (MM)	125
DIMENSIONS&WEIGHT	Without truck L/W/H/weight(MM/T)	7650/2350/2550/13.5
	length(MM)	9850
	width(MM)	2350
	Height(MM)	3500
	weight(T)	19.5
PUMPING SYSTEM	The type of distribution valve	S
	Max. outlet pressure(Mpa)	10.5/8.5
	Reversing times of distribution valve	18~26
	Concrete cylinder	230/1450
	Max. feeding height(MM)	1450
	Hopper capacity(L)	650
	Concrete slump	160-220
	Allowable max diameter of aggregate(MM)	40
	Lubricating model	Centralized automatic
