Portable Vacuum Abrasive Recycling Sand

Описание и отзывы

Трекер стоимости

Характеристики

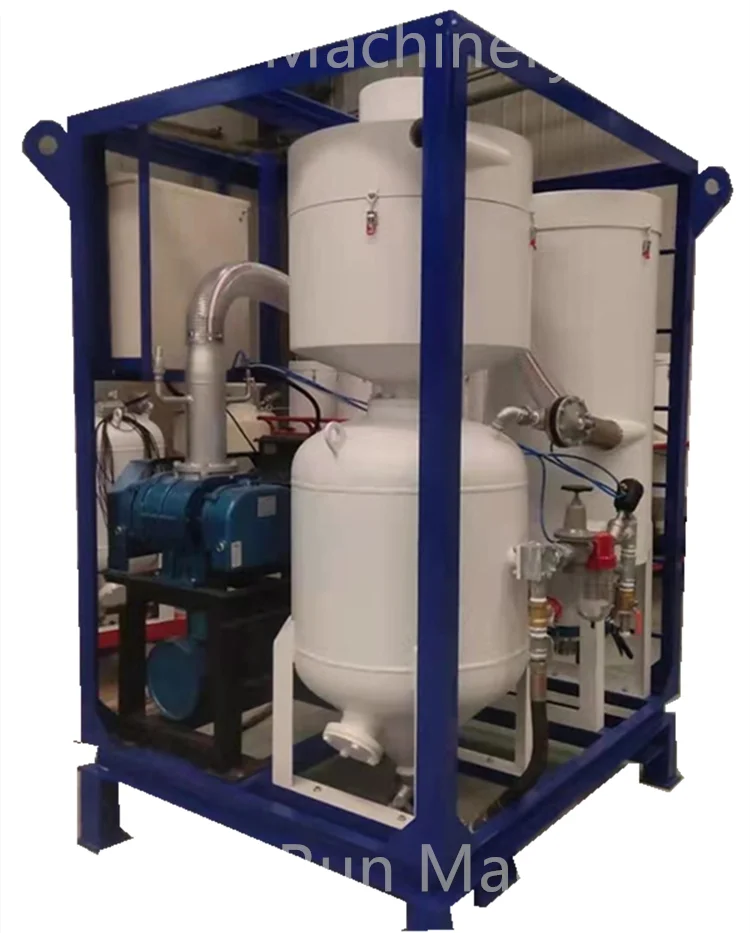

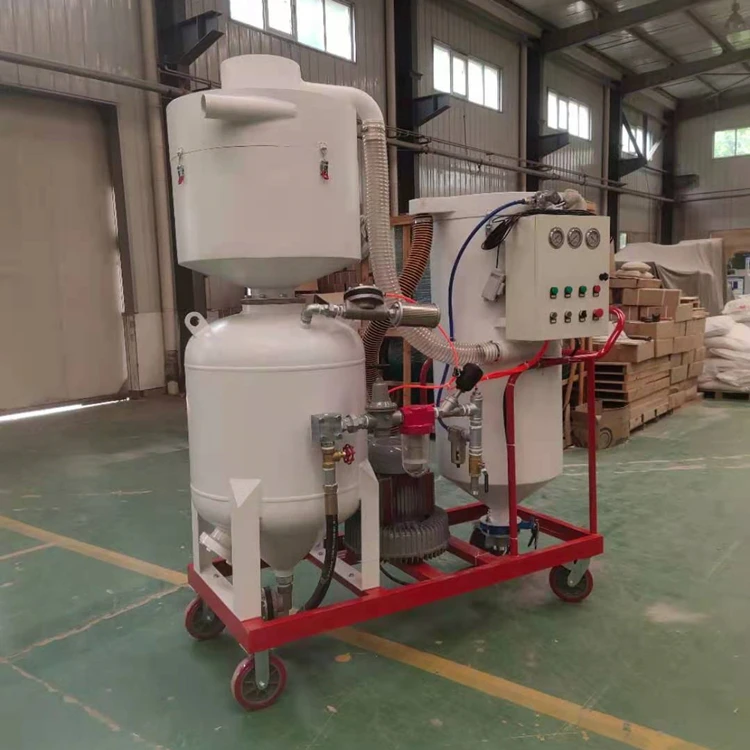

Vacuum dustless automatic recovery sandblaster feature an integrated blast pot, media vacuum recovery system, and dust collection all in a single compact unit(consists of suction blast machine with remote control, blast hose, blast head assembly, reclaimer & separator and pneumatically generated abrasive recovery system, dust collector and cart). it is widely used for descaling, surface texturing, and paint preparation, mainly used to clean rust removing at oil field, container renew, etc, and pneumatically generated abrasive recovery system makes it to be used without dust and disposal problem.
Blast and recovery systems can be used to simultaneously blast and recover (closed circuit blasting) or can be used for open air blast and then subsequent abrasive clean-up.
Simultaneous blast and recovery eliminates dust clouds, poor visibility and costly clean-up. The capability of independent blast and recovery makes the BRS a productive and versatile tool suitable to many different applications.

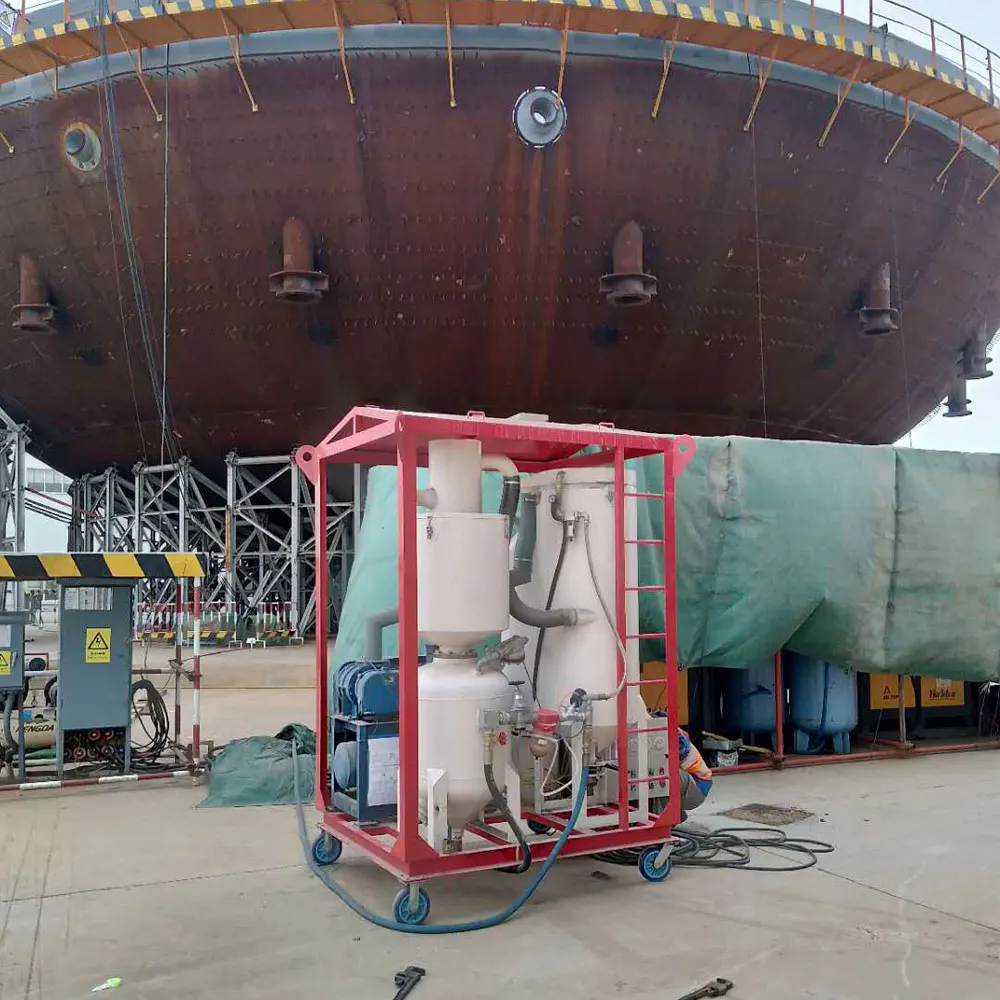

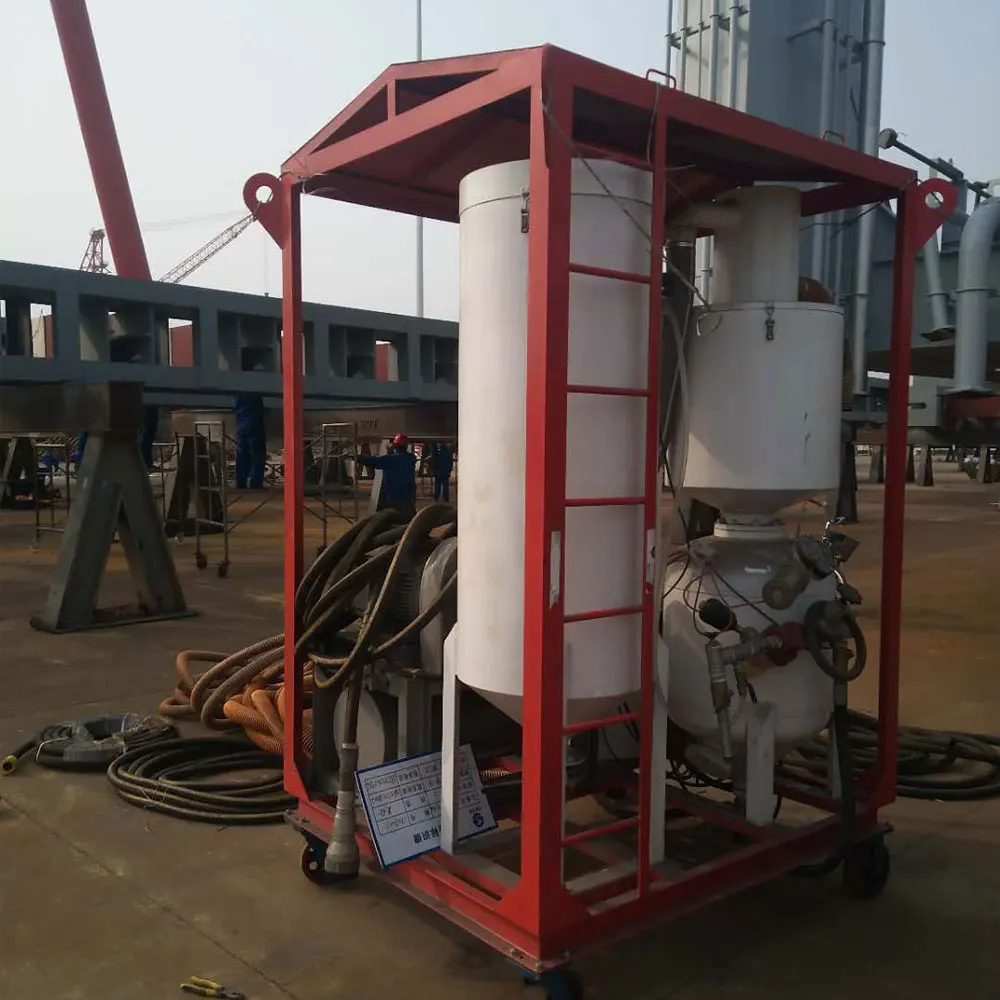

Vacuum Blasting is ideal for big objects such as ship hulls, large tanks and concrete bridge surfaces.



Parameters (we can also customize the sand blasters according to your need)



JRPS200 PARAMETER
Power	AC380V 50Hz (or customized)	Working Pressure	0.4-0.7Mpa
Air consumption	3-6m3/min	Blasting pot diameter	500mm
Spray nozzle throat diameter	6-8mm	Blating pot volume	0.2m3
Blasting pot structure	Double deck pressured cabin	Control methold	remote & manual
Motor power	7.5kW	Efficiency	12-25m2/h
Dust recycling	100%	Clean level	Sa2.5-3.0
Abrasive	G40 steel grits, shots, brown corundum, garnet (16 to 24 mesh), etc.	Abrasive diameter	≤2mm
Size	L1900mm*W700mm*H2000mm	Working radius	20m
Weight	about 500kgs

JRPS300 PARAMETER
Power	AC380V 50Hz (or customized)	Working Pressure	0.4-0.7Mpa
Air consumption	6-12m3/min	Blasting pot diameter	600mm
Spray nozzle throat diameter	6-8mm	Blating pot volume	0.3m3
Blasting pot structure	Double deck pressured cabin	Control methold	remote & manual
Motor power	11kW	Efficiency	12-25m2/h
Dust recycling	100%	Clean level	Sa2.5-3.0
Abrasive	G40 steel grits, shots, brown corundum, garnet (16 to 24 mesh), etc.	Abrasive diameter	≤2mm
Size	L1900mm*W1700mm*H2100mm	Working radius	60m
Weight	about 1000kgs



Main Features
1. Portable system used for lead and asbestos abatement, indoor blasting, bridge and road maintenance, building restoration and other steel and concrete cleaning applications
2. Flexible system can blast and recover simultaneously or independently
3. Available in 2.0, 3.5 and 6.5 cu. ft. systems with pneumatic or electric remote controls
4. Cyclone has large, quick-opening access door and two-part screen with removable center for easy access
5. Optional, adjustable, air wash cyclone improves abrasive cleaning
6. Automatic pulse jet prevents clogging of dust filters
7. Quick opening hatches make cartridges and filters easy to remove and replace
8. Urethane eductor pump is available with 225, 350, 440, or 550 cfm nozzle
9. Moisture separator and media vibrator ensure even flow of abrasive

 Different kinds of brushes can clean different kinds of products well.

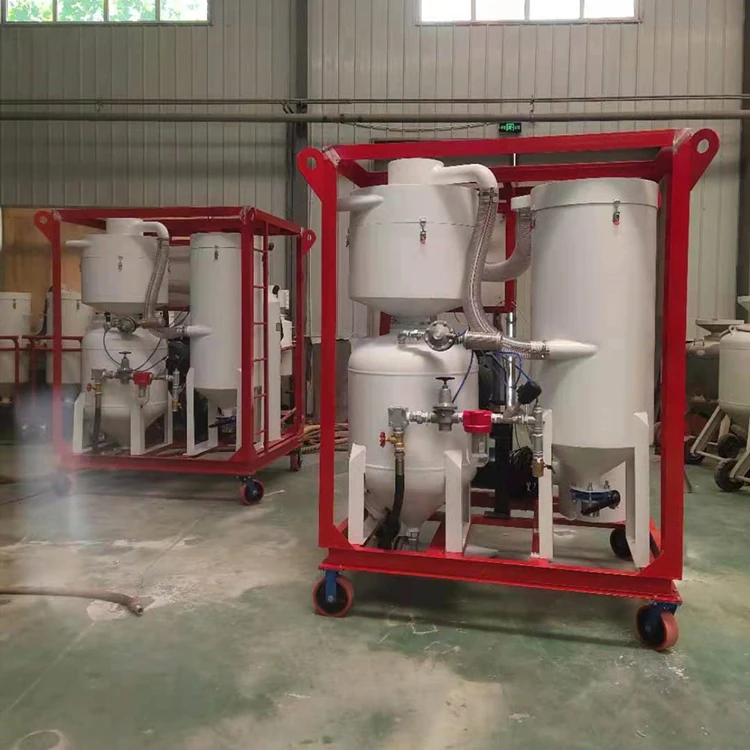

Different colors and different Models with different capacity for your choice.





Qingdao JinRun Machinery Co., Ltd. is located in Qingdao West Coast Economic New Zone (formerly Jiaonan City). The company has convenient transportation and strong production strength. It is a high-tech industrialized entity integrating casting machinery, surface cleaning, sand treatment, coating production line and automation equipment research, development, production, operation, export and service. The company has strong research and development strength, advanced production technology, perfect testing methods, scientific management system, as a professional manufacturer of foundry machinery industry, ranked high-end level in the technical, quality and automation. Welcome customers from all over the world to visit and discuss cooperation.





1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. ODM&OEM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 10 years, competitive with good quantity.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products be finished in high quality and stable feature.



a.       How many days do you need to produce this machine?

It depends on your specific requirement. Some general equipment, we usually have stock. For other customized machines, it needs about 15 to 50 days from engineers designing to production completion.



b.       What does your factory do regarding quality control?

 We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before delivery. We try our best to ensure each machine is in good operation to our customers.



c.       What’s your machine quality guarantee?

 Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.



d.       Could you give installation and commissioning overseas? How long will it take?

 Yes, we supply overseas service, but customers need to pay for the engineers flight tickets, and hotel, food., etc.

Small machines usually takes 5 days, while large machines usually takes about 15 to 20 days.



e.       How can I trust you to deliver the right machine as I ordered?

 We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
