Product Description

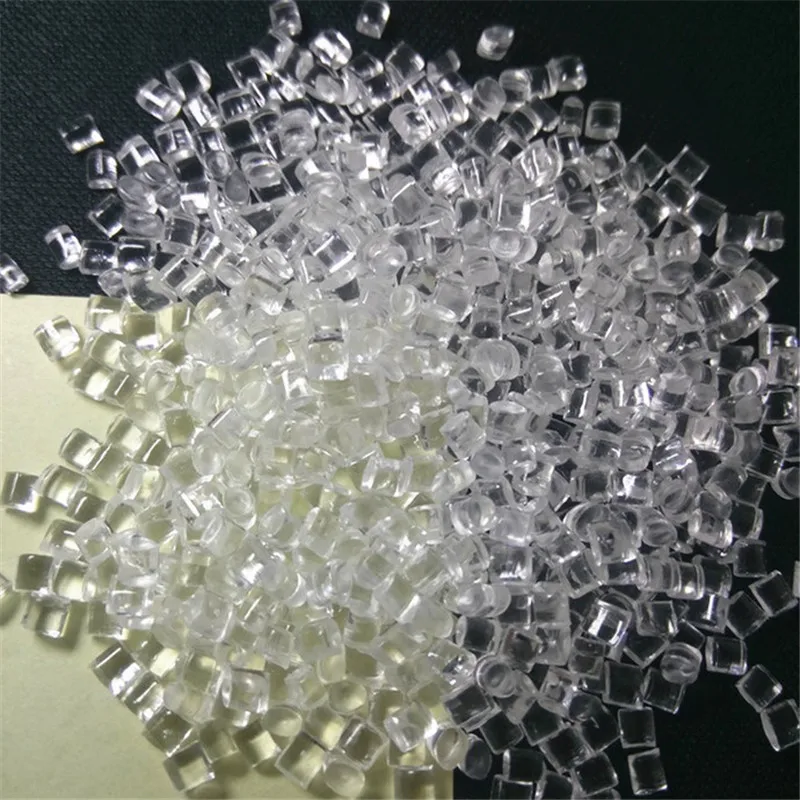

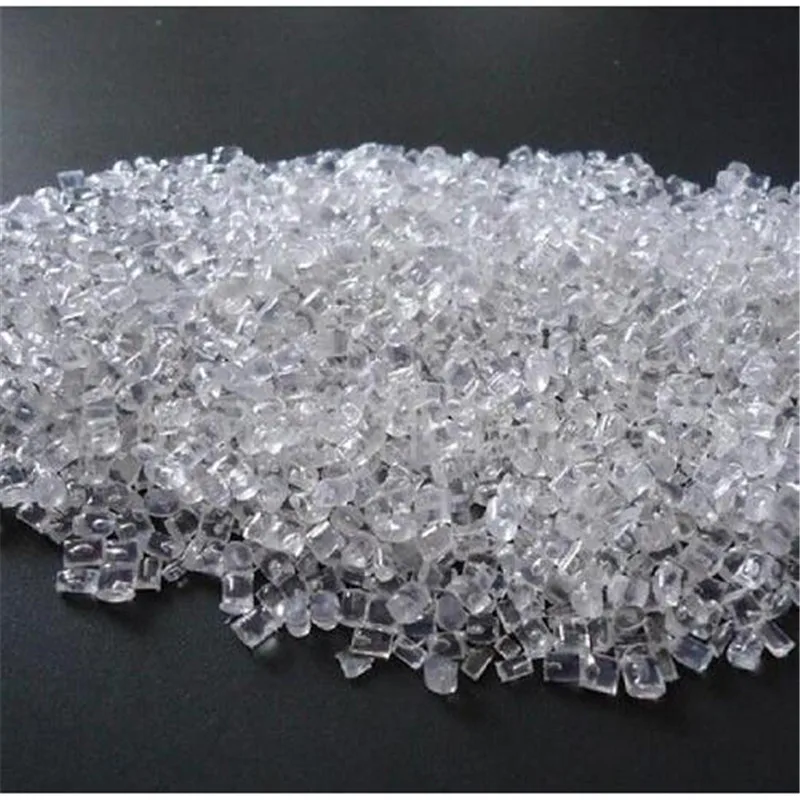

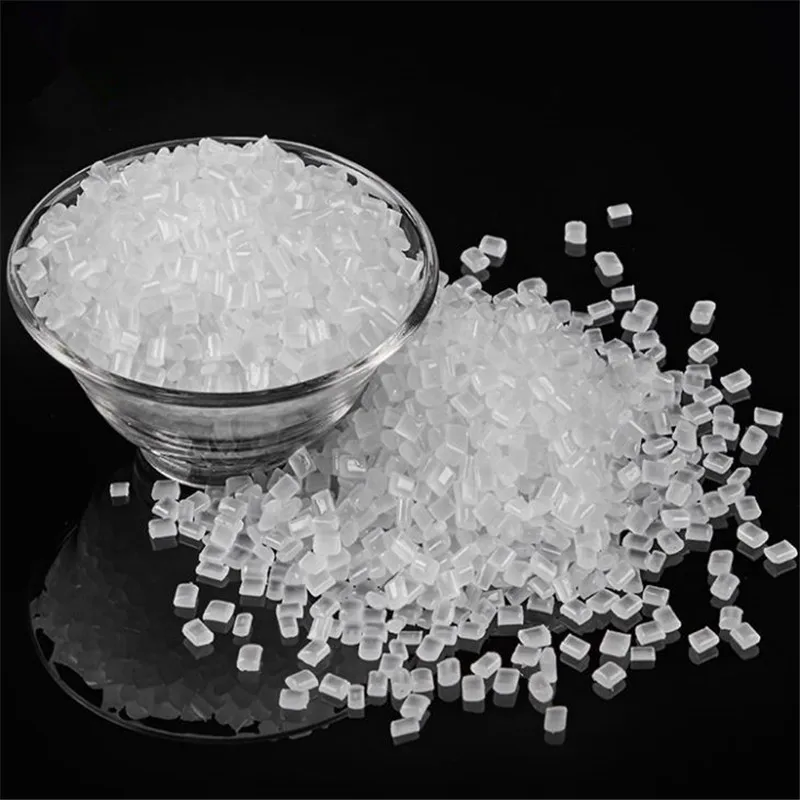

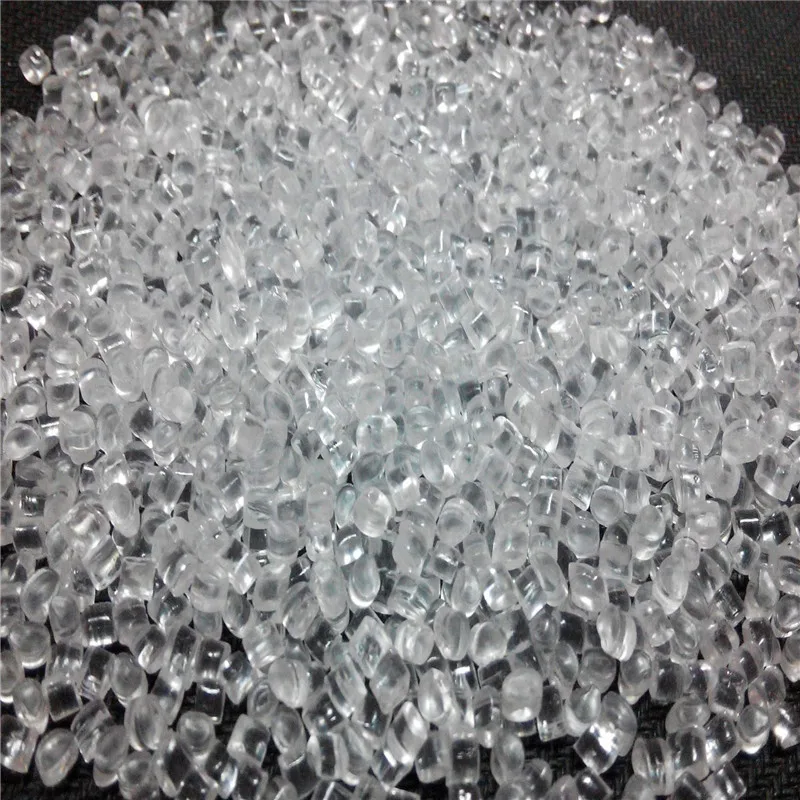

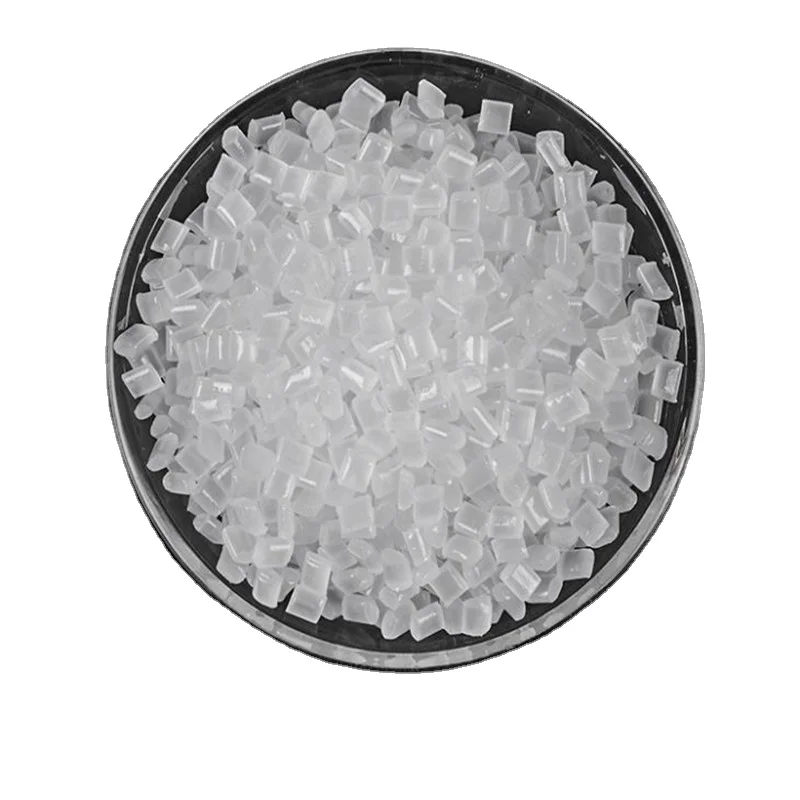

PC plastic granules light diffusion raw material LED lamp shade lamp bulb transparent flame retardant PC raw materials. Polycarbonate Resin (PC) is used on optical storage media, it is:
- High purity
- Low viscosity
- Easy release
Polycarbonate Resin (PC) is an excellent engineering thermoplastic, with fine impact resistance, easily processing, good dimensional stability, high heat resistance, non-toxic, low water absorption and good dielectric properties. Being recognized as the only one with good transparency in the five key engineering plastics (PA, PC, PBT, POM, PPO), polycarbonate occupies the most rapid market growth in recent years.
- High purity
- Low viscosity
- Easy release
Polycarbonate Resin (PC) is an excellent engineering thermoplastic, with fine impact resistance, easily processing, good dimensional stability, high heat resistance, non-toxic, low water absorption and good dielectric properties. Being recognized as the only one with good transparency in the five key engineering plastics (PA, PC, PBT, POM, PPO), polycarbonate occupies the most rapid market growth in recent years.
Product Paramenters
Physical Properties | Test method | Value | Unit | |||||
Specific Gravity , 23℃ | ASTM D792 | 1.05 | ||||||
Mold Shrinkage , 23℃, 3.2mm , 23℃ | ASTM D955 | 0.4 ~ 0.7 | % | |||||
Melt Flow Rate , 220℃, 10kg | ASTM D1238 | 22 | g/10min | |||||
Mechnical Properties | Test method | Value | Unit | |||||
Tensile Strength at Yield , 23℃, 50mm/min, 3.2mm | ASTM D638 | 49 | Mpa | |||||
Tensile Elongation at Yield , 23℃, 50mm/min, 3.2mm | ASTM D638 | 5 | %, (Min) | |||||
Tensile Elongation at Break , 23℃, 50mm/min, 3.2mm | ASTM D638 | 10 | %, (Min) | |||||
Tensile Modulus , 23℃, 50mm/min, 3.2mm | ASTM D638 | 2350 | MPa | |||||
Flexural Strength , 23℃, 15mm/min, 3.2mm | ASTM D790 | 78 | Mpa | |||||
Flexural Modulus , 23℃, 15mm/min, 3.2mm | ISO 180/1A | kJ/m2 | ||||||
Izod Impact Strength , Notched, 3.2mm, -30℃ | ASTM D256 | 90 | J/m | |||||
Thermal Properties | Test method | Value | Unit | |||||
HDT , Edgewise, 1.82MPa, 6.4mm, Unannealed | ASTM D648 | 85 | °C | |||||
VICAT , 50N, 50℃/h | IASTM D1525 | 92 | °C | |||||
RTI Electrical | UL 746B | 95 | °C | |||||
RTI Mechanical with Impact | UL 746B | 95 | °C | |||||
RTI Mechanical without Impact | UL 746B | 95 | ℃ | |||||
The technical data sheet is for reference only. We supply the oem service per your request. | ||||||||
Application
1. PC is made into large bulb shade, protective glass, the right and left eyepiece tube of optical instruments. Also, it is used as the transparent materials in plane.
2. PC is good insulation, made into insulated connector, coil frame, tube socket, insulating sleeve, telephone housing and parts, miner's lamp battery shell. Also, it is used to make fine parts of communication equipment, such as CD-ROM, telephone, computer, video recorder, telephone switches, signal relay.
3. PC film is used for capacitors, nsulation foreskin, recorder, color video tape, etc.
4. PC can be made into cap, tube, bottle and dental equipment, drug containers and surgical instruments. Even be used as an artificial kidney, artificial lung and other artificial organs.
5. For architectural, PC can be made into Double-wall hollow bars, glass of greenhouse. For textile industry, PC is suitable for making bobbin, textile machine bearing.For daily, PC is good material can be made into tableware, toys and models.
2. PC is good insulation, made into insulated connector, coil frame, tube socket, insulating sleeve, telephone housing and parts, miner's lamp battery shell. Also, it is used to make fine parts of communication equipment, such as CD-ROM, telephone, computer, video recorder, telephone switches, signal relay.
3. PC film is used for capacitors, nsulation foreskin, recorder, color video tape, etc.
4. PC can be made into cap, tube, bottle and dental equipment, drug containers and surgical instruments. Even be used as an artificial kidney, artificial lung and other artificial organs.
5. For architectural, PC can be made into Double-wall hollow bars, glass of greenhouse. For textile industry, PC is suitable for making bobbin, textile machine bearing.For daily, PC is good material can be made into tableware, toys and models.
