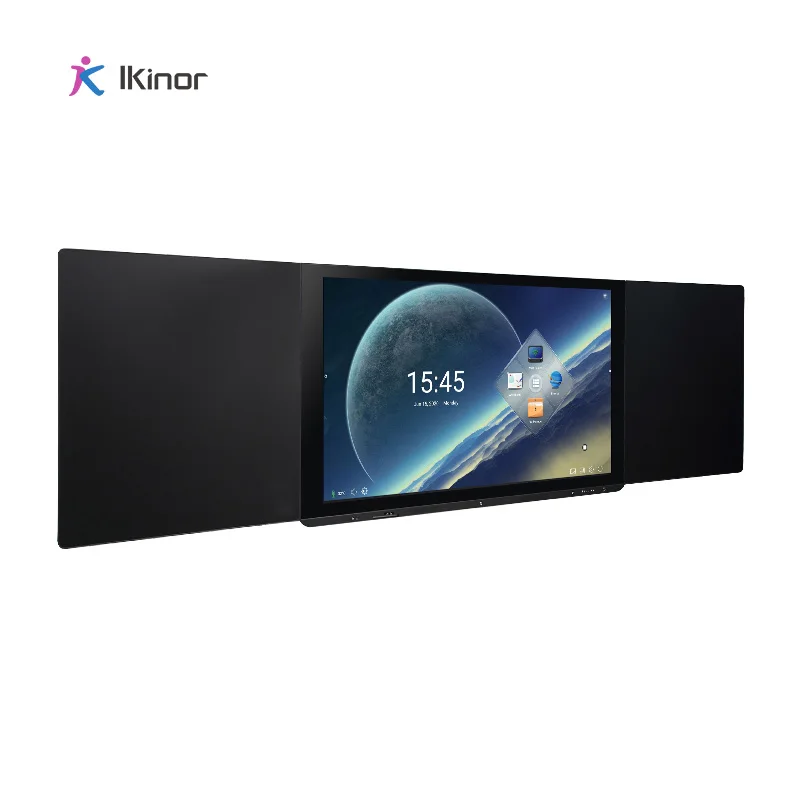

Умный класс оборудование 86 дюймов E-Blackboard Интерактивная информационная доска для
- Категория: Blackboard >>>
- Поставщик: Dongguan,Ikinor,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.11 $* | 0.70 $* |
| Aug-16-2025 | 0.50 $* | 0.33 $* |
| Jul-16-2025 | 0.29 $* | 0.69 $* |
| Jun-16-2025 | 0.35 $* | 0.1 $* |
| May-16-2025 | 0.52 $* | 0.24 $* |
| Apr-16-2025 | 0.20 $* | 0.99 $* |
| Mar-16-2025 | 0.91 $* | 0.52 $* |
| Feb-16-2025 | 0.60 $* | 0.59 $* |
| Jan-16-2025 | 0.34 $* | 0.81 $* |
Характеристики
Details Images
Products Description
Product Paramenters
Display specification | ||||||
Diagonal display size | 85" | 86" | ||||
Bezel color | Aluminum frame(Black color) | Yes | Yes | |||
Back Light | Direct type LED | Yes | Yes | |||
Active area (mm) | (H) * (V) | 1870 * 1051 | 1894 * 1065 | |||
Resolution | 3840*2160 /UHD | Yes | Yes | |||
Aspect Ratio | 16:9 | Yes | Yes | |||
Contrast Ratio | 1200:1 | 1200:1 | ||||
Colors | 1.07 billion colors | Yes | Yes | |||
Brightness | 350cd/m2 | Yes | Yes | |||
Viewing angle | 178° | Yes | Yes | |||
Glass hardness | Mohs-7 level | Yes | Yes | |||
Screen surface | 4mm thickness Anti-Glare glass | Yes | Yes | |||
Panel Interactivity | ||||||
Touch technology | P-Cap | Yes | Yes | |||
Touch points | 10 points writing / 10 points touch | Yes | Yes | |||
Touch accuracy | ±2mm(Windows) | Yes | Yes | |||
Recognition | Finger or Capacitive pen | Yes | Yes | |||
Response Rate | <4ms(single touch) <10ms(max touch inputs) | Yes | Yes | |||
Minimum object size | 8mm | Yes | Yes | |||
Response Time | <8 ms | Yes | Yes | |||
System support | Win10/Win8/Win7/Mac OS /Android/Chrome OS/Linux | Yes | Yes | |||
Front side Connectivity | ||||||
Front ports | USB3.0 * 1 line (Public for both Android & PC) ; USB 2.0 * 1 line; NFC recognization area; WIFI recognization area; Finger recognization area | |||||
Front Button | Power on/off; Input; Menu; Vol +; Vol-; Home; ESC; ECO | |||||
Front speaker | 15W*2 | |||||
Rear side Connectivity | ||||||
HDMI in | 2 | Yes | Yes | |||
VGA in | 1 | Yes | Yes | |||
VGA audio in | 1 | Yes | Yes | |||
AV in | 1 | Yes | Yes | |||
Earephone out | 1 | Yes | Yes | |||
SPDIF out | 1 | Yes | Yes | |||
RJ45 in & out | 1 | Yes | Yes | |||
Touch out USB B type | 1 | Yes | Yes | |||
USB 2.0 | 2 | Yes | Yes | |||
TF card | 1 | Yes | Yes | |||
Windows OPS Slot | OPS & OPS-C Intel standard | Yes | Yes | |||
Hotspot | Yes | Yes | Yes | |||
Bluetooth | 5 | Yes | Yes | |||
WiFi | 802.11 a/b/g/n/ac embedded | Yes | Yes | |||
Operating system | ||||||
Android Version | Android 8.0 | Yes | Yes | |||
CPU | Dual-core A73 and dual-core A53 ，1.5GHz | Yes | Yes | |||
GPU | Quad-core MaliG51 | Yes | Yes | |||
RAM | 3GB | Yes | Yes | |||
ROM | 32GB | Yes | Yes | |||
Compliant with | Windows; Mac; Linux; Chrome OS | Yes | Yes | |||
Physical specifications | ||||||
Net Weight | (kg±2) | |||||
Gross Weight | (kg±2) | |||||
Overall size(mm) (with wall mount depth) | (L*W*H) | 4200*1215*117.9 | 4200*1215*117.9 | |||
Carton size(mm) | (L*W*H) | 2261.5*315*1415 | 2261.5*315*1415 | |||
VESA | (mm) | 800*400 | 800*400 | |||
Electrical | ||||||
Input Voltage | 100-240V AC | Yes | Yes | |||
Power Consumption(Standby) | <0.5W | Yes | Yes | |||
Power Consumption | Maximun< 350W | Maximun< 350W | ||||
Environmental | ||||||
Working Temperature | 0℃ ~ 40℃ | Yes | Yes | |||
Storage Temperature | 一10℃ ~ 50℃ | Yes | Yes | |||
Working Humidity | 20% ~ 80% RH Non-Condensing | Yes | Yes | |||
Storage Humidity | 10% ~ 60% RH Non-Condensing | Yes | Yes | |||
Accessories | ||||||
Accessories | Pen * 1pcs, Remote control *1pcs, 1.5m power cord *1pcs, 1.5m HDMI cable *1pcs, wall mount kit; Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional) | |||||
Product Process
1. LED Backlight Assembling
2. Light-Bar Assembling
3. Film Assembling
4. Fix LED Glass
5. LED Panel Checking
6. Monitor Assembling
7. Electronic parts assembling
8. Aging Process
9. Final Test
Certifications
Packaging & Shipping
FAQ
1. Free sample service
Sample can be FREE!
Return the money in the quantitiy order, contact us for sample free policy!
2.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 3-7 working days for small quantity, and about 7-15 working days for large quantity.
-Usually we can ship within 3-7 working days for small quantity, and about 7-15 working days for large quantity.
3.What is your payment term?
-T/T, Western Union, MoneyGram, and Paypal. This is negotiable.
4.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
5.Do you provide OEM/ODM service for interactive flat panel/smart blackboard?
Yes, we do, customization range can be Graphic Design/Package/Logo.
6.How about the product quality?
Quality is the first, we focus on every detail. Our products have been strictly tested high quality by QC before shipping to customers.
7.How about your warranty term?
Standard warranty time is one year, If you need more time, we can discuss.
8.What about the product after sale service?
If any problems for the product, you will get our reply within 24 hours. Solution will be offered instantly.
