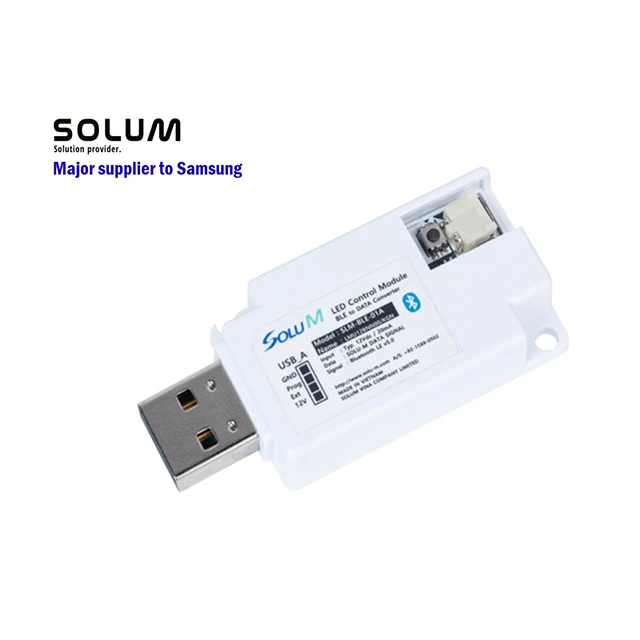

USB BLE ключ для умная Светодиодная лампа (SLM-BLE-01A) поддерживает мобильное приложение Android и
- Категория: Bluetooth Modules & Adaptors >>>
- Поставщик: Knowware,Co.Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 9.31 $* | 9.18 $* |
| Jul-18-2025 | 7.95 $* | 7.62 $* |
| Jun-18-2025 | 9.42 $* | 9.32 $* |
| May-18-2025 | 9.61 $* | 9.21 $* |
| Apr-18-2025 | 7.16 $* | 7.7 $* |
| Mar-18-2025 | 9.31 $* | 9.29 $* |
| Feb-18-2025 | 8.45 $* | 8.22 $* |
| Jan-18-2025 | 8.77 $* | 8.34 $* |
Характеристики
Products Description
* CCCV (Constant Current & Constant Voltage)
* Flickerless : FI ≪0.01 ,%F ≪ 5% (@<800Hz)
Built-in active PFC
Low Output Current Ripple : 5%↓
* High Density Power (Slim_Narrow Size)
M2 _Dimension : 280(L) * 29.4(W) * 22.9(H)
* Low Stand by Power Dissipation : 0.5W↓
Applied Eco Design & Energy star : 0.5W↓
* C-Unified Dim for SMART Control
UART _On/Off , Dim, Tunnable
Status Monitoring
* Programmable UI
AOC : Control Output Current
Dim to off : Dim off or Min Dim, Set Min current
OPP : Overpower limit, Selestable Dim type
* Aux Power : 12Vdc 150mA PK
* High Performance
High Efficiency : Up to 86~88%
High PF (90%↑), Low THD (20%↓)
Wide Vin : 108~305VAC
Wide Vout : ± 30% LED Load
Protection : OLP, SCP, OVP, OCP, OTP_Autorecovery
Temperature tc : 73℃
* High Surge Immunity
L-L 4KV↑, L-FG 6KV↑
* Classification : Class Ⅱ
No Leakage Current : Line - FG
* Flickerless : FI ≪0.01 ,%F ≪ 5% (@<800Hz)
Built-in active PFC
Low Output Current Ripple : 5%↓
* High Density Power (Slim_Narrow Size)
M2 _Dimension : 280(L) * 29.4(W) * 22.9(H)
* Low Stand by Power Dissipation : 0.5W↓
Applied Eco Design & Energy star : 0.5W↓
* C-Unified Dim for SMART Control
UART _On/Off , Dim, Tunnable
Status Monitoring
* Programmable UI
AOC : Control Output Current
Dim to off : Dim off or Min Dim, Set Min current
OPP : Overpower limit, Selestable Dim type
* Aux Power : 12Vdc 150mA PK
* High Performance
High Efficiency : Up to 86~88%
High PF (90%↑), Low THD (20%↓)
Wide Vin : 108~305VAC
Wide Vout : ± 30% LED Load
Protection : OLP, SCP, OVP, OCP, OTP_Autorecovery
Temperature tc : 73℃
* High Surge Immunity
L-L 4KV↑, L-FG 6KV↑
* Classification : Class Ⅱ
No Leakage Current : Line - FG
MODEL NAME | MODEL CODE |
SPU280N701S2A | LS280S701A/WGN |
Features:
ㅡ Flickerless, Constant Current & Voltage
ㅡ Programmable Set

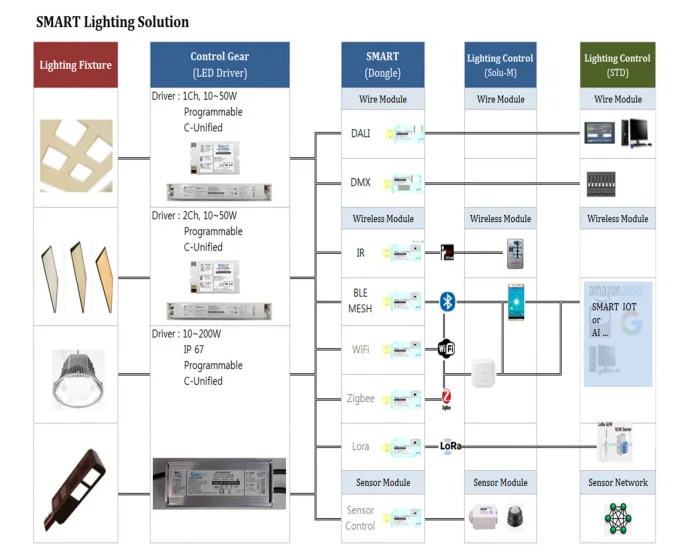

ㅡ SMART Lighting Control by SLM_Smart Lighting Module
ㅡ Full-protection provided: OCP/OVP/OTP/SCP/OLP
ㅡ Wide Vout: 24 to 50 Vdc
ㅡ Compliant with CB, CE, KC, KS, UL safety requirements for LED lighting ㅡ Factory Wirin
Product Paramenters
Electrical Specification
No | Item | Min | Typ | Max | Unit | Remark |
1 | Nominal input Voltage | 120 | 220 | 277 | Vac | |
2 | Variable Input Voltage | 108 | 300 | Vac | ||
3 | Maximum Input Current | 0.4 | Arms | |||
4 | Maximum Input Power | 32 | W | |||
5 | Nominal input Frequency | 47 | 50/60 | 63 | Hz | |
6 | Power Factor | 90 | 95 | % | ||
7 | Total Harmonic Distortion(THD) | 10 | % | |||
8 | Inrush Current | 50 | A | Meets NEMA 410 | ||
9 | Electical Efficiency | 87 | 88 | % | ||
10 | Turn-On Delay | 0.5 | S | |||
11 | LED Output Voltage | 24 | 36 | 50 | Vdc | |
12 | LED Output Current | 35 | 500 | 700 | mA | |
13 | LED Output Power_Max | 25 | W | |||
14 | LED output Current Ripple | 70 | mA | |||
15 | Operating Temperature | -20 | 25 | 45 | 'C | |
16 | Case Temperature (Tc) | 50 | 75 | 'C | ||
17 | Humidity | 20 | 85 | % | ||
18 | Insulation Resistance | 10 | Mohm | |||
19 | Surge | 6 | Kv | Line to Ground | ||
20 | ESD | 8 | Kv | Air Discharge |
Certifications
Avaliable CB, CE, UL etc
