Точность 4 а активный баланс 10S 13S 14S 16S 17S 20S 21S 22S 24S литий-ионный Аккумулятор Lifepo4 LTO с Bluetooth приложение стабилизатор
- Категория: Renewable Energy >>>
- Поставщик: Guangzhou,One,Cat,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 95.69 $* | 100.12 $* |
| Aug-19-2025 | 94.66 $* | 99.60 $* |
| Jul-19-2025 | 79.26 $* | 83.27 $* |
| Jun-19-2025 | 93.48 $* | 98.65 $* |
| May-19-2025 | 81.29 $* | 85.37 $* |
| Apr-19-2025 | 91.91 $* | 96.0 $* |
| Mar-19-2025 | 90.52 $* | 95.70 $* |
| Feb-19-2025 | 90.3 $* | 95.6 $* |
| Jan-19-2025 | 89.28 $* | 93.27 $* |
Характеристики
Specification
active balancer | |
Balance current | IC GOGOGO store in our aliexpress store !~ |

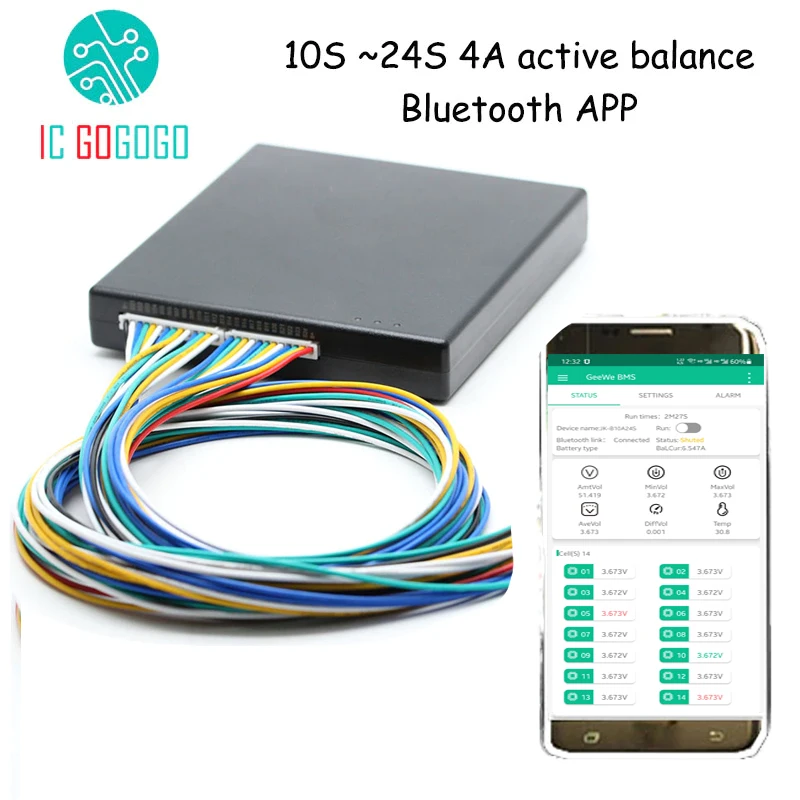

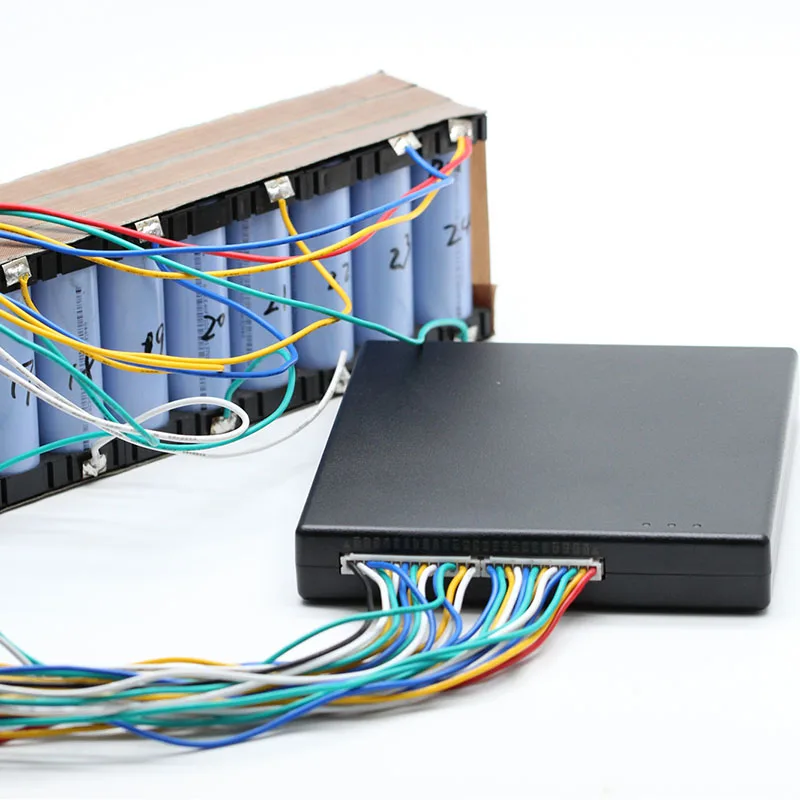

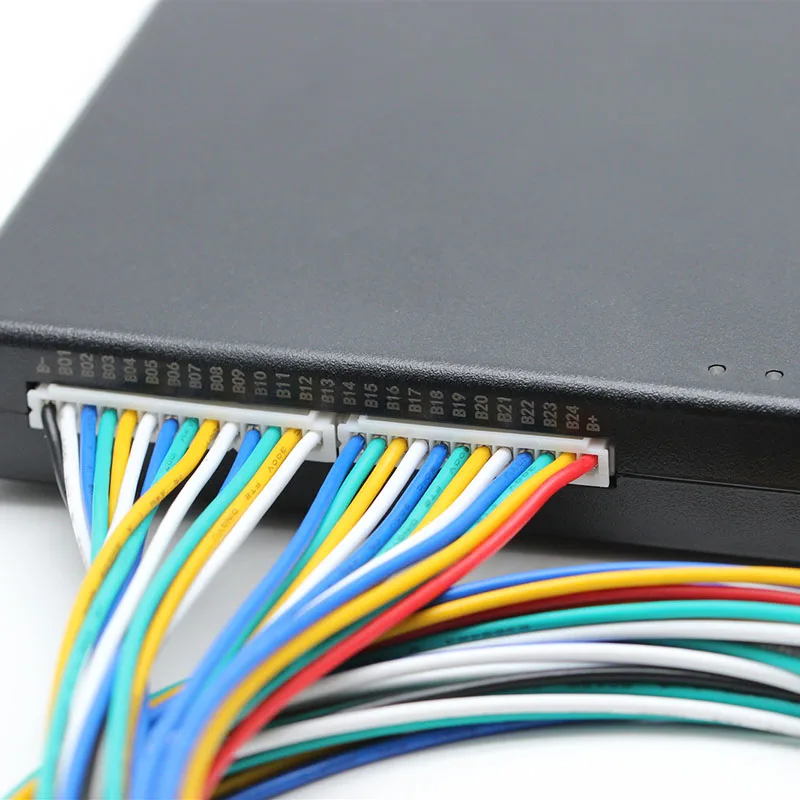

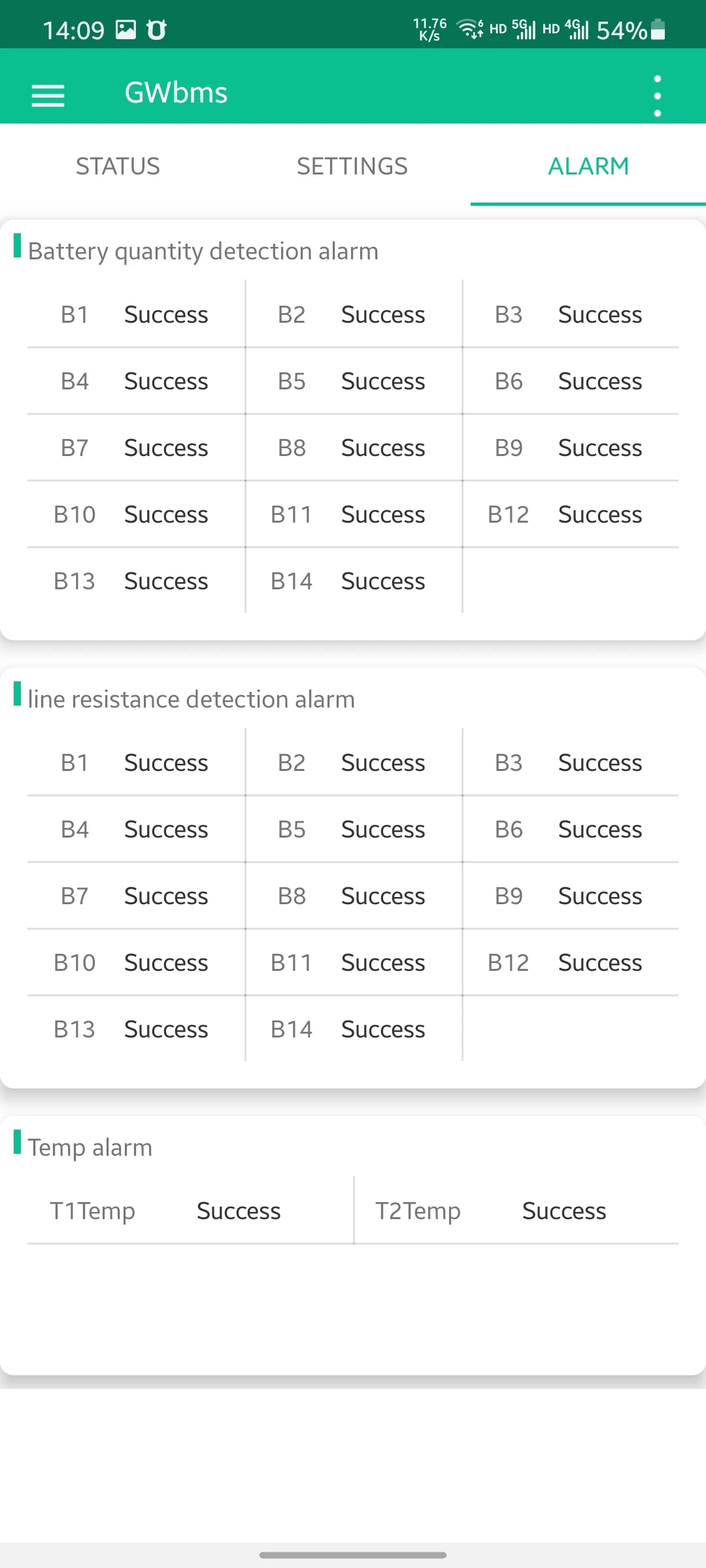

Capacitive energy transfer balance board (high precision 1mv, point-to-point energy transfer balance). balance current max 4A. Size :130*140*25mm Bluetooth phone APP function . Have English APP now ~ contact us for APP ~ Blue Bluetooth status indicator: always on, the Bluetooth link is successful; flashing, the Bluetooth link is disconnected. Red fault status indicator: always on, internal fault; flashing battery test failed. Green working status indicator: always on, balance is completed; flashing and balance is working. Number of series: 10S～24S; the minimum total voltage of the battery pack is greater than 30V Applicable battery type: NCM/LFP/LTO (Lipo/Li-ion/Lifepo4/lithium titanate) fully compatible Single voltage working range: 1.0～4.5V balance method: patented balance structure flying capacitor method, combined with point-to-point energy transfer algorithm for high-efficiency balance . Balance current: APP custom setting: 1-4A, due to the use of constant current and constant voltage technology, the balance current has nothing to do with the battery voltage difference. Drop wire detection: support Under-voltage protection sleep voltage: Under-voltage sleep voltage can be customized by APP: 1.5-4.2V Quiescent working current: balance off 10mA, balance on 25mA Working environment temperature: -20 degrees to +55 degrees Don't need external power supply , and the entire group is balanced by the internal energy transfer of the battery Advanced active balance means that energy transfer does not need to set up the top balance of the battery. The best working condition is to repair the voltage balance in the full voltage range of the battery, while the backward passive discharge balance needs to set up the top balance to perform the top pair discharge alignment and balance. The working principles of the two balance are different, and the system settings are also different. |
Company Profile
Guangzhou One Cat Import and Export Co., Ltd is a company engaged in the production and sales of BMS/protection boards , active balancers, chargers , battery meters and other battery accessories like heat shrink tubes , insulation papers and so on .
IC GOGOGO store is our Aliexpress store, which have highly recommendation at home and abroad . We have 20 years experience in battery industry, selling products to all over the world with best service ! We accept retail,wholesale and drop shipping . Selling finished or custom made products , our cooperations is various .
In cooperation with many companies oversea with strict quality guarantee system and perfect management system, high-quality products after-sales service is our foothold in this.Our goal is to make the new energy industry better in the world.
Our company has been in good faith to create enterprises, to credit management market, has won a good reputation, also won the respect of their domestic counterparts.
Business strictly in accordance with relevant state laws, regulations and rules of the WTO requirements management according to law, actively participate in regional economic cooperation . Our company will expand the scale of operation and steady development of corporate economic, sincerely seeking partners, good faith cooperation and seek common development, writing a new chapter in high-tech electronics.
IC GOGOGO store is our Aliexpress store, which have highly recommendation at home and abroad . We have 20 years experience in battery industry, selling products to all over the world with best service ! We accept retail,wholesale and drop shipping . Selling finished or custom made products , our cooperations is various .
In cooperation with many companies oversea with strict quality guarantee system and perfect management system, high-quality products after-sales service is our foothold in this.Our goal is to make the new energy industry better in the world.
Our company has been in good faith to create enterprises, to credit management market, has won a good reputation, also won the respect of their domestic counterparts.
Business strictly in accordance with relevant state laws, regulations and rules of the WTO requirements management according to law, actively participate in regional economic cooperation . Our company will expand the scale of operation and steady development of corporate economic, sincerely seeking partners, good faith cooperation and seek common development, writing a new chapter in high-tech electronics.
222
Professional and creative team ! Looking forward to cooperate with you ~
FAQ
Any other question , feel free to contact us ~
