Обувная машина с тремя иглами трехцветная Автоматическая Компьютеризированная швейная для
- Категория: Nonwoven Machines >>>
- Поставщик: Shenzhen,Chaocheng,Sewing,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10472.87 $* | 10996.35 $* |
| Aug-16-2025 | 10384.7 $* | 10903.39 $* |
| Jul-16-2025 | 8712.40 $* | 9148.43 $* |
| Jun-16-2025 | 10208.39 $* | 10718.77 $* |
| May-16-2025 | 8888.36 $* | 9332.58 $* |
| Apr-16-2025 | 10032.61 $* | 10534.46 $* |
| Mar-16-2025 | 9944.15 $* | 10441.49 $* |
| Feb-16-2025 | 9856.73 $* | 10349.61 $* |
| Jan-16-2025 | 9768.35 $* | 10256.86 $* |
Характеристики
Product Description

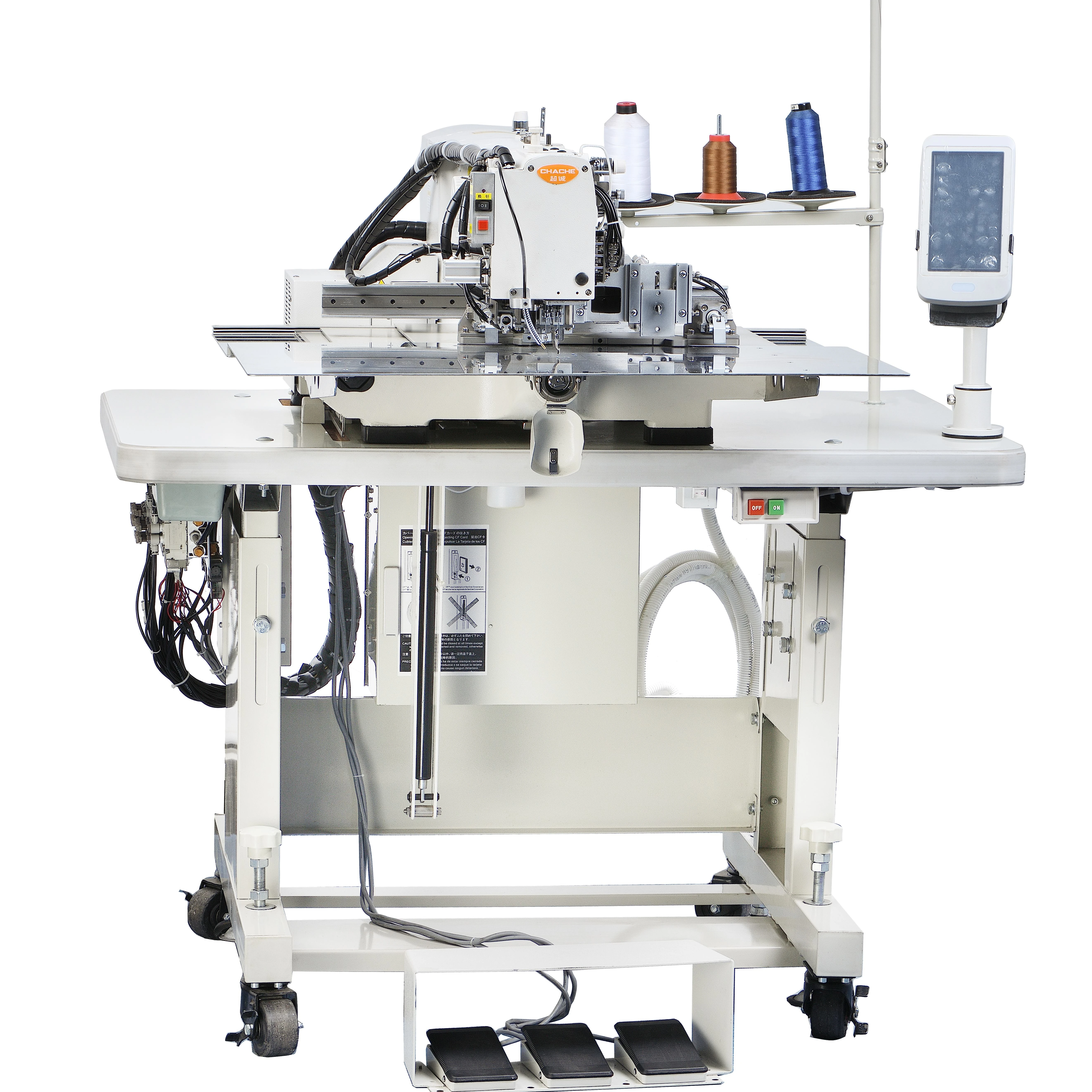

- Industrial sewing machine with three needles for the 3 colors thread sewing in one pattern. This computerized sewing macine with the 7 inches touch screen control and compatible with the brother system.
- Controllable ultrasonic & low noise sewing.
- Superior sewing efficiency & high productivity.
- Edge cutting optional.
Specification
| Model | CC-3020G-01A-C3 | ||
| Sewing area | Max.30×20cm | ||
| Line | 3 needles forward sewing with dual colors | ||
| Highest sewing speed | 2700rpm | ||
| Feeding device | Intermittent feeding (pulse motor driven mechanism) | ||
| Stitch length | 0.05-12.7mm | ||
| Max.stitches | 20,000 stitches/pattern | ||
| Work clamp lifter | pnuematic (height:max.30mm) | ||
| Clamp lifter | divided | ||
| Clamp lifter ascensional range | 22mm | ||
| Hook | double shuttle hook | ||
| Tension device | electric tension device | ||
| Data storage | USB or Memory card(CF card can save and edit any sewing patterns) | ||
| Motor | AC servo motor 750W | ||
| Air pressure | 0.5Mpa 1.8L/min | ||
| Net weight | 220kg | ||
| Gross weight | 290kg | ||
| Packing | 126*126*135cm | ||
| CBM | 2.14m³ | ||
