Инвертор солнечной батареи MUST EP3300TLV немодулированный синусоидальный сигнал 1 кВт/1 5 кВт/2 кВт/3 кВт/4 кВт/5 кВт/6 кВт 5000 Вт 48
- Категория: >>>
- Поставщик: Must,Energy,(guangdong),Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 428.2 $* | 449.9 $* |
| Aug-15-2025 | 425.61 $* | 446.9 $* |
| Jul-15-2025 | 356.64 $* | 374.41 $* |
| Jun-15-2025 | 418.17 $* | 439.82 $* |
| May-15-2025 | 364.20 $* | 382.82 $* |
| Apr-15-2025 | 410.23 $* | 431.78 $* |
| Mar-15-2025 | 407.43 $* | 427.83 $* |
| Feb-15-2025 | 403.6 $* | 423.49 $* |
| Jan-15-2025 | 400.91 $* | 420.25 $* |
Характеристики

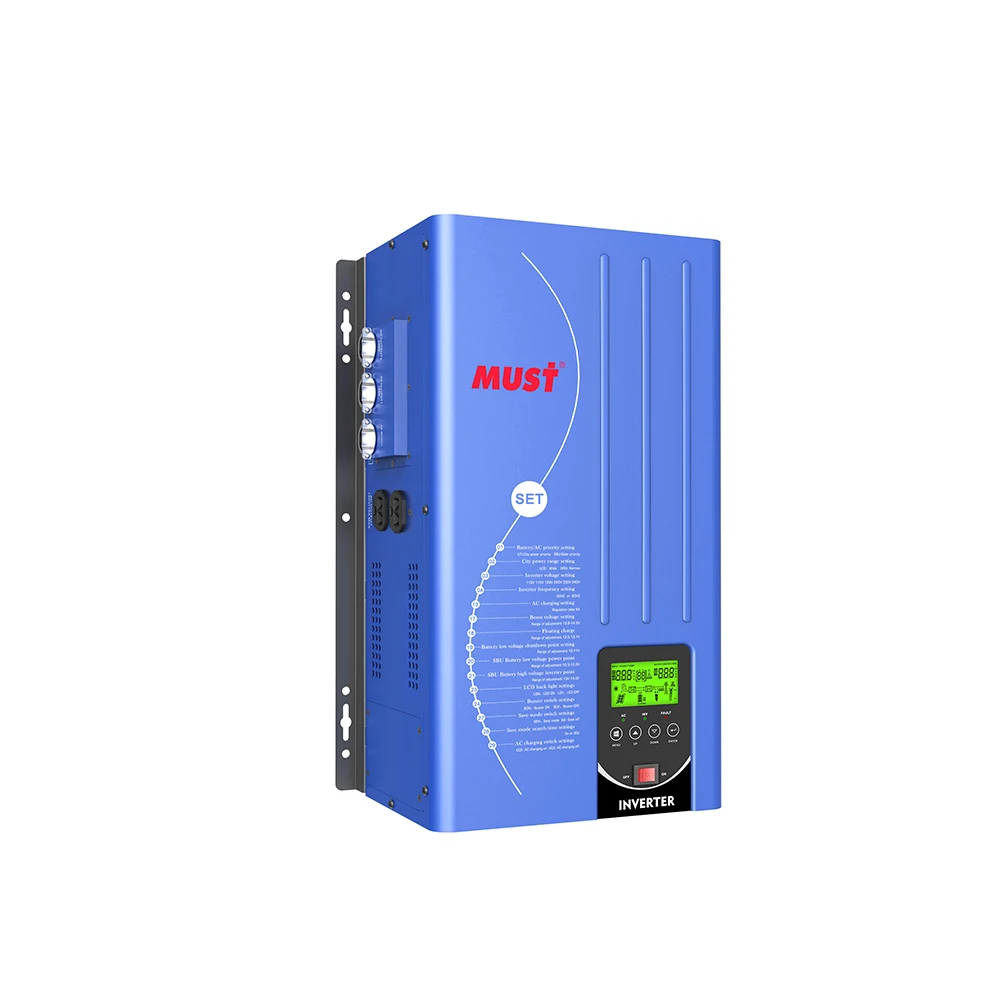

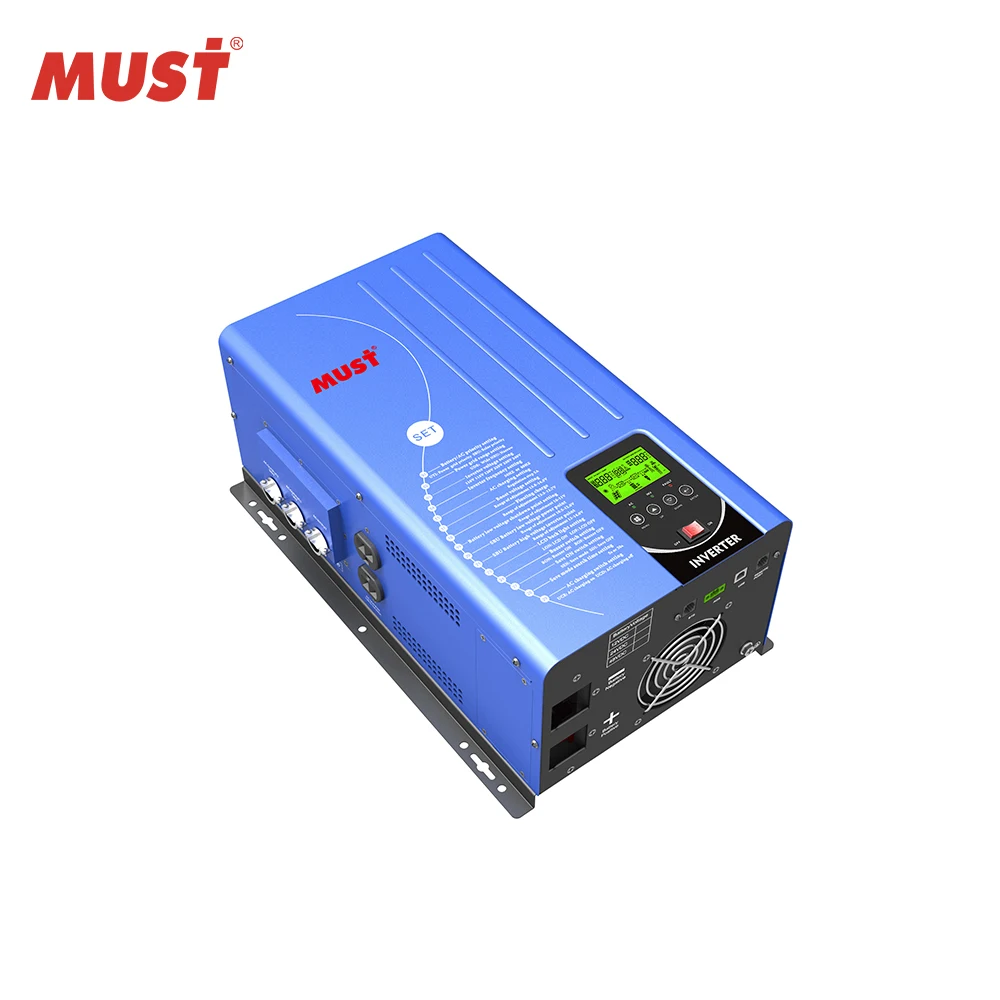

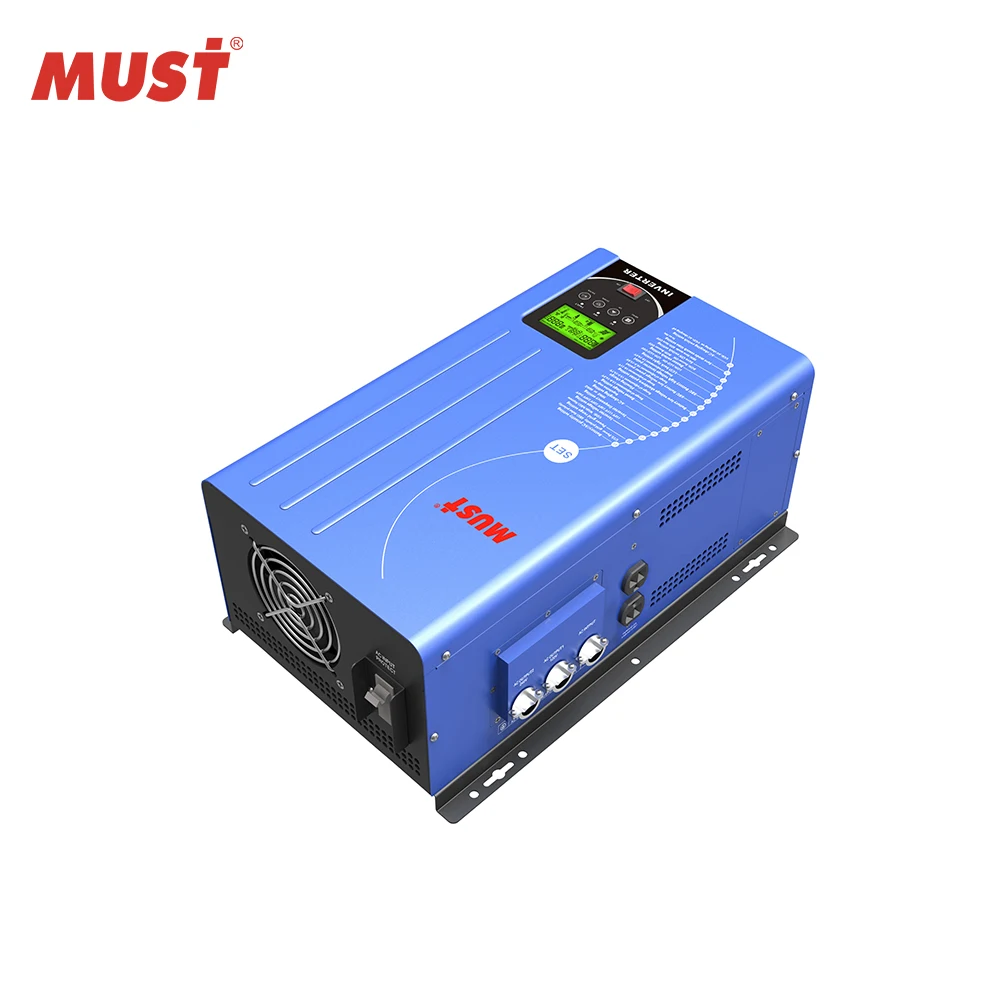

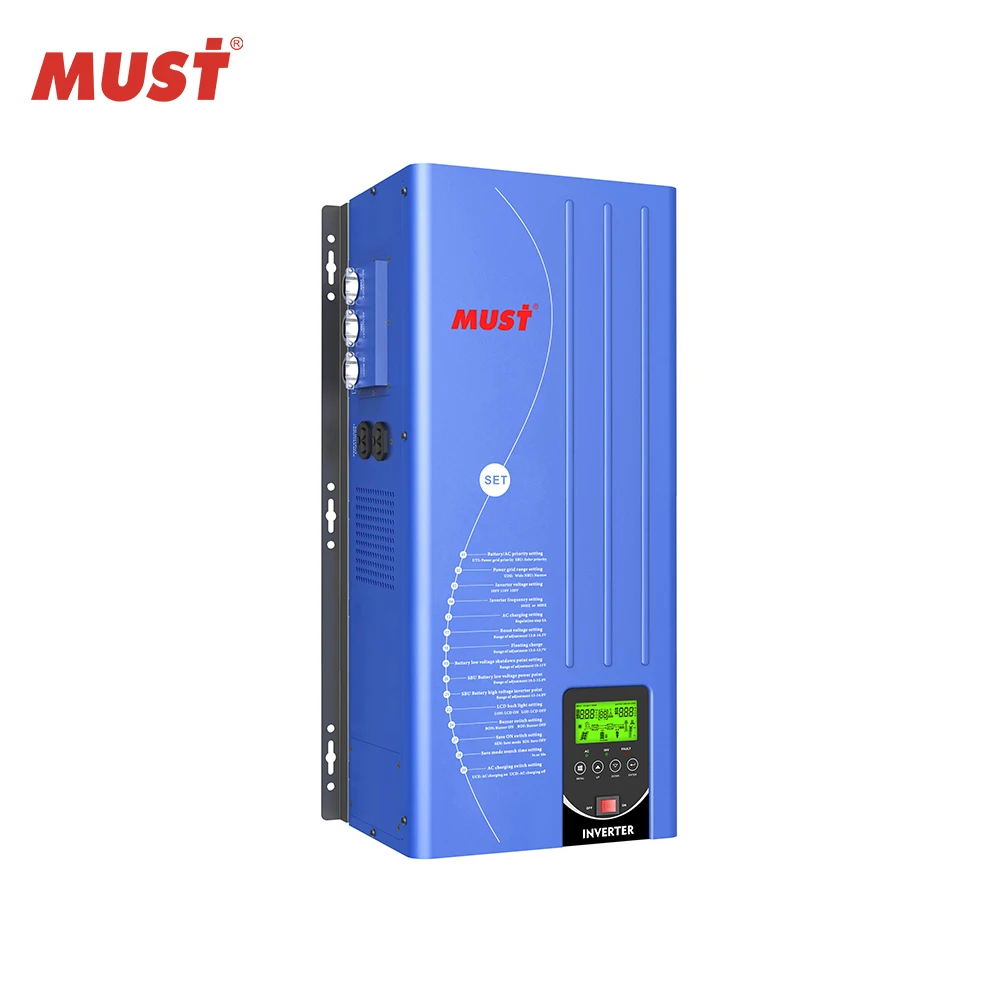

MUST EP3300TLV pure sine wave 1kw/1.5kw/2kw/3kw/4kw/5kw/6kw inverter 5000w 48v solar inverter
*************ANY QUESTIONS, INQURIES WELCOMED TO CONTACT Monica !!!!***************
WHATSAPP/WECHAT: +86 157 1209 1318
Product Description

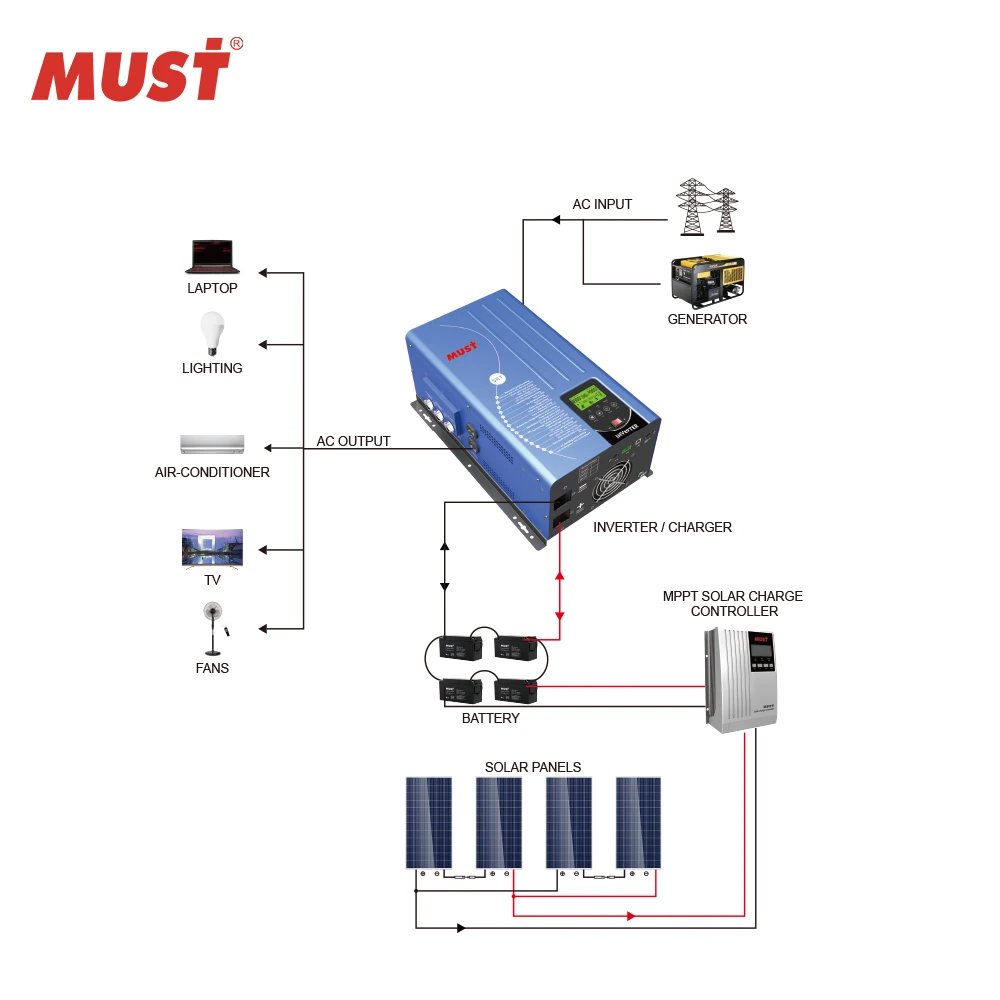

This split phase inverter EP3300 TLV series, capacity from 1KW-6KW, DC 12V/24V/48V, it’s applicable to 110VAC/120VAC markets demands, which matches AC 110VAC/120V single phase, or two-phase 110VAC/120V 120V/240V; In LCD display, you can set output voltage, frequency, charging voltage, charging current to design the best use based on different loads applications; meanwhile, you can also connect extra solar charger controller to build a solar home system, take use of sunshine freely and save electricity bills.
| Main Advantages |
- Pure sine wave output, split phase HOT1+ N + HOT2 available, 120VAC/220VAC
- MFD (multi-function display) & Friendly user interface
- 3 Steps optimizing charge for battery pack
- Overload and short-circuit protection
- Settable: charging/charging current, utility/Battery priority, utility input wide/narrow range
- Inverter voltage can be set to 100V/110V/120V
- Inverter frequency can be set to 50/60Hz
| Inside Structure |
| Product Features |
Smart Battery Chargers – 3 steps optimizing battery charge
Boost CC Stage: If A/C input is applied, the charger will run at full current in CC mode until the charger reaches the boost voltage.
Boost CV Stage: the charger will keep the boost voltage in Boost CV mode until the charge current less 6A continue 1minute or keep the boost voltage-time more than 2 hours . Then drop the voltage down to the float voltage.
Float Stage: In float mode, the voltage will stay at the float voltage. If the A/C is reconnected, the charger will reset the cycle above.
Easy to read all working modes and parameters in LCD
Line Mode: Input power will provide energy to load directly. And it will charge the battery at the same time.If the voltage of input power is outside of the section, the machine will switch to battery mode.
Battery Mode: The unit will get energy from the battery and provide to load.
Fault Mode: If any fault has happened, the machine will enter to the mode. And fault code is displayed on the LCD.
Smart setting to make inverter work more efficiency
| Product details |
| Products parameter |
| Model | EP33-1012TLV | EP33-1024TLV | EP33-1512TLV | EP33-1524TLV | EP33-2012TLV | EP33-2024TLV | EP33-3024TLV | EP33-3048TLV | EP33-4024TLV | EP33-4048TLV | EP33-5048TLV | EP33-6048TLV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inverter Output | ||||||||||||
| Rated power(W) | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||
| Power Factor | 1 | |||||||||||
| Wave form | Pure sine wave/ Same as input waveform (bypass mode) | |||||||||||
| Output voltage RMS | 100V/110V/120VAC(200V/220V/240VAC)±10% | |||||||||||
| Output frequency | 50HZ or 60HZ (±0.3HZ) (can be set) | |||||||||||
| Overload protection | Breaker + software protection | |||||||||||
| Output short circuit | Breaker + software protection | |||||||||||
| Inverter efficiency(peak) | >80% | |||||||||||
| Overload | 100%<Load<110% (alarm 5min then stop output and fault code 07); 110%<Load<125% (alarm 60s then stop output and fault code 07); Load>125% (alarm 10s then stop output and fault code 07) | |||||||||||
| Surge rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | |||||
| Capable of starting electric motor | 1P | 1P | 1.5P | 1.5P | 2P | 3P | ||||||
| Battery | ||||||||||||
| Battery voltage | 12VDC/24VDC | 24VDC/48VDC | 48VDC | |||||||||
| Minimum start voltage | 11VDC/22VDC/44VDC | |||||||||||
| Low battery voltage cut off | (low voltage fault code04)10/10.5/11V for 12V model(*2 for 24DVC / *4 for 48VDC) | |||||||||||
| Low battery voltage alarm | Add 0.5V/battery: (low battery alarm one second one time) (10/10.5/11V) + 0.5Vdc for 12V model(*2 for 24DVC / *4 for 48VDC) | |||||||||||
| High battery voltage alarm | Add +1V/battery: (high voltage one second one time/after 30s fault 03) (13.8-14.5V) + 1V for 12V model(*2 for 24DVC / *4 for 48VDC) | |||||||||||
| Save mode | Load≤40W(110V)/80W(220V) | |||||||||||
| AC Input Mode | ||||||||||||
| Input waveform | Pure sine wave | |||||||||||
| Nominal input voltage | 220Vac / 230Vac / 240Vac | |||||||||||
| Max input voltage | 270Vac MAX | |||||||||||
| Input frequency | 50HZ/60HZ (auto sensing) | |||||||||||
| Efficiency(AC mode) | >95% (load, full battery) | |||||||||||
| Transfer time AC TO DC | 15ms(max) | |||||||||||
| Transfer time DC TO AC | 15ms(max) | |||||||||||
| Charge Mode | ||||||||||||
| Boost Voltage | 14.1V(Default) Range of adjustment 13.8-14.5V/*2 for 24VDC/*4 for 48VDC (Regulation step 0.1V) | |||||||||||
| Float Voltage | 13.5V(default) Range of adjustment 13.5-13.7V/*2 for 24VDC/*4 for 48VDC (Regulation step 0.1V) | |||||||||||
| 12V | 30A | 45A | 60A | |||||||||
| 24V | 20A | 25A | 30A | 40A | 60A | |||||||
| 48V | 20A | 30A | 35A | 40A | ||||||||
| Min charge current 10A. change by every 5A. | ||||||||||||
| Dimensions | ||||||||||||
| Dimensions (W*H*D) | 277*196*466mm | 277*186*621mm | ||||||||||
| Ship Dimensions (W*H*D) | 376*306*592mm | 376*296*747mm | ||||||||||
| Warranty | One year(standard),2years optional(IP20) | |||||||||||
Packaging & Shipping
Company Information
Must Power Limited devotes itself to the power field since 1998, and has its own factory in 2008. Now it has about 300 regular employees, including 40 engineers in R&D Department, 3 engineers in After-sales Service Center Department, 40 international sales. MUST products are sold in 98 countries all over the world till now, and the revenue growth is from 2.86 million US Dollars in 1998 to 130 million US Dollars in 2017.
we have rich experience in handling orders for heavy buyers with a professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service
MUST certificates and patents: MUST got the National High-tech Enterprise in 2016, and Shenzhen High-tech Enterprise, the ISO9001, CE, SAA, CONCAP, etc. And also MUST has software and hardware patents.
Testing Equipment
Our Services
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break down
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be serviced by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
24 Hours After-service consultancy just for you and to make your problems to solve easily.(Wendy Whatsapp:+86 13691859346)
FAQ
1. Q: Can I have sample before formal order?
A: Sure, it will be warmly welcomed.
2. Q: What's the warranty:
A: 12 months for free.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer)
4. Q: OEM is available?
A: Yes, OEM is welcomed.
Why not give both of us a chance to know each other and share the world together? Just move you fingers and click "SEND" button below, and let's talk!!
Or, Contact Monica directly to get competitive price!!!
