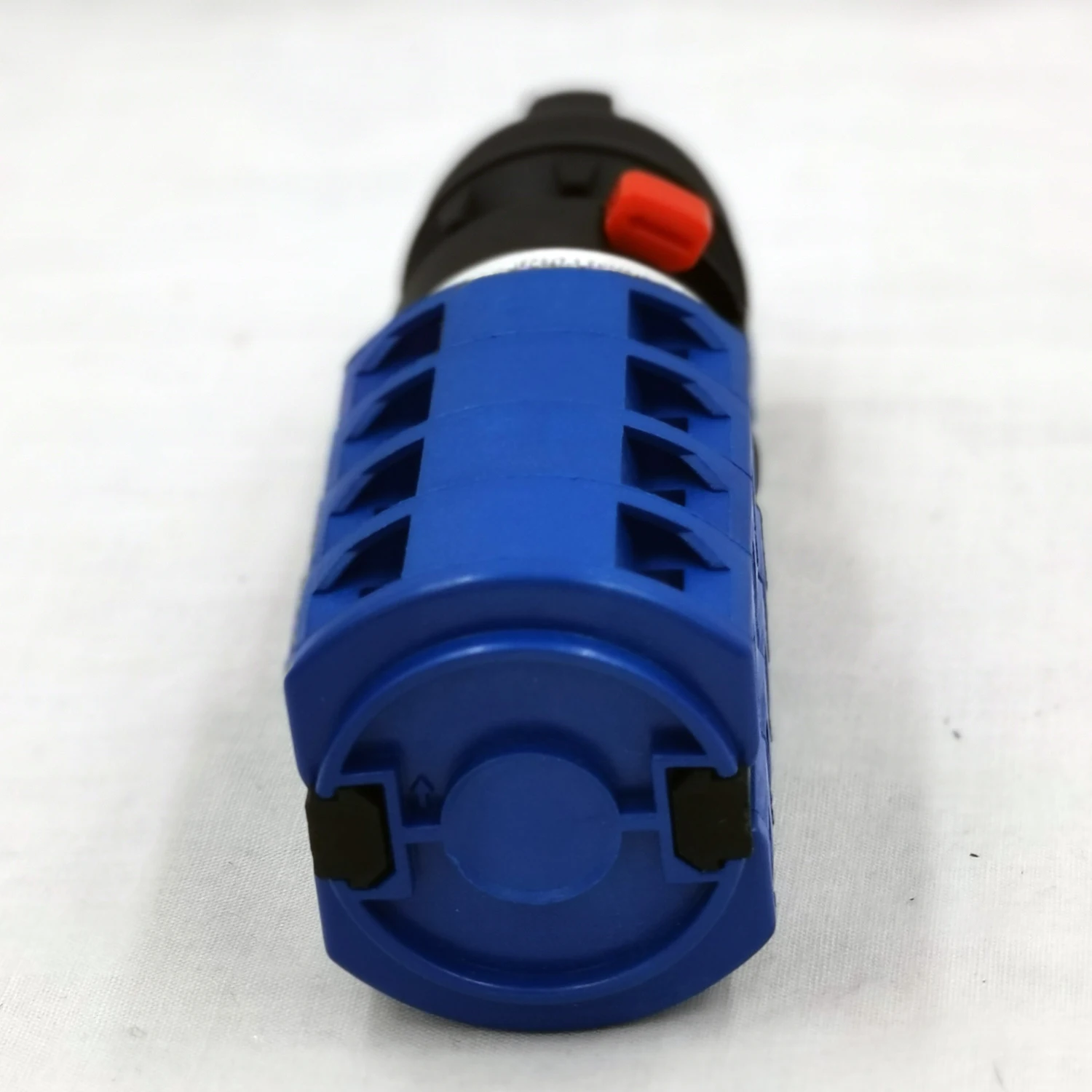

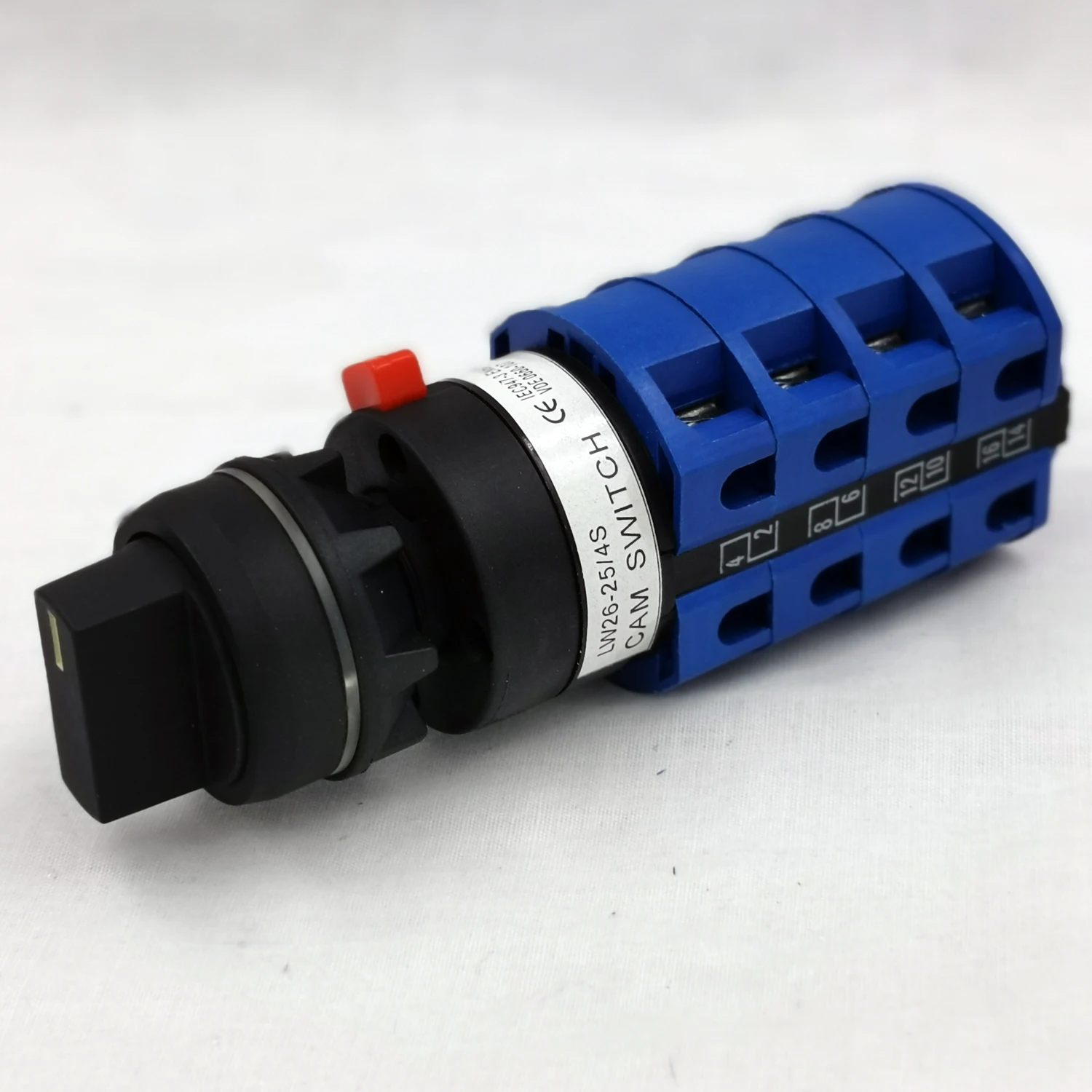

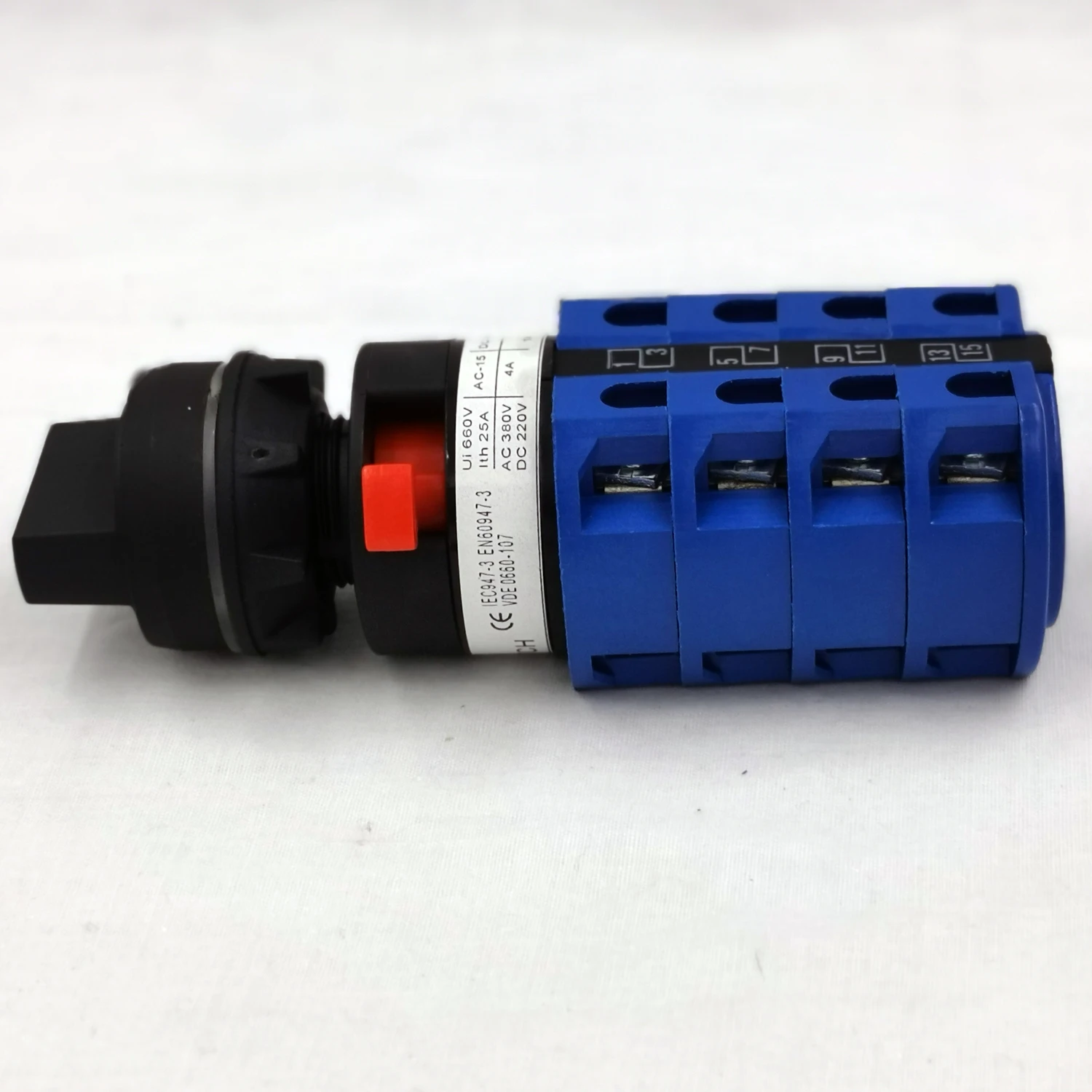

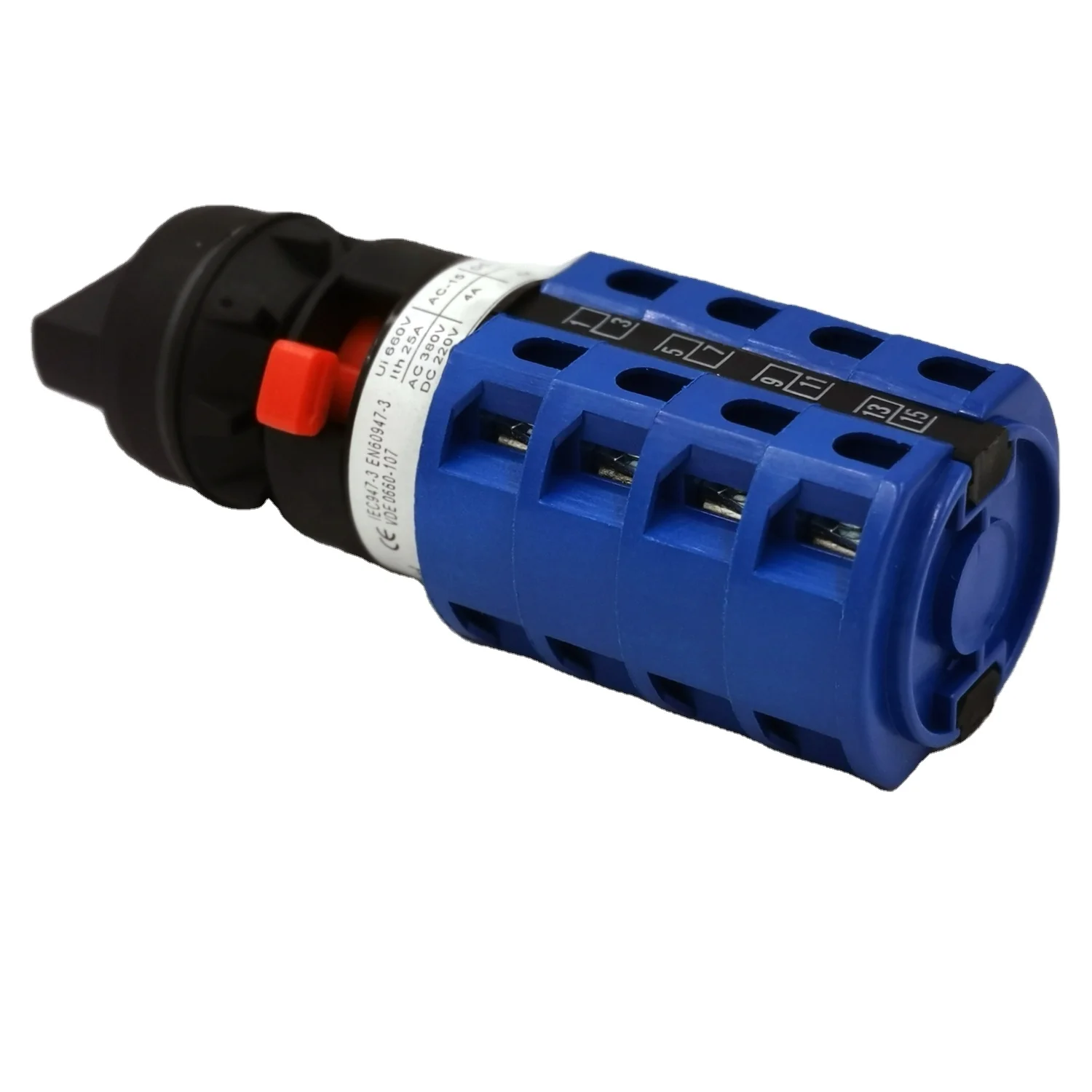

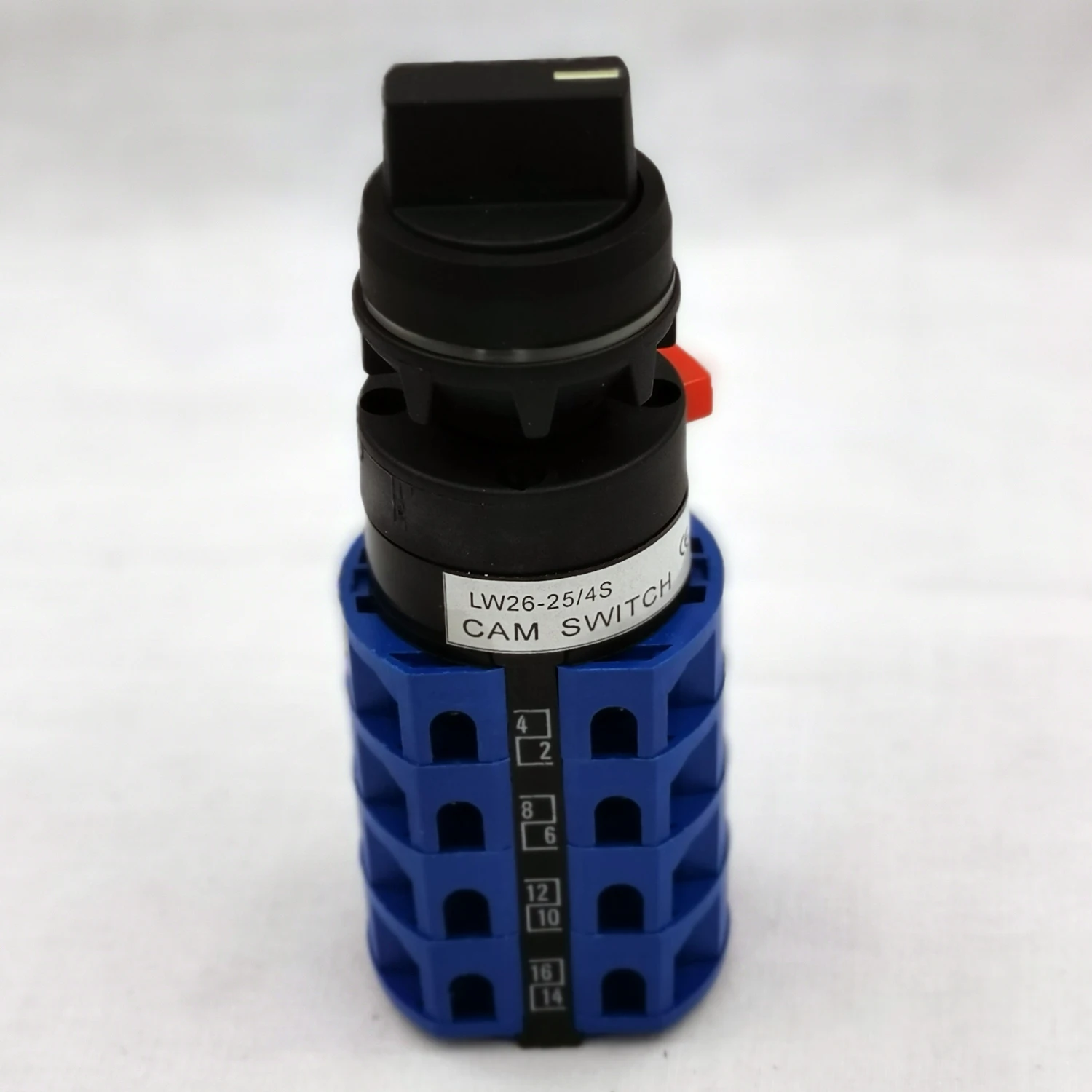

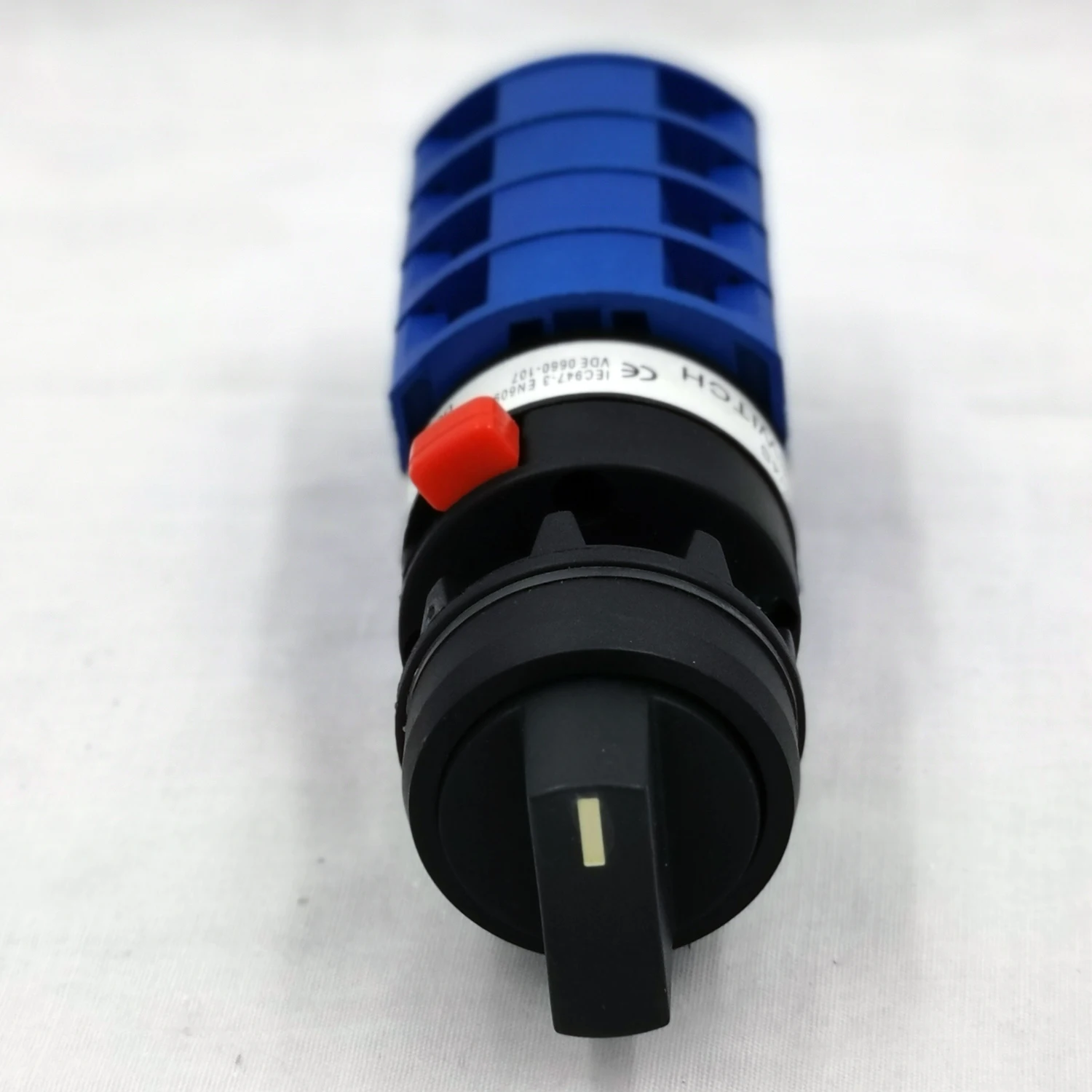

25A поворотный кулачковый переключатель с одним отверстием установки и 4-полюсный автоматический 3-позиционный

Описание и отзывы

Трекер стоимости

Характеристики

LW26 series Rotary Cam Switch





General Features:



1. Wide range of function for switching, it has 20A,25A,32A,63A,125A,160A,315A

2. Capability for switching of resistive, or inductive, or mixed loads.

3. The most economical way for switching electrical loads.

4. Made of the best materials with high mechanical, electrical and thermal resistance.

5. Double-break bimetallic contacts made of silver alloy and Copper.

6. Terminals with screws provided with cable clamp.

7. Fast and easy installation and wring.

8. Capability to produce special Cam Switches based on customer requirements.



Advantage:

1.  LW26 series Rotary Cam Switches have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.


2.  LW26 series Rotary Cam Switches have many different types of operation handle to choose by customer(“R”,”I”,”R2”,”B”,”F”,”L”,”P”and “K” types)


3.  LW26 series Rotary Cam Switches can produce the Maximum number of sections has 1~12 poles (63A only have 8 poles)


4.  LW26 series Rotary Cam Switches can produce transform angle: 30°/45°/60°/90°


5.  LW26 series Rotary Cam Switches have many different position of panel mounting to choose by customer.Such as: “0-1”,”0-1-2”,”1-0-2”,”0-1-2-3”,”0-1-2-3-4”,”L3L1-L2L3-L1L2-0-L1N-L2N-L3N”,”0-L1N-L2N-L3N”,”0-L1L2-L2L3-L3L1”,”0-L1-L2-L3” and so on…



Technical parameters:



Description			LW26-20				LW26-25				LW26-32		LW26-63		LW26-125		LW26-160
Rated insolation voltage	Ui	V	660				660				660		660		660		660
Rated thermal current	Ith	A	20				25				32		63		125		160
Rated working voltage	Ue	V	24	110	240	440	24	110	240	440	240	440	240	440	240	440	240	440
Rated working current	Ie				20	20
AC-21A AC-22A		A							25	25	32	32	63	63	100	100	150	150
AC-23A		A			15	15			22	22	30	30	57	57	90	90	135	135
AC-2		A			15	15			22	22	30	30	57	57	90	90	135	135
AC-3		A			11	11			15	15	22	22	36	36	75	75	95	95
AC-4		A			3.5	3.5			6.5	6.5	11	11	15	15	30	30	55	55
AC-15		A			5	4			8	5	14	6
AC-13		A	12	0.4	0.4		20	0.5	0.5





Dimensions and installation dimensions:

 Handle operation and position:

Operation method	Feature Code	Handle position
Momentary Type	A	0°←30°	0°←45°	0°←60°	0°←90°
	B	30°→0°←30°	45°→0°←45°	60°→0°←60°	90°→0°←90°
	X	60°→30°→0°←30°←60°	90°→45°→0°←45°←90°
	Y	90°→60°→30°→0°←30°←60°←90°
Position Maintain Type	C	0° 30°	0° 45°	0° 60°
	D	30° 0° 30°	45° 0° 45°	60° 0° 60°
	E	30° 0° 30° 60°	45° 0° 45° 90°	60° 0° 60° 120°
	F	60° 30° 0° 30° 60°	90° 45° 0° 45° 90°	60° 0° 60° 120° 180°
	G	60° 30° 0° 30° 60° 90°	90° 45° 0° 45° 90° 135°	120° 60° 0° 60° 120° 180°
	H	90° 60° 30° 0° 30° 60° 90°	135° 90° 45° 0° 45° 90° 135°
	I	90° 60° 30° 0° 30° 60° 90° 120°	135° 90° 45° 0° 45° 90° 135° 180°
	J	120° 90° 60° 30° 0° 30° 60° 90° 120°
	K	120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
	L	150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
	M	150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° 180°
	N		45° 45°	30° 30°
	P				90° 0° 90°
	T				0° 90°
	V				90° 0°
	R				270° 0° 90° 180°
Position Momentary Type	Q	30°  0°←30°	45°  0°←45°
	S	30°→0°  60°	90°  0°←45°
	W		90°→45°  0°  45°←90°
	Z	120°→90°  0°←30°	135°→90°  0°←45°





20A,25A Panel specifications:



1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C

2. Working height: ≤2,000m

3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)





Classification



1. Classified by utilization, control and load switch.

Motor switch Control switch



2. Classified by operation limited movement

Spring return Limited movement with spring return



3. Classified by contact system switch with limited movement

has 1~12 poles (63A only have 8 poles)

Switch with spring return has 1~3 poles

Motor control switch has 1~6poles



4. Classified by panel

Square panel, rectangular panel, circular panel (only 20A)
