Низковольтный шунтирующий конденсатор BCMJ однофазный/трехфазный
- Категория: Capacitors >>>
- Поставщик: Anhui,Mascotop,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.1 $* | 0.87 $* |
| Aug-18-2025 | 0.93 $* | 0.58 $* |
| Jul-18-2025 | 0.97 $* | 0.15 $* |
| Jun-18-2025 | 0.91 $* | 0.2 $* |
| May-18-2025 | 0.6 $* | 0.47 $* |
| Apr-18-2025 | 0.41 $* | 0.74 $* |
| Mar-18-2025 | 0.19 $* | 0.69 $* |
| Feb-18-2025 | 0.66 $* | 0.99 $* |
| Jan-18-2025 | 0.75 $* | 0.96 $* |
Характеристики
Product Overview

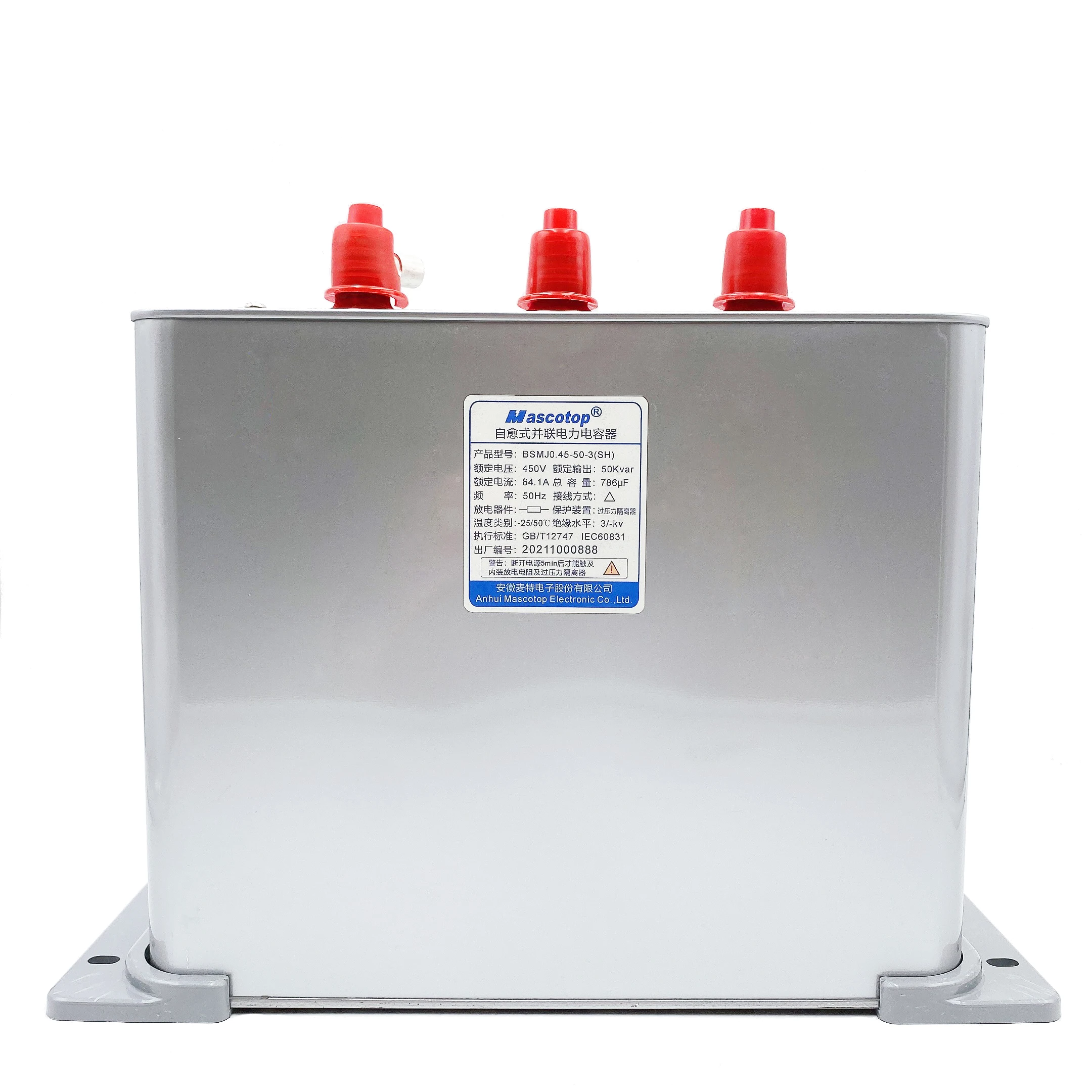

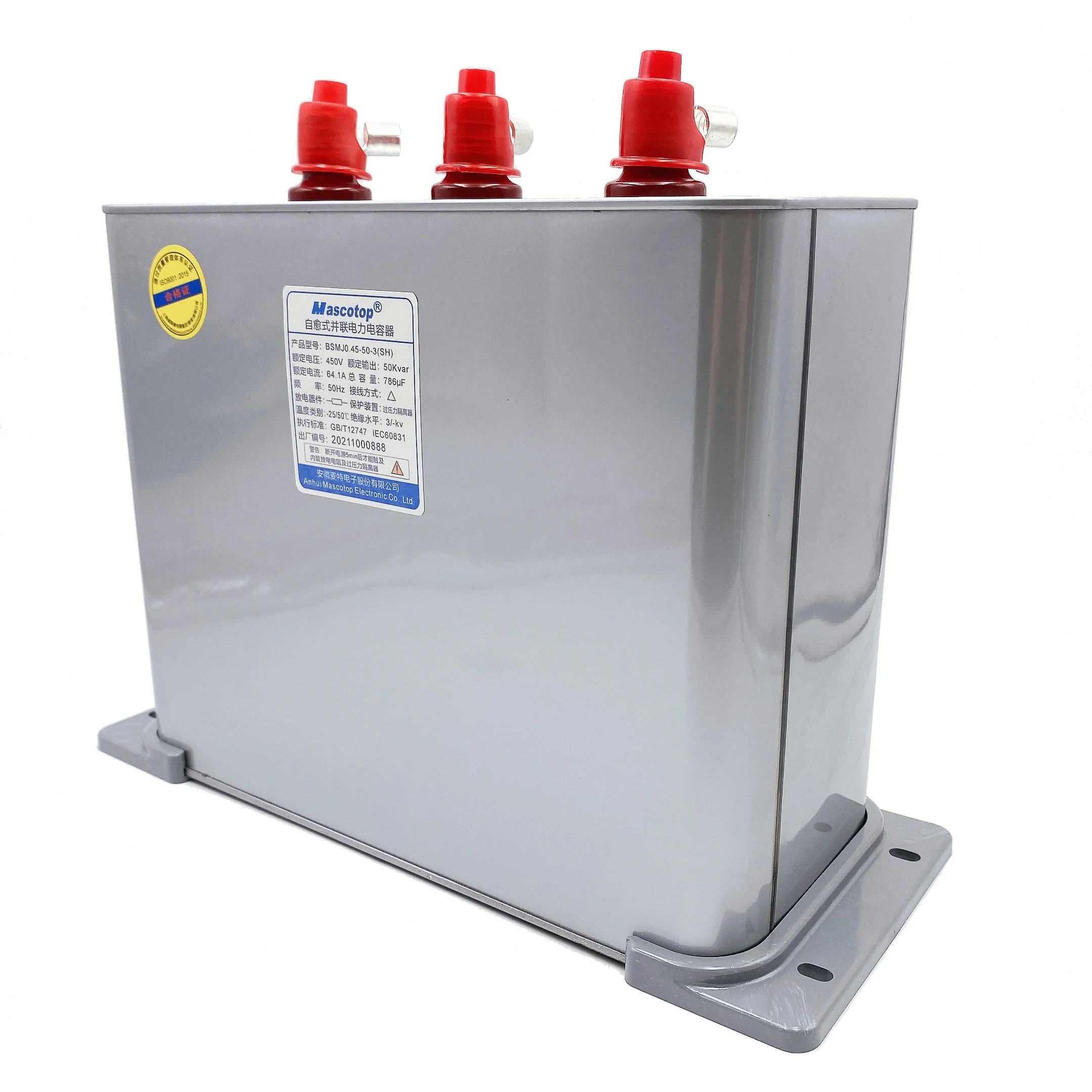

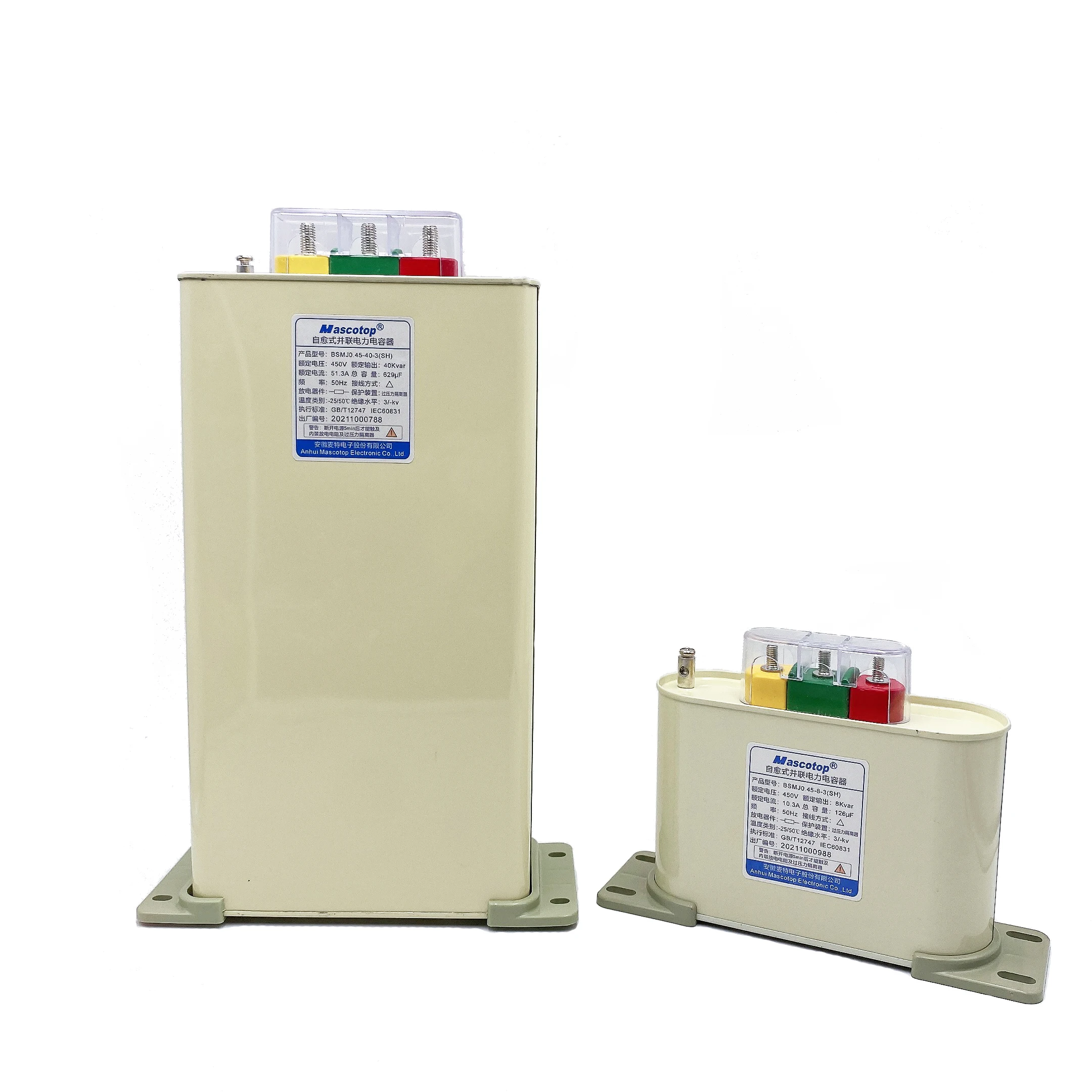

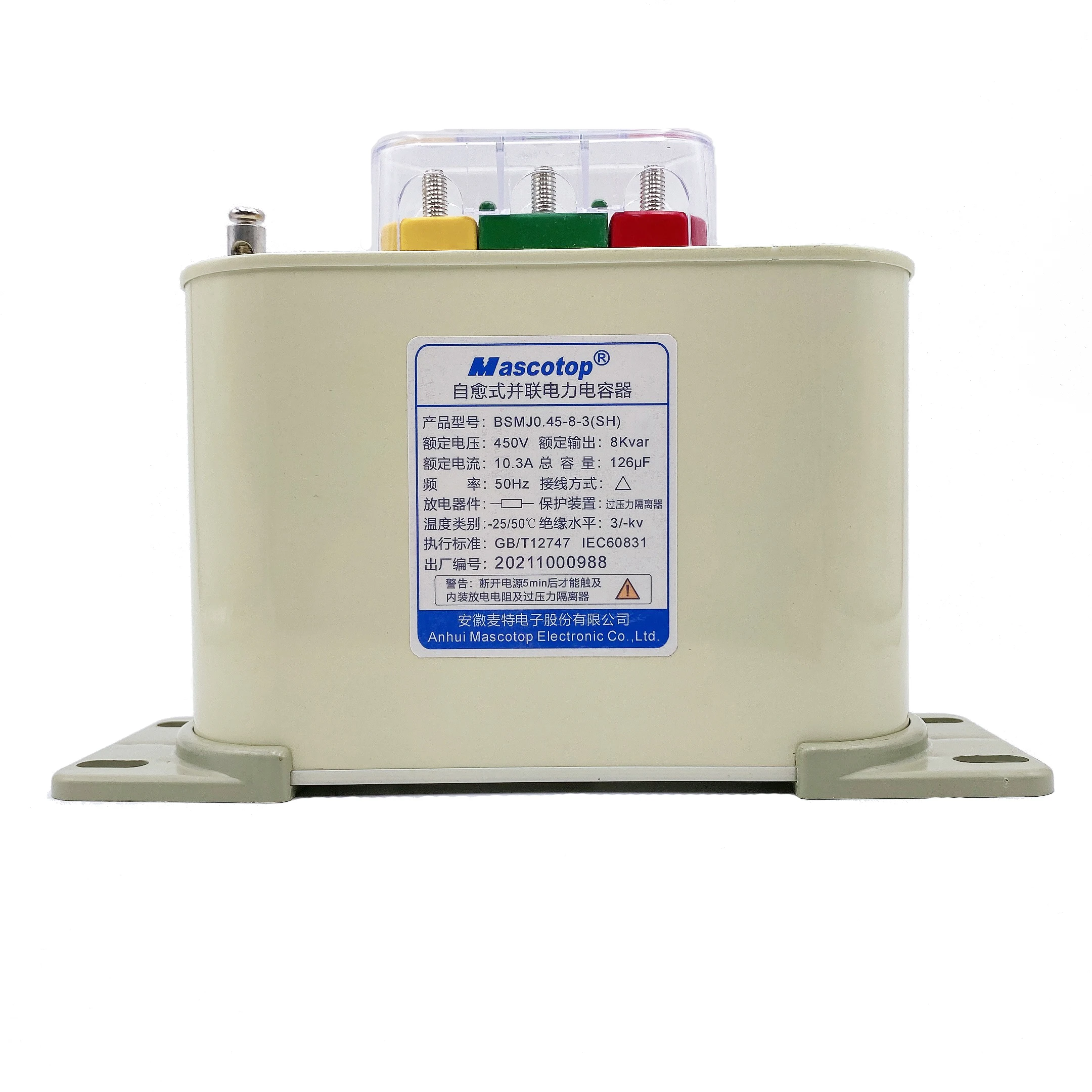

Self-healing low voltage shunt capacitor
The capacitor has the advantages of small volume, light weight, low dissipation, low temperature rise, long life, good self-healing, and good safety. It is suitable for the power frequency AC power system with rated voltage of 1000V and below, which helps to improve the quality of the power grid, increase the power factor, and reduce the line loss.
Ambient Temp | Phase | Range of Capacitance | Allowable voltage | Dissipation Factor | Operating Frequency |
-25~50ºC | Single/Three phase | -5~+10% | Below the 1.1Un | tanδ≤0.2%Hz | 50/60Hz |
GEOGRAPHIC POSITION
EQUIPEMENT PROCESS FLOW
Product Photo
Certifications
Packing & Delivery
Individual Box with PP Bag
High Strength Outer Carton
Carefully Loading
Safely Loading
EXHIBITION COMMUNICATION
WHY CHOOSE US
* In strict accordance with the UL810, IEC60252, GB/T3667.1-2005 standards, etc. Regularly test the capacitor life, to ensure that product life and safety performance meet customer requirements.
* Strictly follow high standard process flow, use automatic oil treatment equipment, automatic production line, to control product consistency.
* Select high quality raw materials, take strict inspection of incoming materials, and reasonable storage.
* Professional design and service team, inquiry and consulting support,free samples.
* Strong professional marketing and logistics support team
* Healthy financial ecology, stable vendor cooperation
