Устойчивый к высоким температурам керамический ленточный нагреватель Laiyuan 187*100 мм 380 в 2 кВт для литьевой
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Laiyuan,Electric,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 11.20 $* | 11.36 $* |
| Jul-19-2025 | 9.27 $* | 9.95 $* |
| Jun-19-2025 | 11.5 $* | 11.73 $* |
| May-19-2025 | 11.40 $* | 11.26 $* |
| Apr-19-2025 | 9.76 $* | 9.50 $* |
| Mar-19-2025 | 11.26 $* | 11.48 $* |
| Feb-19-2025 | 11.8 $* | 11.66 $* |
| Jan-19-2025 | 11.36 $* | 11.30 $* |
Характеристики

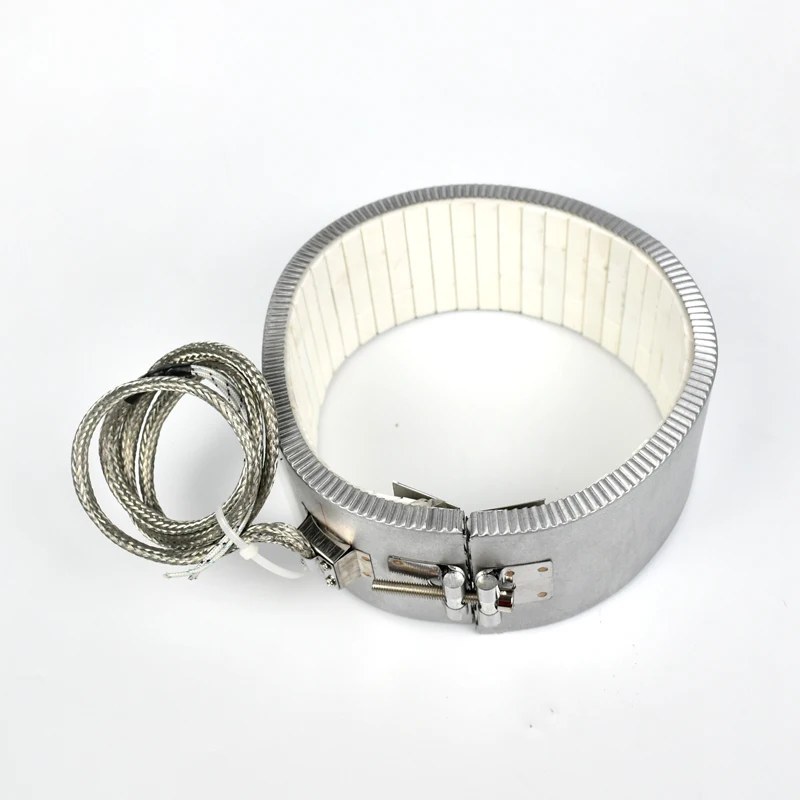

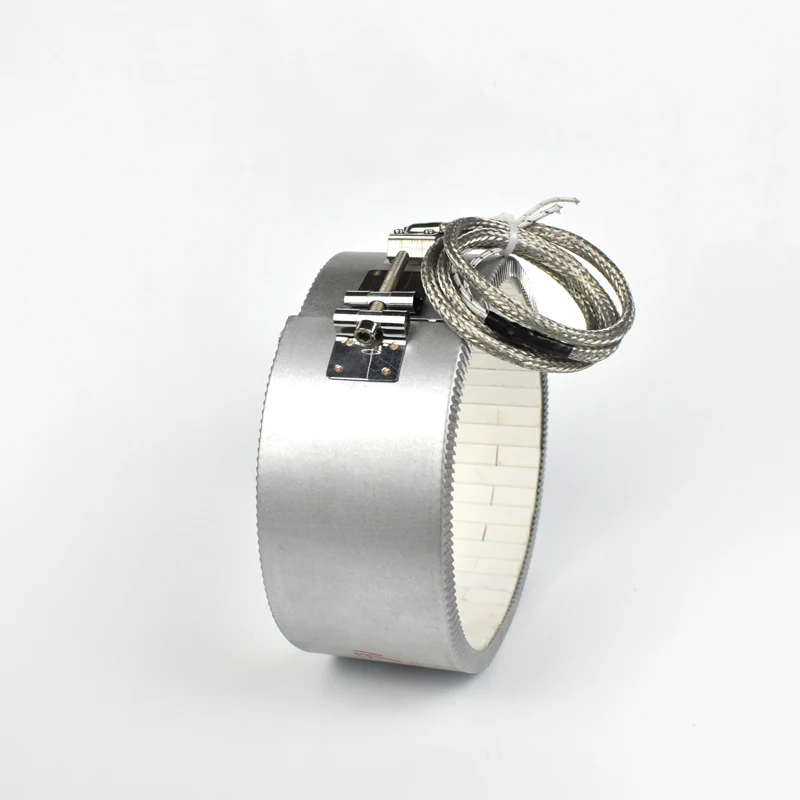

Laiyuan 187*100mm 380V 2Kw High Temperature Resistance Ceramic Band Heater For Injection Machine
Inner diameter: 187mm
Height: 100mm
Power: 2KW
Voltage: 380V
More discount
Please contact laiyuan@china-laiyuan.com
Wechat/Whatsapp: +86 18905102705
Wechat/Whatsapp: +86 18905102705
All Band Heater
Extruder Band Heaters Made of mica/ceramic insulation, nickel chrome heating wire and stainless steel sheath,
Extruder band heaters are the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry. We can produce vatious shapes to accomodate different applications and industries.
All Customer Design Requirements such as European plugs, terminal boxes, wire leads, post terminalsand tapped thermocouple brackets are available from our factory to service Asian, European, American Market , etc.
Extruder band heaters are the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry. We can produce vatious shapes to accomodate different applications and industries.
All Customer Design Requirements such as European plugs, terminal boxes, wire leads, post terminalsand tapped thermocouple brackets are available from our factory to service Asian, European, American Market , etc.
Product Pramameters
Voltage Range | 110V - 480V |
Max watt density | 6.8w/c㎡(44W/c㎡) |
Standard thickness | 4-5mm |
Power Tolerance | +5% to -10% |
Resistance | -5% to +10% |
Insulation Resistance (Cold) | ≥ 20 MΩ |
Gap Between the Clamping Edge | 5 - 10mm |
Thermocouple | K/J-type with/without |
Max Working Temperature | 600℃ |
Mini diameter | 50mm |
Custon Options
Sheath Material | Stainless Steel cover for ceramic band heater |
Connection Method | 1.Metal box 2.Screw post terminals 3. High Temperature Plug 4.High temperature cable/ 5.Ceramic block |
Nominal Wall Thickness | Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation) |
Heating Elements (coil) | Cr20Ni80 |

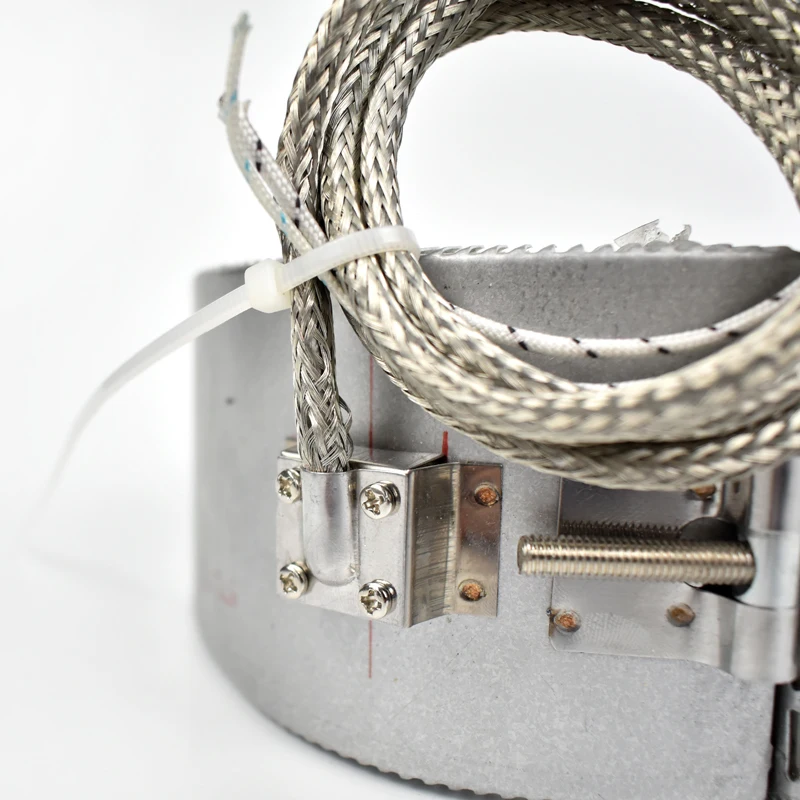

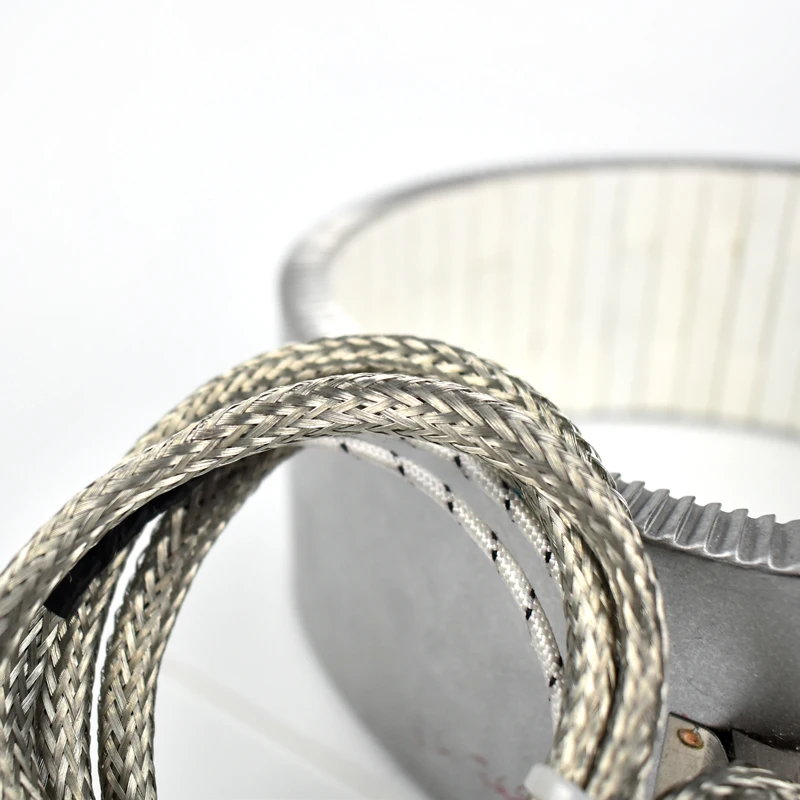

1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire |
Features
Overstandard quality
1.Lower Operating Cost
2.Safe
3.Operator Comfort
4.Operator Comfort
5.Longer Heater Life
6.Higher Operating Temperatures
7.Flexible
8.Dual Heat Transfer

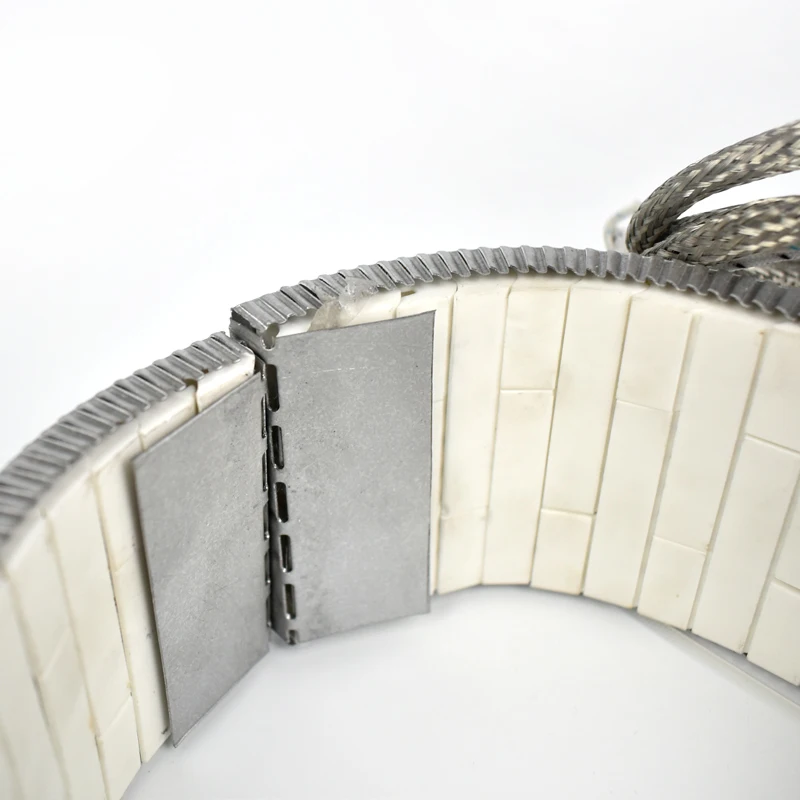

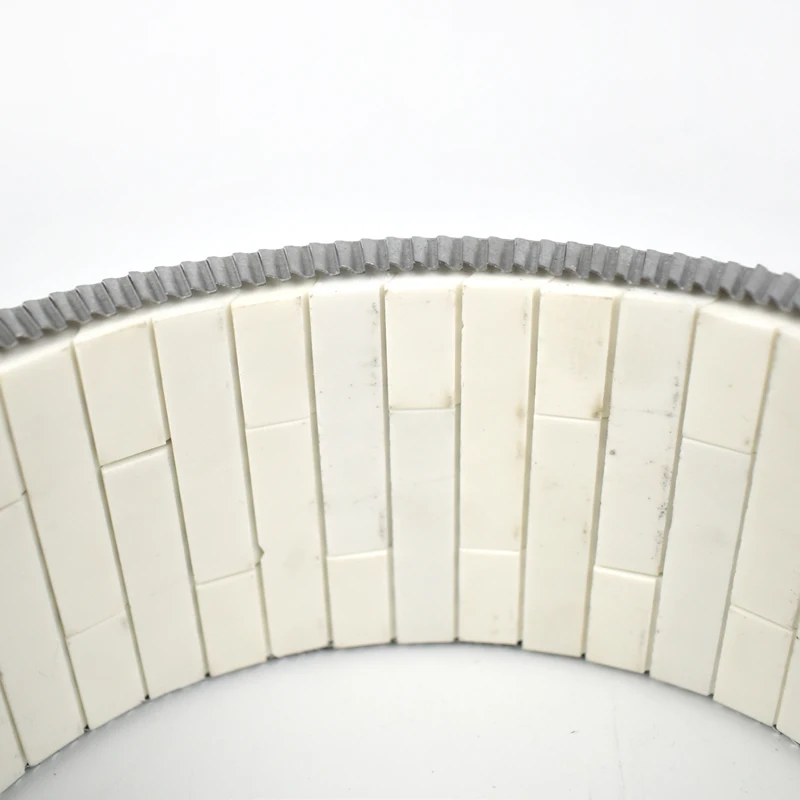

Ceramic Band Heaters provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications. These band heaters are constructed with a stainless steel shroud enclosing high quality ceramic knuckles through which run coiled high temperature nickel-chromium element wire.
Product Application
Applications of Ceramic band heaters
1.Plastic Injection Molding Machines
2.Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
