Product Description




high temperature resistance glass ceramic used for induction cooktop


(Ceramic Glass)Crystallite glass is made of a special glass-ceramic, a material with fascinating properties. This glass-ceramic has extraordinary thermal stability and resists thermal shocks of up to +700 degree C. It stands up to everyday wear and tear in the kitchen. The 4mm thick cooktop
panel transmits heat very efficiently, with virtually no heat loss.


Fireplace Glass alway use microcrystalline glass, also called ceramic glass is made of a special glass-ceramic, is an extremely heat-resistant, transparent glass ceramic which can be produced in a wide variety of shapes and sizes to meet your specific needs.

Glass ceramic is resisting to heat and cold, even to extreme temperature changes.This extraordinary property enables a variety of applications: cooking on glass ceramic appliances day after day, and protecting your fire places or stoves, still enjoying flames view.


Among the heat resistant glasses, glass ceramic is really special. Its key property, is low thermal expansion, lower than borosilicate glasses or standard glasses. It means that, unlike most materials, the crystallite glass ceramic will not expand nor contract with heat. It barely changes its dimensions. This is the reason behind efficient and long time resistant cooktops.it has black,white and clear colors.







Ceramic Glass Technical Parameters


Product name
Ceramic glass
Color
Black,white,clear,etc
Thickness
4mm, 5mm, 6mm
Density
Approx. 2.56 g / cm3
Modulus of Elasticity
Approx. 93 x 103 Mpa
Shape
Round,square,rectangle,etc
Size
590×520mm,730×430mm,900×520mm,also can custom other size
Advantages
Good mechanical properties, chemical corrosion resistance and strong thermal stability,etc
Characteristics
1.Great heat resistance performance,stable chemical property;
2.High light transmission
Bending Strength
Approx. 36 MPa,The bending strength testing is to be accomplished according to DIN EN 1288 part 5 (R45)
Thermal Characteristics
Coefficient of Mean Linear Expansion---α(20 - 700oC) (0 ± 0.5) x 10-7 /K
Resistance to Temperature Differences (RTD)
Resistance of the panel to temperature differences between heated zone and cold panel edge (room temperature). No cracking due to
thermal stress at Tes, max1<=760 degree C
Thermal Shock Resistance
Resistance of the panel to thermal shock when the hot panel (760 degree C) is quenched with cold water (20oC temperature). No
cracking due to thermal stress at Tes, max<=760 degree C
Screen printing
Complies with RoHS standards, normal ink available
Impact resistance
A steel ball (diameter 60mm, weight 188g) freefall from180mm height, striking the panel 10 times. No scratching or cracking
No. of Electric Burner
1,2,3,etc
No. of Gas Burner
1,2,3,etc
Type
Multiple Cooktops (Gas + Electric)
Installation
Built-in
Application
Commercial, Household
Power Source
Electric, Gas


BASIC INFORMATION

1.Thickness: 4MM and 6MM
2.Size: 250*250MM, 280*280MM, 300*300MM, 590*520MM, 730*430MM, 900*690MM, etc.
3.Power consuption:1000 -5000W
4.Crafts: single-sided polishing semifinished glass
5.Edge:flat hazy edge, flat polished edge, simple edge etc
6.Holes:Drill work according to customer requirements
7.pattern:Silk-print pattern according to customer requirements, Screen printing complies with RoHS standards, normal ink available
8. Impact resistance: A steel ball (diameter 60mm, weight 188g) free fall from 180mm height, striking the panel 10 times. No scratching or cracking.

Processing with requirement:
Cutting, Round corner, Round edge, Surface fine polishing, Hole drilling, Coating, Surface printing and thermal bending.

Features
1) high light transmittance, excellent optical performance.
2) smooth and flat surface, visible flaw is controlled strictly.
3) 5 times harder than ordinary float glass, stronger resistance to thermal breakage than annealed or heat strengthened glass.
4) heat preservation, high energy efficiency.

Application
1) vision panels for room heaters, glass heaters, glass heating tabletops, heat preservation board/panels
2) cover panels for heating radiators, drying stand, towel heaters
3) cover panels for reflectors and high performance floodlights
4) cover panels in IR drying appliances
5) cover panels for beamers
6) UV blocking shields
7) cover panels for kebab grill radiators, electric heating fish bowl

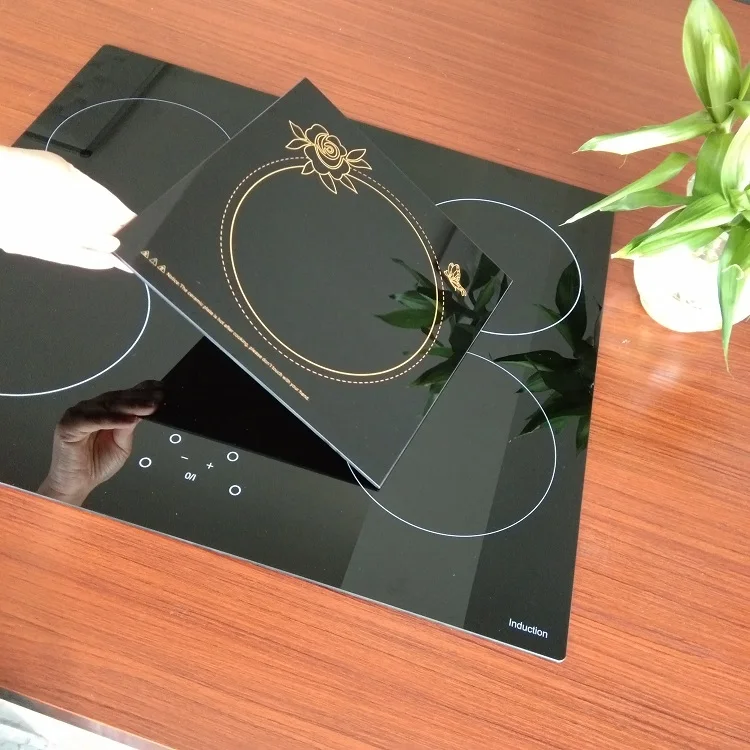

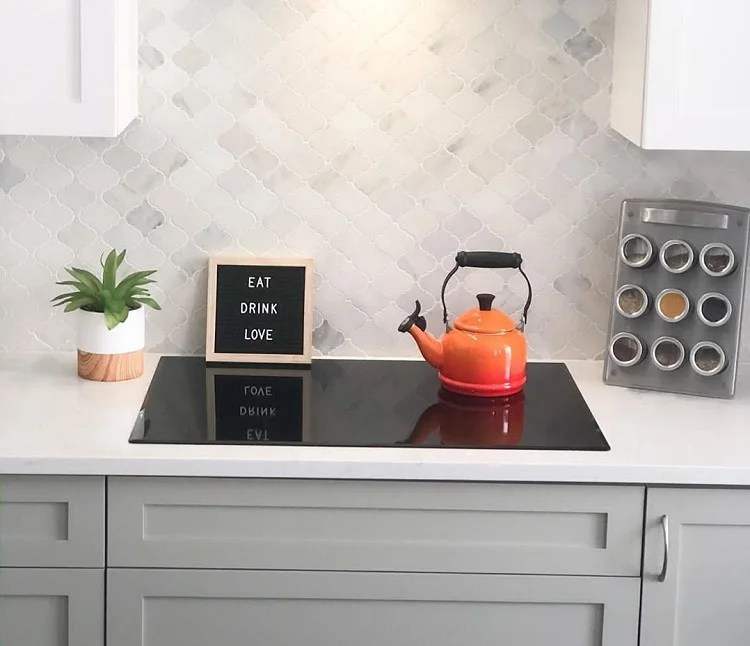

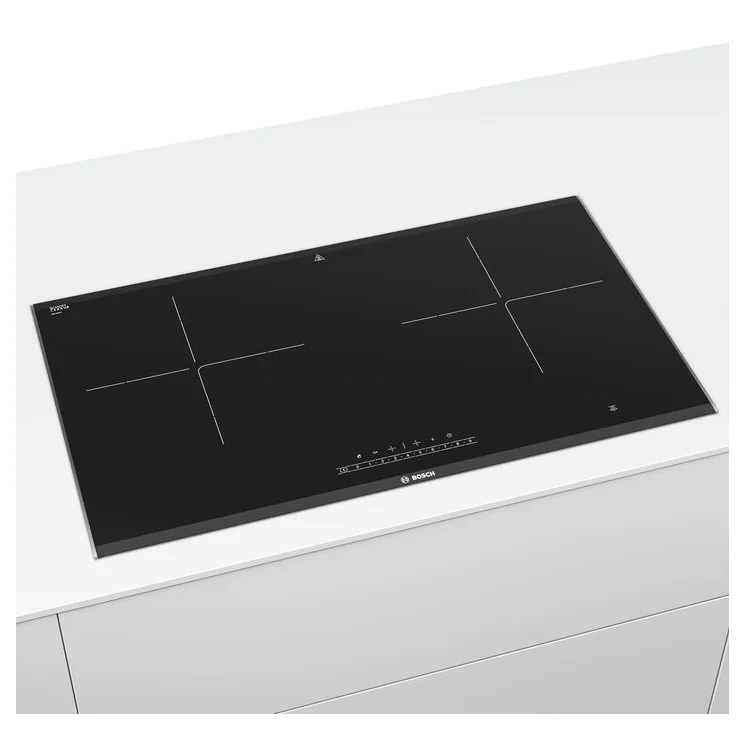

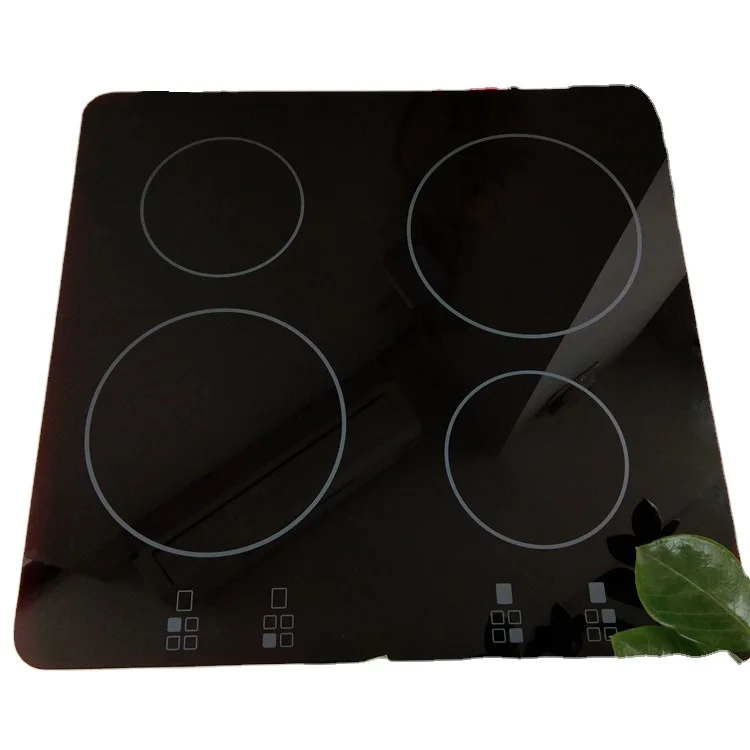

Product Show


















Cleaning & Care hints
First, wipe down the glass-ceramic panel with a clean, damp cloth. Then rub the panel in a circular polishing motion using a soft cloth and a few drops of a conditioner suitable for use on glass-ceramic cooktop panels. Then rinse with a damp cloth and wipe dry with a clean, soft cloth. After rinsing and drying, the surface is coated with an invisible film which helps to keep the panel clean. Regularly repeating this conditioning process makes it considerably easier to keep the panel clean and shiny.

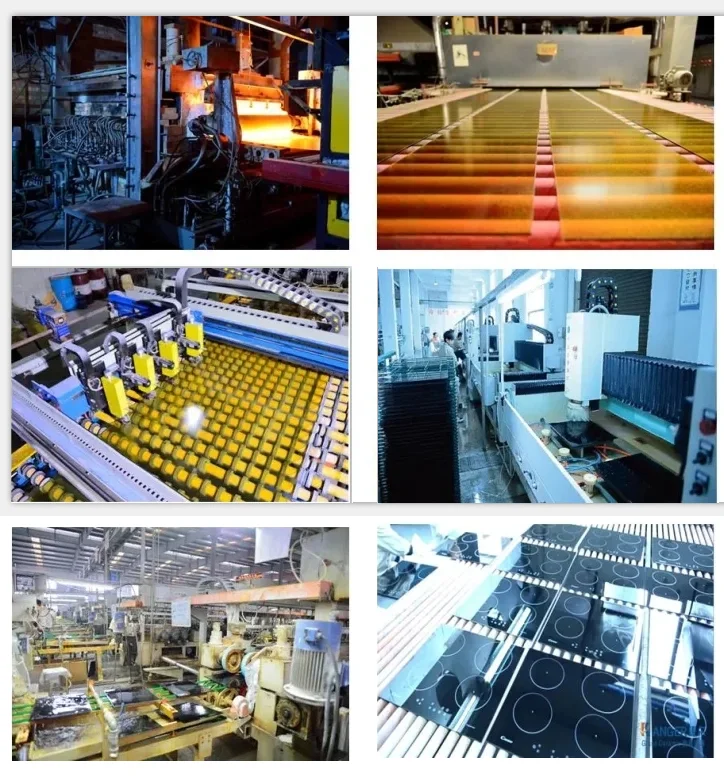

Product Processing




Packing & Shipping

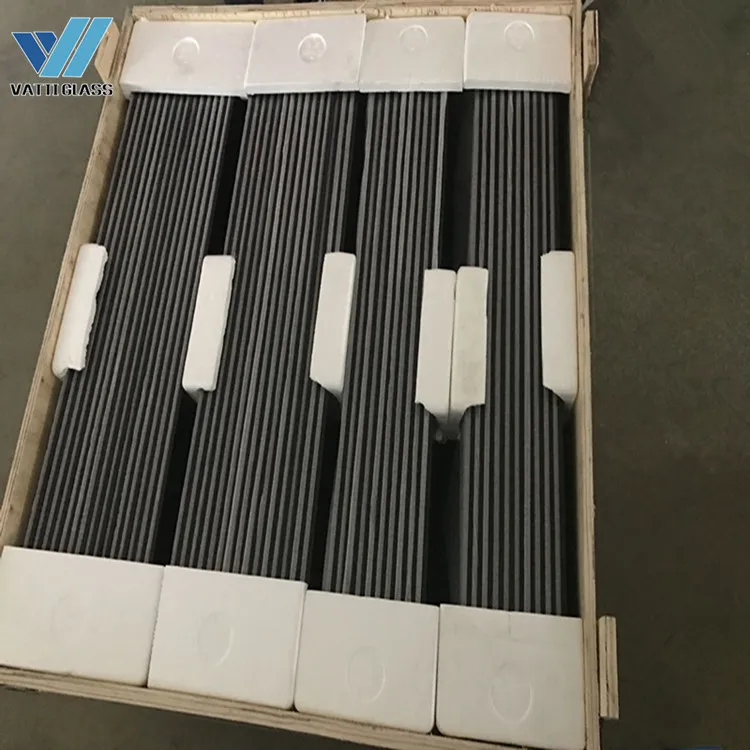

Packing

1. Glass film processing;External wooden packaging, Glass are to be paper or expandable polyethylene pearl Cotton (EPE) packed in strong seaworthy wooden crates.

2. Wooden crates worthy for ocean and land carriage.

Shipping

1. 30% deposit and 70% before shipping, FOB Qingdao Port.

2. Sample Order and small order will ship by DHL, TNT, FEDEX, EMS and UPS. It will take 7-10 working days since payment arrived.











Our Company




Advantage of us

1. 16 years experiences on glass manufacturing and exporting.
2. Top quality glass with CE, CCC certificate, exporting to more than 80 countries in the world.
3. Unique designed strong wooden cases, solving the problems of breakage.
4. Dockside warehouses beside three of China main container seaports, ensuring convenient loading and rapid delivery.
5. Full range of flat glass supply, offering one-stop purchase.
6. Professional sales team, offering personalized and dedicated services.
