Дешевая цена 3 тонн BJ936 колесный погрузчик с гидравлическим зубчатым
- Категория: Used Machinery & Equipment >>>
- Поставщик: Shandong,Beijun,Heavy,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 23800.19 $* | 24990.49 $* |
| Aug-15-2025 | 23600.1 $* | 24780.35 $* |
| Jul-15-2025 | 19800.3 $* | 20790.83 $* |
| Jun-15-2025 | 23200.94 $* | 24360.91 $* |
| May-15-2025 | 20200.74 $* | 21210.37 $* |
| Apr-15-2025 | 22800.32 $* | 23940.10 $* |
| Mar-15-2025 | 22600.71 $* | 23730.66 $* |
| Feb-15-2025 | 22400.85 $* | 23520.93 $* |
| Jan-15-2025 | 22200.27 $* | 23310.39 $* |
Характеристики
Company Information
Products Description
Underground Wheel Loader
Beijun customized underground wheel loader is designed for civil engineering construction, underground and tunnel construction works, such as Copper mine, Coal mine, Galena mine, Nickel mine, Iron mine, Aluminum mine, concentrating plants, chemical plants, furnace plants etc.
Feature of underground wheel loader:
1. The ultra-low chassis and the side cabin offer comfortable, safe, reliable driving experiences in ultra-low mines and underground mines.
2. The large steering angle makes it suitable for flexible operation in narrow mine tunnels.
3. Power shift gear-box, good reliability and easy to maintain
4. Large capacity battery，Duration of work for 4 hours.
5. Higher efficiency: loading and withdraw coal up to 120 Cubic meter in one hour.
6. The seat design draw on the experience of underground working, greatly improved the front and rear visual range.
7. Integrated torque converter transmission.
8. Specifically tailored for the underground mine operation counter-shaft power-shift gearbox.
9. Air over hydraulic break system, caliper break system, Wet brake axle available according to requirement.
10. Over load protection system: Disc brake shield, All LED light, Alarm lamp.
11. New design layout of the Hood: Increase counterweight in the front.
12.Optional: Wheel protection chains, Smooth anti puncture narrow tire, Side dump bucket, Breaking hammer, Narrow bucket without teeth.
Wheel Loader
1. The ultra-low chassis and the side cabin offer comfortable, safe, reliable driving experiences in ultra-low mines and underground mines.
2. The large steering angle makes it suitable for flexible operation in narrow mine tunnels.
3. Power shift gear-box, good reliability and easy to maintain
4. Large capacity battery，Duration of work for 4 hours.
5. Higher efficiency: loading and withdraw coal up to 120 Cubic meter in one hour.
6. The seat design draw on the experience of underground working, greatly improved the front and rear visual range.
7. Integrated torque converter transmission.
8. Specifically tailored for the underground mine operation counter-shaft power-shift gearbox.
9. Air over hydraulic break system, caliper break system, Wet brake axle available according to requirement.
10. Over load protection system: Disc brake shield, All LED light, Alarm lamp.
11. New design layout of the Hood: Increase counterweight in the front.
12.Optional: Wheel protection chains, Smooth anti puncture narrow tire, Side dump bucket, Breaking hammer, Narrow bucket without teeth.

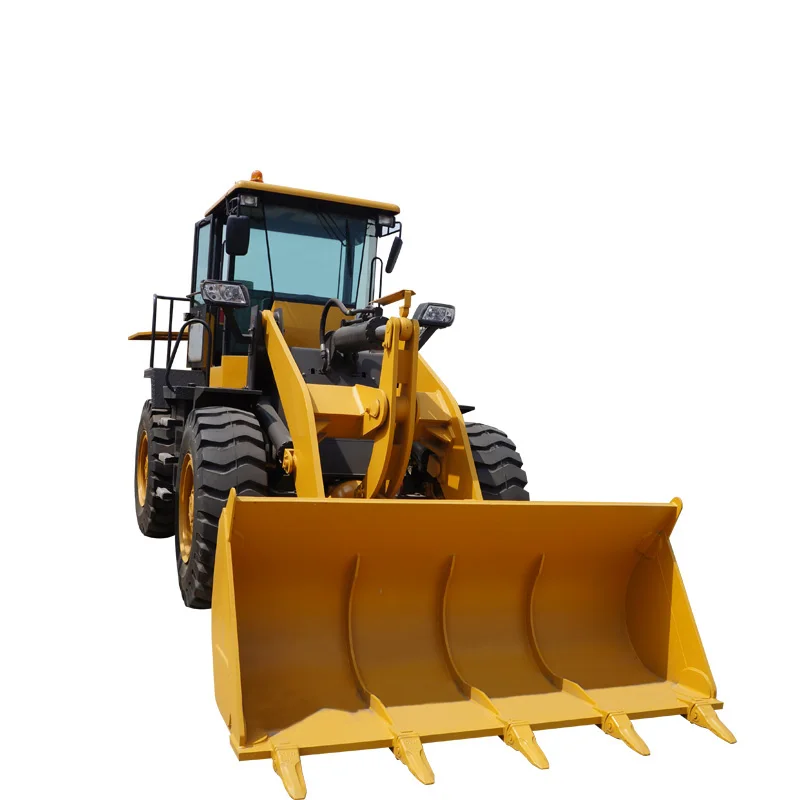

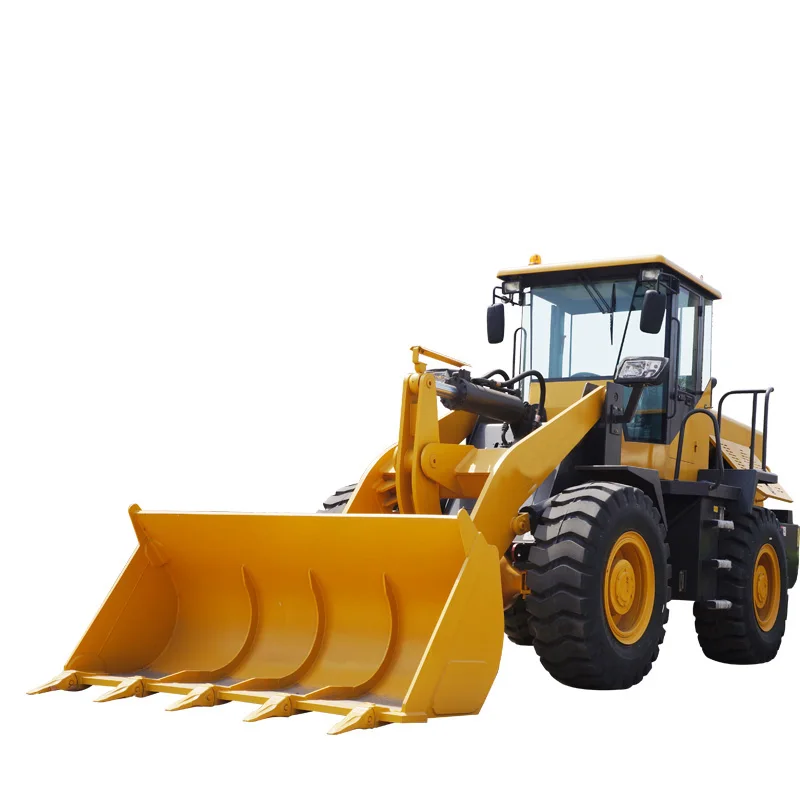

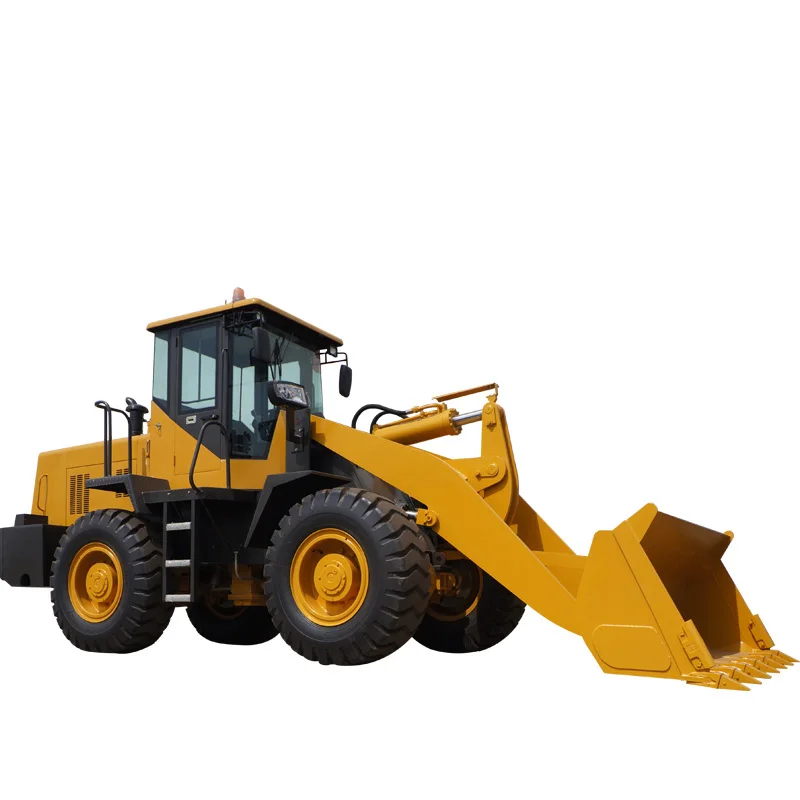

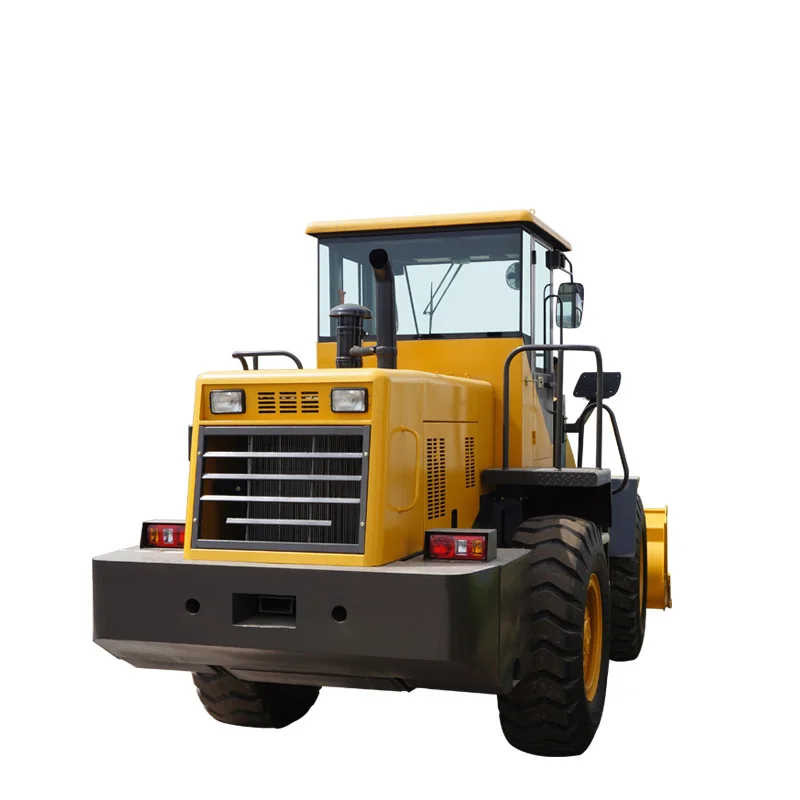

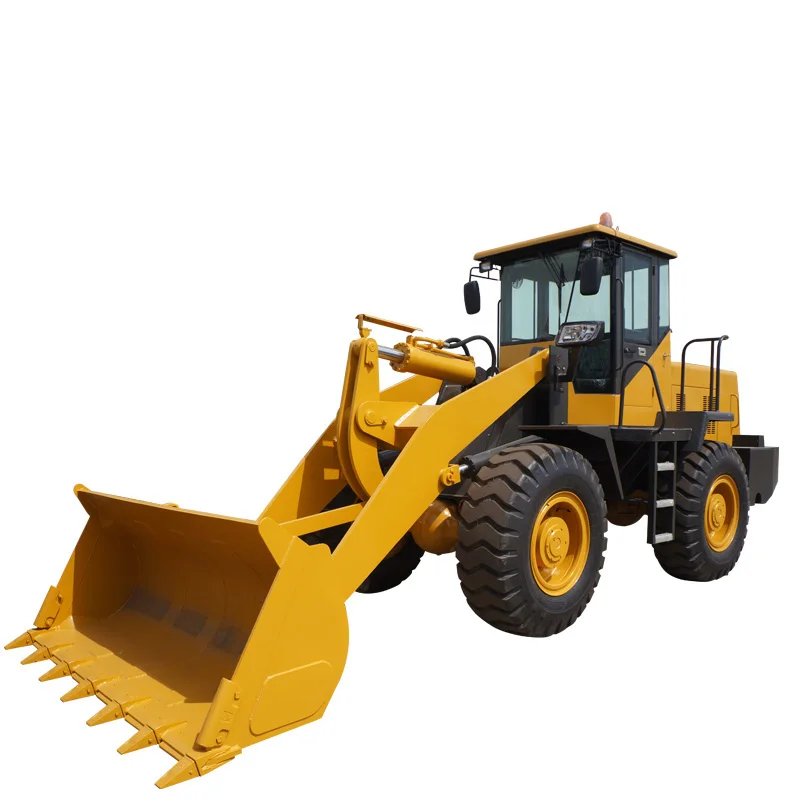

Wheel Loader
Beijun wheel loader is rooted in the customers’ needs and based on the international R&D platform to thoroughly improve the product reliability, economy, comfort, efficiency, maintenance convenience, and adaptability and is a preferential achinery product for the production organization in the fields of ports, mines, engineering constructions, and logistics.
It is equipped with national engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency and stronger environmental adaptability.
It is equipped with national engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency and stronger environmental adaptability.
1,Optimizing the shape of the bucket makes it easy to pick up material, achieving higher fill factors and less spillage.
2,A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect.
3,Optimized preheating system and hyperboloid efficient fan, adaptable from -30 ℃ ~ 45 ℃ ambient temperature.
4,Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.
5,The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
6, 309° panoramic visibility gives the operator a very comfortable work environment in the cab.
7,Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
8, Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
2,A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect.
3,Optimized preheating system and hyperboloid efficient fan, adaptable from -30 ℃ ~ 45 ℃ ambient temperature.
4,Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.
5,The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
6, 309° panoramic visibility gives the operator a very comfortable work environment in the cab.
7,Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
8, Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
Specification
SPECIFICATIONS OF BJ936WHEEL LOADER | ||
Descriptions | Specifications | |
Rated Bucket Capacity | 1.8-2.2m³ | |
Rated Loading Capacity | 3000kg | |
Overall Weight | 10860kg | |
Maximum Breakout Force | 105kN | |
Maximum Tractive Force | 96kN | |
Maximum Dump Height | 2950mm | |
Maximum Dump Reach | 1050mm | |
Minimum Turning Radius | 5381mm | |
Wheel Base | 2850mm | |
Wheel Tread | 1770mm | |
Overall Dimension（LxWxH) | 7050x2510x3430mm | |
Engine | ||
Engine Model | CUMMINS 6BT5.9-C130/ Duetz Engine | |
Engine Type | Vertical,in-line,Water cooled,4-Stroke diesel engine | |
Rated Power | 97kW | |
Rated Revolution | 2200rpm | |
Transmission System | ||
Torque Converter | YJ315 | |
Gearbox | BS428 | |
Gear Shift | 4forward shift，2reverse shift | |
Maximum Speed | 36km/h | |
Tyre | 17.5-25 | |
