Б/у машина для изготовления винтов из стали
US $1000-$2000
Автоматическая стального адвокатского сословия резьбонакатный станок из Китая резьбонарезной для
- Категория: >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1250.63 $* | 1313.1 $* |
| Aug-17-2025 | 1239.8 $* | 1301.72 $* |
| Jul-17-2025 | 1040.9 $* | 1092.91 $* |
| Jun-17-2025 | 1218.28 $* | 1279.9 $* |
| May-17-2025 | 1061.96 $* | 1114.72 $* |
| Apr-17-2025 | 1197.52 $* | 1257.21 $* |
| Mar-17-2025 | 1187.96 $* | 1246.3 $* |
| Feb-17-2025 | 1176.99 $* | 1235.24 $* |
| Jan-17-2025 | 1166.20 $* | 1224.58 $* |
Характеристики
Product Description

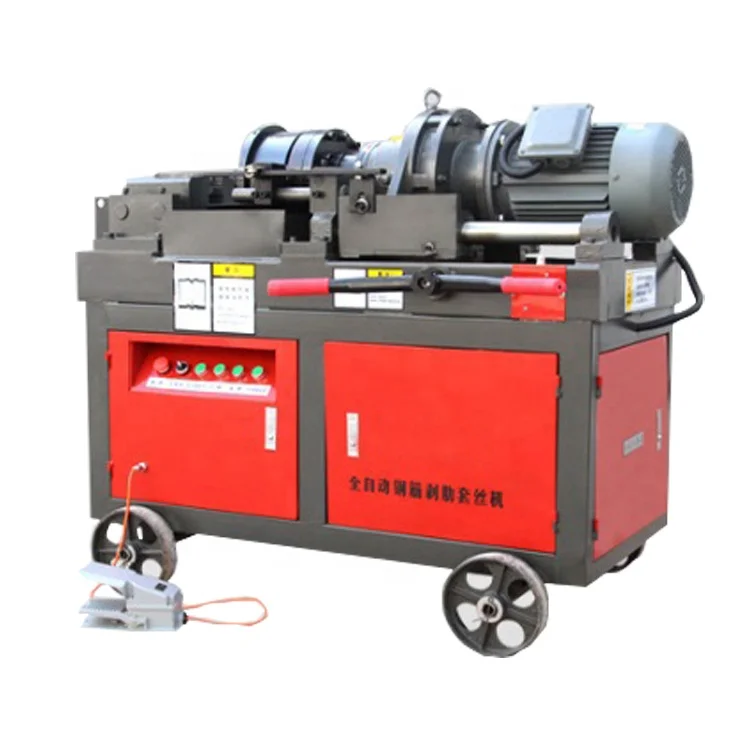

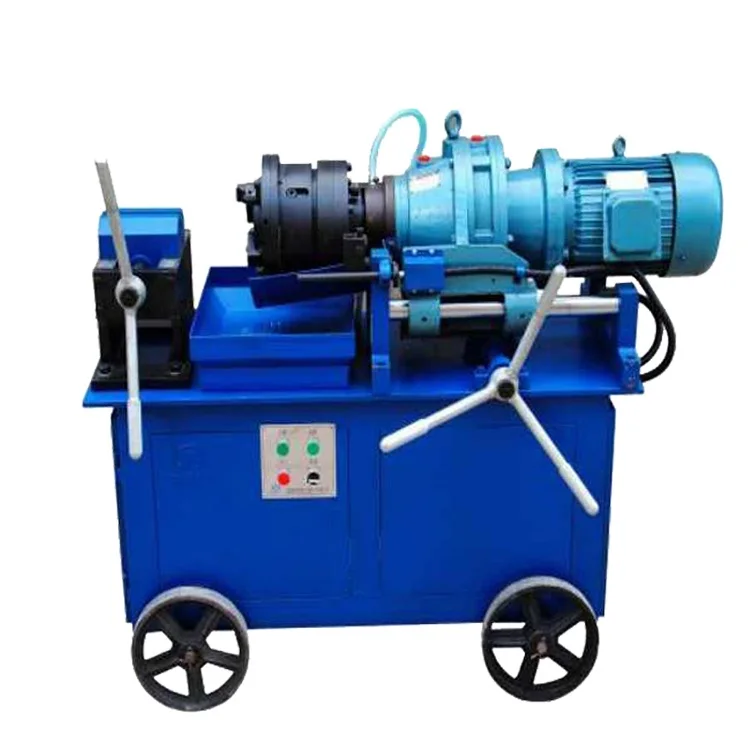

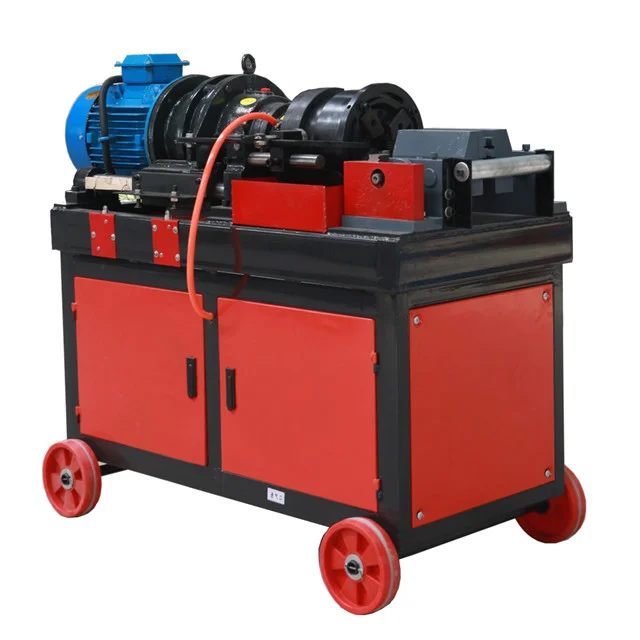

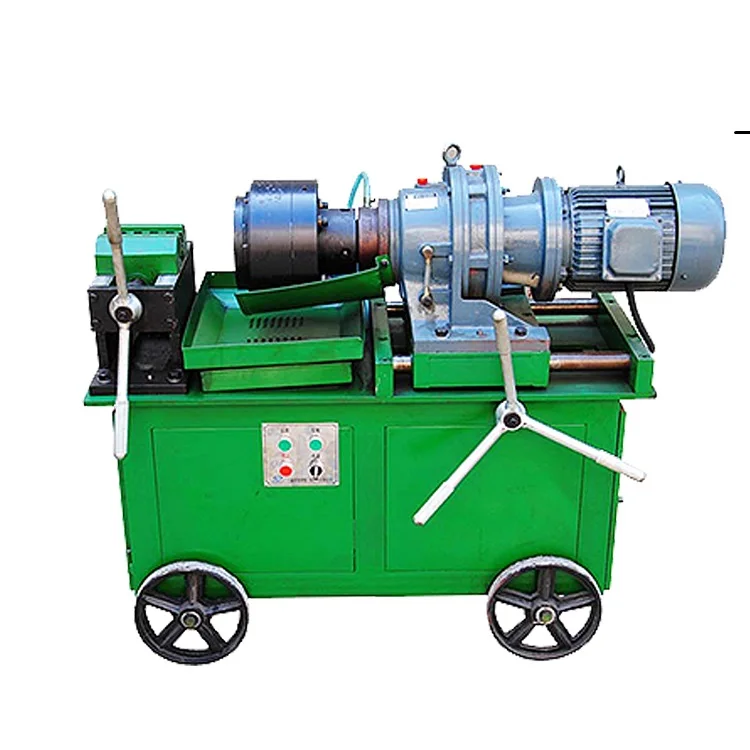

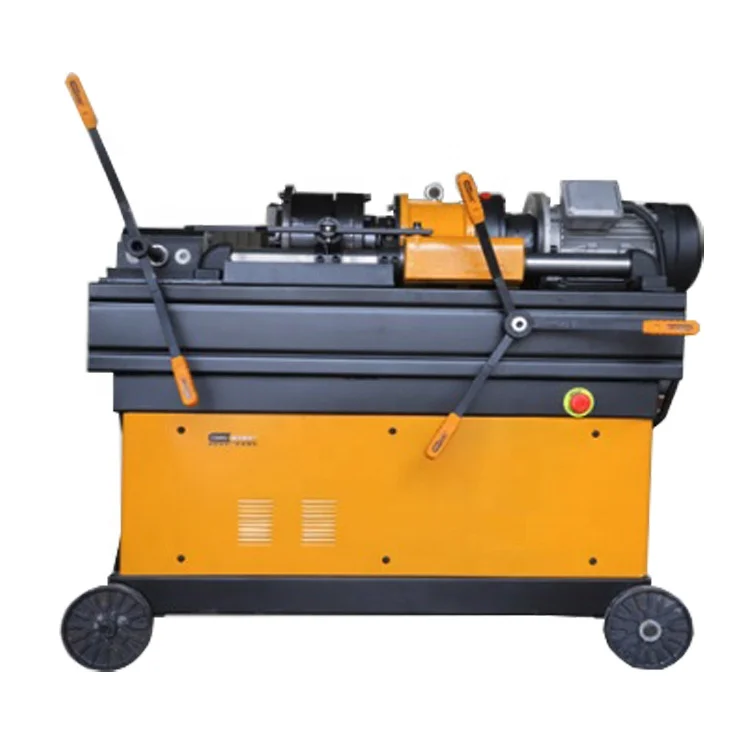

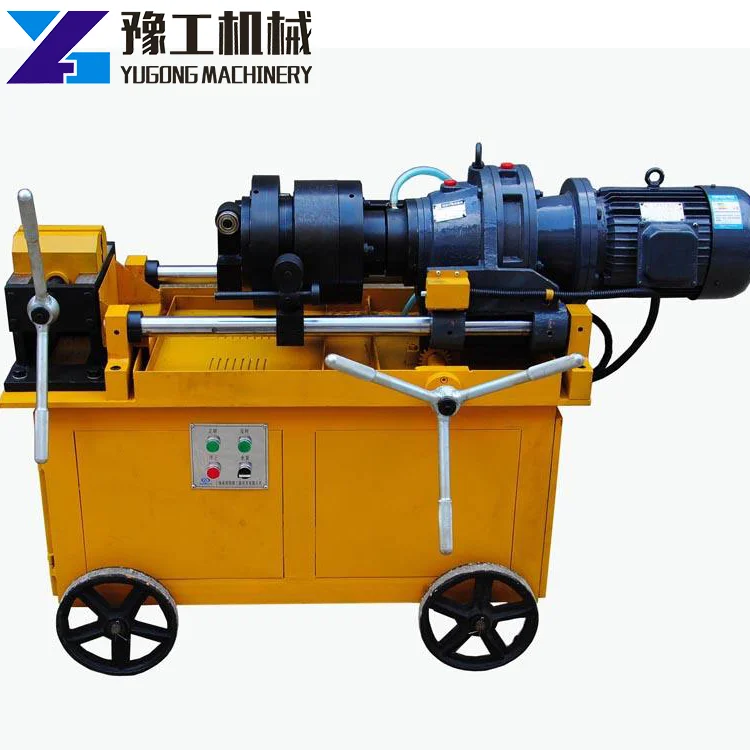

Application of Steel bar thread rolling machine
Steel bar thread rolling machine is mainly used for rolling straight threaded head of ribbed steel bar in construction engineering. It is the key equipment for realizing straight threaded connection of reinforced steel bar.
| Model | YG-50E |
| Processing range | 16-50mm |
| Motor power | 5.5/7.5kw |
| Voltage | 380v 50hz three phase |
| Rotating speed | 40-62r/min |
| Max threading length | 200mm |
| Threading degree | 75°/60° |
| Thread pitch | 2.5mm/3mm |
| Working efficiency | 30-40mm/min |
| Dimension | 1500*600*1000mm |
| Rolling Thread Weight | 450kg |
Advantage of steel bar rolling machine
The steel bar rolling thread connection technology is suitable for industrial and civil buildings.
Its process is simple and fast, no open flame operation, no pollution to the environment, no explosion fire hazards, safe reliable, and can be constructed around the clock, saving a lot of steel and energy.
Only a spanner is used to connect the steel bars, and each steel bar joint is about one minute, which shortens the construction period and realizes industrialized and civilized construction.
| Rebar coupler | Rebar coupler | Rebar coupler | Rebar coupler | Rebar coupler |
| Rebar diameter | OD*Length | Pitch | Quantity/bag | Weight/bag |
| 16mm | Φ24*40mm | 2.5mm | 300pcs | 22.84kg |
| 18mm | Φ27*45mm | 2.5mm | 200pcs | 22.04kg |
| 20mm | Φ31*50mm | 2.5mm | 150pcs | 26..38kg |
| 22mm | Φ33*55mm | 2.5mm | 130pcs | 26.98kg |
| 25mm | Φ37*60mm | 2.5mm | 100pcs | 27.45kg |
| 28mm | Φ41*65mm | 3mm | 80pcs | 29.25kg |
| 32mm | Φ47*70mm | 3mm | 60pcs | 30.93kg |
Main features and advantages
1. Rib stripping and rolling thread can be processed in one clamping.Full processing tooth shape, high dimensional accuracy.
2. Machinable positive and negative thread.
3. The machine is simple to operate, compact in structure, reliable in operation, and has a unique automatic cutter opening and closing mechanism.
4. The strength of the wire head is higher than the strength of the base material without cutting the base material of the reinforcing bar.
5. Wide application range, can process ribbed steel bars with diameter of 16 - 40.
Packaging & Shipping
1. Rebar thread rolling machine Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Rebar thread rolling machine Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
Company Information
Customers Visit
Certifications
Advantages
1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
