Поставка от производителя Высококачественная маслостойкая Тормозная труба 1/4 дюйма SAE J1401 резиновая Гидравлический тормозной
- Категория: Auto Brake Hose >>>
- Поставщик: Hebei,Kemo,Auto,Parts,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.80 $* |
| Aug-16-2025 | 0.88 $* | 0.51 $* |
| Jul-16-2025 | 0.3 $* | 0.94 $* |
| Jun-16-2025 | 0.40 $* | 0.59 $* |
| May-16-2025 | 0.31 $* | 0.19 $* |
| Apr-16-2025 | 0.5 $* | 0.56 $* |
| Mar-16-2025 | 0.12 $* | 0.67 $* |
| Feb-16-2025 | 0.57 $* | 0.38 $* |
| Jan-16-2025 | 0.66 $* | 0.31 $* |
Характеристики
sae j1401 flexible rubber auto brake hose pipe manufacturers | ||
Construction: Tube:Special rubber formula with perfect brake fluid compatibility（EPDM) Reinforcement:High tensile braided fiber Cover:Black weather-,aging-resistant synthetic rubber Surface : Smooth surface and cloth wrapped | ||
Application: Hydraulic brake hose act as a pressure transmission for automotive hydraulic brake system Used for Cars, motorcycles,light trucksand other Light Heavy-Duty vehicles for hydraulic brake system. | SAE J188 Power Steering Hose use to the vehicles of the power steering system and pressure transfer in the power steering assembly. | |
Certificate: ISO/TS 16949:2009 | ||
Standard: SAE J1401 GB16897-2010 DOT | Car Model: All | |
Temperature：-40℃(-40°F)~150℃(300°F） | ||
Characteristic: | ||
Decrease Vibration Ozone Resistance Reduce System Noise | High Expansion High Pressure Pulse Resistance | |
Hydraulic Brake Hose Size List | ||||||||||||
Inch | Specification MM | I.D MM | O.D MM | Thickness MM | Wall Diff. MM | Burst Pressure Min. Mpa. | ||||||
1 / 8'' | 3.2×10.2 | 3.35±0.20 | 10.20±0.30 | 3.43 | 0.25 | 70.0 | ||||||
1 / 8'' | 3.2×10.5 | 3.35±0.20 | 10.50±0.30 | 3.58 | 0.25 | 80.0 | ||||||
1 / 8'' | 3.2×12.5 | 3.35±0.20 | 12.5±0.30 | 4.58 | 0.25 | 70.0 | ||||||
3 / 1 6'' | 4.8×12.5 | 4.80±0.20 | 12.5±0.30 | 3.85 | 0.3 | 60.0 | ||||||
1 / 4'' | 6.3x15.0 | 6.3±0.20 | 15.0±0.30 | 7.35 | 0.3 | 50.0 | ||||||
Automobile Brake Hose
Automobile brake hose (commonly known as brake pipe) are components used in automobile brake system. Its main function is to transfer the brake medium in the car brake system. Ensure that the braking force is transmitted to the car's brake lining or brake
calipers to generate braking force so that the braking is effective at any time.CAR OR MOTOCYCLE HYDRAULIC BRAKE SYSTEM
Standard:
SAE J1401
Certificate:
Application:
GB16897-2010
DOT
Certificate:
ISO/TS 16949:2009
Temperature:
-40℃ ~ +150℃
-40°F ~ +300°F
Application:
Car or Motorcycle Hydraulic Brake System
Tube: Special rubber formula with perfect brake fluid compatibility -EPDM
Reinforcement: High tensile braided fiber
Cover: EPDM-synthetic rubber
Surface : Smooth surface and cloth wrapped.

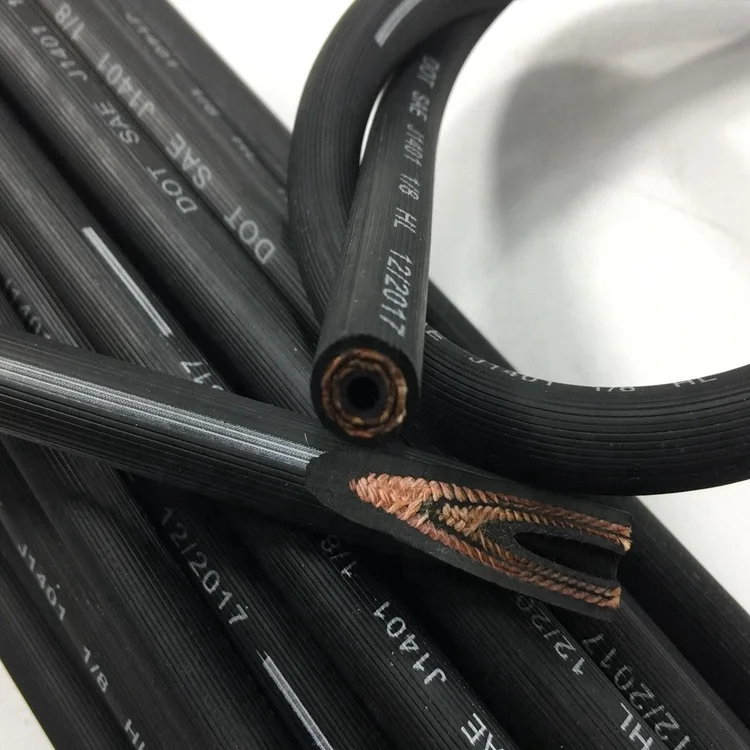

SAE J1401 brake hose consists of five layers.
(EPDM rubber is used for the inner tube. The first layer is made of PVA reinforced textile braid, then adhesive coating, the second layer of PVA reinforced textile braid, and finally EPDM rubber outer protective layer.)
(EPDM rubber is used for the inner tube. The first layer is made of PVA reinforced textile braid, then adhesive coating, the second layer of PVA reinforced textile braid, and finally EPDM rubber outer protective layer.)
PACKAGE
1. Transparent PVC film packing,
2. Color woven bag packing ( Blue / White / Green / Yellow)
3. Pallet packing
4. Carton packing
5. Reel packing
1. Transparent PVC film packing,
2. Color woven bag packing ( Blue / White / Green / Yellow)
3. Pallet packing
4. Carton packing
5. Reel packing
Hebei KEMO Auto Parts Technology Co., Ltd was established in 2014, located in Niu Jiazhai Industrial Area, Changzhuang Town, Wei County, Hebei Province, China. KEMO is a professional enterprise integrating research and development, production, sales and service manufacturer, specialized in the production of high-performance air-conditioning hose &assembly , brake hose & assembly, power steering hose & assembly, oil cooler hose, fuel hose for cars, buses and heavy trucks.
MORE PRODUCTS
Air Conditioning Hose Power Steering Hose Hydraulic Brake Hose Air Brake Hose
Refrigerator Truck Hose Fuel Hose Oil Cooler Hose Anti Corrosive Hose
KEMO Labortery
1. KEMO have our own Laboratory, so we can offer Technology Testings as follow: ①Bursting Pressure ②Bend Radius ③ Aging Testing ④Temperature (High and Low ) ⑤Volumatic Expansion ⑥Whiper Testing
2. Developing new products with many well-known research institutions and testing centers in China.
3. KEMO can offer Testing Reports according to customer’s request.
2. Developing new products with many well-known research institutions and testing centers in China.
3. KEMO can offer Testing Reports according to customer’s request.
FAQ
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer’s request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we have been offering OEM services for 7 years.
Q4. Does your product have different color hose?
A. Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
A. We can finish one 20*container within 15days.
Q6. Why should you buy from us not from other suppliers?

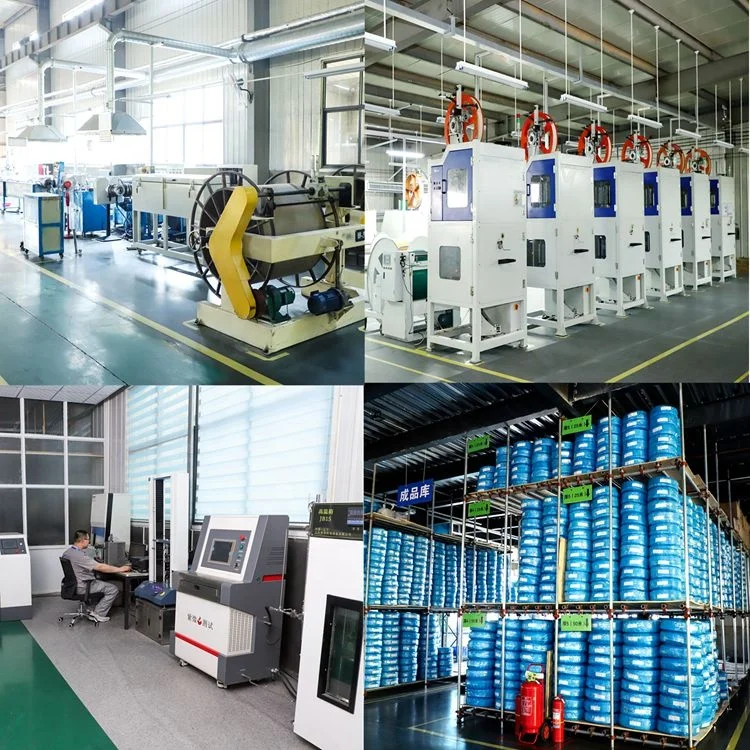

A:Strict quality control and thoughtful customer service, Our company has advanced equipment including high speed braiding machines, wire spiral machines, advanced extruding machines, computer-controlled water pressure test machine and impulse machines and so on.
Q7. What services we can provide?
A:We will freely help customer to purchase fittings, if you order rubber hoses from us, we will try our best to supply.
Q6. Why should you buy from us not from other suppliers?
A:Strict quality control and thoughtful customer service, Our company has advanced equipment including high speed braiding machines, wire spiral machines, advanced extruding machines, computer-controlled water pressure test machine and impulse machines and so on.
Q7. What services we can provide?
A:We will freely help customer to purchase fittings, if you order rubber hoses from us, we will try our best to supply.
