Изготовление на заказ для DVI KVM IP телефония удлинитель передатчик-двойная головка V-USB 2
- Категория: KVM Switches >>>
- Поставщик: Shenzhen,Caratar,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.70 $* | 0.81 $* |
| Aug-17-2025 | 0.58 $* | 0.89 $* |
| Jul-17-2025 | 0.68 $* | 0.75 $* |
| Jun-17-2025 | 0.80 $* | 0.57 $* |
| May-17-2025 | 0.72 $* | 0.12 $* |
| Apr-17-2025 | 0.15 $* | 0.85 $* |
| Mar-17-2025 | 0.54 $* | 0.56 $* |
| Feb-17-2025 | 0.15 $* | 0.29 $* |
| Jan-17-2025 | 0.62 $* | 0.86 $* |
Характеристики
DVI KVM-over-IP Extender Transmitter - Dual-Head, V-USB 2.0, Audio
Full HD KVM extension and switching for physical and virtual machines with KVM over IP or direct CATx connections.
Product Description
PRODUCT FEATURES
- Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers
- Visually lossless full HD DVI video up to 1920x1200
- Low IP bandwidth requirements with less than 40-Mbps required for 1080p video
- Supports USB HID, transparent USB 2.0 and audio
- Manage bandwidth and user access, deploy new endpoints, update firmware and more from the receiver’s OSD
High-performance KVM
provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.
provides Full HD DVI-D with resolutions up to 1920 x 1200, transparent USB and bi-directional analog audio. Link them in a point-to-point KVM extension over CATx up to 328 ft./100 m or even further using an IP or WAN connection. Or Connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.
Virtualization support
E simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware®, Microsoft® HyperV®, and Citrix®, using RDP 8.1/RemoteFX.
Limitless scaling
Your Emerald KVM network may start small, but scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints, no additional KVM management appliance, cards or chassis required. For larger deployments, use our Boxilla KVM management solution.
A welcome addition to the Emerald product family
works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families:
- proprietary, direct-connect KVM system
- Freedom II Multi-Monitor Switch with Glide-and-Switch technology
- ControlBridge our system for one-touch, multisystem control
- Boxilla KVM manager
| Approvals | Unit: FCC, CE, RoHS, WEEE; Power Supply: TU V, U L |
| Environmental | |
| Storage Temperature | -4 to +140° F (-20 to 60° C) |
| Humidity | 5 to 95%, noncondensing |
| Operating Temperature | 32 to 104° F (0 to 40° C) |
| General | |
| Encryption | Secure Sockets Layer (SSL) over TCP/IP, 128-bit between T X an d R X, user set between RX and Hyper -V |
| Item Specifications | |

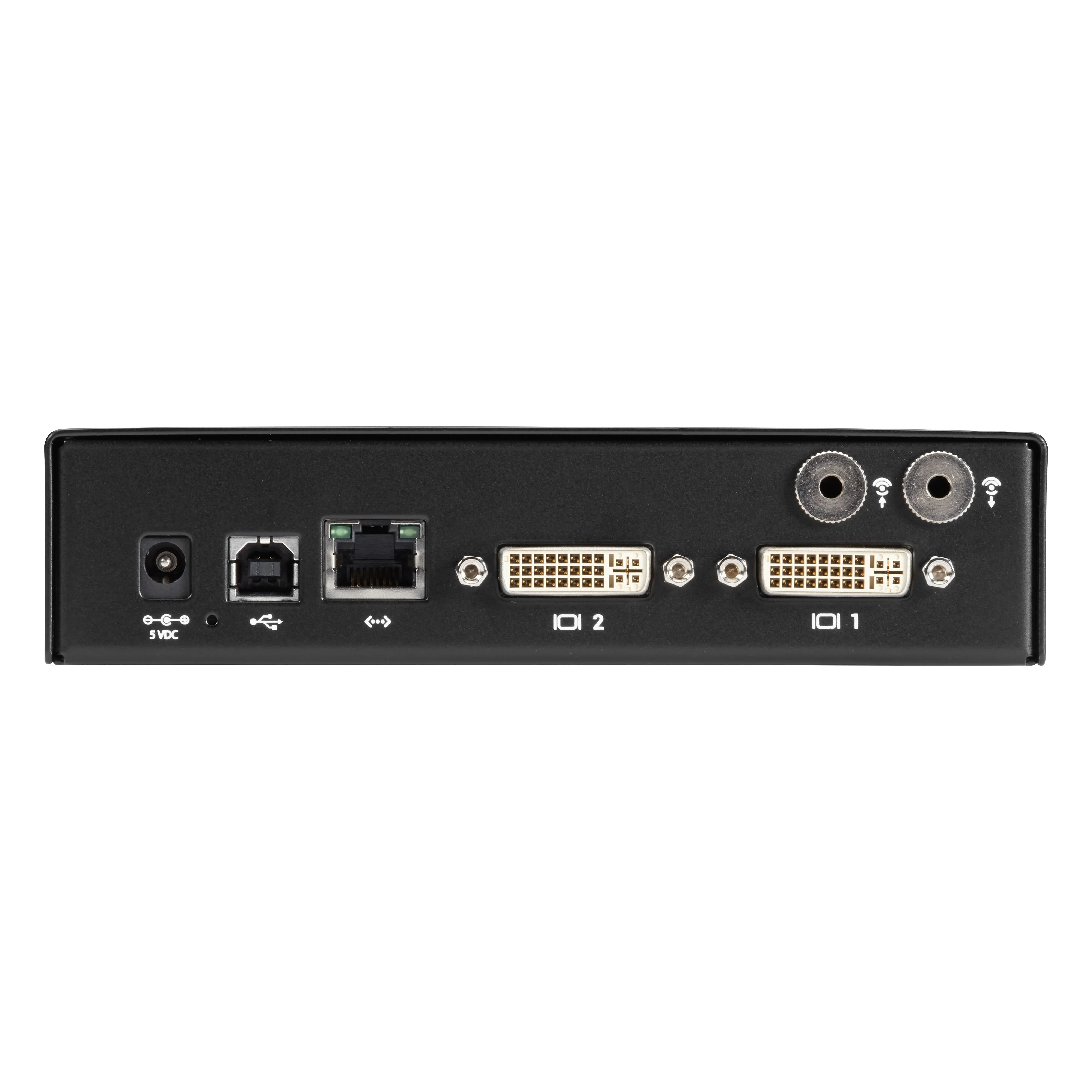

| Connectors | (2) DVI inputs; (1) USB Type B female; (1) RJ-45 network; (2) 3.5 mm audio for SPK and MIC; (1) 2 .5 mm barrel for power |
| Dimensions | 1.43"H x 6.2"W x 4.2"D (3.65 x 15.75 x 10.67 cm) |
| Weight | 1.18 lb. (0.54 kg) |
| Physical | |
| Distance from CPU to Transmitter (max.) | EMD2000S E -T: 16 f t. (5 m) , DV I -D and USB limitations |
| Distance from Transmitter to Receiver (max.) | 328 ft. (100 m), use a network switch to get farther distances |
| Operating Systems Supported | Microsoft Windows® Vista, XP, Windows 7, Windows 8, Windows 10, Server 2003, Server 2008, Server 2012, Linux®, Mac OS |
| Power | |
| Input | 100-240 VAC, 50/60 Hz |
| Consumption (Typical) | Unit: 6.5 watts with keyboard and mouse attached; Power supply is 20 W to support USB-based powered devices |
Product Includes:
- (1) Emerald SE Transmitter
- (1) 5VDC power supply
- (1) Power cord
NOTE(s):
Compatibility Note:
- Firmware_v6.0 should only be used with other endpoints using 6.0.
- RemoteApp 2.1. must be used with Firmware 6.0 and is not compatible with 5.6
- 5.2.9 or lower is required if using other InvisaPC endpoints
- 5.2.9 firmware is not compatible with 5.6 / 6.0 firmware
