Mini cnc 3018 pro 2418 pro 1610 pro wood laser engraving machine pcb milling cutter laser marking power 15w 10w 7w 5.5w 3500mw 2500mw 500mw

Specification of 1610 pro:

Control software    :GRBL control

Construction        :Aluminum + plastic

Working area        :160*100*40mm

Frame size          :260*240*220mm

Spindle             :775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min

Step motor          :1.3A 0.25N.m

Wire rod            :T8

Power Supply        :24V 5.6A (110V -240V)

Support System      : Windows XP / Win 7 / Win 8  / Linux

Standard            :The complete set of the parts and tools

Engraving materials :Plastic, wood, acrylic, PVC, PCB and other soft materials

Weight:  6KG

Specification of 2418 pro:

Control software    :GRBL control

Construction        :Aluminum + plastic

Working area        :240*180*40mm

Frame size          :330*340*240mm

Spindle             :775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min

Step motor          :1.3A 0.25N.m

Wire rod            :T8

Power Supply        :24V 5.6A (110V -240V)

Support System      : Windows XP / Win 7 / Win 8  / Linux

Standard            :The complete set of the parts and tools

Engraving materials :Plastic, wood, acrylic, PVC, PCB and other soft materials

Weight: 7KG

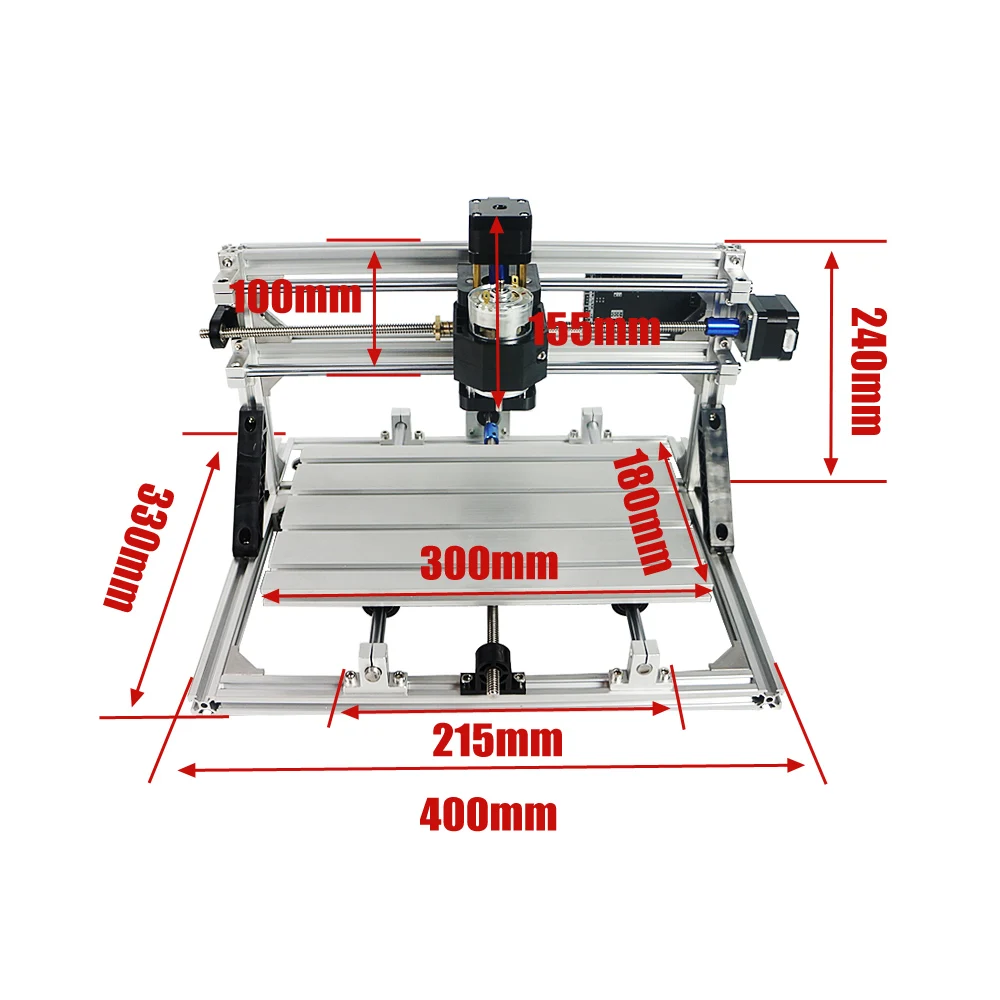

Specification of 3018 pro:

Control software    :GRBL control

Construction        :Aluminum + plastic

Working area        :300*180*40mm

Frame size          :400*330*240mm

Spindle             :775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min

Step motor          :1.3A 0.25N.m

Wire rod            :T8

Power Supply        :24V 5.6A (110V -240V)

Support System      : Windows XP / Win 7 / Win 8  / Linux

Standard            :The complete set of the parts and tools

E

Engraving materials :Plastic, wood, acrylic, PVC, PCB and other soft materials

Weight: 8KG

1 Q: Does this machine need to be assembled when I received it?

  A: This machine comes as a kit. You need to assemble it yourself.

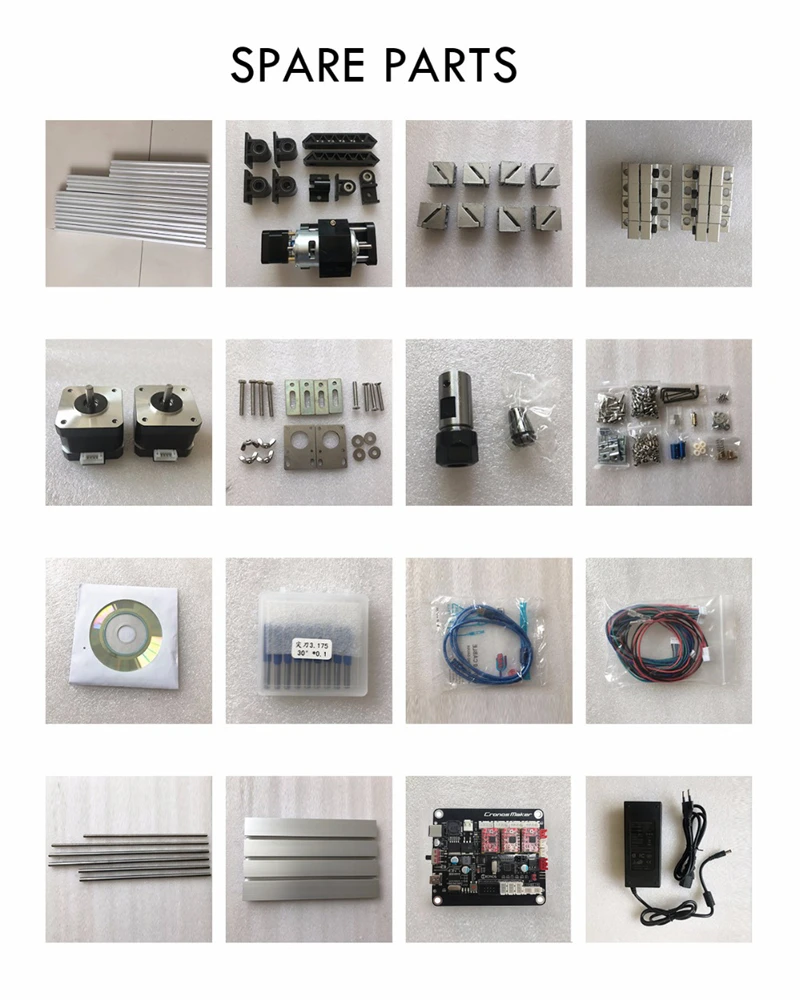

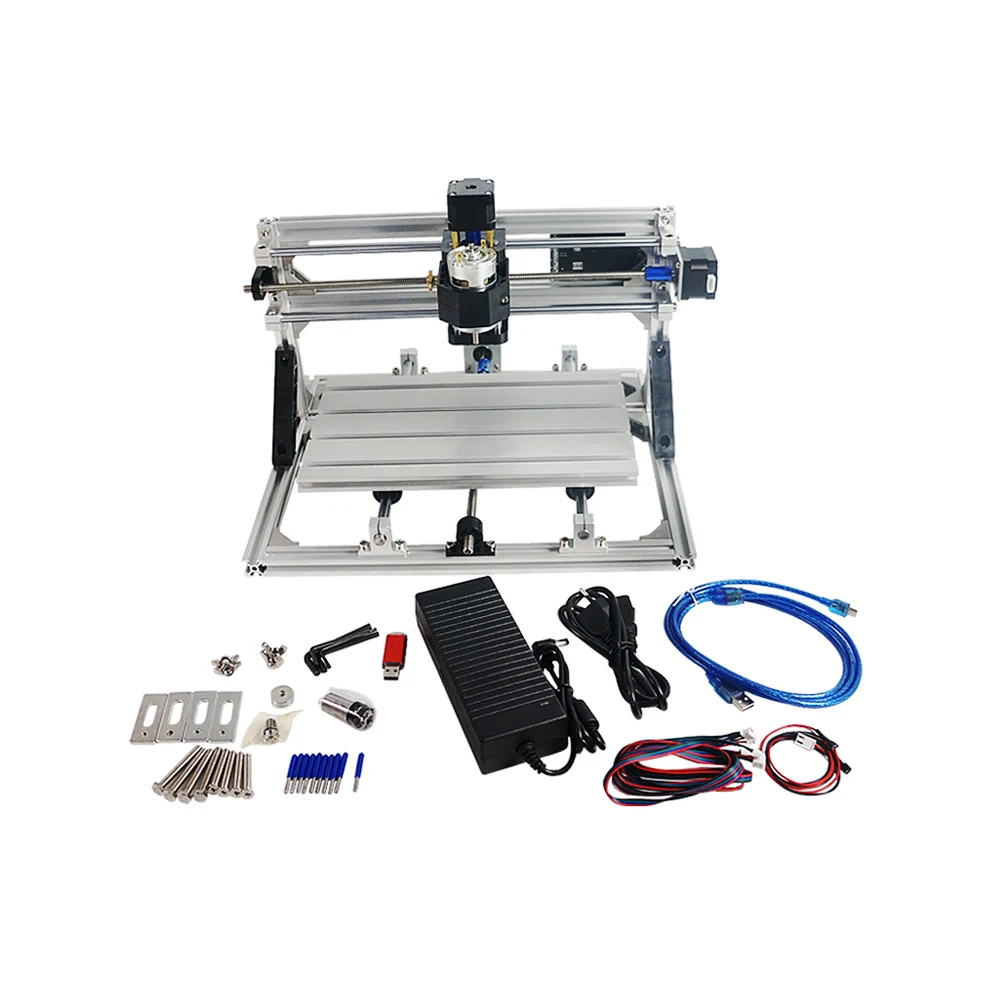

     All tools and part are included in the kit.

2 Q:  How to assemble the kit?

   A:We'll provide whole assemble and operating manual,please share your email address,then we'll send to you.

3 Q: Are there software and instructions can I get it?

  A:You can get the software with machine which is a CD ,contact us for instructions.

4 Q: And what image format the software supports? Engrave Mode?

   A: Supported Image Format: jpg, bmp, svg, G-code

       Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving

5 Q: Whick type computer system can run its software?

  A:The software only support the Windows XP/7/8/10.

6 Q: What's the laser's lifetime?

   A: The laser module have over 6,000 hours lifetime.

 7 Q: What material can it engrave?

   A:Wood, bamboo, plastic, paper, leather, rubber,MDF.

8 Q:What material can it cut?

  A:wood, paper, thin leather.

9 Q:Can I use it to cut or engrave on metal?

   A:It can not engrave or cut on any metal.

10 Q: Can I regulate the laser power or the laser power is adjustable?

   A: Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.

11 Q: How long can the machine work continuously?

   A: It can work continuously about 45 minutes, after the laser mould cool down(about half of an hour), then start work again. Long time work continuously with shorten the laser module lifetime.

12 Q:My laser doesn't work, what should I do?

If the machine does not work, it might because:

A The wire connection is wrong.Please check the connection like the picture shown.

B Your computer could not support the software.Please use Win XP 7/8/10 to check it.

C Software problem .Please check whether wires are inserted rightly. And then check your data setting.

D The kit misses some accessories. Please compare with the instruction and tell us, we will solve it once you send us the email.

E Laser module/ driver board/power supply is broken.

   Please check which part is the main problem, and then send us a video to prove it.

   Or you can send us a video about your software setting, working laser and driver board. We will analyze it and give you a solution.
