120TPH по смешиванию установка для переработки асфальта стационарный битума смесительное
- Категория: Asphalt Mixers >>>
- Поставщик: Jiangyin,Zhongxin,Engineering,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.22 $* | 0.48 $* |
| Aug-19-2025 | 0.58 $* | 0.46 $* |
| Jul-19-2025 | 0.98 $* | 0.74 $* |
| Jun-19-2025 | 0.86 $* | 0.95 $* |
| May-19-2025 | 0.68 $* | 0.94 $* |
| Apr-19-2025 | 0.80 $* | 0.9 $* |
| Mar-19-2025 | 0.50 $* | 0.57 $* |
| Feb-19-2025 | 0.28 $* | 0.40 $* |
| Jan-19-2025 | 0.64 $* | 0.2 $* |
Характеристики
120TPH Batch Mixing Asphalt Plant Stationary Bitumen Mixing Equipment
Products Description

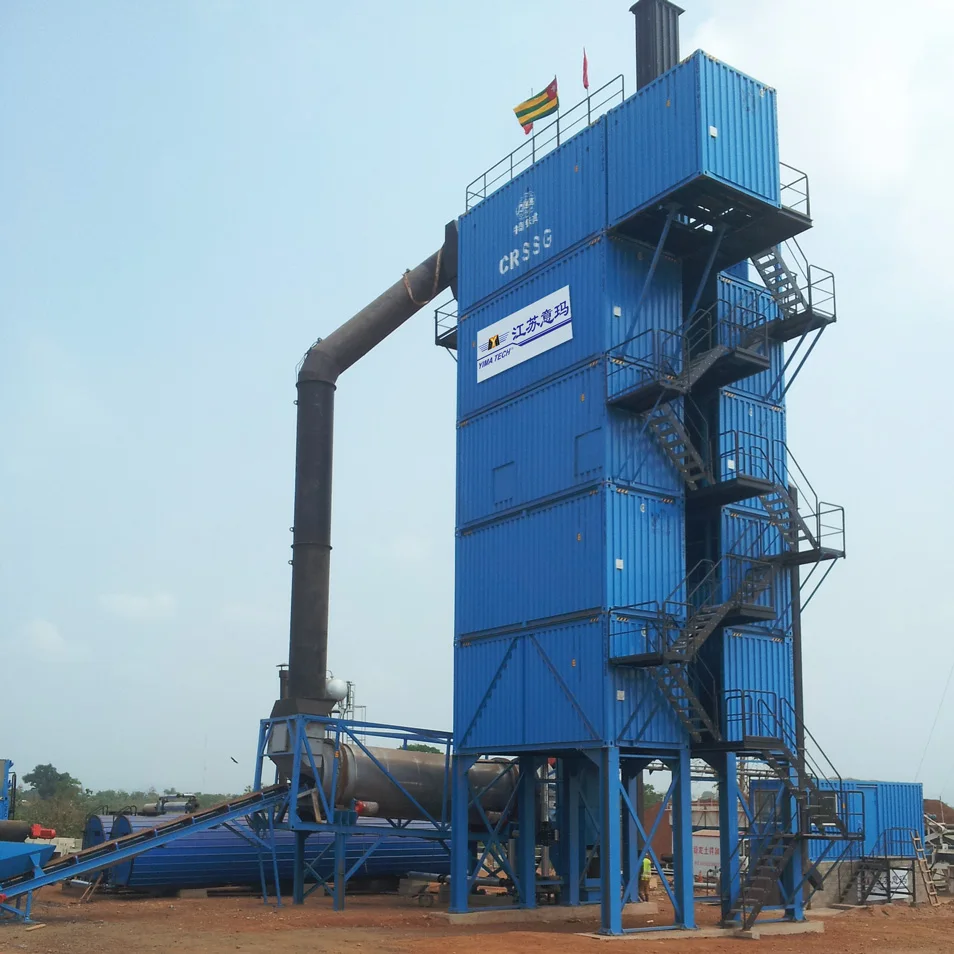

Model: CSM120 Asphalt Mixing Plant
Asphalt plant is a set of equipment can combine aggregates and bitumen to produce asphalt mix for road paving. It can be widely applied for the pavement of highways, municipal roads, parking lots, airport expressway, etc.
Details Images
1. Cold feeder system
-- cold feeder
-- Collecting belt

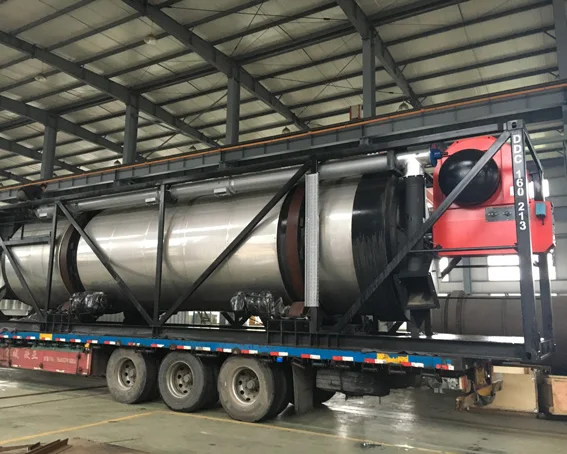

2. Dryer drum system
-- Drying drum
3. Hot elevator
-- Collecting belt
4. Vibrating screening system
-- Vibrating screen with motor
5. Aggregate hot bin system
-- Collecting belt
6. Weighing and mixing system
-- weighing system load cells
7. Filter system
-- Filter bag, blower, motor, chimney
8. Reclaimed filler system
-- 20" container
9. Foreign filler silo

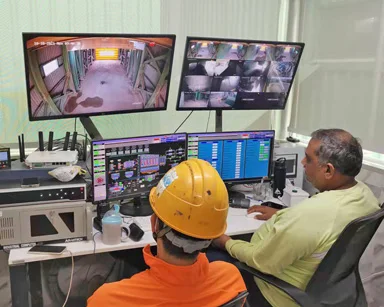

-- 40'' HC container 10. Control room
-- Manuel / Auto control operation
Technical Paramenters
LB-1000 80TPH Batch Mix Asphalt Plant | ||
Model | CSM120 | |
Rated Output (t/h) | 120 | |
Power (kW) | 305 | |
Floor Area (m3) | 31*19 | |
Cold Bin (m3) | 4 x 9 | |
Burner MW | 10 | |
Fuel | Diesel oil, heavy oil, fuel oil, coal, natural gas | |
Hot Bin (m3) | 22 | |
Row of powder concentration | ≤20mg/Nm3 | |
Mist and dust blackness | Ringelman Blackness: Grade I | |
Screen Series | 4 | |
Mixing Capacity (kg) | 1500 | |
Control System | Fully automatic computer control (Industrial PC+PCL+dual color screen+laser printing+heating and cooling air conditioning) | |
Why choose us
1. Quality & Affordable Prices. Direct from factory price, a strong team of engineer.
2. Environmental friendly. The key technologies of environmental protection are upgraded from three aspects: dust treatment,
asphalt flue gas treatment and noise treatment
3. Excellent after-sales service 24 hours.
1)Training how to install and operate the concrete / asphalt mixing plant;
2)Engineers available for overseas installation guidance ;
3)Sufficient spare parts in stock provide for equipment whole life.
4)Quality guarantee.
4. Many years of rich project experience. Attached the successful cases.
2. Environmental friendly. The key technologies of environmental protection are upgraded from three aspects: dust treatment,
asphalt flue gas treatment and noise treatment
3. Excellent after-sales service 24 hours.
1)Training how to install and operate the concrete / asphalt mixing plant;
2)Engineers available for overseas installation guidance ;
3)Sufficient spare parts in stock provide for equipment whole life.
4)Quality guarantee.
4. Many years of rich project experience. Attached the successful cases.
Company Profile
Packing & Shipping
Export advantage: We have obtained France BV Classification Society Certificate, adopt 100% sea standard container, ensure the safety shippment.
Most important, we can help you save nearly 50% sea shipping fee!
Most important, we can help you save nearly 50% sea shipping fee!
Send your special needs to us!
