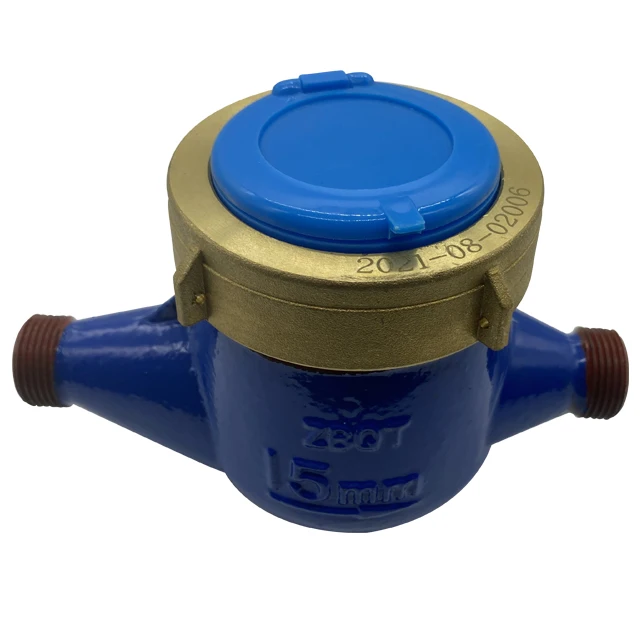

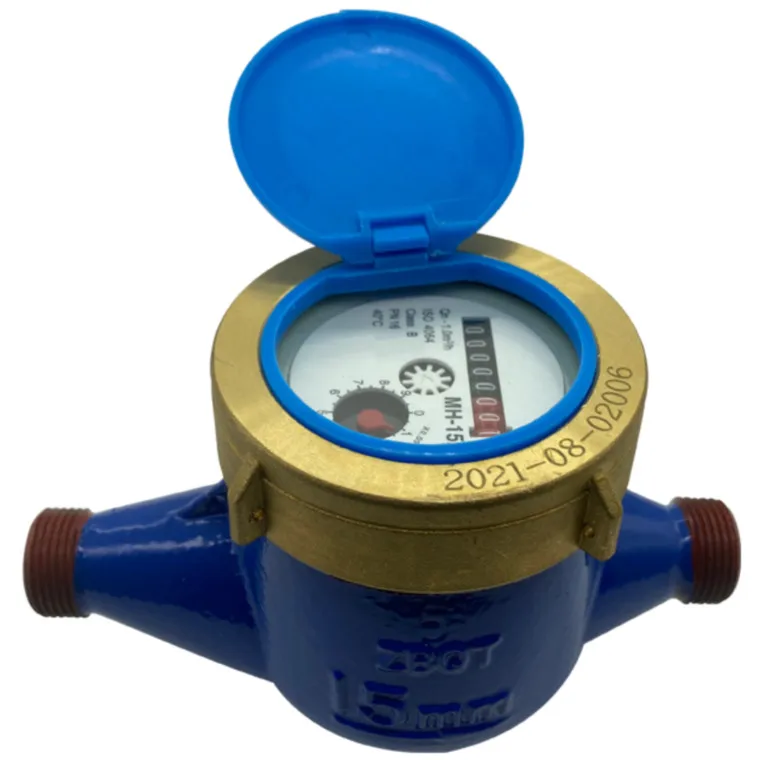

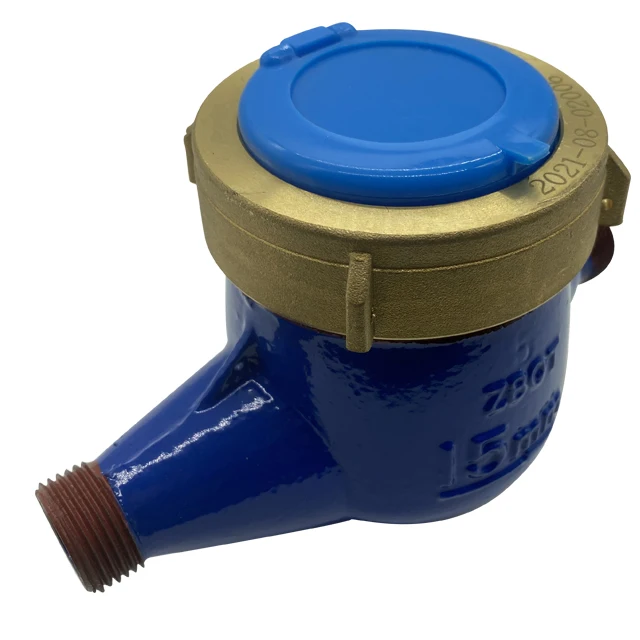

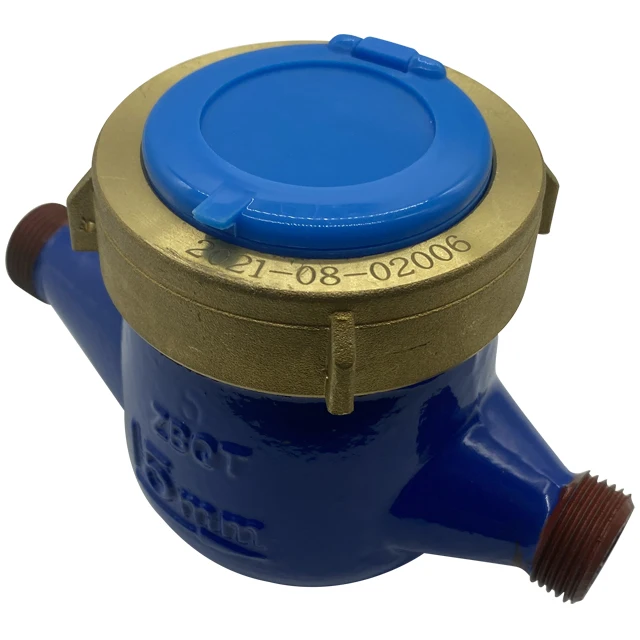

Hot-selling C-type flow cold water meter Volumetric
- Категория: Water Meters >>>
- Поставщик: Cixi,Zheyong,Water,Meter,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.5 $* | 2.75 $* |
| Aug-18-2025 | 2.95 $* | 2.16 $* |
| Jul-18-2025 | 2.51 $* | 2.96 $* |
| Jun-18-2025 | 2.73 $* | 2.68 $* |
| May-18-2025 | 2.80 $* | 2.70 $* |
| Apr-18-2025 | 2.24 $* | 2.50 $* |
| Mar-18-2025 | 2.42 $* | 2.17 $* |
| Feb-18-2025 | 2.10 $* | 2.76 $* |
| Jan-18-2025 | 2.50 $* | 2.9 $* |
Характеристики
Products Description
DESCRIPTION
Multi-jet or Volumetric rotary piston, Dry dial
Body material: Cast iron or Brass or Stainless steel
Sizes: DN15 to 50mm( 1/2" - 2"), available for cold water (40°C)
Accuracy: DN15(½"), Class B / Class C / R160
DN20-50mm,(¾" - 2"), Class B
Easy for interchange & maintenance
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
Multi-jet or Volumetric rotary piston, Dry dial
Body material: Cast iron or Brass or Stainless steel
Sizes: DN15 to 50mm( 1/2" - 2"), available for cold water (40°C)
Accuracy: DN15(½"), Class B / Class C / R160
DN20-50mm,(¾" - 2"), Class B
Easy for interchange & maintenance
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Working pressure:≤1.6Mpa
Water temperature:≤40ºC for cold water meter
Working pressure:≤1.6Mpa
MAIN TECHNICAL DATA
DN | Q3/Q1 | Q4 | Q3 | Q2 | Q1 | Min | Max | |||
mm | m3/h | L/h | m3 | |||||||
15 | 160 | 3.125 | 2.5 | 25 | 15.625 | 0.0001 | 99999 | |||
100 | 40 | 25 | ||||||||
20 | 160 | 5 | 4 | 40 | 2.5 | |||||
100 | 64 | 40 | ||||||||
Installation site

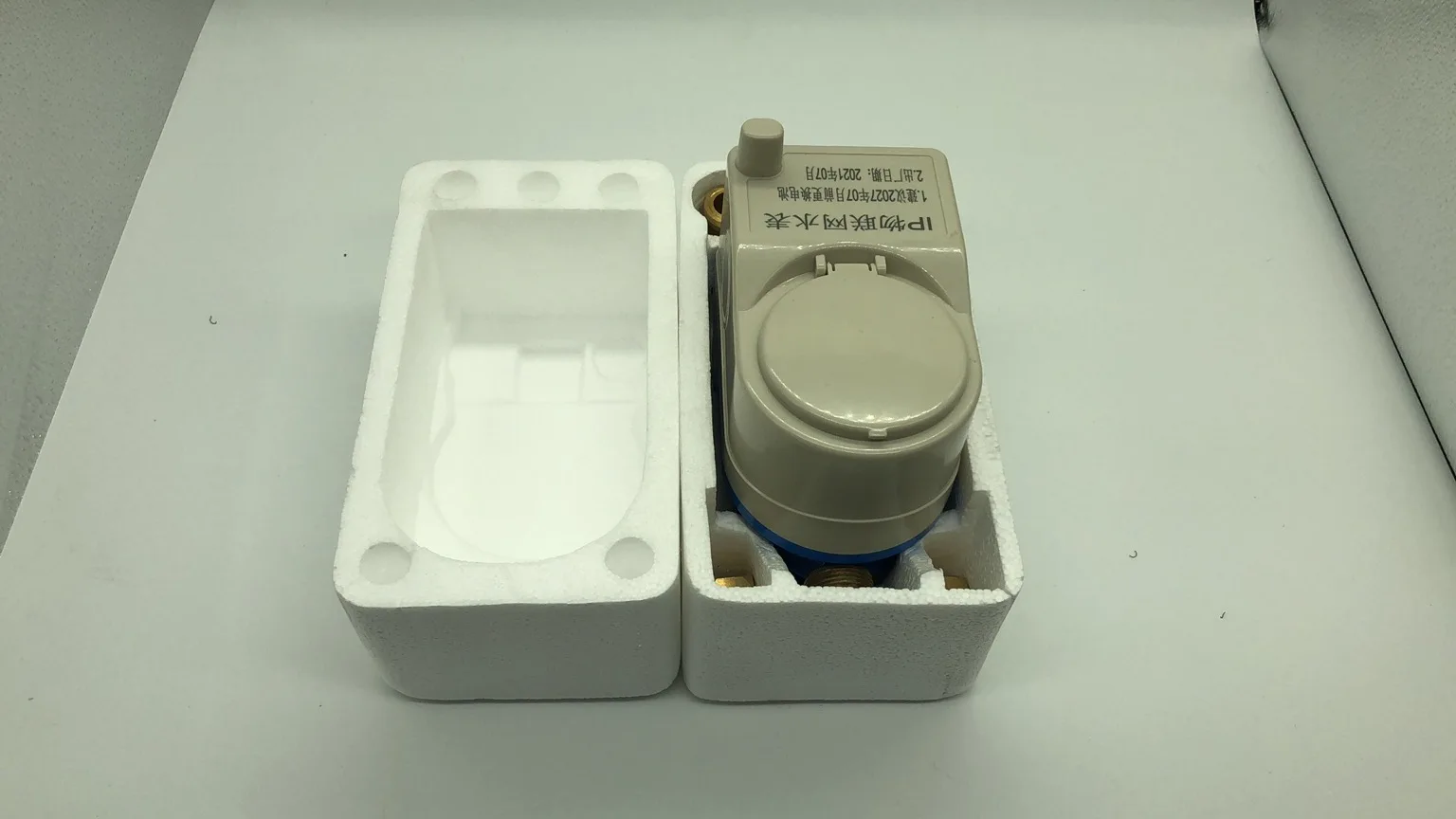

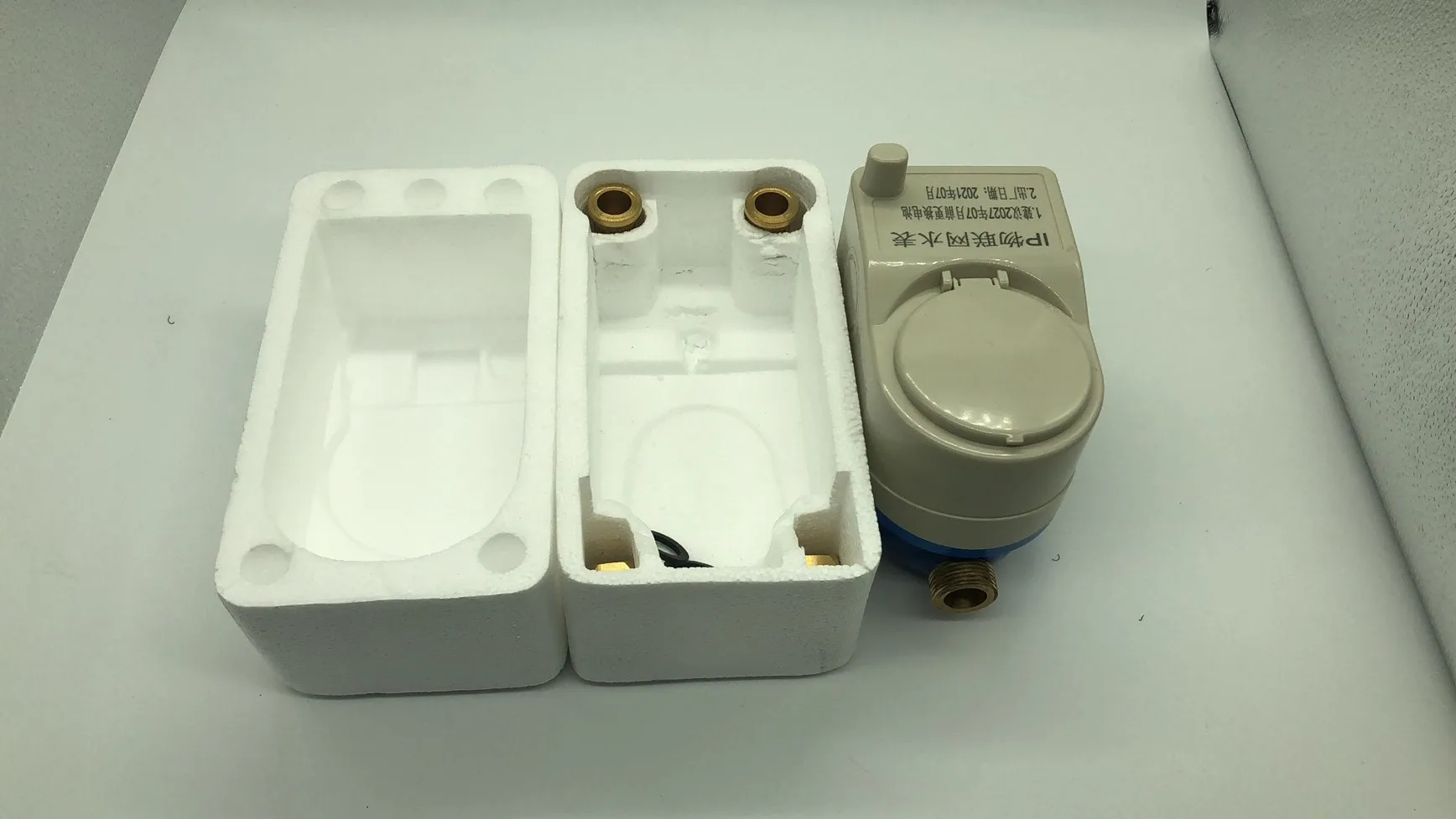

Product packaging
Company Profile
About us
Factory and workshop
R&d center and office
Sample room
Customer's visit
Certifications
FAQ
1.Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs
incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB.
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs
incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB.
