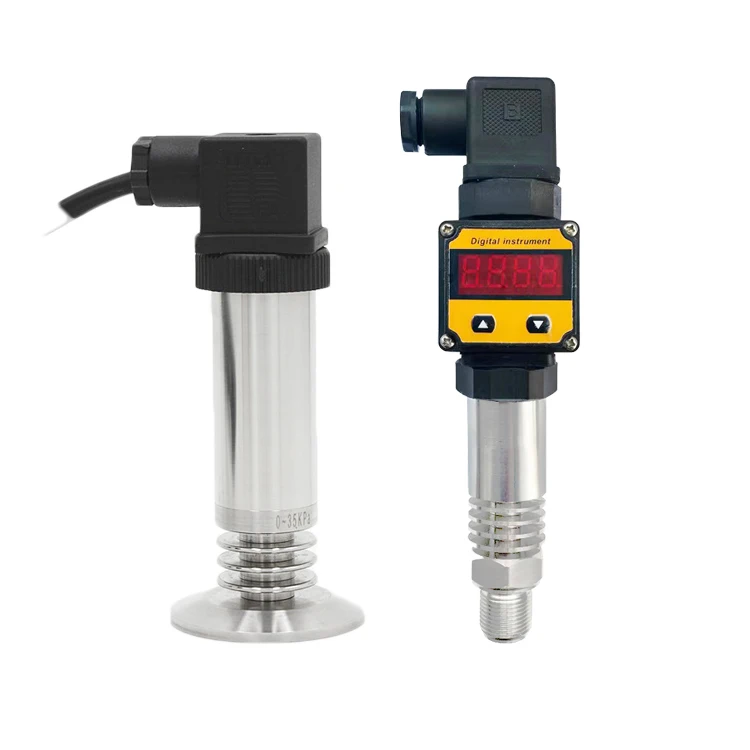

High Temperature 0-5v Bitumen Melt Hydraulic Oil Pressure Sensor For
High Temperature 0-5v Bitumen Melt Hydraulic Oil Pressure Sensor For
High Temperature 0-5v Bitumen Melt Hydraulic Oil Pressure Sensor For
High Temperature 0-5v Bitumen Melt Hydraulic Oil Pressure Sensor For
High Temperature 0-5v Bitumen Melt Hydraulic Oil Pressure Sensor For
High Temperature 0-5v Bitumen Melt Hydraulic Oil Pressure Sensor For
High Temperature 0-5v Bitumen Melt Hydraulic Oil Pressure Sensor For

High Temperature 0-5v Bitumen Melt Hydraulic Oil Pressure Sensor For


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.68 $* 0.80 $*
Aug-18-2025 0.18 $* 0.84 $*
Jul-18-2025 0.40 $* 0.15 $*
Jun-18-2025 0.64 $* 0.76 $*
May-18-2025 0.34 $* 0.42 $*
Apr-18-2025 0.96 $* 0.43 $*
Mar-18-2025 0.82 $* 0.5 $*
Feb-18-2025 0.6 $* 0.86 $*
Jan-18-2025 0.48 $* 0.18 $*

Характеристики




































Titanium alloy diaphragm, strong corrosion resistance
Wide temperature zone, high precision
Flameproof, IP68 protection
Can be applied to harsh environments such as pollution, humidity, flflammable and explosive



































































































































Range

-0.1MPa...0kPa~10kPa...100MPa



Overload capability

Below 10MPa ≤ 2 times full scale

10MPa and above ≤1.5 times full scale



Pressure Type

G (gauge pressure), A (absolute pressure), S (sealed gauge pressure)



Accuracy

0.1% (custom), 0.25% (typical), 0.5% (maximum)



Long-term stability

±0.1%FS/year (typical), ±0.2%FS/year (maximum)



Zero temperature drift

±0.015%FS/°C, ±0.02%FS/°C



Sensitivity temperature drift

±0.015%FS/°C, ±0.02%FS/°C



Compensation temperature

-10°C~70°C, -20°C~80°C



Medium temperature

-60°C~200°C, -30°C~65°C (Input type)



Power supply

12 ~ 30V (Default 24V)



Output signal

4mA~20mA (superimposable HART protocol)

0V~10V (output range can be customized)

RS485



Load Resistance

Current type: ≤ (U-12) / 0.02 (Ω)



Protection level

IP65 (customizable IP67/IP68)
































































































































As the specifications affect the price difference, page price for reference only. The final price is subject to our final confirmation.
