Характеристики
Home
Products Description
DESCRIPTION

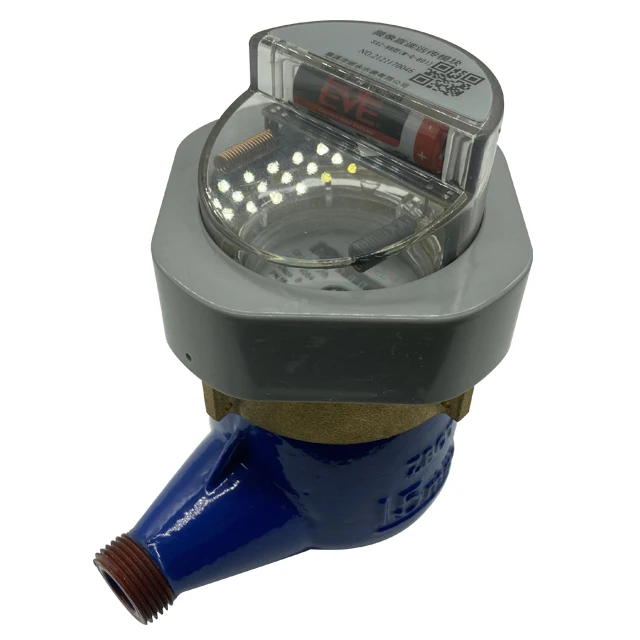

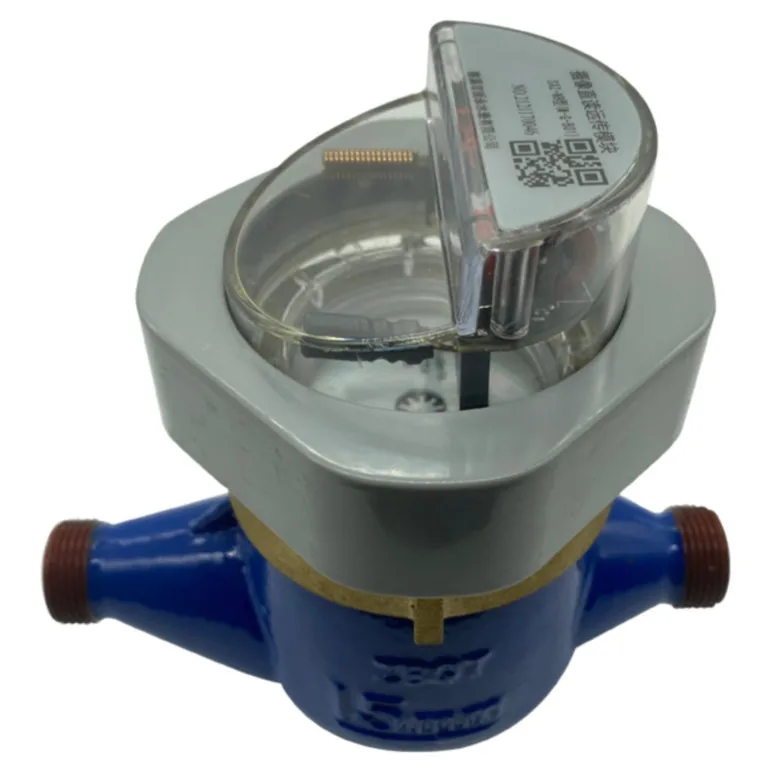

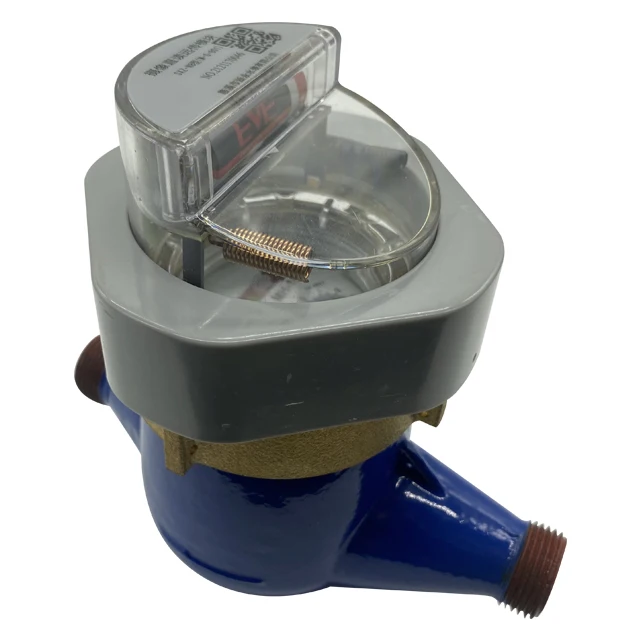

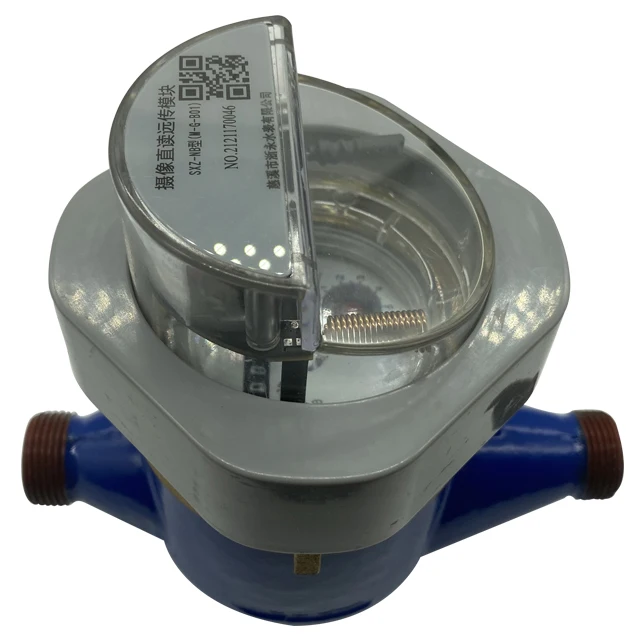

The camera remote transmission cold water meter uses a water meter with good stability and high accuracy as the base meter. The camera direct reading remote transmission module adopts ultra-low power design, wakes up regularly for data collection, and transmits the data to the management background through 4G NB-LOT LORAWAN GSM B-MUS (wired) communication, and then presents the data to the user.
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤10 Bar
The camera remote transmission cold water meter uses a water meter with good stability and high accuracy as the base meter. The camera direct reading remote transmission module adopts ultra-low power design, wakes up regularly for data collection, and transmits the data to the management background through 4G NB-LOT LORAWAN GSM B-MUS (wired) communication, and then presents the data to the user.
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤10 Bar
BASIC DATA
working temperature | 5℃-55℃ |
Protection level | IP68 |
Battery | 3.0V lithium manganese dioxide battery CR17450 |
Communication mode | 4G NB-LOT LORAWAN GSM B-MUS (wired) |
Static working current | <3uA |
Camera life | <300,000 times |
Sensor pixel | 30W |
Sensitivity level of upstream flow field | U10 |
Sensitivity level of downstream flow field | D5 |
MAIN TECHNICAL DATA
DN | Q3/Q1 | Q4 | Q3 | Q2 | Q1 | Min | Max | |||
mm | —— | m3/h | L/h | m3 | ||||||
15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.0001 | 99999 | |||
160 | 25 | 15.625 | ||||||||
20 | 80 | 5 | 4 | 80 | 50 | |||||
160 | 40 | 25 | ||||||||
25 | 80 | 7.785 | 6.3 | 126 | 78.75 | |||||
160 | 63 | 39.375 | ||||||||
DIMENSIONS AND WEIGHT
DN | L | B | H | D | |||||
mm | |||||||||
15 | 165 | 89 | 140 | R1/2 | G3/4 | ||||
20 | 195 | 91 | 140 | R3/4 | G1 | ||||
25 | 225 | 91 | 140 | R1 | G1 1/4 | ||||
Installation site
Our Advantages
Company Profile
Certifications
Packing & Shipping
FAQ
1.Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB.
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB.
