Slocable высокое качество 1500V DC 2 м 4 мм Солнечный Удлинительный кабель с
- Категория: Wiring Harness >>>
- Поставщик: Dongguan,Slocable,Photovoltaic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.32 $* | 0.42 $* |
| Aug-16-2025 | 0.66 $* | 0.84 $* |
| Jul-16-2025 | 0.27 $* | 0.39 $* |
| Jun-16-2025 | 0.39 $* | 0.53 $* |
| May-16-2025 | 0.87 $* | 0.42 $* |
| Apr-16-2025 | 0.34 $* | 0.56 $* |
| Mar-16-2025 | 0.21 $* | 0.27 $* |
| Feb-16-2025 | 0.47 $* | 0.98 $* |
| Jan-16-2025 | 0.20 $* | 0.52 $* |
Характеристики
Slocable High Quality 1500V DC 2 meter 4mm Solar Extension Cable with Two Side Connector
Product Description

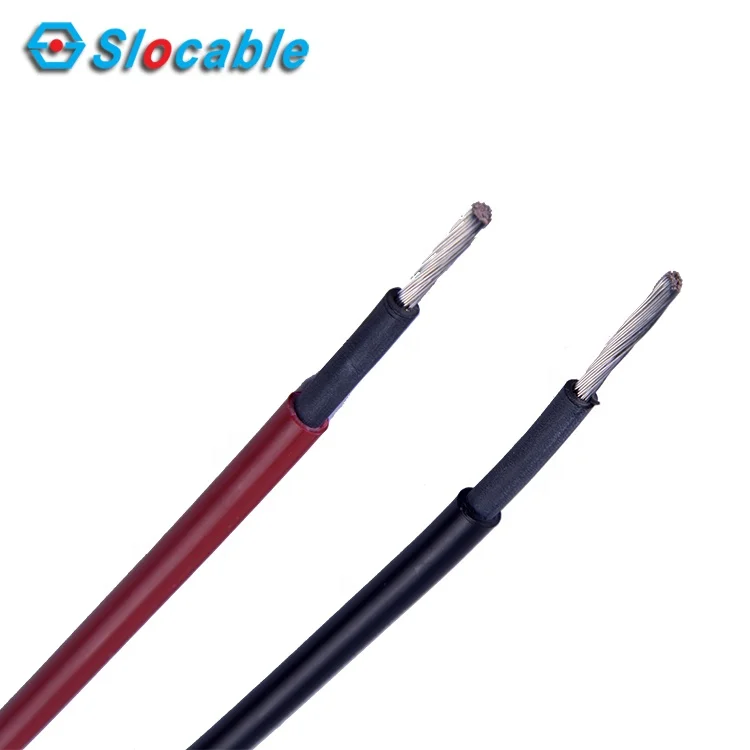

Technical Data of PV Cables and PV Connectors
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x4mm2 | 4.0mm2 | 56 x φ0.285mm | 2.6mm | 5.09 Ω/km | 6.2mm | 1500V | 50A |
Wire: Copper, Class 5, tinned | Temperature range: -40~+90℃ |
Insulation material: XLPE / XLPO | High wear and abrasion resistance |
Double XLPE insulation | Flame test according to: EN60332-1-2 |
Halogen-free | Smallest Permissible Bending Radius: 5 x D |
Microbe-resistance | Colours: Black or Red |
| PV Terminal Connector Technical Data | |||
| Rated Current | 40A | Degree of Protection | IP2*/IP68 |
| Rated Voltage | 1500V DC | Flame Class | UL94-V0 |
| Test Voltage | 6000V(50Hz,1min) | Safety Class | II |
| Overvoltage Category | CATIII | Suitable Cable | OD 4.5-8.5mm (2.5-10.0mm²) |
| Contact Resistance | <0.5mΩ | Temperature Range | -40℃~+85℃ |
| Contact Material | Copper, tin plated | Insulation Material | PPO/PPE |

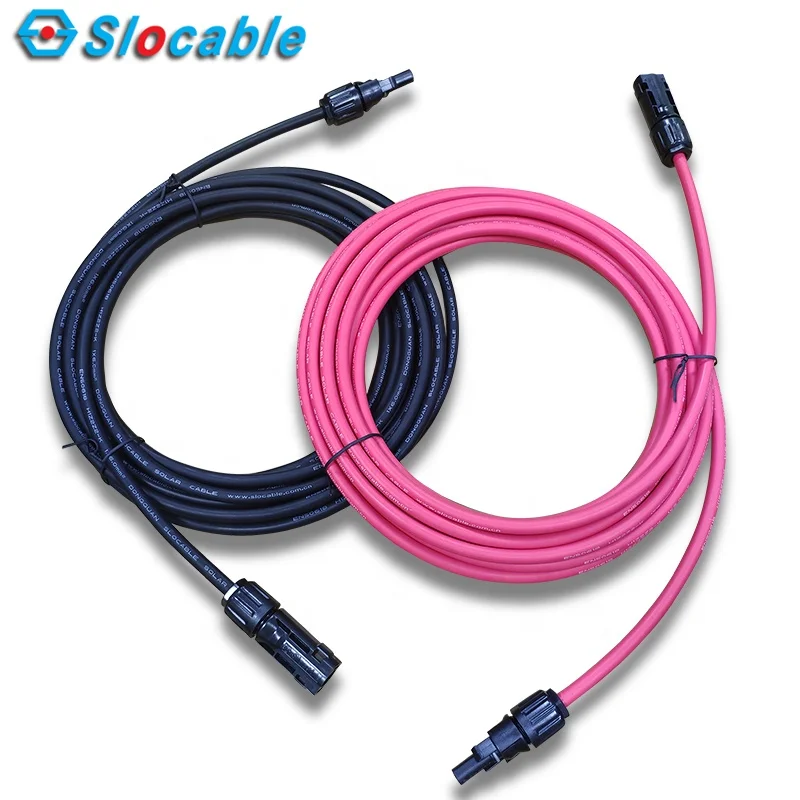

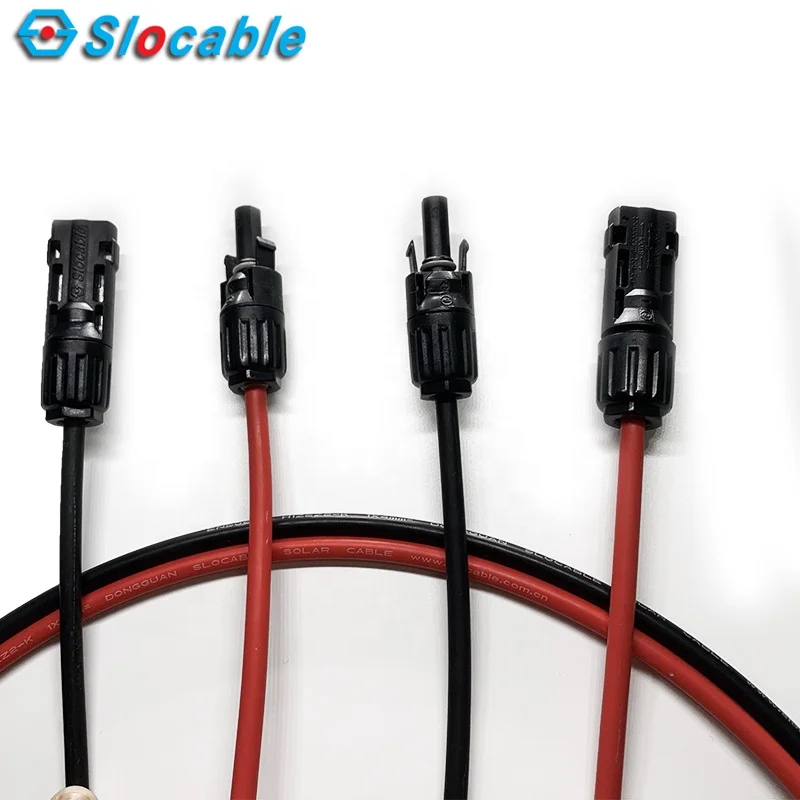

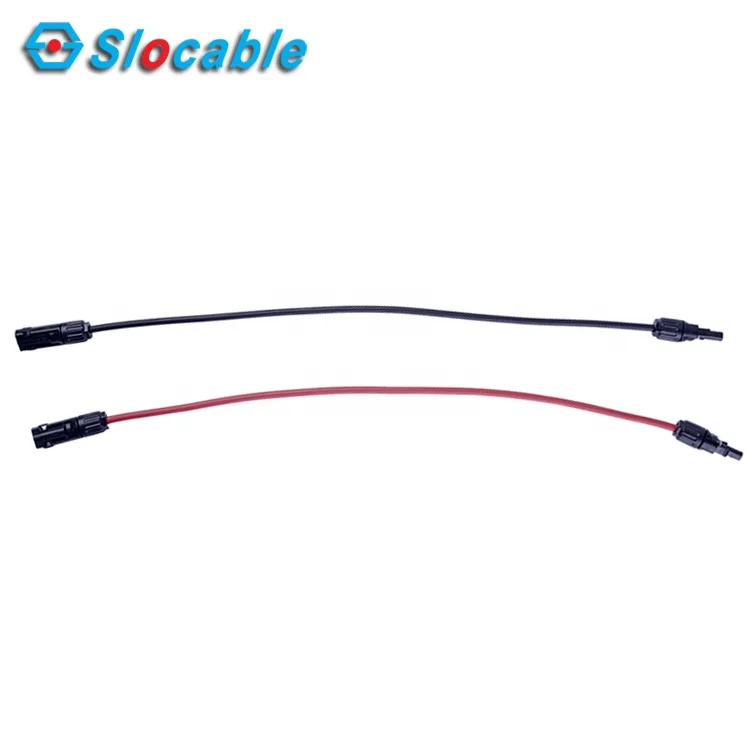

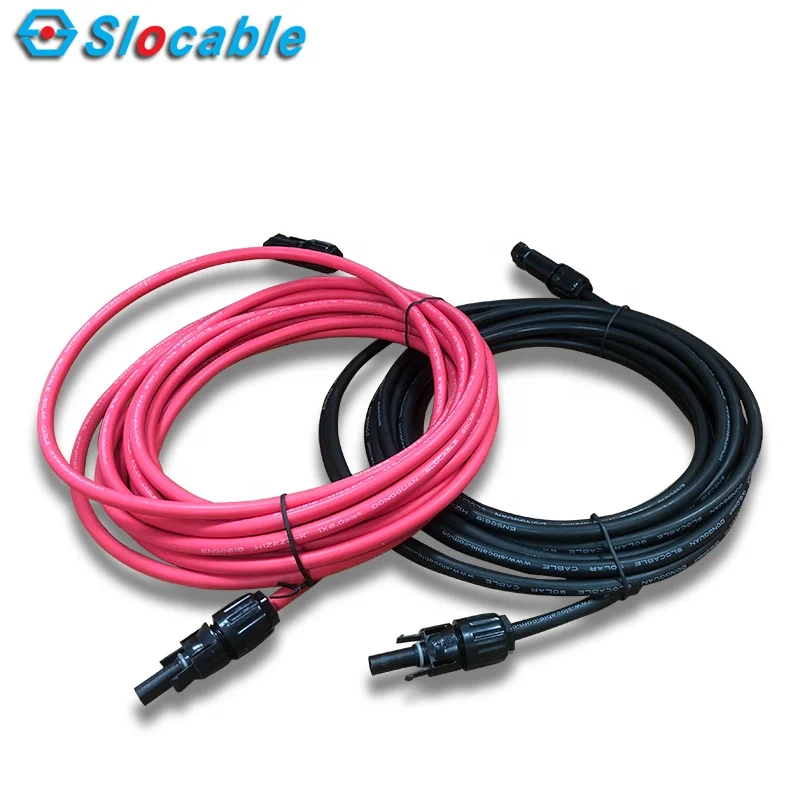

Pictures of Solar Panel Extension Cable:
(Length: 1m, 4mm2)
(We can produce 2in1, 3in1, 4in1, 5in1 and other customized cables assemblies,
you can consult me directly if necessary)
More solar products
Company Information
Certificates
Trade Shows
Packing & Shipping
FAQ
Q1: What are your company's Main Products? You are the Manufacturer or the trader?
Solar Cables, Solar Connectors, PV Fuse Holder, Circuit breakers and other solar relative products. We're the Manufacturer with more than 13 years' experience.
Q2: How can I get the Quotation of the products?
Send your message to us by E-mail or TradeManager, We'll reply to you within 2hours in the Working Time.
Q3: What does your company do regarding Quality Control?
1) All raw materials we selected are the highest quality.
2) Professional and skillful workers care for every detail in handling the production.
3) Quality Control Department is specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have a fully successful experience in OEM projects.
What's more, our R&D team will give you professional suggestions.
Q5: How could I get the Sample?
We are honored to offer you samples, which is free, but you will need to pay the international courier freight.
If you have a courier account or forwarder in China, you can send your courier to collect samples.
Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small orders: 3-10 Days;
3) For mass orders: 10-18 Days.
It is better to communicate with us if you are interested to place an order.
