HM-9000B симулятор высокочастотная медицинская маммографии рентгеновский
- Категория: Other Radiology Equipment & Accessories >>>
- Поставщик: Nanjing,Healicom,Medical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.13 $* |
| Aug-16-2025 | 0.62 $* | 0.13 $* |
| Jul-16-2025 | 0.96 $* | 0.80 $* |
| Jun-16-2025 | 0.23 $* | 0.63 $* |
| May-16-2025 | 0.14 $* | 0.51 $* |
| Apr-16-2025 | 0.21 $* | 0.1 $* |
| Mar-16-2025 | 0.90 $* | 0.73 $* |
| Feb-16-2025 | 0.42 $* | 0.42 $* |
| Jan-16-2025 | 0.54 $* | 0.63 $* |
Характеристики
Products Description

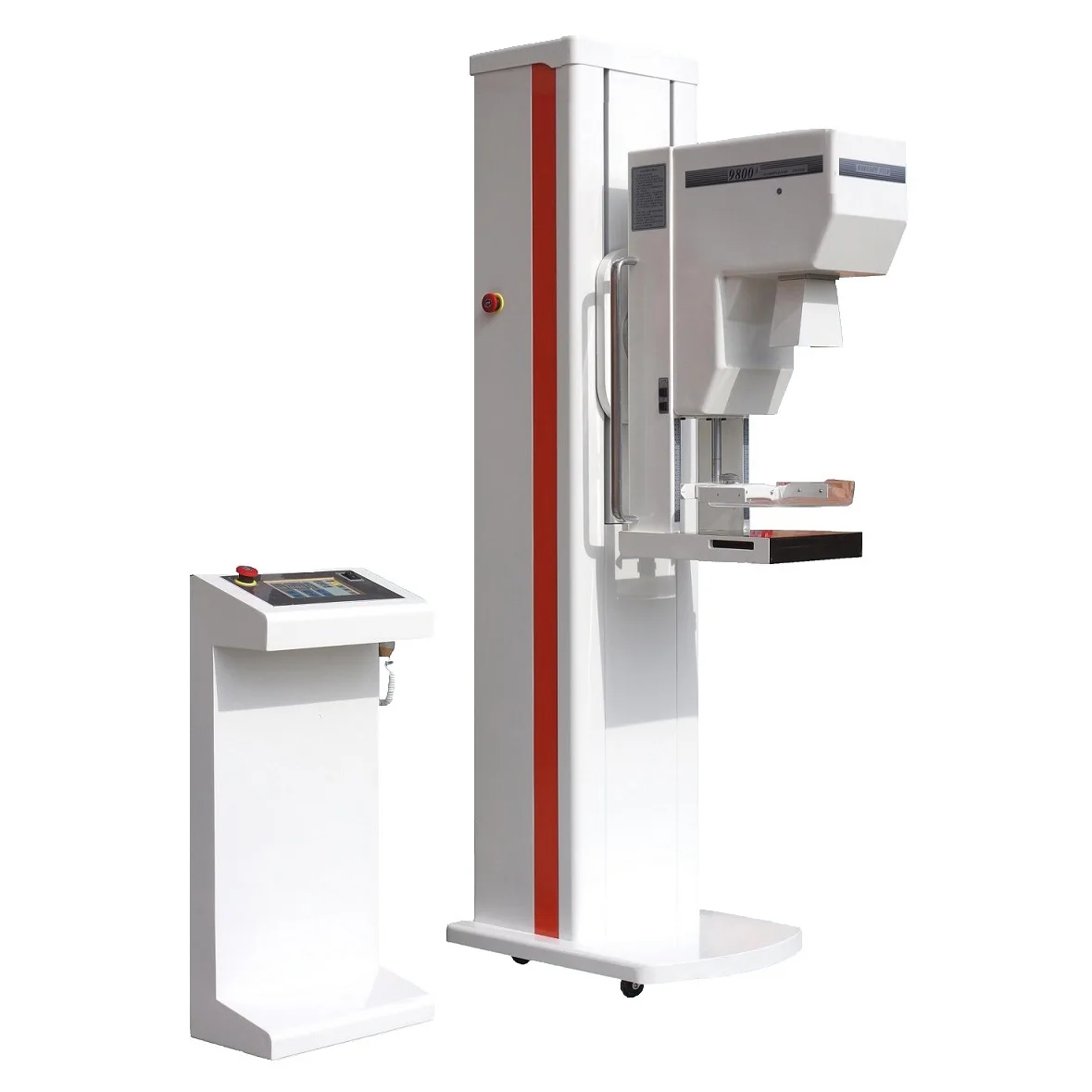

HM-9000B Simulator High Frequency Medical Mammography X-ray Machine
Two different X-ray tubes to choose:
• Hangzhou LR01 tube from China
• IAE C339V tube from Italy
Main Parameters
1. X-ray Generator
Complete solid-state high-frequency high-voltage generator.
Generator Type: High Frequency Inverter 80kHz
Input Power: Single phase 220VAC, 50/60Hz
Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs
Power Rating: 6kW
2. X-ray Tube
• Hangzhou LR01 tube from China
Focal Spot Size: Dual Focus 0.2 / 0.4mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 100KJ
Anode Cooling: Air cooling
Filtration: Mo（0.03mm）, Al（0.5mm）
• IAE C339V tube from Italy
Focal Spot Size: Dual Focus 0.1/0.3mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 210kJ (300kHU)
Anode Cooling: Air cooling
Filtration: Mo(0.03mm), Al(0.5mm)
3. Radiographic Stand
C-ARM: Vertical Movement: 580mm
Rotations Deg: +175°~-180°
SID: 650mm
4. Cassette Image Receptor
Bucky Device: 18*24cm Bucky drive mechanism
Grid Ratio: 5:1, 30 Line/cm
5. Radiographic Stand
C-ARM Vertical Movement: 580mm
C-ARM Rotation: +175°～-180°
SID: 650mm
6. Line Voltage
220Vac@25A, Single phase
• Hangzhou LR01 tube from China
• IAE C339V tube from Italy
Main Parameters
1. X-ray Generator
Complete solid-state high-frequency high-voltage generator.
Generator Type: High Frequency Inverter 80kHz
Input Power: Single phase 220VAC, 50/60Hz
Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs
Power Rating: 6kW
2. X-ray Tube
• Hangzhou LR01 tube from China
Focal Spot Size: Dual Focus 0.2 / 0.4mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 100KJ
Anode Cooling: Air cooling
Filtration: Mo（0.03mm）, Al（0.5mm）
• IAE C339V tube from Italy
Focal Spot Size: Dual Focus 0.1/0.3mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 210kJ (300kHU)
Anode Cooling: Air cooling
Filtration: Mo(0.03mm), Al(0.5mm)
3. Radiographic Stand
C-ARM: Vertical Movement: 580mm
Rotations Deg: +175°~-180°
SID: 650mm
4. Cassette Image Receptor
Bucky Device: 18*24cm Bucky drive mechanism
Grid Ratio: 5:1, 30 Line/cm
5. Radiographic Stand
C-ARM Vertical Movement: 580mm
C-ARM Rotation: +175°～-180°
SID: 650mm
6. Line Voltage
220Vac@25A, Single phase
Workshop
Related products
FAQ
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
5.What is payment terms?
T/T in advance, L/C, Western Union, PayPal, MoneyGram.
6.Which shipping company usually using?
MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
5.What is payment terms?
T/T in advance, L/C, Western Union, PayPal, MoneyGram.
6.Which shipping company usually using?
MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
