12 ядер 12FO ASU плоская структура Uni-tube наружный волоконно-оптический кабель антенна
- Категория: Communication Cables >>>
- Поставщик: Jiangsu,EC,Photoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 128.60 $* | 131.97 $* |
| Jul-19-2025 | 104.50 $* | 106.32 $* |
| Jun-19-2025 | 126.68 $* | 129.62 $* |
| May-19-2025 | 125.70 $* | 128.46 $* |
| Apr-19-2025 | 100.18 $* | 102.37 $* |
| Mar-19-2025 | 123.3 $* | 125.46 $* |
| Feb-19-2025 | 122.4 $* | 124.28 $* |
| Jan-19-2025 | 121.22 $* | 123.70 $* |
Характеристики

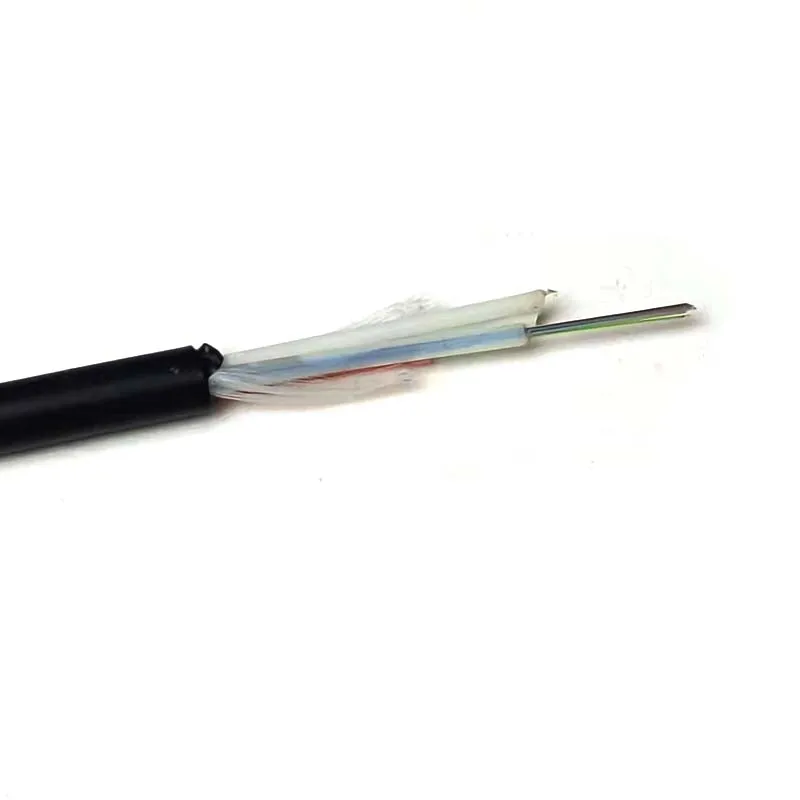

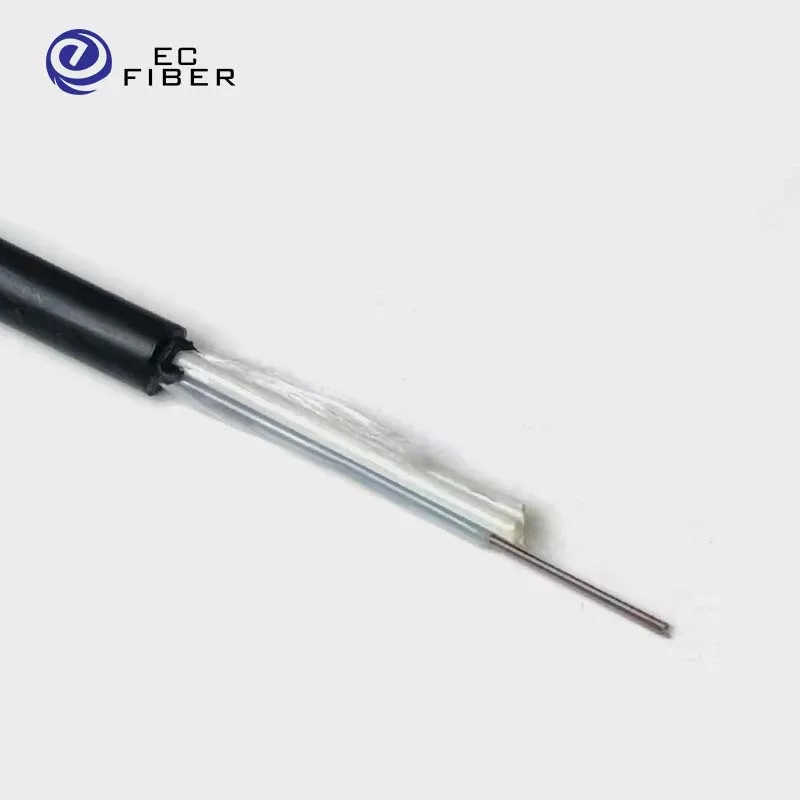

12 core 12F ASU Flat Structure Uni-tube outdoor fiber optic cable Aerial drop cable optical fiber cable
ASU cable is also known as Mini ADSS optical fiber. It is a kind of optical cable which is composed of all dielectric materials and contains necessary self-supporting system and it can be directly suspended on the power system. It is mainly used in the communication route of overhead high voltage transmission system, and can also be used in the communication line under the environment such as lightning zone and long distance overhead line.
Product Characteristics
1)Non-metallic self-supporting member
2)Good-performance sheath materials
3)Compact structure
4)All dielectric structure, resistant to electromagnetic interference
5)Easy for stripping, splicing, simplified installation and maintenance
6)Light weight,widely used,cost-effective
Applications
• Aerial self-supporting
• Outdoor wiring

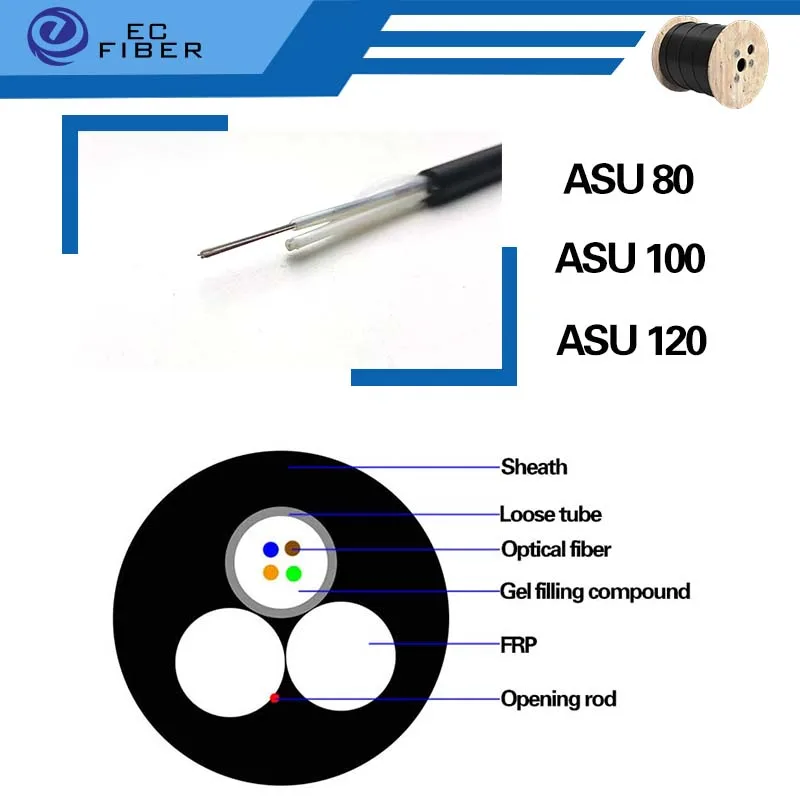

Cable Structural Parameter (Take normal ASU 12 core span 100m as an example)
No. of cable | 1-12 | |
Fiber Model | G.652D | |
Strength Member | Material | FRP |
Diameter(±0.05)mm | 1.8 | |
Loose Tube | Material | PBT |
Diameter(±0.06)mm | 1.8 | |
Thickness(±0.03)mm | 0.35 | |
The Max.Core NO./Tube | 12 | |
Outer Sheath | Material | PE |
Cable Diameter(±0.2)mm | 6.7 | |
Cable Weight(±5)kg/km | 38 | |
Min. bending radius | Without Tension | 10.0×Cable-φ |
Under Maximum Tension | 20.0×Cable-φ | |
Temperature range (℃) | Installation | -20~+60 |
Transport&Storage | -40~+70 | |
Operation | -40~+7 | |
