Product Description

China Manufacturer Customized Biogas Torch Enclosed Type Biogas Flare

Biogas torch is used to treat petrochemical plants, oil refineries, landfills, breweries, farms, sewage treatment plants, energy and environmental protection, biogas projects, chemical plants and other plants or devices that cannot be collected and reprocessed. Combustible, combustible and toxic Special combustion facilities for gas and steam, biogas torch is an important measure to ensure the safe production of the factory and reduce environmental pollution. It converts combustible and combustible toxic gases and vapors into non-combustible inert gases.

Biogas will not only pollute the environment but also cause serious safety hazards. Therefore, centralized treatment of anaerobic biogas is required.

In order to solve the problem of surplus biogas and the inability to directly discharge, we designed and produced a biogas torch.
The biogas enters the torch and is burned and then discharged. The discharged gas meets environmental protection standards. The
biogas produced by some industrial projects is burned by a biogas torch to meet environmental protection emission requirements;
the landfill gas is burned through the torch to achieve safety and deodorization.

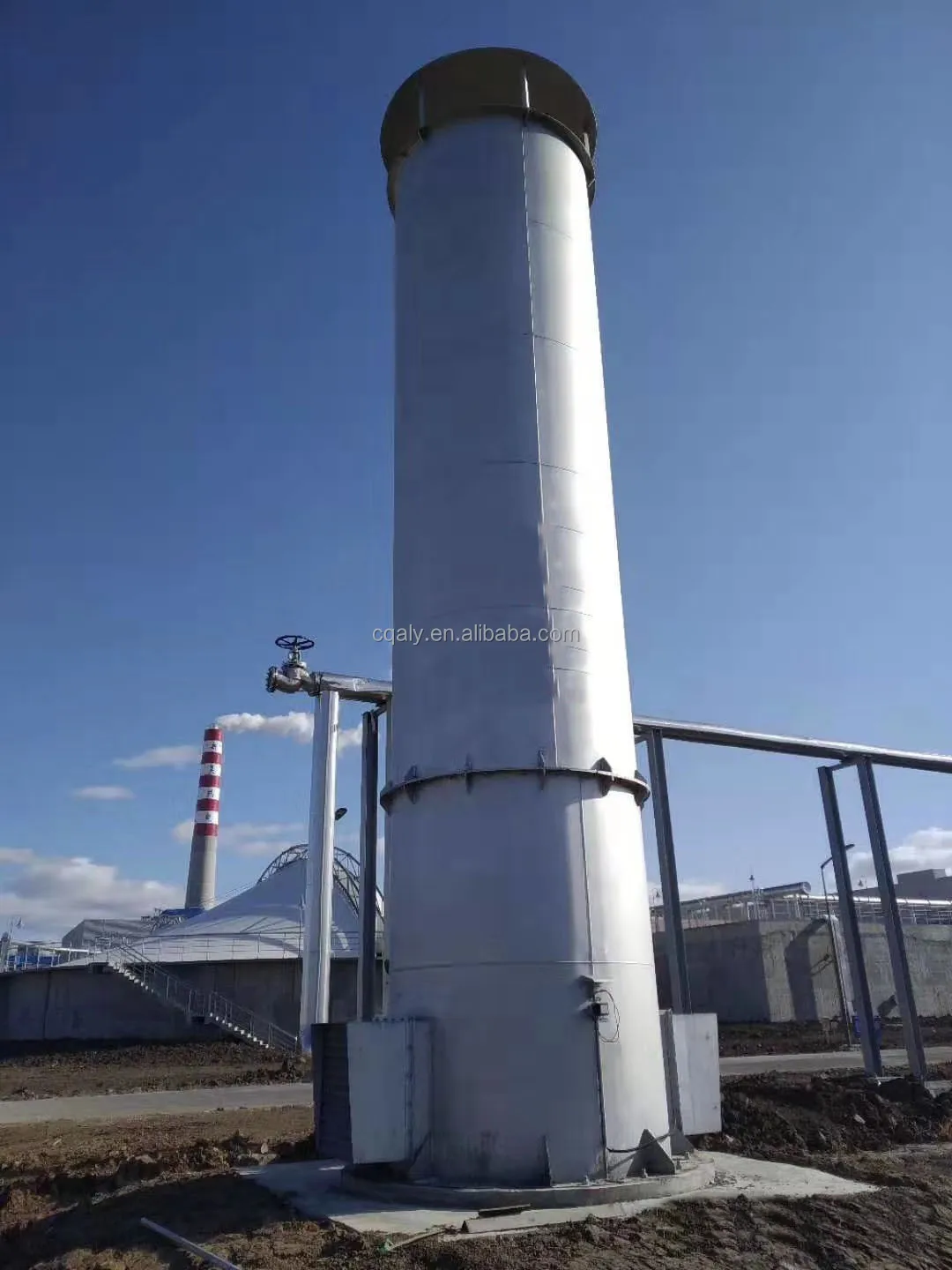

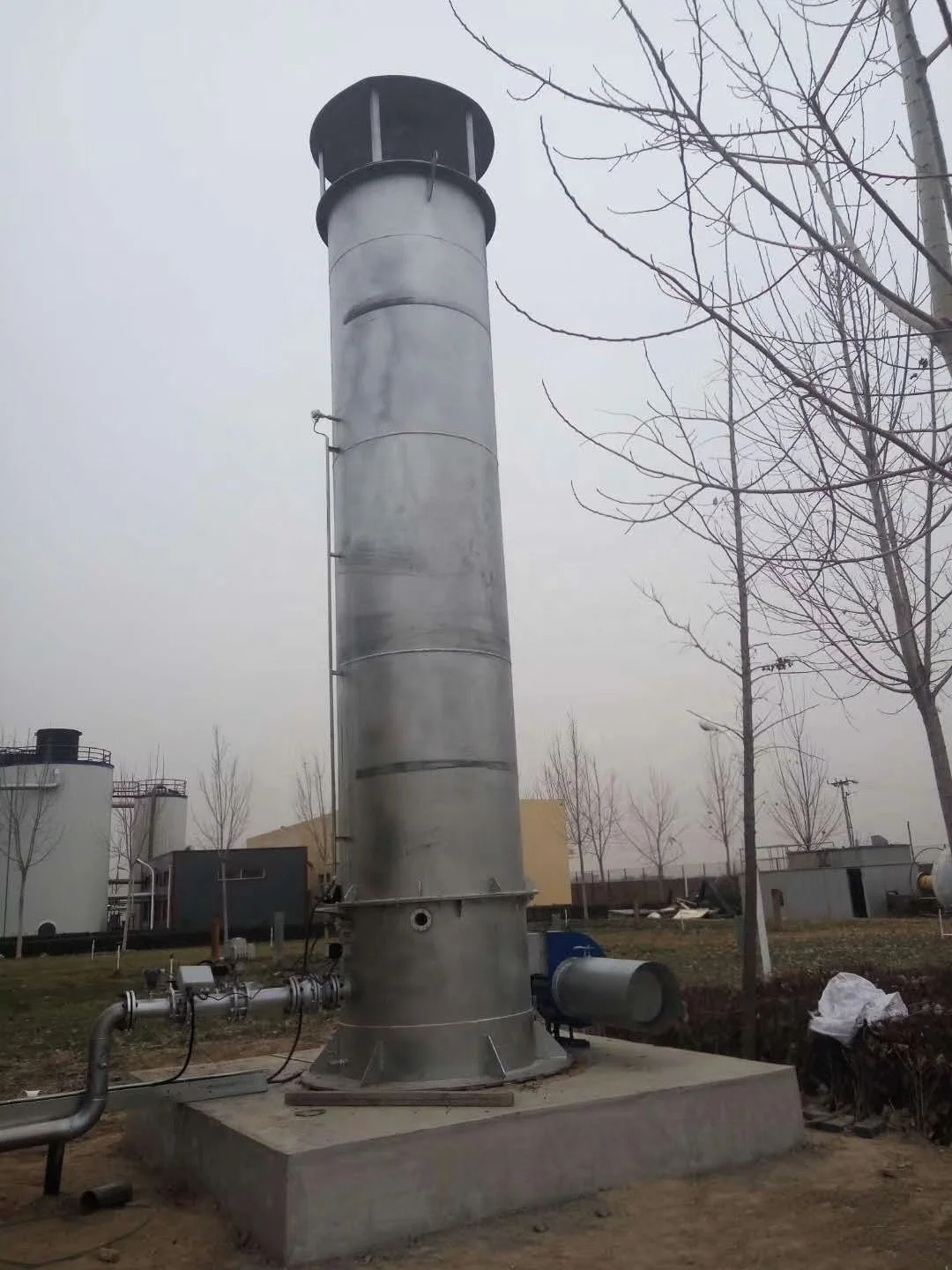

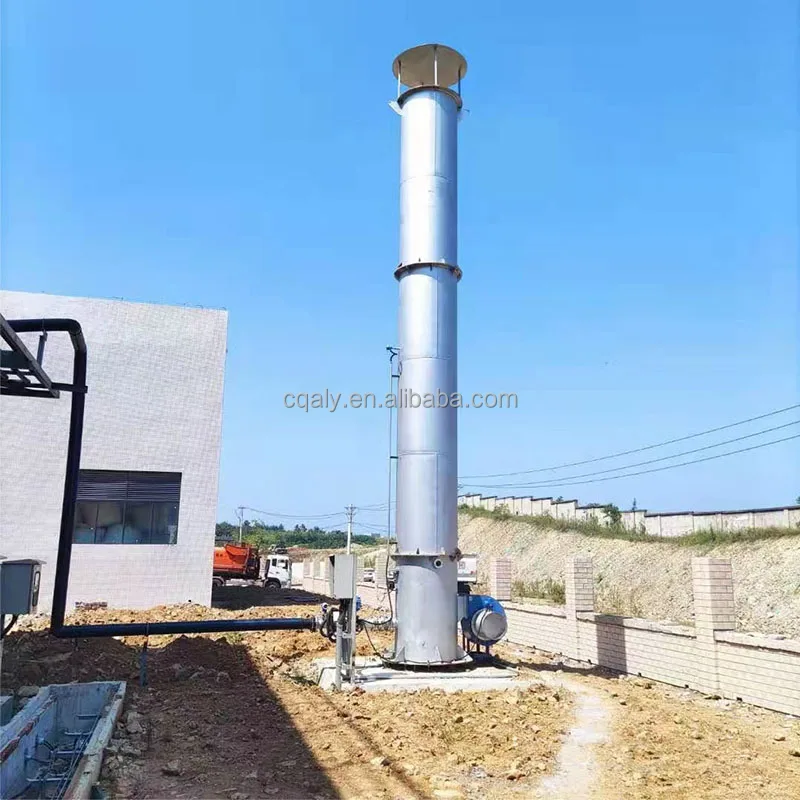

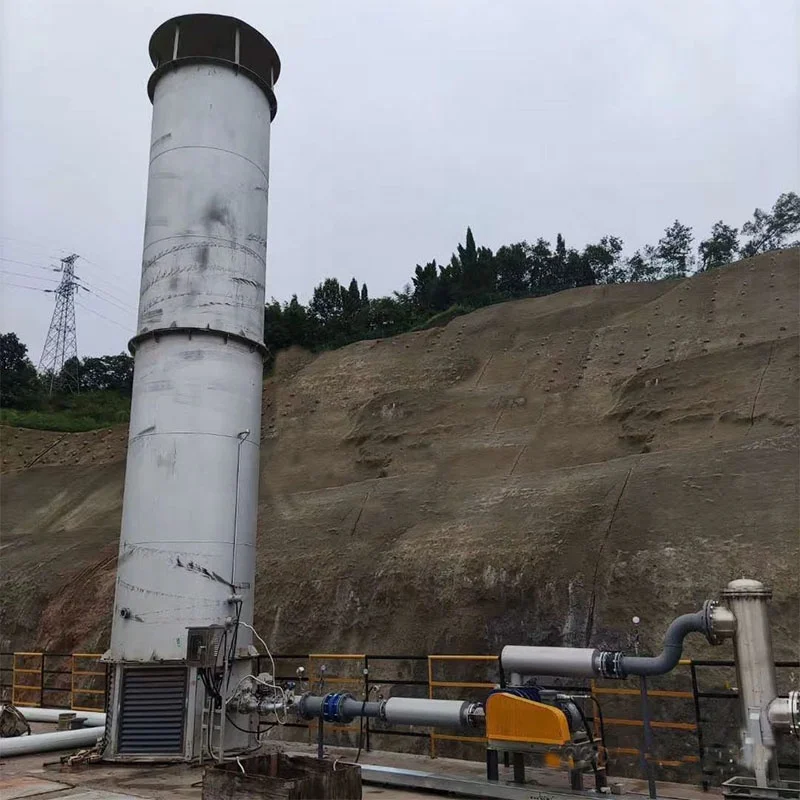

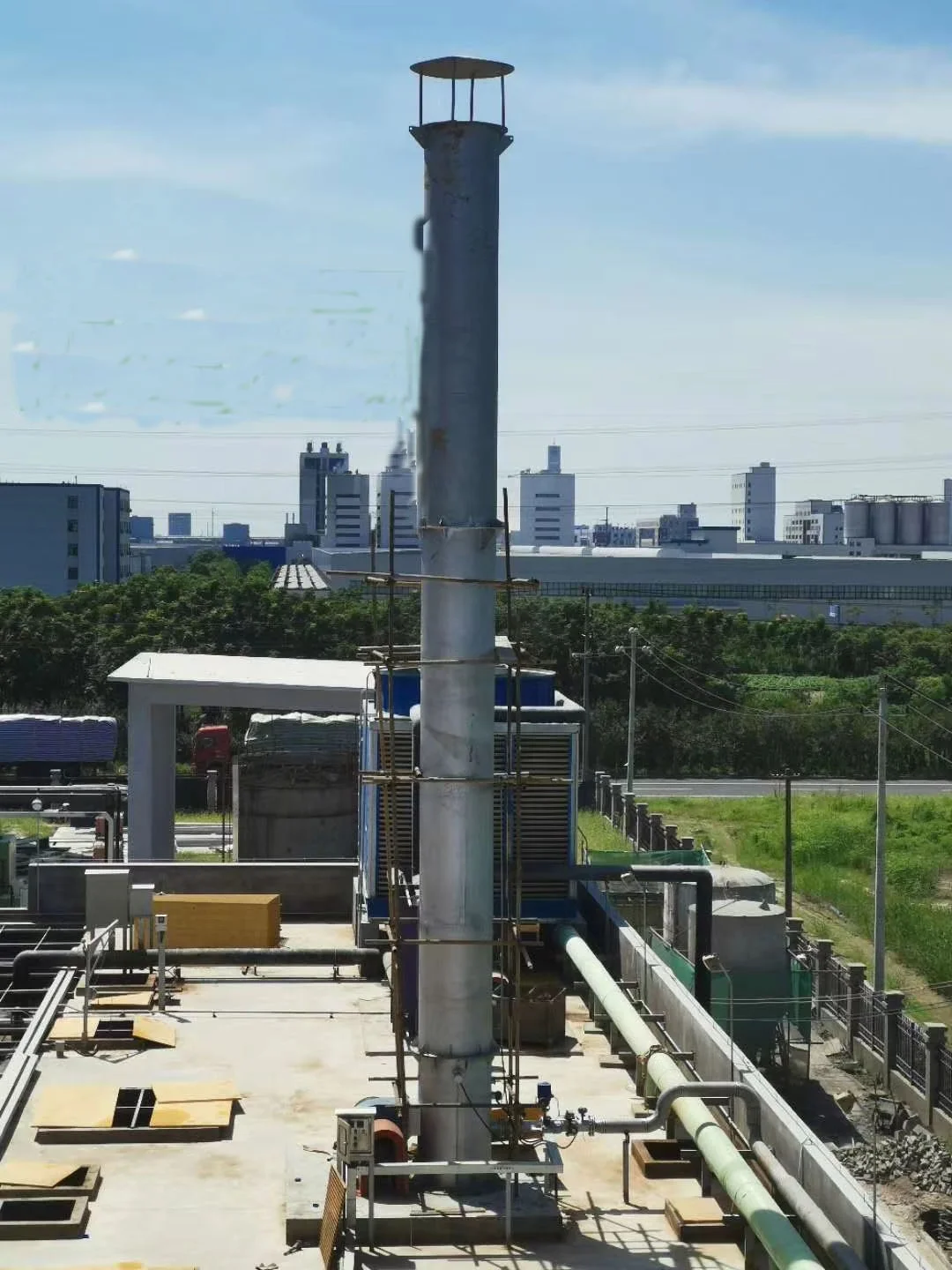

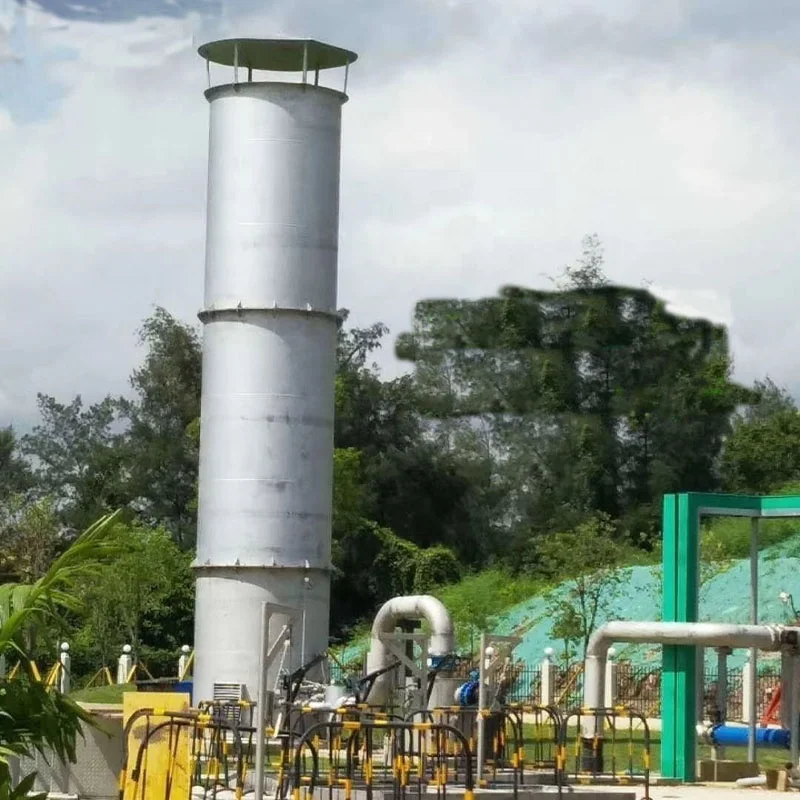

The biogas torch is a cylindrical tower structure. The top of the tower body is equipped with a wind-proof diversion cap. It is composed of a tower body, a burner, a valve, a flame arrestor and a control system. It has the characteristics of simple structure, convenient maintenance, and good combustion conditions. It can ignite the combustion head of the biogas torch under various bad weather conditions, such as rain and snow.

The main shell of the biogas torch is made of 304 stainless steel, the middle is an insulation material layer, and the inner tank is made of high-temperature castable. It has the characteristics of high temperature resistance, corrosion resistance and oxidation resistance. The surface temperature of the torch does not exceed 60°C, which fully guarantees the service life of the torch.

Biogas torch configuration: The biogas torch has the functions of flameout protection, power-off safety protection and tempering safety protection, convenient operation and safe operation. The built-in ignition system adopts automatic electronic ignition and is equipped with a permanent light. The permanent light is only turned off when the pressure is extremely low, and it stays on at other times to ensure the ignition success rate.

The biogas torch is equipped with a flame monitoring system. When no flame signal is detected, the system will automatically cut off the biogas supply to ensure safety. The biogas torch has internal combustion type and external combustion type, which can be selected according to the actual situation.

There have internal combustion type and external type torch, can be customized according to the actual situation.

Customer Feedback

Product Paramenters

100m³/h Biogas external torch

1. Propane igniter
2. Flare burner
3. Power distribution cabinet
4. Igniter control valve
5. Manual shut-off valve
6. Electric shut-off valve for main line
7. Pressure controller
8. Manual stop valve for main line
9. Flame arrestor
10. Air inlet

Packing & Delivery

Packing:
1. Carton box
2. Wooden box

3.Delivery: by sea .

Recommend Products

FAQ

Pay attention
Installation and electrical connection require professional personnel.
There must be a water-sealed tank between the torch and the gas storage tank for safety barriers.
It is forbidden to open the PLC control box.
It is forbidden to open the pressure controller. Due to the complicated setting of the pressure controller, we have already set it up when the equipment leaves the factory. Under normal circumstances, it is forbidden to open the see-through waterproof box and adjust the pressure controller.
Drainage: The flare system should drain regularly. Please turn off the torch system when draining water.
Cleaning of carbon deposits: In the case of high calorific value of biogas, when the torch system has been working continuously for more than 100 hours, the carbon deposits on the ignition needle should be cleaned up.

Maintenance
Clean up carbon deposits regularly
Drain regularly
Please keep the appearance of the product clean and beautiful

Executive standard
TSG ZB001-2008 fuel (gas) burner safety technical rules
GB/T 19839-2005 General technical conditions for industrial oil and gas burners.
GB 10178-2006 Field Performance Test of Industrial Ventilator
GB/T 12665-2008 Damp heat test requirements for motors used under general environmental conditions
GB/T2423.3-2006 Environmental testing of electrical and electronic products
GB/T2423.4-1993 Basic environmental test procedures for electrical and electronic products
JG/T 259-2009 Jet Induction Unit
GB17625.1-2003 Limits for harmonic currents emitted by low-voltage electrical and electronic equipment
GB/T4205-2003 Man-Machine Interface (MMI)-Operation Rules
GB/T2000.4-2003 Standardization Work Guide Part 4: Safety-related content in the standard
GB/T17625.1-2003 Electromagnetic Compatibility Limits Harmonic Current Emission Limits
GB/T2424.13-2002 Environmental testing of electrical and electronic products
