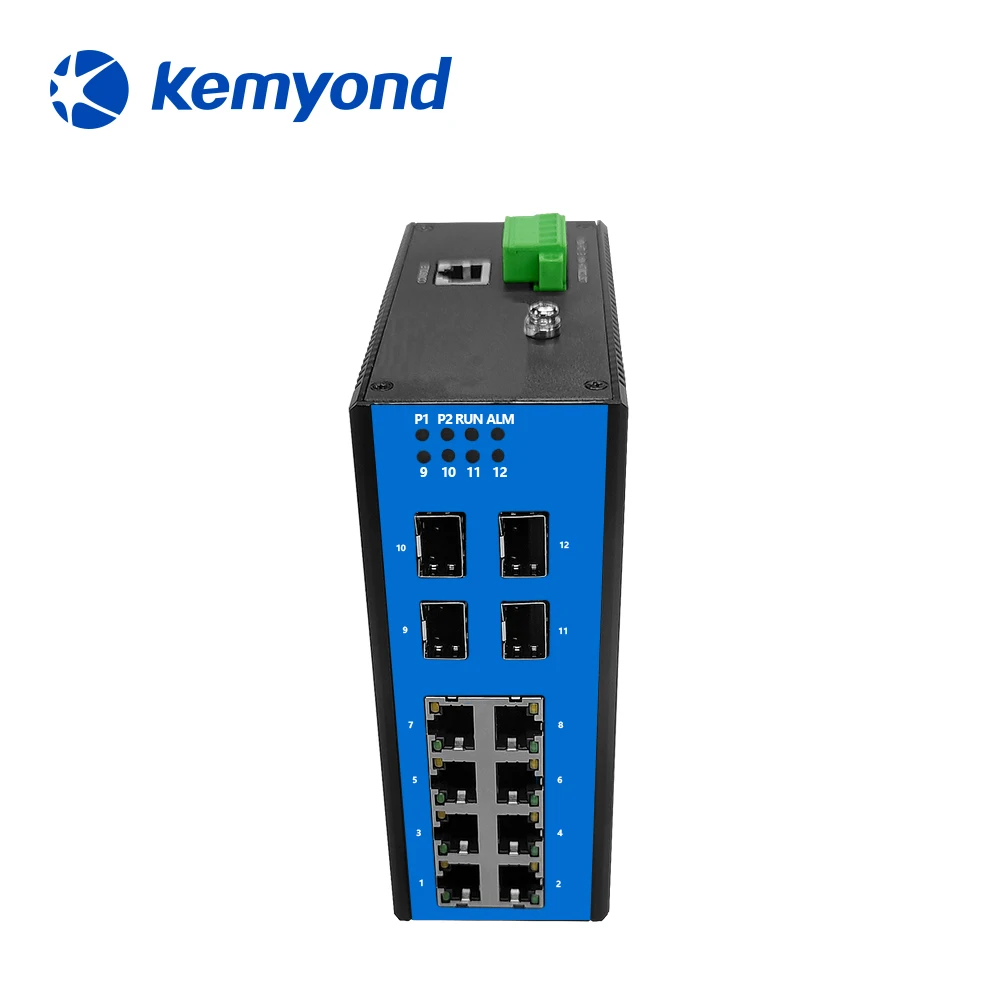

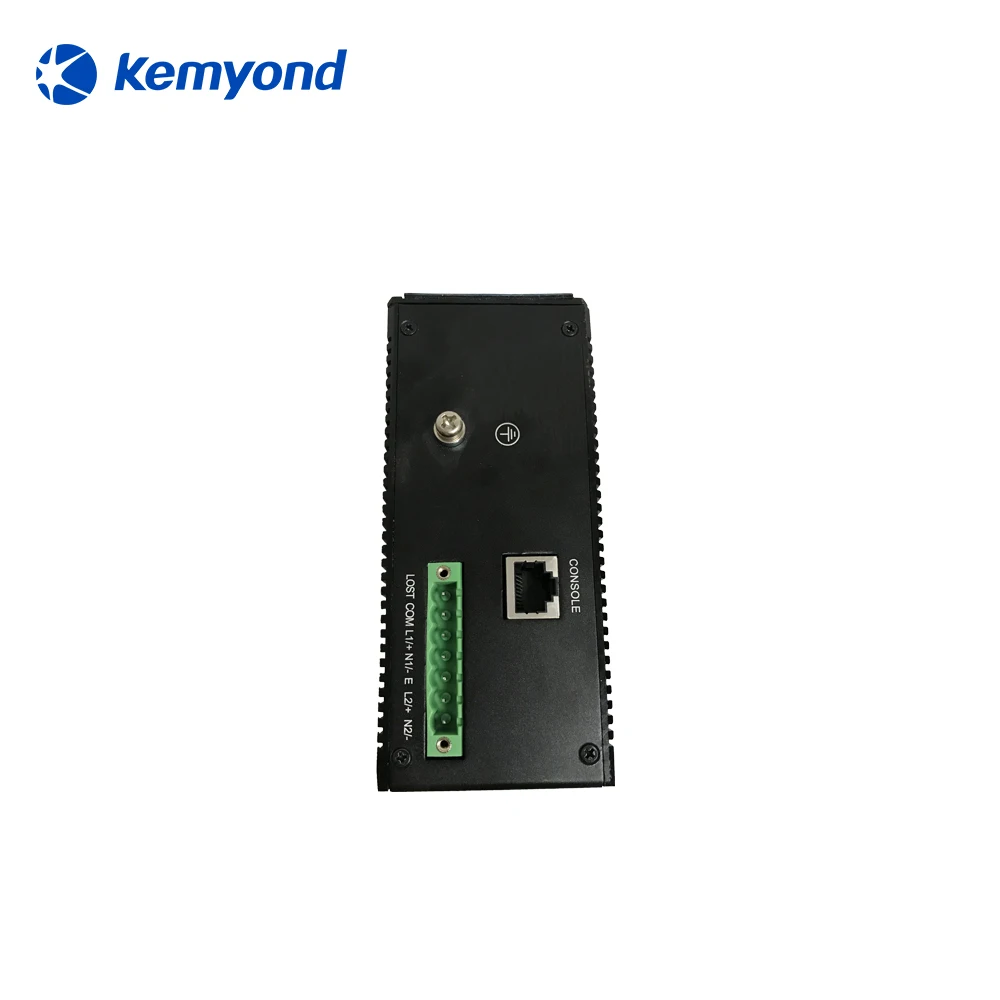

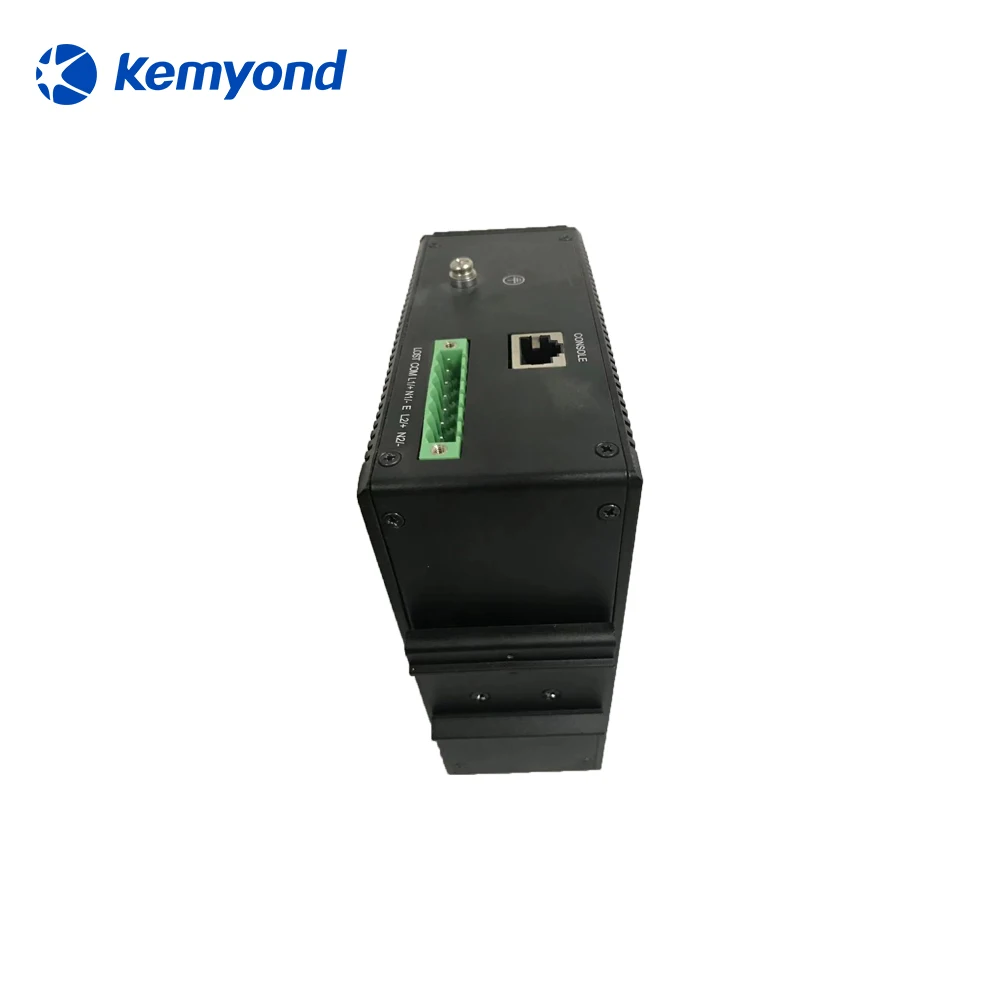

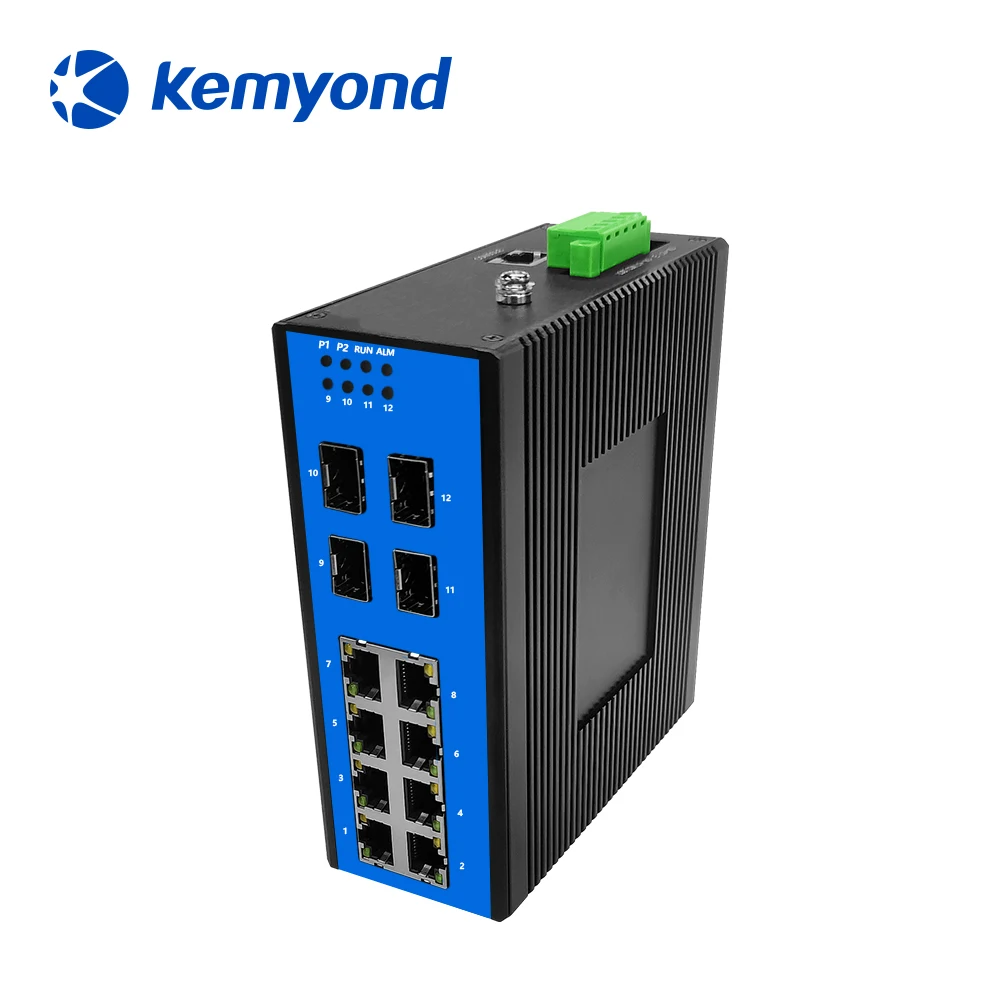

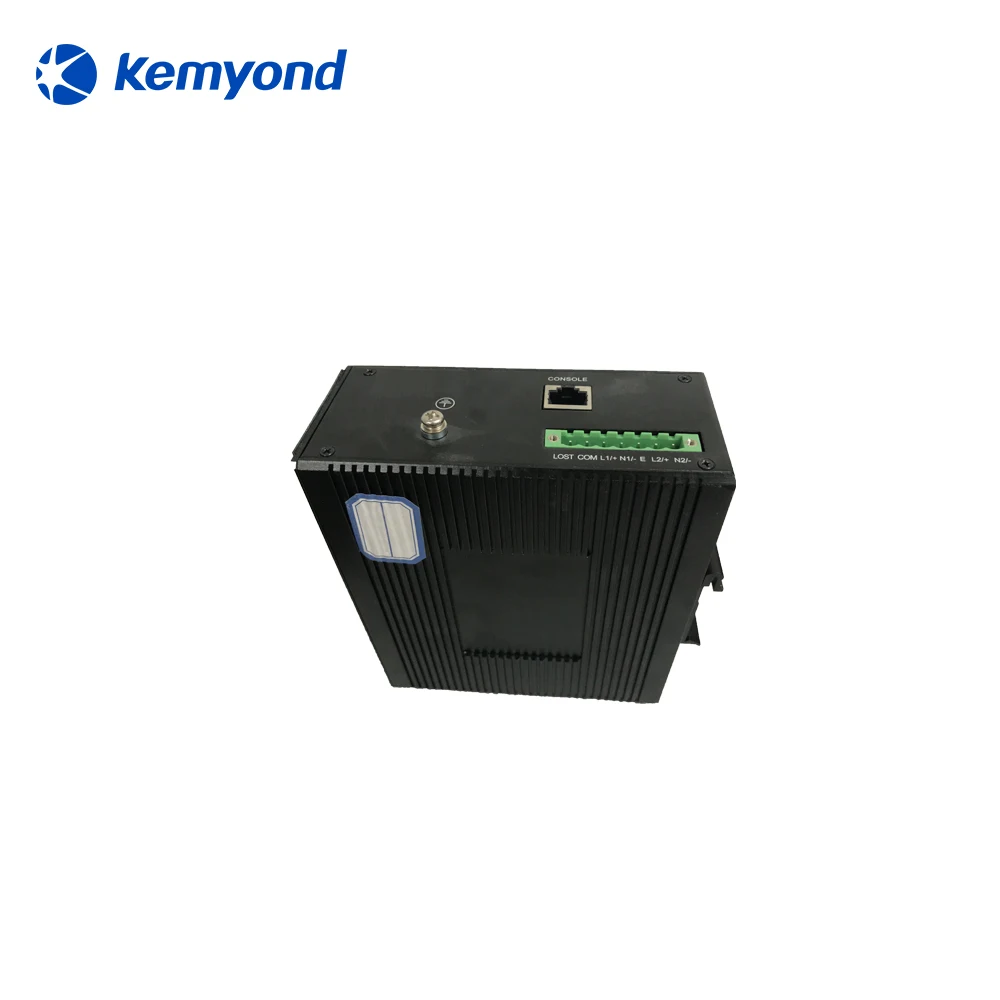

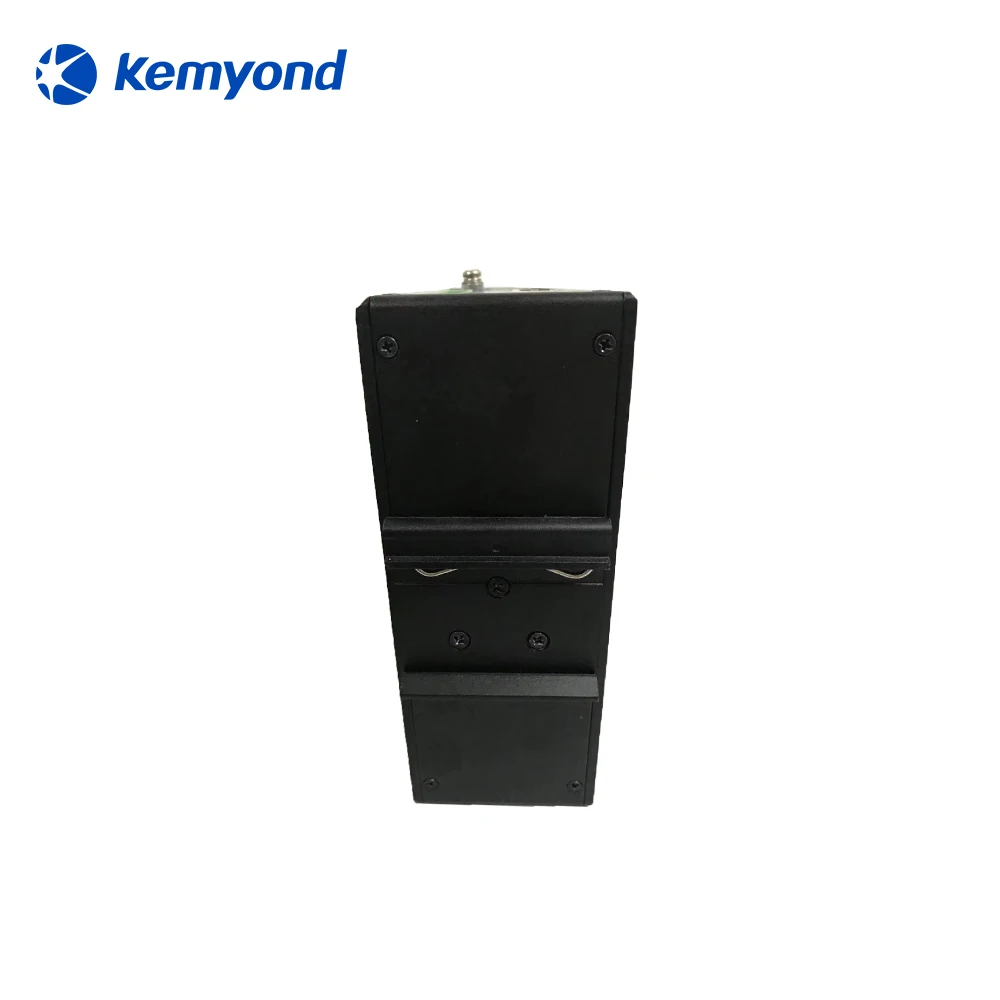

Горячая Распродажа управляемая din-рейка 4 Гб SFP порта 8 портов Ethernet волоконно-оптической сети выключатель S2100D-G4T8 промышленный
- Категория: Network Switches >>>
- Поставщик: Shanghai,Kuanyu,Industrial,Network,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 131.74 $* | 138.93 $* |
| Aug-19-2025 | 130.59 $* | 137.67 $* |
| Jul-19-2025 | 109.50 $* | 114.4 $* |
| Jun-19-2025 | 128.16 $* | 134.28 $* |
| May-19-2025 | 111.97 $* | 117.58 $* |
| Apr-19-2025 | 125.26 $* | 131.14 $* |
| Mar-19-2025 | 124.32 $* | 130.26 $* |
| Feb-19-2025 | 123.10 $* | 129.77 $* |
| Jan-19-2025 | 122.63 $* | 128.12 $* |
Характеристики
Product Description
S2100D series switch is a high-performance optical fiber ring network machine which specially for harsh industrial site
designs.Used high-quality switching chips and excellent industrial design,maintain line speed forwarding when all ports are fully loaded.all-metal body,IP40 protection level.The series products provide smart Ethernet port combination. Widely apply to electric power,new energy,transportation and all kinds of industrial automation system network communication.
designs.Used high-quality switching chips and excellent industrial design,maintain line speed forwarding when all ports are fully loaded.all-metal body,IP40 protection level.The series products provide smart Ethernet port combination. Widely apply to electric power,new energy,transportation and all kinds of industrial automation system network communication.
Key Feature：
— support STP/RSTP/MSTP(802.1d/w/s)network redundancy
— Satisfy industrial electromagnetic compatibility hardware performance.
— Working temperature（-40℃- +85℃）
— According with grid security NMS access standards.
— Support Web、CLI command line、SNMP（v1/v2/v3）
— Passed the Ministry of Public Security inspection.
— support STP/RSTP/MSTP(802.1d/w/s)network redundancy
— Satisfy industrial electromagnetic compatibility hardware performance.
— Working temperature（-40℃- +85℃）
— According with grid security NMS access standards.
— Support Web、CLI command line、SNMP（v1/v2/v3）
— Passed the Ministry of Public Security inspection.
Order Information
model | 10G SFP | 10G RJ45 | 100M SFP | 100M RJ45 | Power Supply |
S2100D-T4 | - | - | - | 4 | Standard:AC/DC （85~300VDC,85~264VAC） Optional:±24 VDC,±48 VDC |
S2100D-T8 | - | - | - | 8 | |
S2100D-F1T4 | - | - | 1 | 4 | |
S2100D-F2T4 | - | - | 2 | 4 | |
S2100D-F2T8 | - | - | 2 | 8 | |
S2100D-F4T4 | - | - | 4 | 4 | |
S2100D-F4T8 | - | - | 4 | 8 | |
S2100D-G2-T4 | 2 | - | - | 4 | |
S2100D-G2-T8 | 2 | - | - | 8 | |
S2100D-G4-T8 | 4 | - | - | 8 | |
S2100D-G2-GT2-T4 | 2 | 2 | - | 4 | |
S2100D-G2-GT2-T8 | 2 | 2 | - | 8 |
Specification
Interface Configuration | ||
GB port | 1000Base-X,SFP port | |
100M SFP | 100Base-FX,SM/MM.SC/ST/FC optional | |
Warning Port | Power-loss warning relay node output,Capacity5A(NO),3A(NC)/250VAC, 0.5A/110V DC | |
Switching Characteristics | ||
Switching mode | Store and forward | |
Transmission rate | 1Mpps~7.2Mpps | |
Switching delay | ＜10μs | |
MAC add quantity | 8K | |
VLAN quantity | 4K | |
Mechanical Characteristic | ||
Chassis Enclosure | High strength steeled chassis surface heat dissipation,fanless design. | |
Protection Level | IP40 | |
Size（W×D×H） | 55.5mm×127.5mm×142mm | |
Weight | <2Kg | |
Installation | Standard Din-Rail Installation | |
Company Introduction
Established in 2010, Kemyond is professional for network communication,security,5G and industrial infrastructure information solution. We concentrate on R&D in industrial internet field. Our company regards“Broad Interconnection,Domain Enjoy The Future”as our tenet. “Providing the technology with safe and good experience” is our persistent pursuit.
We have more than 40% R&D technology workers with complete technology creation and fast-iterating ability , so far already obtained almost 100 patents .Now our main products include industrial switch,BDS/GPS time server,5G router/CPE,network security monitoring device, industrial general computing platform.network management/security monitoring planet,serial port service/OFT and so on.All of Kemyond products are certified RoHS,FCC and CE standards,and widely apply to electricity,transportation, petrochemical industry,metallurgy and new energy fields.
We have more than 40% R&D technology workers with complete technology creation and fast-iterating ability , so far already obtained almost 100 patents .Now our main products include industrial switch,BDS/GPS time server,5G router/CPE,network security monitoring device, industrial general computing platform.network management/security monitoring planet,serial port service/OFT and so on.All of Kemyond products are certified RoHS,FCC and CE standards,and widely apply to electricity,transportation, petrochemical industry,metallurgy and new energy fields.
If you have any questions, you are welcome to consult.
1.Do you provide OEM/ODM?
-yes,we can produce and design based on customers’ requirements.we accept OEM/ODM.
2. Can I buy samples placing orders?
-Yes.we sell 1 pc for our customer sample test.
3.What is your lead time ?
-Usually 10-15 working days.
4.What is your payment term?
-T/T,Western Union,Money Gram,and Paypal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
