Штепсельная Вилка PRCD 16 А 220 в 230 В портативные устройства остаточного тока защита шнура автоматический выключатель для
- Категория: Circuit Breakers >>>
- Поставщик: Suzhou,Ele,Mfg,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.83 $* | 5.54 $* |
| Aug-16-2025 | 5.48 $* | 5.9 $* |
| Jul-16-2025 | 4.64 $* | 4.45 $* |
| Jun-16-2025 | 5.66 $* | 5.21 $* |
| May-16-2025 | 4.91 $* | 4.18 $* |
| Apr-16-2025 | 5.44 $* | 5.74 $* |
| Mar-16-2025 | 5.44 $* | 5.38 $* |
| Feb-16-2025 | 4.92 $* | 4.28 $* |
| Jan-16-2025 | 4.49 $* | 4.65 $* |
Характеристики
Product Description

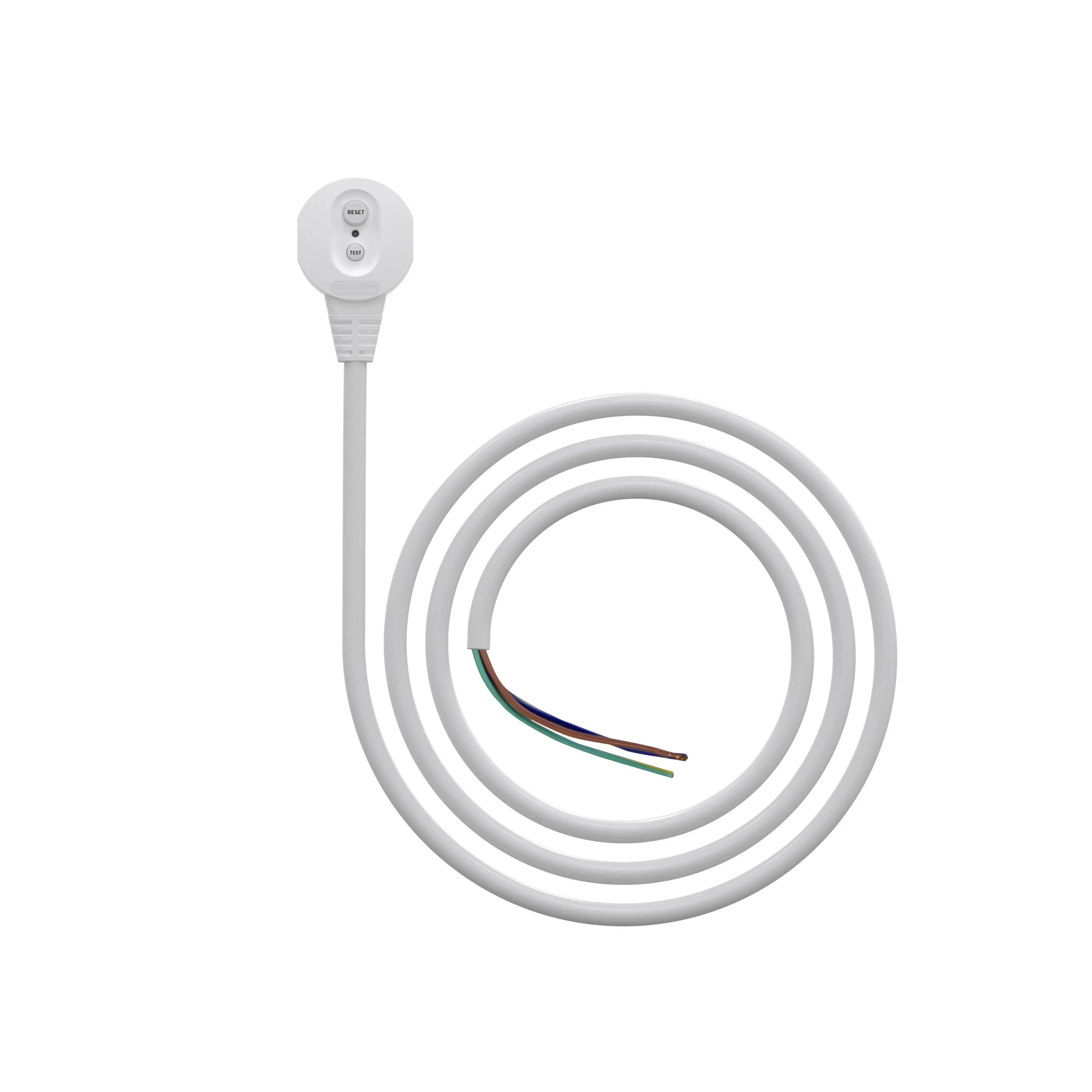

Product Name | Portable Residual Circuit Devices (PRCD) 16A EU plug 220V~250V rated residual current 30mA |
Material | PC material |
Function | Residual Current Protection: Trips if the residual current in the loop exceeds the value initialized in the PRCD. |
Package | Each devices will be packed with polybag |
Item | Part Number | Rated Voltage | Rated Residual Current | Power cord | Maximum load power |
1 | P203 | 220V-250V | 10mA | 3*0.75mm2 | 1380W |
2 | P203 | 220V-250V | 15mA | ||
3 | P203 | 220V-250V | 30mA | ||
4 | P203 | 220V-250V | 10mA | 3*1.0mm2 | 2300W |
5 | P203 | 220V-250V | 15mA | ||
6 | P203 | 220V-250V | 30mA | ||
7 | P203 | 220V-250V | 10mA | 3*1.5mm2 | 3680W |
8 | P203 | 220V-250V | 15mA | ||
9 | P203 | 220V-250V | 30mA |
Product performance description
Residual Current Protection: Trips if the residual current in the loop exceeds the value initialized in the PRCD.
Test button is for you to test the function after installation.
Reset button is for you to restart the circuit when the circuit (equipment) was tripped by PRCD.
The PRCD are with Grounding clip.
Details Images

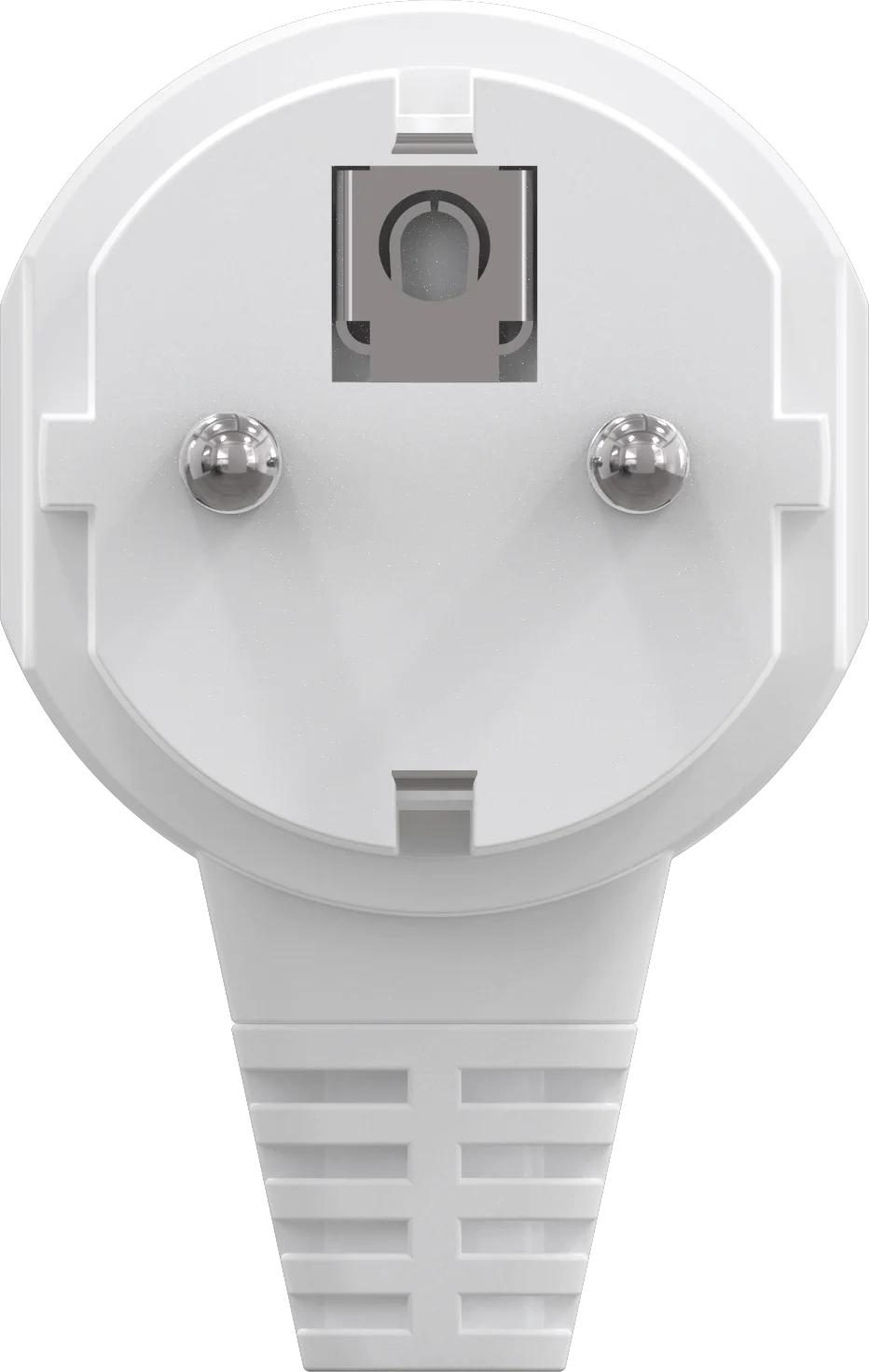

EU plug

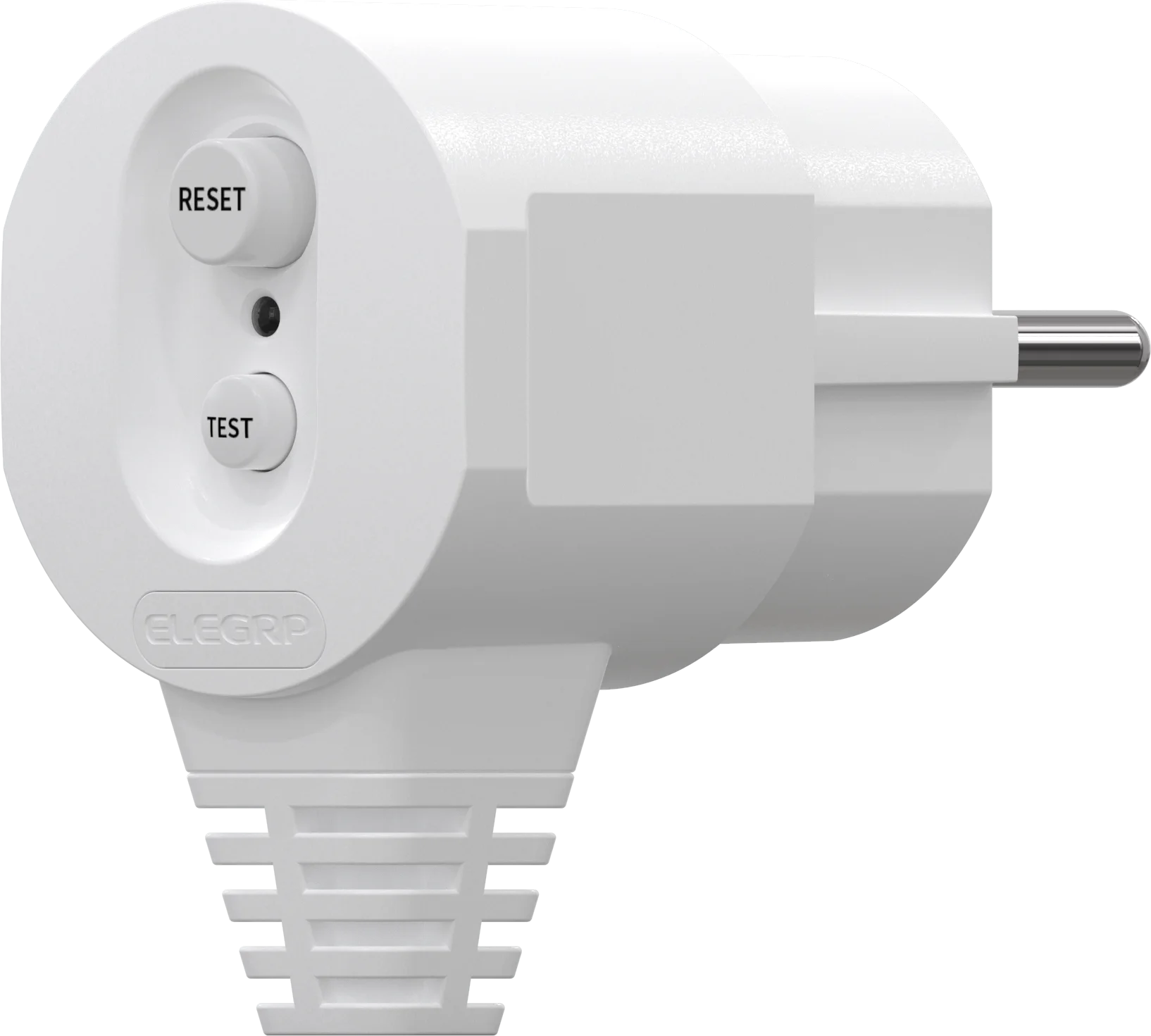

Reset Button
Test Button
With grounding clif
Product Usage

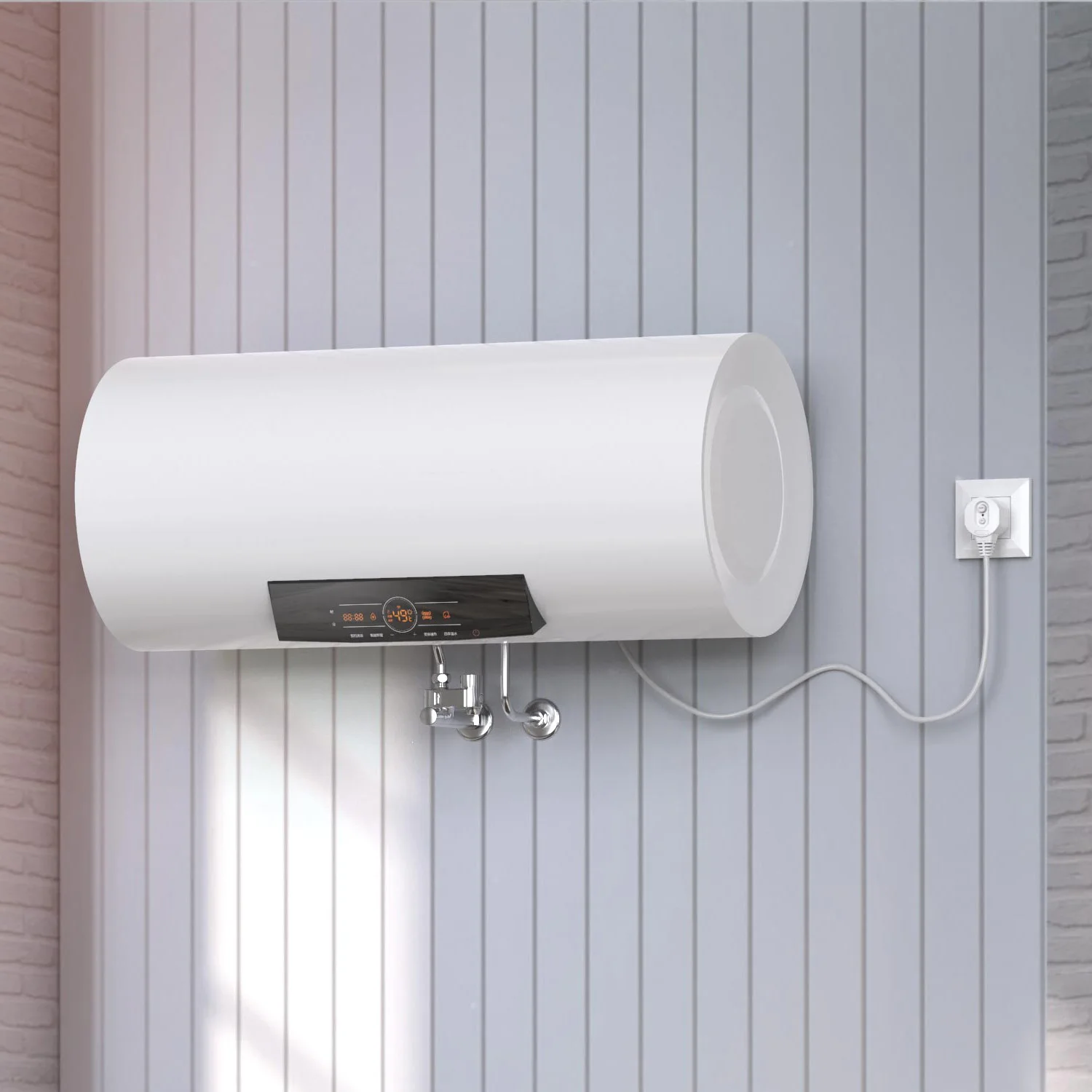

PRCD is suitable for water heaters.
Related Products
Packing&Shipping
Each device is packed by polybag, and then 50 pcs in a master carton.
Company Introduction
ELE Group, experienced in OEM, ODM, MRO, Retailer business; ELE make life protective products with higher standard than UL requirements.
Provide competitive price with superior products for customers ELE has patents both in USA and China.
Engineering and manufacturing of electrical safety equipment since 2000, ELEGRP is leading innovation and technology upgrade in leakage circuit interrupter devices, water pumps, wire & cable and smart home appliances. Headquarter locates in Suzhou with three manufacturing bases in Suzhou, Wenzhou and Shanghai, we focus on investing in R&D and industrial automation to keep the leading capacity. ELEGRP believes in providing friendly solutions by adopting a consumer-centric and efficient problem-solving approach.
Going above and beyond in the future continuously in electrical safety use and smart home appliance, ELEGRP will constantly make explorations and innovations to meet the ever-changing demand of our consumers.
Going above and beyond in the future continuously in electrical safety use and smart home appliance, ELEGRP will constantly make explorations and innovations to meet the ever-changing demand of our consumers.
Our Services & Strength
We can provide you with OEM, ODM, MRO service, and also we sale products under our own brand name.
One-stop service is our main golf for our customer.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: We accept TT.
Q3. Can you produce according to the samples?
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
