Частотный автоматический резак для отслеживания ультразвуковая режущая машина резки пластика/резины/голубей


Поделиться:


Цена:800,00 $ - 850,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 952.2 $* 1000.71 $*
Aug-15-2025 944.68 $* 991.69 $*
Jul-15-2025 792.39 $* 832.44 $*
Jun-15-2025 928.67 $* 974.22 $*
May-15-2025 808.5 $* 848.93 $*
Apr-15-2025 912.16 $* 958.57 $*
Mar-15-2025 904.94 $* 949.56 $*
Feb-15-2025 896.3 $* 941.40 $*
Jan-15-2025 888.56 $* 932.46 $*

Характеристики





Ultrasonic cutter-1.jpg

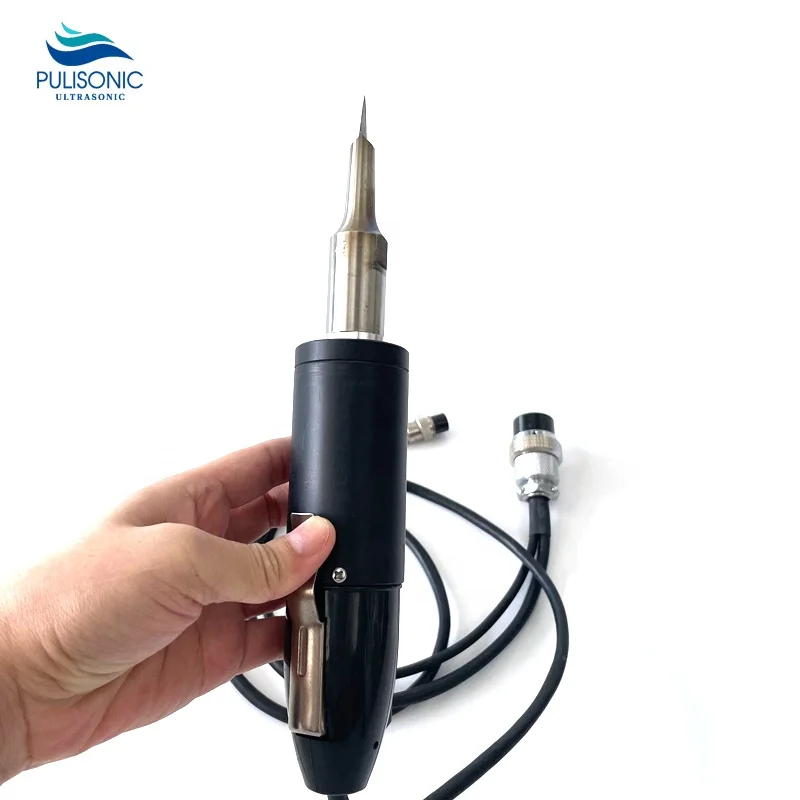

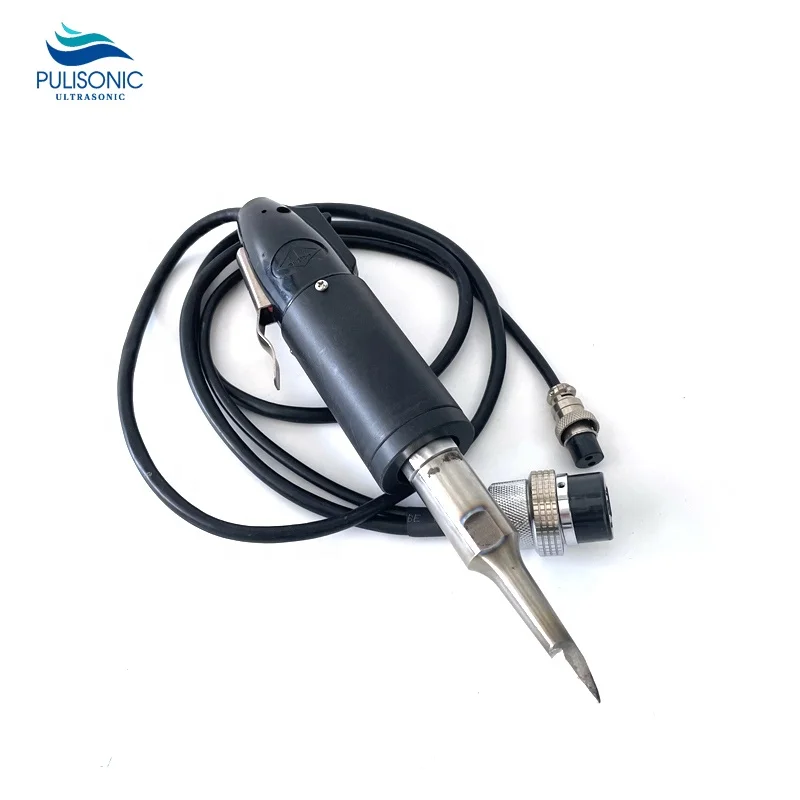

The basic structure of the ultrasonic cutting machine. Ultrasonic transducer, ultrasonic horn, ultrasonic cutting knife, ultrasonic generator.





Ultrasonic generator: the mains electricity is converted into high frequency and high voltage alternating current, which is output to the ultrasonic transducer. Ultrasonic transducer is equivalent to energy conversion device, it can convert the input electric energy into mechanical energy, namely ultrasonic wave. The ultrasonic transducer stretches back and forth in the longitudinal direction, and the frequency of the stretch movement is equal to the frequency of the high-frequency alternating current supplied by the driving power source.
Ultrasonic horn: The ultrasonic horn amplifies the output amplitude of the ultrasonic transducer.
Ultrasonic cutter: further amplify the amplitude and focus the ultrasound. Ultrasonic waves are output, and the cutting knife is used to concentrate the ultrasonic energy into the cutting part of the material to be cut. Under the action of huge ultrasonic energy, this part instantly softens and melts, and its strength is greatly reduced. Only a small amount of force is required to achieve the purpose of cutting materials.





Features:
High stability: When the ultrasonic generator is working, it generates 40KHz electromagnetic vibration, which is transformed into mechanical vibration and transmitted to the cutting knife and the material to be cut. The slitting is performed mechanically, so there is no need for sharp cutting edges, and the blade wear is small, and at the same time The cutter head can be replaced by yourself.
No pollution: When the ultrasonic knife is cutting, the temperature of the knife head is lower than 50 ℃, so smoke and odor will not be generated, which eliminates the danger of injury and fire during cutting.
Neat cutting: Since the ultrasonic is cut by high-frequency vibration, the material will not stick to the surface of the blade, and only a small amount of pressure is required when cutting. It will not deform or wear for fragile and soft materials. The fabric will be automatically sealed at the same time. Will cause edge collapse.

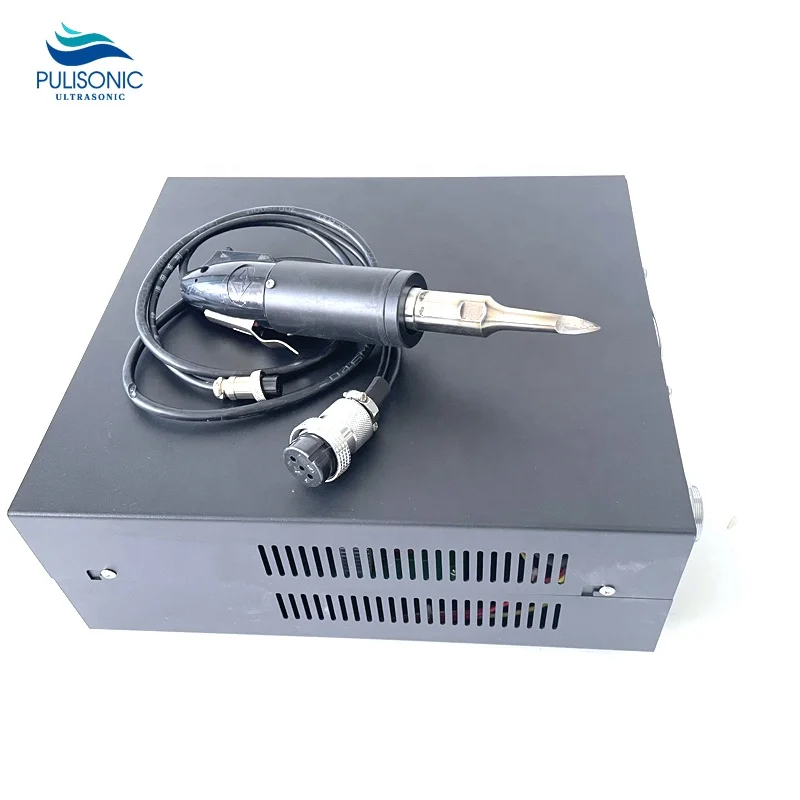

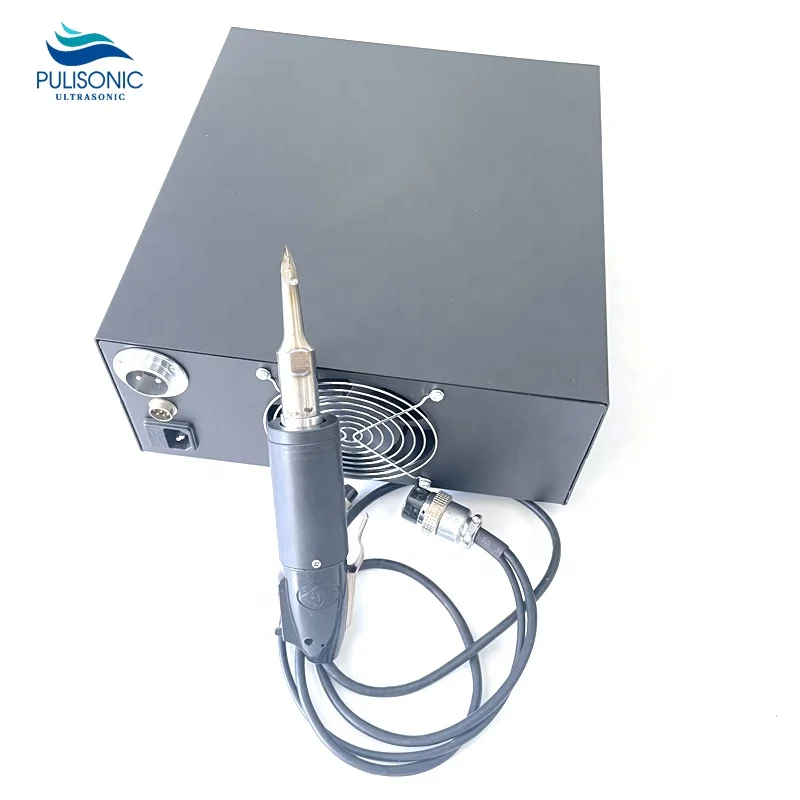

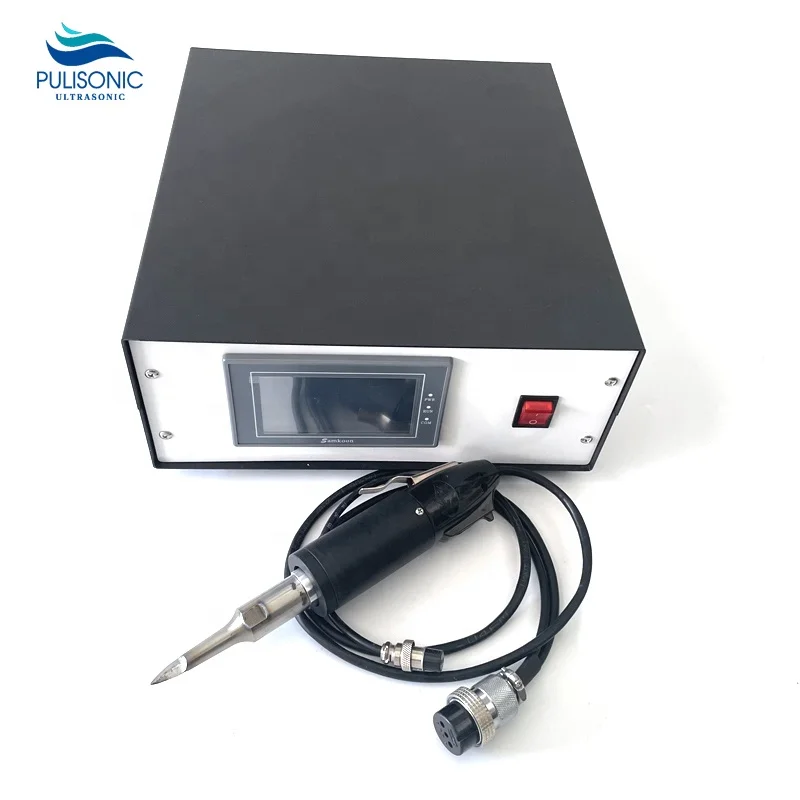

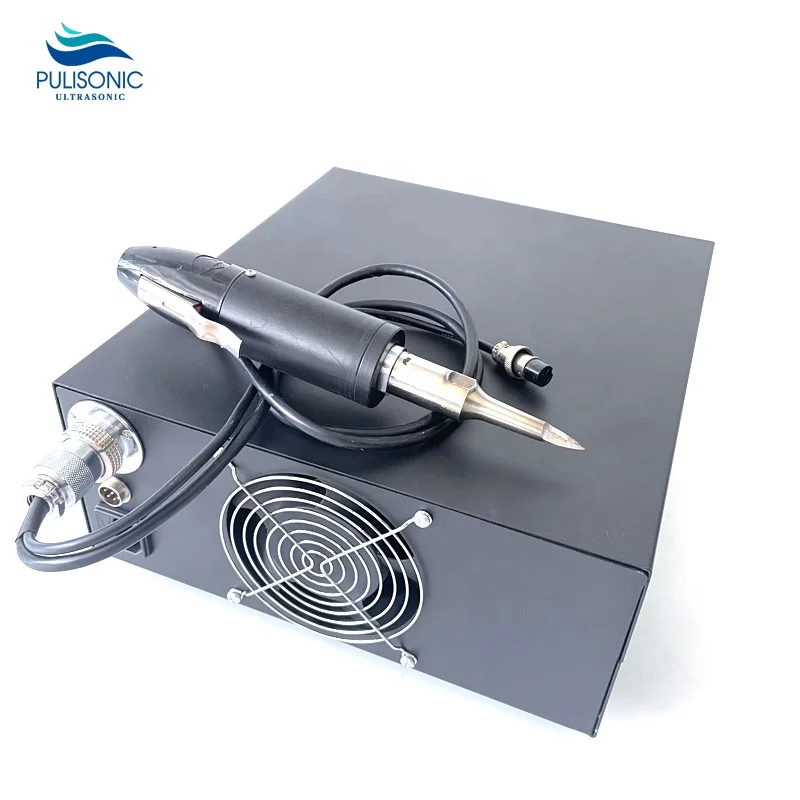

The operation is simple: the cutting knife is connected to the ultrasonic generator, the generator is connected to the 220V mains, and the switch can be turned on to cut. It supports hand-held cutting and is equipped with an air-cooled interface.
Wide range of applications: various textile materials and plastic sheets can be ultrasonically cut, such as natural fibers, synthetic fibers, non-woven fabrics and knitted fabrics can be ultrasonically cut.































































ModelPowerFrequency
PLS-HJDY300300W28KHZ,30KHZ,35KHZ,40KHZ
PLS-HJDY500500W28KHZ,30KHZ,35KHZ,40KHZ
PLS-HJDY800800W28KHZ,30KHZ,35KHZ,40KHZ
PLS-HJDY10001000W15KHZ,20KHZ,28KHZ
PLS-HJDY12001200W15KHZ,20KHZ,28KHZ
PLS-HJDY15001500W15KHZ,20KHZ
PLS-HJDY20002000W15KHZ,20KHZ
PLS-HJDY26002600W15KHZ,20KHZ
PLS-HJDY32003200W15KHZ
PLS-HJDY42004200W15KHZ

Ultrasonic cutter-2.jpg



FAQ


 1,
Q: How to ship your products to us?
A: You are always advised the customers to choose FedEx DHL UPS TNT if your order is not so large; if your order is large, by air or by sea maybe can save a lot of shipping cost. And the shipping cost depending on the total weight of your order.
2,
Q: How about the quality?
A: In order to get a reliable quality products, please tell and list all your product quality requirements and standard your
market requested before we produce the samples for you. Usually the sample quality is agreed by both of us. So-me items have CE, FCC and RoHs Approval, but not all. Tell us if you need a special approval in your market. We prefer to supply a reliable quality products to our customers and do not compete by a lower price immolating the quality.
3.
Q: How to place an order?
A: Please send us your purchase order by email or fax. Or you can ask us to send you a Proforma invoice for your order.
We need to know the following information for your order:
A. Shipping information-company name, street address, phone number, fax number, destination airport or sea port, transportation method (by courier, by air or by ocean container)
B, Product information-model numbers, quantity, unit price
C. Delivery time required
D. Freight payment (by collect or prepay)
E. Forwarder’s contact details if there’s any in China or Hong Kong.
4.
Q: What’s your usual payment term for orders?
A: We accept terms of Bank, T/T, West union payment or Paypal.
5.
Q: How about the delivery time?
A: Usually 7-14days for a trial order or small order.
25-30days for a large order or container order. We will specify a delivery time before you order. If we meet difficulties during production and could not ship to them in time, we will inform you in advance and tell you the causes.
6.
Q: What’s the warranty of your products and how about the after-sale service?
A: From 6 months to 2 years, depending on the products.We will tell you a specific warranty when you order from us.The warranty period is valid from shipment date or B/L date. Tell us by e-mail or telephone or fax in time any questions or
difficulties for help if you sale.
7.
Q: Do you accept OEM and print our logo or company name on these package box we order from you?
A: Yes, OEM and ODM is welcome. But sometimes we will set a MOQ for OEM order.
8,
Q: May I only buy a few pieces of your products or several samples to test?
A: Yes, you are also welcome! Usually we do not limit a MOQ for testing, just decide the QTY by yourself and your sales.
9,
Q: How much the courier freight will be for the samples?
A: Courier freight depends on the quantity, weight and carton size and your area., please call your local DHL, Fedex, UPS or TNT and ask a price.If you buy some samples, usually we will offer you a CIF price.
10.
Q: How can I get your price list and Catalogues?
A: Please E-mail us or fax us your contact information (your name, email address, company name and website).
