Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
Небольшой Бесщеточный редукторный двигатель Steadywin GIM4305 300 об/мин планетарного редуктора 1 Нм используется для мини-квадруфицированного
- Категория: Motors >>>
- Поставщик: Outrotor,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.31 $* | 0.16 $* |
| Aug-18-2025 | 0.65 $* | 0.39 $* |
| Jul-18-2025 | 0.79 $* | 0.42 $* |
| Jun-18-2025 | 0.14 $* | 0.51 $* |
| May-18-2025 | 0.87 $* | 0.73 $* |
| Apr-18-2025 | 0.0 $* | 0.19 $* |
| Mar-18-2025 | 0.35 $* | 0.50 $* |
| Feb-18-2025 | 0.90 $* | 0.23 $* |
| Jan-18-2025 | 0.1 $* | 0.80 $* |
Характеристики
Product Description
In view of the two problems generally reported by the majority of robot dog motor users:
1. The robot dog motor of 10kgs level is too expensive;
2. There is no small size of reduction integrated motor in the market.
Our company has developed two types of reduction integrated motors, GIM4305 and GIM3505, which are suitable for desktop robots, robotic dogs, and robotic arms. We hope to work together with fans and users to increase the volume and keep the price down about this development of new product.
What's more, the GIM4305 motor issued this time is a fully detachable structure. Customers can replace the internal gears or other parts of the motor at will according to their own preferences. Maximize the scope of application and enhance interactivity.
The price of this product does not include drivers and encoders. If developers have your own encoders or driver boards, you can contact us or add a magnetic steel adapter by yourselves to make the encoder magnetic steel compatible with the driver board or encoder board.
Our company supports customization, and we hope that the majority of consumers will like this product.
1. The robot dog motor of 10kgs level is too expensive;
2. There is no small size of reduction integrated motor in the market.
Our company has developed two types of reduction integrated motors, GIM4305 and GIM3505, which are suitable for desktop robots, robotic dogs, and robotic arms. We hope to work together with fans and users to increase the volume and keep the price down about this development of new product.
What's more, the GIM4305 motor issued this time is a fully detachable structure. Customers can replace the internal gears or other parts of the motor at will according to their own preferences. Maximize the scope of application and enhance interactivity.
The price of this product does not include drivers and encoders. If developers have your own encoders or driver boards, you can contact us or add a magnetic steel adapter by yourselves to make the encoder magnetic steel compatible with the driver board or encoder board.
Our company supports customization, and we hope that the majority of consumers will like this product.
1. We have different flanges for users to choose.

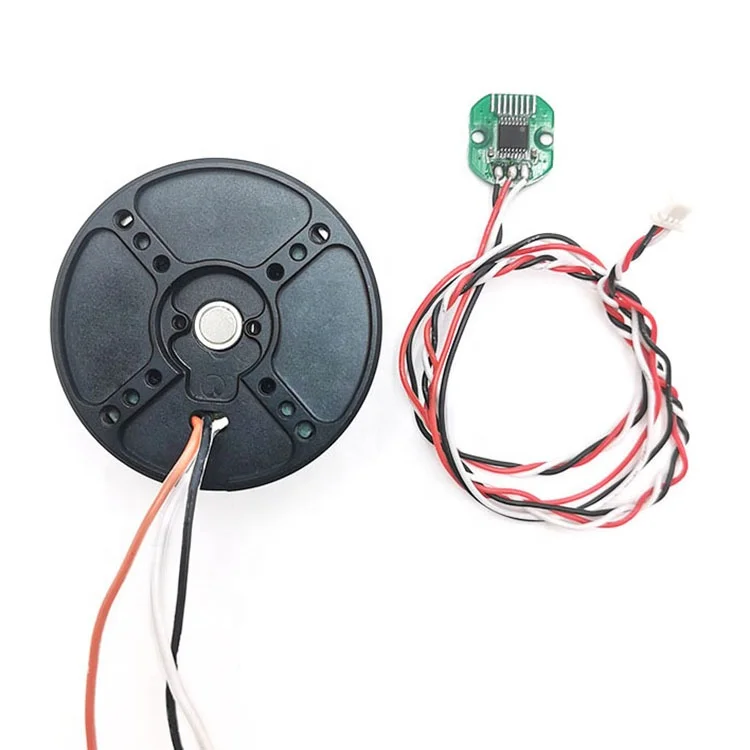

2. Kinds of magnetic encoders are optional. Support customize magnetic steel adapter of encoder or driver.
3. Fully disassemble is supported. If there is damage to the parts, or users want to modify the motor, it can be disassembled and reassembled by yourselves.
4. Customization is supported and large quantity is with preferential treat. We sincerely hope to cooperate with all developers.
For large quantity, please contact us to get a favorable price.
And any question feel free to contact us.
Specification
Item Name | GIM4305 | |
Nominal Voltage | V | 24 |
Power | W | 30 |
Nominal Torque | N.M | 1 |
Nominal Speed | rpm | 300 |
Max Speed | rpm | 400 |
Stall Torque | N.M | 3 |
Motor Type | Brushless Servo Motor | |
Voltage Range | V | 12~24 |
Gear Rate | 10:1 | |
Encoder | AS5047/Optional | |
Resolution | 14-Bit Resolution Absolute Angle Encoder | |
Phase to Phase Resistance | Ω | 1.4 |
Phase to Phase Inductance | mH | 0.78 |
Number of pole | 14x2 | |
Rotation Angle | ° | >360 |
Noise | <65 | |
Diameter | MM | 53 |
Height | MM | 26 |
Weight | g | 140 |
Working Temperature | ℃ | -20°C~80°C |
