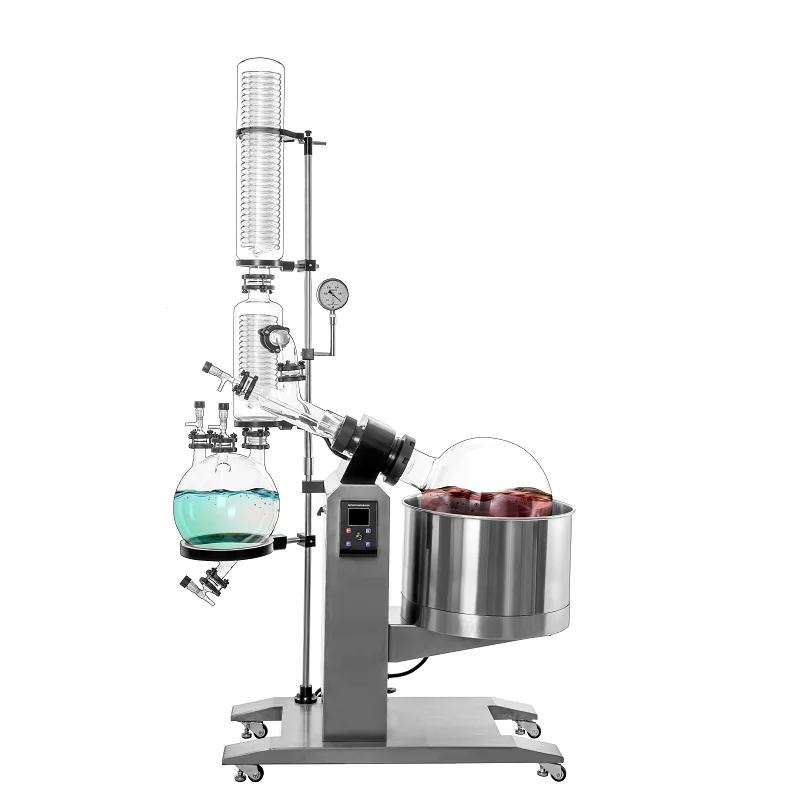

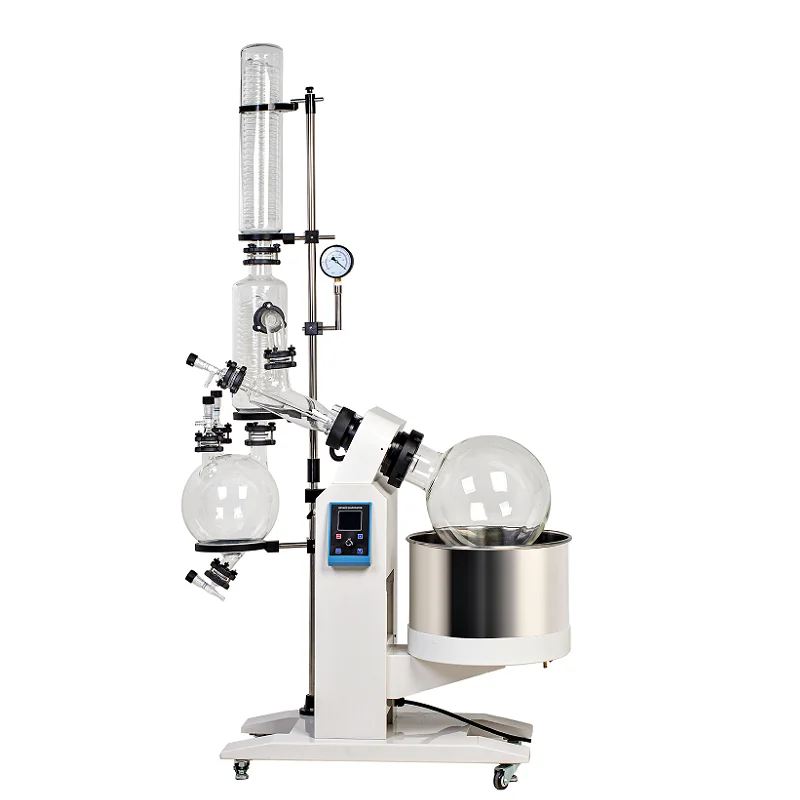

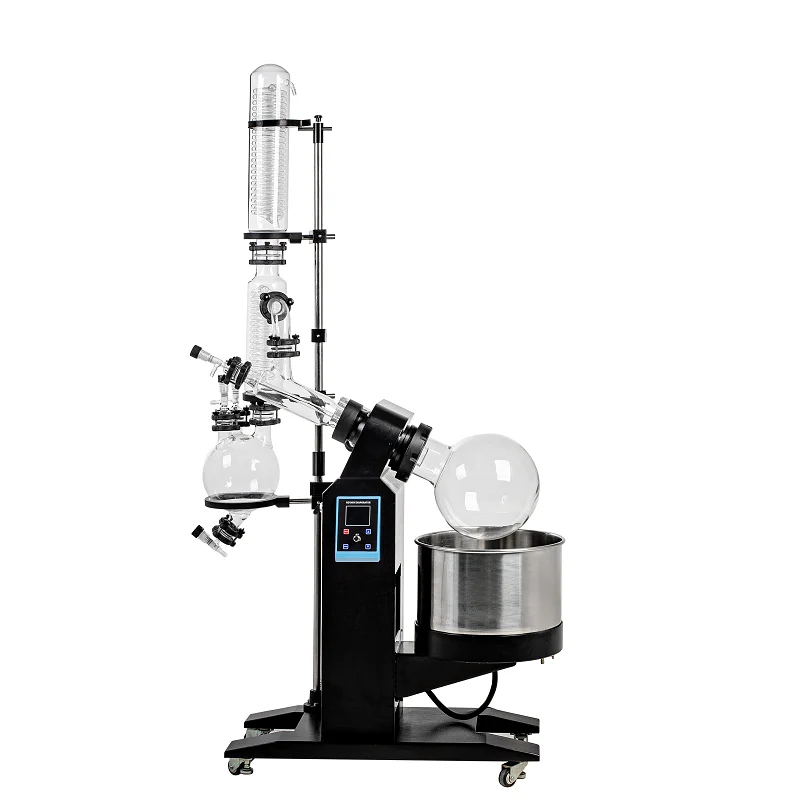

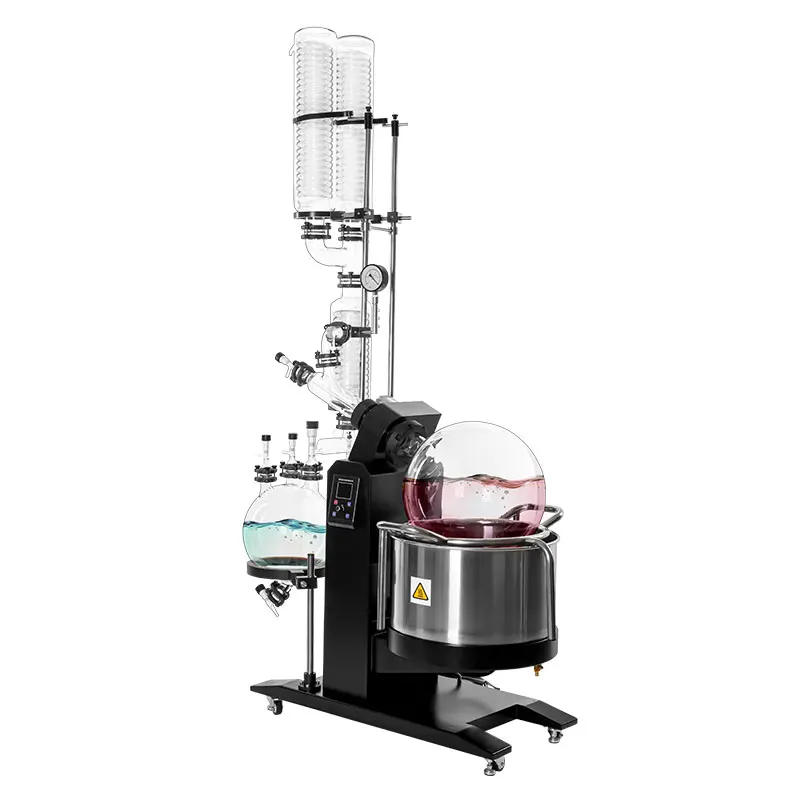

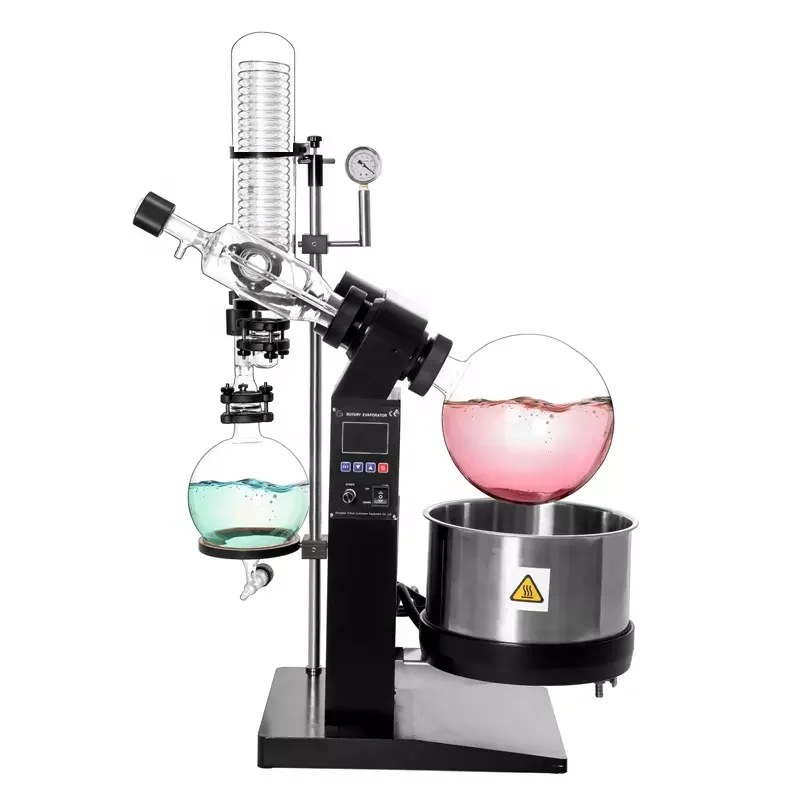

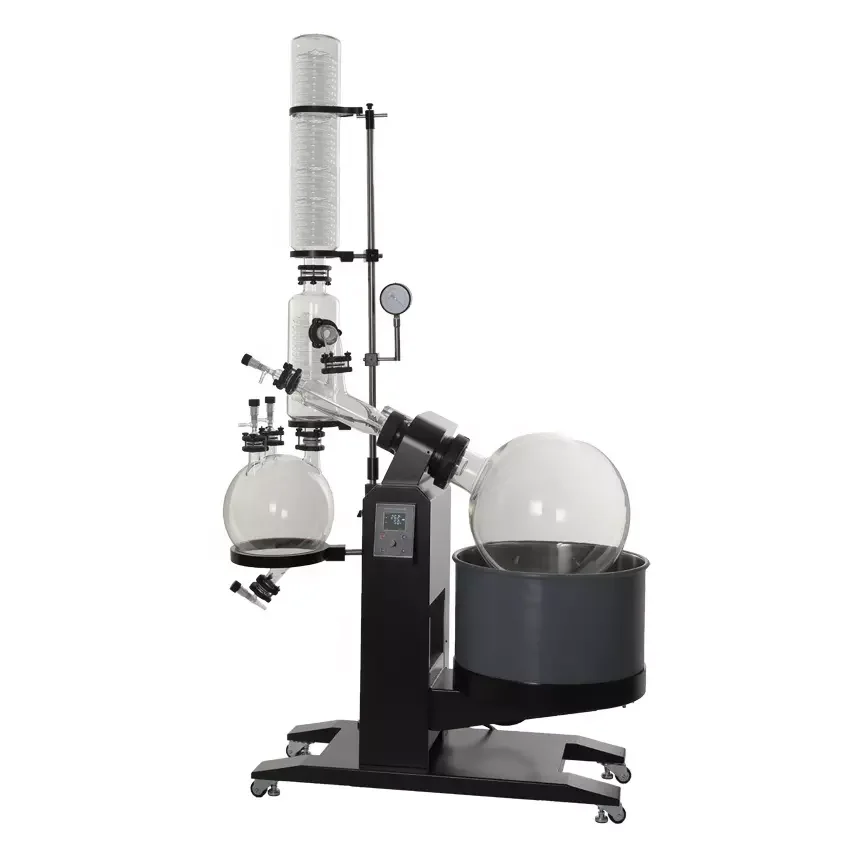

Роторный испаритель с чиллером и вакуумным насосом 5 л 10
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Shanghai,Yuhua,Instrument,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 928.57 $* | 974.30 $* |
| Aug-20-2025 | 920.4 $* | 966.72 $* |
| Jul-20-2025 | 772.55 $* | 811.87 $* |
| Jun-20-2025 | 905.71 $* | 950.61 $* |
| May-20-2025 | 788.57 $* | 827.18 $* |
| Apr-20-2025 | 889.70 $* | 933.90 $* |
| Mar-20-2025 | 881.22 $* | 925.91 $* |
| Feb-20-2025 | 874.48 $* | 918.93 $* |
| Jan-20-2025 | 866.36 $* | 909.18 $* |
Характеристики
Technical Date
Model | RE-1005 | RE-1010 | RE-1020 | RE-1050 | |||
Rotary Flask | 5L | 10L | 20L | 50L | |||
Collection FlasK | 3L | 5L | 10L | 20L | |||
Glass material | High borosilicate glass 3.3 | ||||||
Rotary Motor | 60w | 250w | |||||
Rotation Speed | 0-150rpm, digital display | 20-120rpm, digital display | 20-110rpm, digital display | ||||
Evaporation Rate | H2O≥2.0L/h, Alcohol≥5.4L/h | H2O≥3.2L/h, Alcohol≥8.6L/h | H2O≥5.0L/h, Alcohol≥114.3L/h | H2O≥9.0L/h, Alcohol≥24.5L/h | |||
Condenser | Vertical condenser | Main condenser & auxiliary condenser | |||||
Heating Bath | Stainless steel water bath | ||||||
Temp. range | Water: RT to 99℃ Oil: RT to 200℃ | ||||||
Lifting | Electric lifting | ||||||
Vacuum Degree | <133Pa (1.33mbar, 1 Torr) | ||||||
Power | 220V/240V, 50/60Hz | 220V/240V/380V, 50/60Hz | |||||
Dimensions(W*D*H) | 700*480*850mm | 990*550*1740mm | 1120*680*1900mm | 1345*770*2230mm | |||
Characteristics
Vertical Double Condenser
Vertical type double condensing tube with large condensing area and high recovery efficiency.
Receiving Flask
Two vacuum valves designing, rapid pressure relief and discharge without affecting the overall vacuum.
Bumping Tube
Preventing unexpected solution bumping into receivng flask.
Check Valve
Continuous collected without affecting the system vacuum, which improving the work efficiency.
PID Controllor
The temp. is controlled by PID, with smaller temp. overshoot, faster stable time, better temp. control accuracy. RS485 communication is optional.
Electric Lifting Bath
Electric lift 304 Stainless steel heating bath, easy to operate. Bottom with discharge valve. heating power 6kw and 9kw optional.
Quick Open Fixture
Quick opening fixture, easy installation and disassembly.
Rotary Seal
Tetrafluoron seal (contact with material directly) provides better corrosion resistance.
Vacuum Gauge
Ultimate vacuum level: <3torrs
Universal Wheels with Knob
Universal wheels, easy to move and can be fixed.
Anti-scald Cover
Cover optional. To avoid scalding during work.
Bottle Holder/Rack
Multi-function stainless steel bottle holder, easy for one person to operate.
Match Equipment
Customer Reviews
Packing & Shipping
COMPANY PROFILE
Yeahon was founded in 2008 and based in Shanghai, committed to providing lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research filed. We have 2 factories in Shanghai and Henan, covering an area of nearly 10,000 square meters, with short production cycle, high quality and low price, and guaranteed quality!
Our core products mainly include molecular distillation equipment, rotary evaporator, glass reactor, vacuum filter, drying oven, electric overhead stirrer, temperature control equipment and other supporting equipment.
Our core products mainly include molecular distillation equipment, rotary evaporator, glass reactor, vacuum filter, drying oven, electric overhead stirrer, temperature control equipment and other supporting equipment.
