Sinbosen аудио усилитель модуль DS-14K басовый модульный супермощный Плата усилителя 5000 Вт сабвуфер класса
- Категория: Amplifier >>>
- Поставщик: GUANGZHOU,XINBAOSHENG,AUDIO,EQUIPMENT,COMPANY,LIMITED
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 709.76 $* | 744.39 $* |
| Aug-16-2025 | 703.49 $* | 738.24 $* |
| Jul-16-2025 | 590.54 $* | 620.83 $* |
| Jun-16-2025 | 691.44 $* | 726.26 $* |
| May-16-2025 | 602.79 $* | 632.80 $* |
| Apr-16-2025 | 679.58 $* | 713.71 $* |
| Mar-16-2025 | 673.60 $* | 707.13 $* |
| Feb-16-2025 | 668.96 $* | 701.53 $* |
| Jan-16-2025 | 662.52 $* | 695.68 $* |
Характеристики
Product Overview
DS-7K | DS-9K | DS-14K | DS-6Q | DS-10Q | DS-20Q | FP-22000Q | |
8 ohm Stereo Power(RMS) | 1500WX2 | 1800WX2 | 2400WX2 | 700WX4 | 1350WX4 | 2200WX4 | 2500WX4 |
4 ohm Stereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1300WX4 | 2100WX4 | 4000WX4 | 4650WX4 |
8 ohm Bridged Power(RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 | 8000WX2 | 9500WX2 |
4ΩBridged Power(RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 | 9000WX2 | 23750WX2 |
Frequency Response (+o/-0.3dB,1W/8Ω) | 20HZ-34KHZ |
THD 20Hz-20kHz for 1 W | <0.1% |
Signal-to-Noise Ratio | >112 dBA |
Channel separation (Crosstalk) at 1 kHz | >70 dB |
Input Connectors (per channel) | 3-pin XLR, electronically balanced |
Output Connectors (per channel) | Binding Posts 2-pole |
Class | TD |
TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
Operating voltage, | 220 V / 110 V nominal ; 180-240 V / 90-130 V selectable |
Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
Input impedance | 20 kOhm |
Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
Dimensions (W×H×D) | 483×88×396mm |
Packing dimension | 580×180×560mm |
FEATURES AT A GLANCE
DS-14K Power Amplifier Feature
●2 Channel Class TD Switching power amplifier
●2 x 4,400 into 4 Ohms, 2 x 2,400 Watts Watts into 8 Ohms

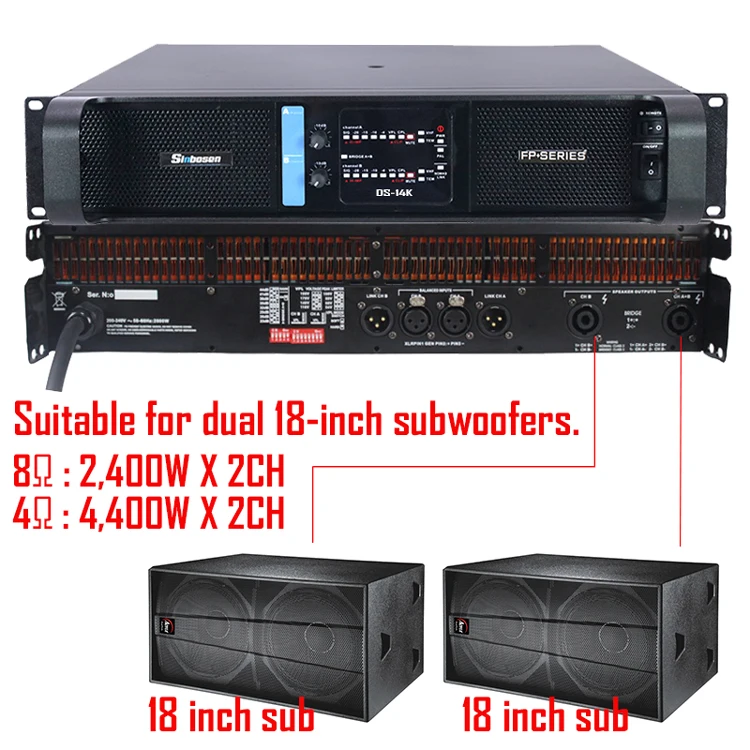

●Create SUPER BASS sound,suit for 2units 18”/21” subwoofer
●Separately controllable on Gain
●Scalable Voltage Peak Limiter (VPL)
●Bridge-mode operation for Touring Applications
●Comprehensive protection scheme

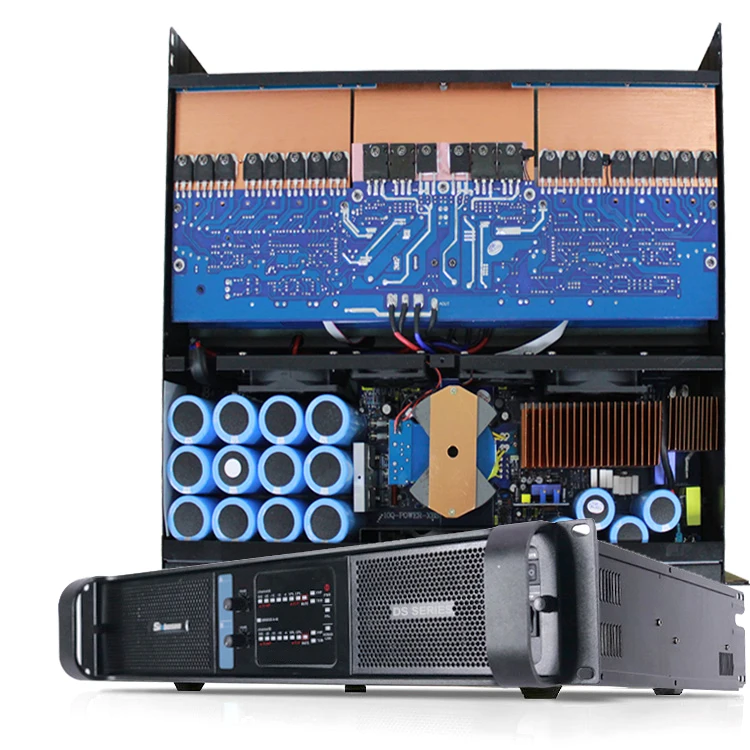

●Use 12Pcs high quality capacitors 3300uf 200V +4pcs 2200uf Capacitors
●Use Original transistor
●2 Channel Class TD Switching power amplifier
●2 x 4,400 into 4 Ohms, 2 x 2,400 Watts Watts into 8 Ohms
●Create SUPER BASS sound,suit for 2units 18”/21” subwoofer
●Separately controllable on Gain
●Scalable Voltage Peak Limiter (VPL)
●Bridge-mode operation for Touring Applications
●Comprehensive protection scheme
●Use 12Pcs high quality capacitors 3300uf 200V +4pcs 2200uf Capacitors
●Use Original transistor
●Temperature protection;Over current protection;Short circuit protection built-in
