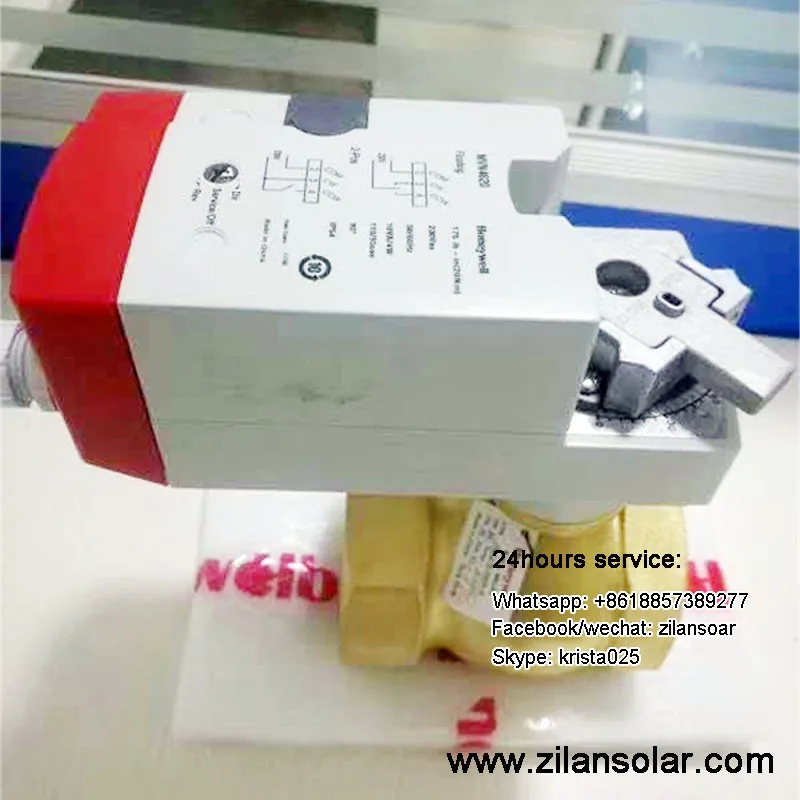

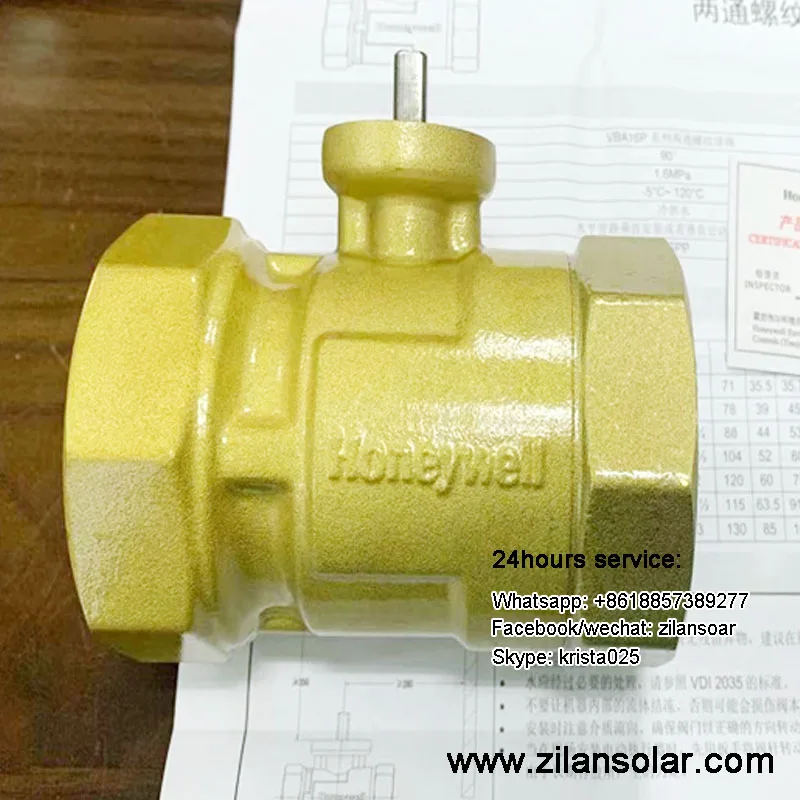

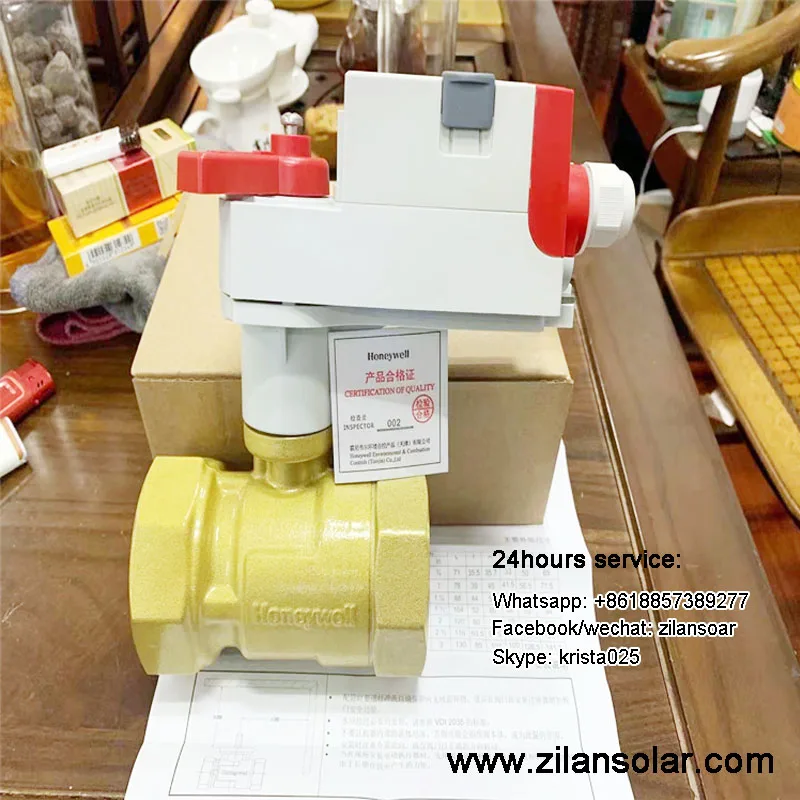

1, Photo



2, Application:



VBA216 series two-way regulating ball valve is widely used, can be used for HVAC application of chilled water, hot water, 50% glycol solution, it is used for continuous regulation control.



3, Technical specifications:



BSPP internal thread connection;

Brass material

Low leakage rate (≤0.01% of Kvs)

Spring-supported valve seat can maximize service life

V-shaped fixed hemisphere, open design at the outlet end, provides excellent self-cleaning function

Equal percentage flow characteristics, precise positioning, ensuring temperature control

Can realize the easy connection of the actuator and the ball valve, providing manual operation function

Adjustable flow ratio 300:1

Rotation angle 90° (adjustable)



4, Material and connection:



Body: Brass

Seat: Reinforced PTFE (polytetrafluoroethylene)

Sphere: stainless steel

Stem: stainless steel



5, Medium pressure and temperature range:



Rated pressure: PN16

Medium temperature: water, -5~120℃



6, Size range:



ITEM.NO	PORT SIZE	CV	KVS	TURN OFF FORCE	RECOMMENDED TORQUE DRIVE	RECOMMENDED DRIVE TYPE
VBA216-020P-N	DN20	7.4	6.3	800Kpa	5N·m	MVN7505
VBA216-025P-N	DN25	11.7	10	800Kpa	5N·m	MVN7505
VBA216-032P-N	DN32	18.7	16	800Kpa	5N·m	MVN7505
VBA216-040P-N	DN40	30.4	26	800Kpa	10N·m	MVN7510
VBA216-050P-N	DN50	46.8	41	800Kpa	10N·m	MVN7510
VBA216-065P-N	DN65	59.7	51	800Kpa	20N·m	MVN7220
VBA216-080P-N	DN80	94.8	81	800Kpa	20N·m	MVN7220



7, Payment

<1> T/T(wire transfer)

<2> L/C at sight

<3> 30% T/T in advance as deposit, the rest paid before shipment

<4> 30% T/T in advance as deposit, the rest paid against B/L copy



8, Certificate





9, Our advantages:



<1> We have 8 senior engineers working on development. that will make us lead the trend whatever on structure or technolgy

<2> 15 QC control the quality, just make sure all is right

<3> Aftersale service is quick, any problem you mentioned will be dealt with in 24 hours!

<4> Our professional salesmen always online for your questions



10, Factory photos:
