3A Basice 3 Терминал SPDT рычажный микропереключатель аркадный
- Категория: Limit Switches >>>
- Поставщик: Shenzhen,Greater,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.58 $* | 0.22 $* |
| Aug-16-2025 | 0.47 $* | 0.99 $* |
| Jul-16-2025 | 0.86 $* | 0.80 $* |
| Jun-16-2025 | 0.44 $* | 0.98 $* |
| May-16-2025 | 0.77 $* | 0.67 $* |
| Apr-16-2025 | 0.31 $* | 0.23 $* |
| Mar-16-2025 | 0.8 $* | 0.1 $* |
| Feb-16-2025 | 0.66 $* | 0.0 $* |
| Jan-16-2025 | 0.69 $* | 0.42 $* |
Характеристики
1. High quality and high precision, so we won the trust of many customer from all over the world;
2. Automatic production line with fast delivery time;
3. Free samples to test before place an order;
4. OEM or ODM are available, so far we had provided many OEM & ODM product especially for auto industry to our customers;
5. Engineering support, we will help you to choose the model when you in the design, and help you to figure out when you meet problem when using;
6. Provides drawing or datasheet for you before the smaple or order;
7. Toneluck founded in 1976, the best switch manufacturer in China.
MQS-2 Series Subminiature Switch
1. Can be used for 0.1A,3A,5A,10A, 16A, 22A, 26A, and other application load, products have ULCUL,CQC,ENEC and other related certification;
2. Different types of levers and contact terminals can be customized according to customer needs;
3. The product design complies with IEC61058 and UL1054
4. The products comply with ROHS and REACH
3. The product design complies with IEC61058 and UL1054
4. The products comply with ROHS and REACH

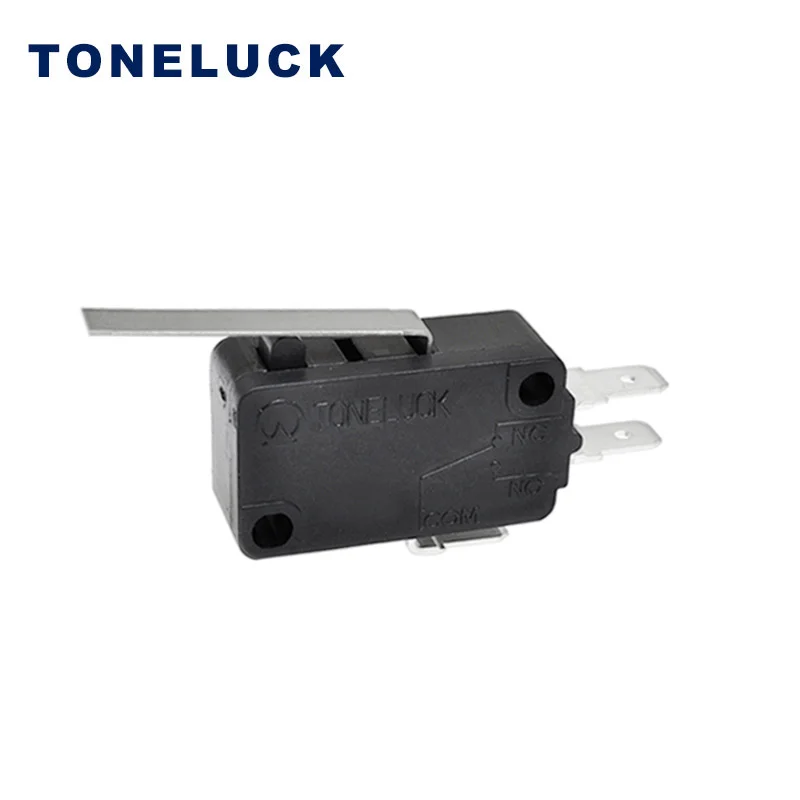

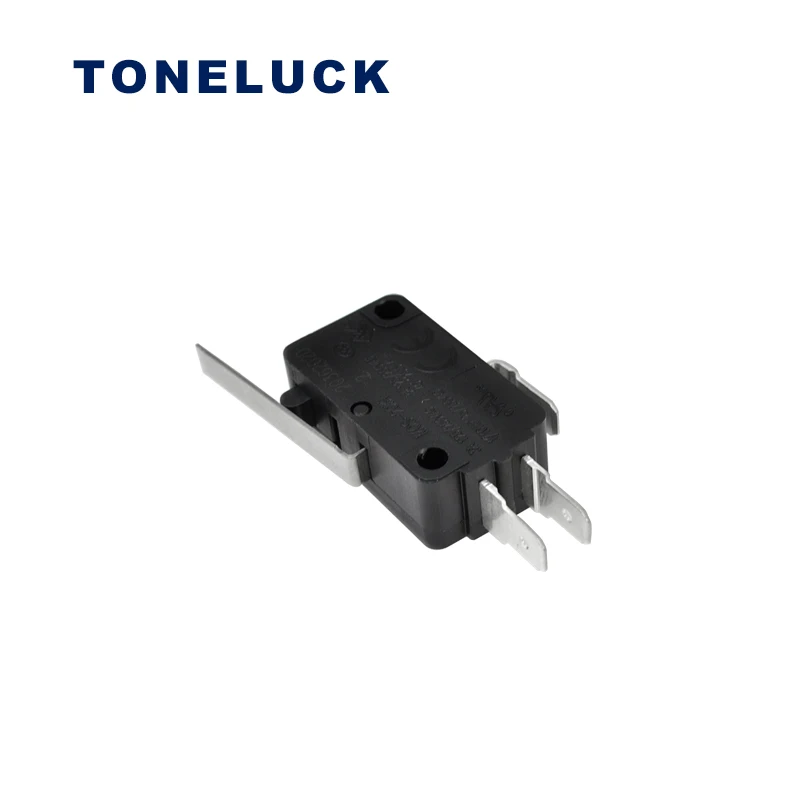

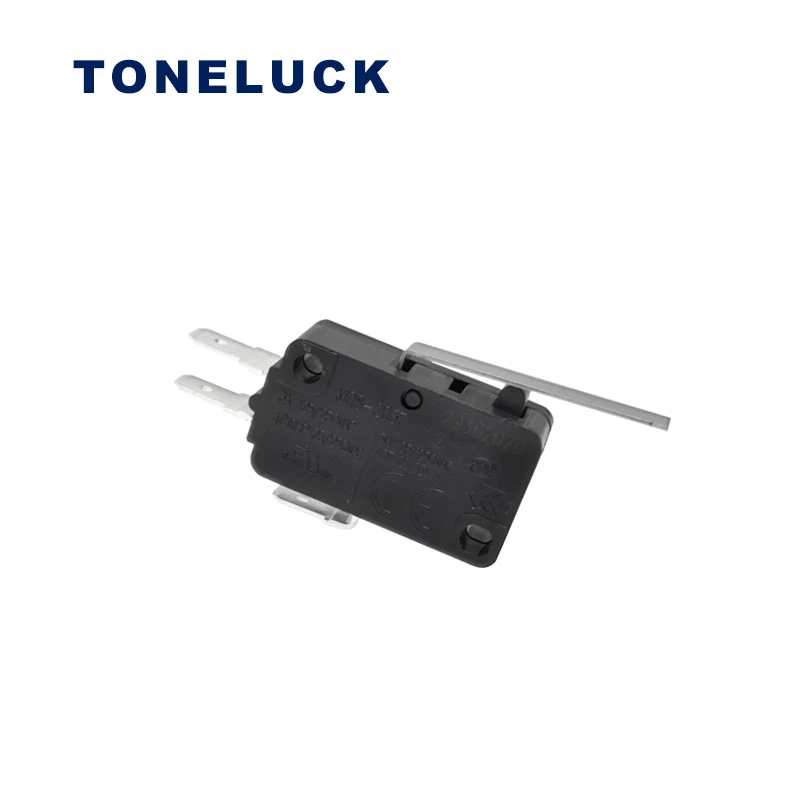

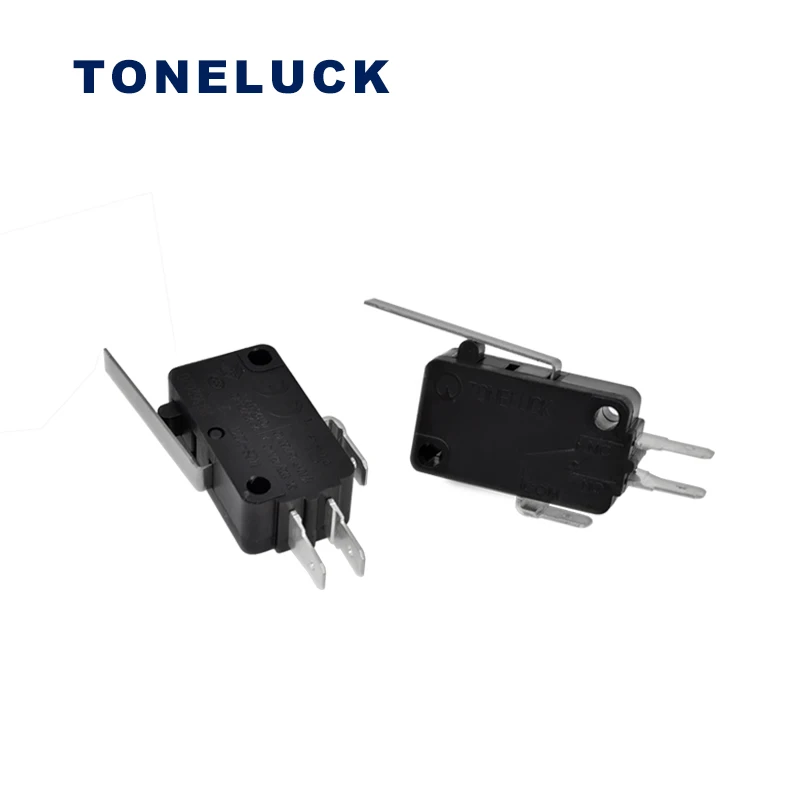

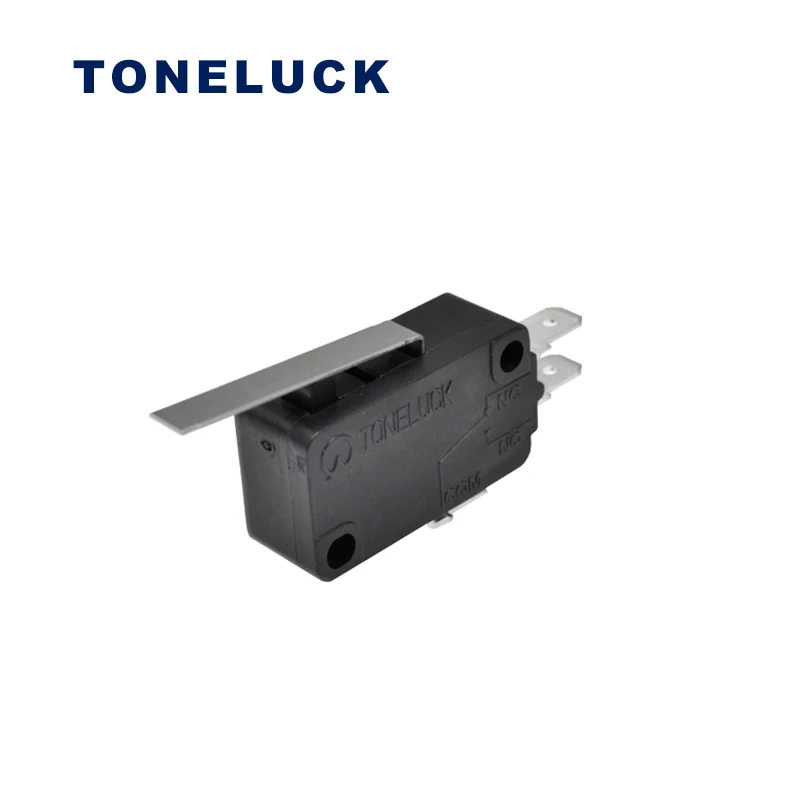

3A Basice 3 Terminal SPDT Lever Type Micro Switch Arcade Joystick Microswitch

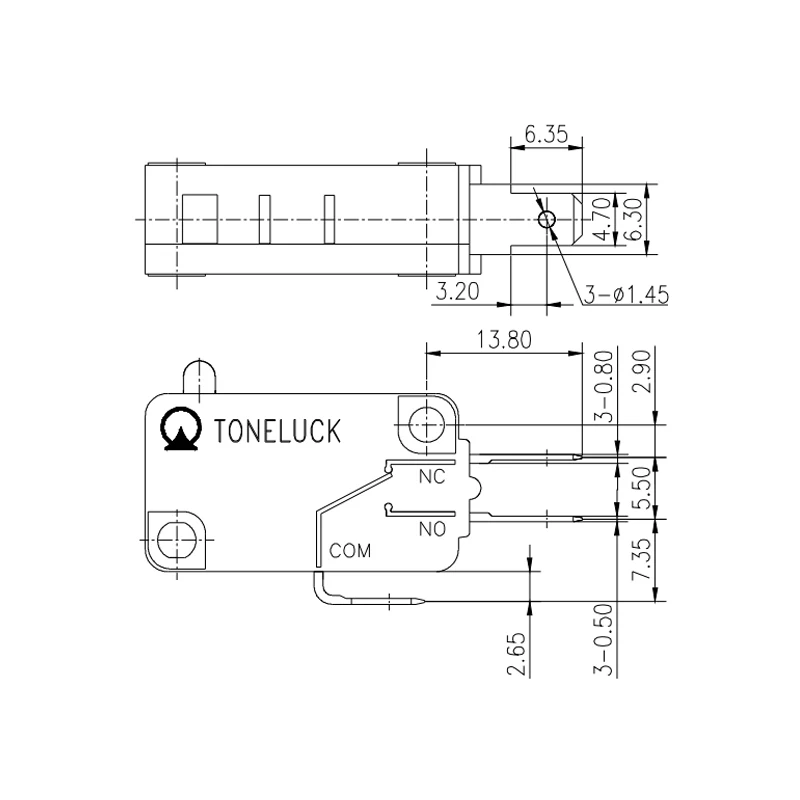

Parameter specification
Product Name | TONELUCK MQS-2 Series Switch |
Electrical Rating of MQS-216 | 16 A 125/250VAC 1/2HP 125VAC 3/4HP 250VAC 10.1A 125VL (Tungsten) 16（4） A 125/250VAC |
Electrical Rating of MQS-216T | 16A 125/250VAC 1/2HP 125VAC 3/4HP 250VAC 10.1A 125VL (Tungsten) 16（4）A 125/250VAC |
Electrical Rating of MQS-210H | 10A 125/250VL 1/2HP 125/250VAC 1A 30VDC |
Lever Type | 01, 02, 03 … 00 = No Lever |
Terminal Type | A, B, C … (Ref. to table) |
Current | SPDT, SPST-NO, SPST-NC |
Operating Force | K 55 +/- 15gf 10 ~ 50gf S 100gf Max 20gf Min L 100 +/- 25gf 20 ~ 90gf M 160 +/- 30gf 50 ~ 140gf N 200 +/- 30gf 55 ~ 160gf P 350 +/- 50gf 80 ~ 300gf |
Company Profile
Company profile
Shenzhen Greater Electronics Co., Ltd. is a company to produce Toneluck products. And TONELUCK Group was established in Hong Kong in 1976, the company has developed into a group company with more than 3,000 employees and many registered subsidiaries at home and abroad.
We develop and produce various precision switch products to meet the needs of consumer electronics, communication equipment, automotive electrical appliances, medical care, smart equipment and other industries.
They are used in multi-function phones, large mixers, household gas appliances, washing machines, dishwashers, etc. Smart homes, new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets have won the trust of well-known companies at home and abroad, and have become suppliers that occupy an important position in these high-end parts markets.
Our Certification
Our products not only have approved by many global safety certifications such as ENEC, ULCUL, CE, and CQC but also have approved by RoHS, Reach certification to guarantee product quality..
Cooperative Partner
Toneluck has occupied a position as an asian supplier in the high-end components market meanwhile our micro switch and pressure sensor have become a world-renowned brand. And we supplied for GE, Haier, Whirlpool,Pioneer, Panasonic, Toyota, Ford, Volkswagen,etc world-renowned brand
Packing and shipping
A. Packing:
Generally, there has some inside cartons and an outside carton to protect the switch product of package. Meanwhile, the switch also have the plastic uptake to limit and protect the switches. So the product will be protected well when shipping.Meanwhile, if you have any requirement about the packing, also can let us know.
B. Shipment:
Customer can choose the shipment by air, by sea, by land transportation, or by express delivery with the trade term of EWX, FOB, DDU, DDP, CIF, and so on.
FAQ
Q1: Are you a factory or trading company?
A: we are an original manufacturerfactory in micro switches over 45 years.
Q2: Can I get a free sample?
A: yes, afrer the certain design or model is confirmed, the free samples could be provided within 3-7 days.
Q3: What is your MOQ?
A:Normally, the MOQ is 1000pcs.
A: we are an original manufacturerfactory in micro switches over 45 years.
Q2: Can I get a free sample?
A: yes, afrer the certain design or model is confirmed, the free samples could be provided within 3-7 days.
Q3: What is your MOQ?
A:Normally, the MOQ is 1000pcs.
