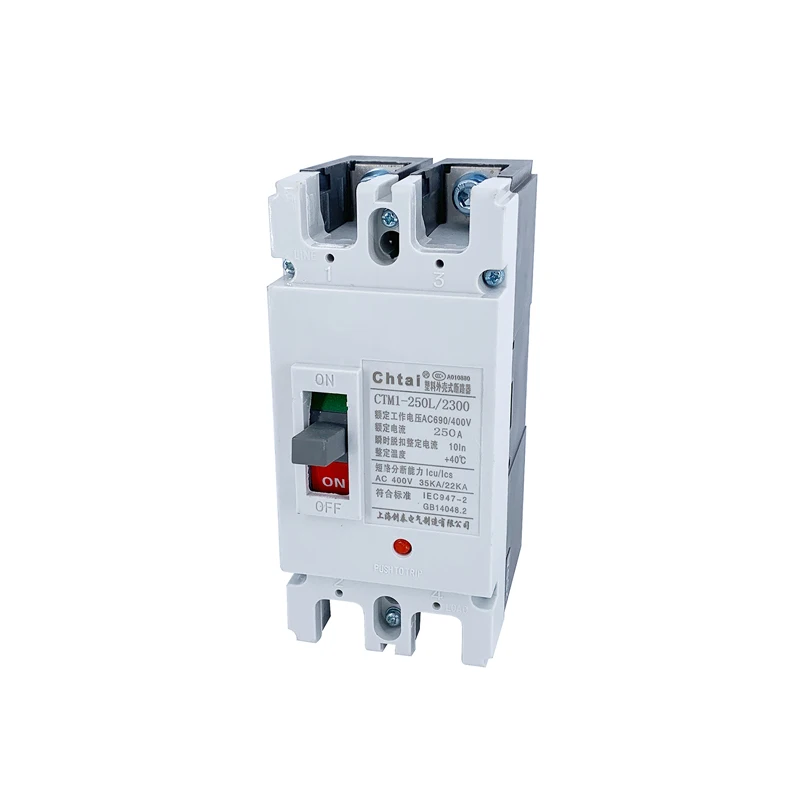

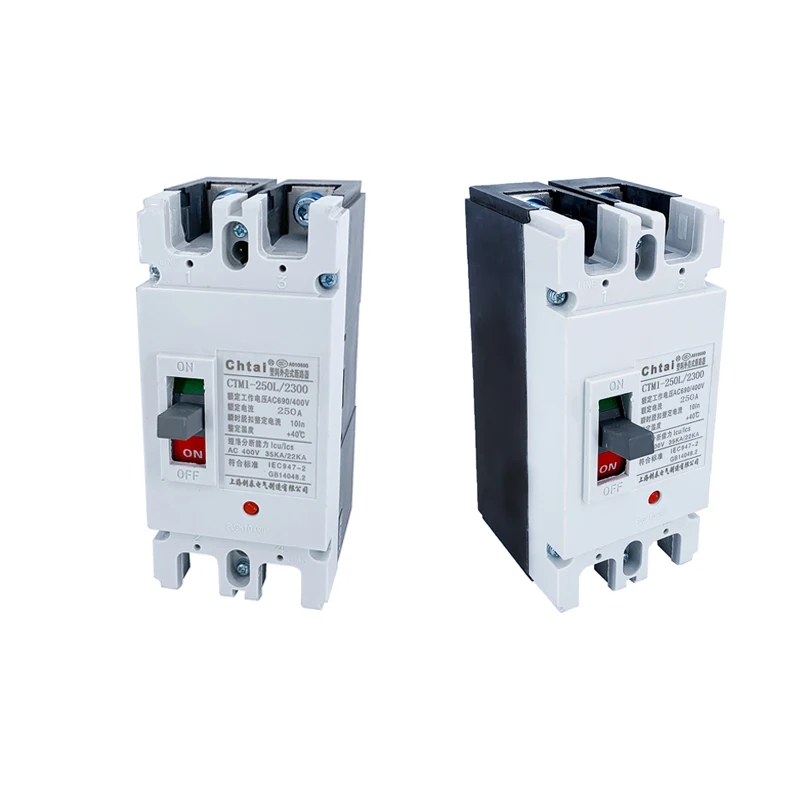

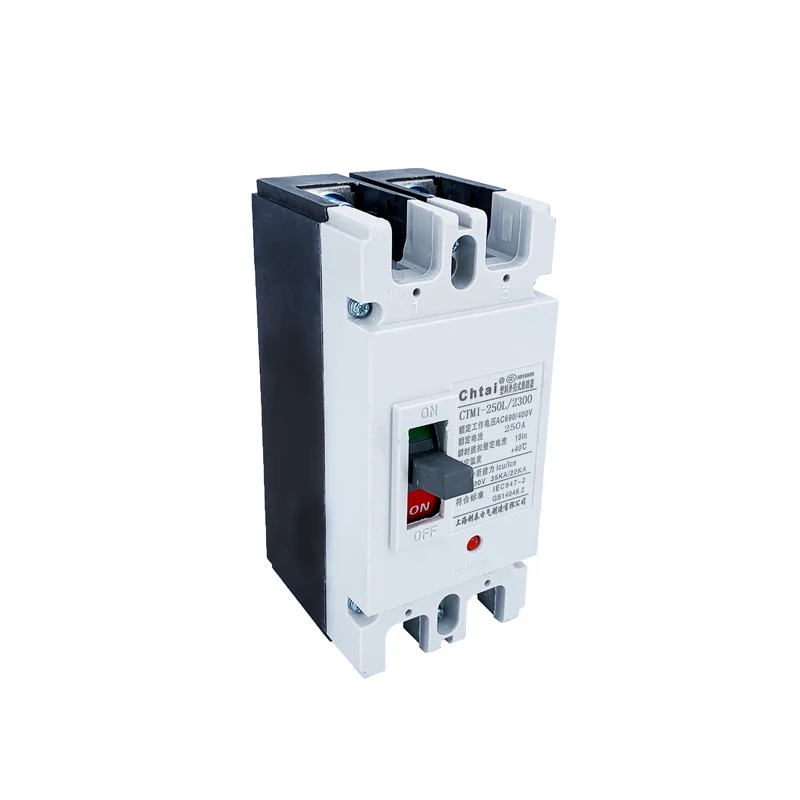

miniature moulded case circuit breaker CTM1-250L 100A to250A mccb main 200a 2p electrical earth leakage two poles
- Категория: Circuit Breakers >>>
- Поставщик: Wenzhou,Xinghe,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.67 $* | 0.60 $* |
| Aug-16-2025 | 0.82 $* | 0.29 $* |
| Jul-16-2025 | 0.36 $* | 0.2 $* |
| Jun-16-2025 | 0.54 $* | 0.85 $* |
| May-16-2025 | 0.50 $* | 0.15 $* |
| Apr-16-2025 | 0.78 $* | 0.41 $* |
| Mar-16-2025 | 0.60 $* | 0.41 $* |
| Feb-16-2025 | 0.6 $* | 0.33 $* |
| Jan-16-2025 | 0.94 $* | 0.41 $* |
Характеристики
Products Description
Range of application
CTM1 series plastic case circuit breaker,advanced structure,reliable performance, quick response, sensitive induction, shell and components are made of impact resistance and high flame retardant materials, long service life.Applied in the power system of AC50(60)Hz,rated insulation voltage 800V rated voltage 690V and below, rated current 1250A and below as the transfer not frequently.The circuit breaker has the protection devices of over load, short circuit and under voltage,it can protect the circuit and power equipment from broken. This mccb can be sorted to C type (basic),L type (standard),M type (high breaking), H type(higher bre-
aking) according to its rated limit short circuit breaking capacity.It is the ideal product for application in land and ship.
The product conforms to IEC60947-2,GB14048.2 and other standards.
Product Paramenters
Name | CTM1 |
Number | CTM1-250 |
Poles | 1P,2P,3P,4P |
Rated current(In) | 100A,125A,140A,160A,180A,200A,225A,250A |
Rated Insulation Voltage(V) | 800V |
Rated voltage(Ue) | 690V and below |
Rated frequency | 50Hz |
Type | C/L/M/H |
Working Temperature | -5℃ to 40℃ |
Standard | IEC60947-2,GB14048.2 |
protection: | overload，short circuit， undervoltage protection |
Certificate | CCC CE |
Guarantee | 2YEARS |
OEM ODM | avaiable |
Protection Features:Thermal Release with inverse-time characteristic | ||||||
Rated Current(A) | 1.05In(cool station) no breaking time(h) | 40°C for land/45°C for ship 1.30In (thermal station) breaking time(h) | Electromagnetic release breaking current(A) | |||
10 | >=1 | <1 | 10In±20% | |||
63 | >=2 | <2 | ||||
100 | >=2 | <2 | 5In±20%&10In±20% | |||
Details Images

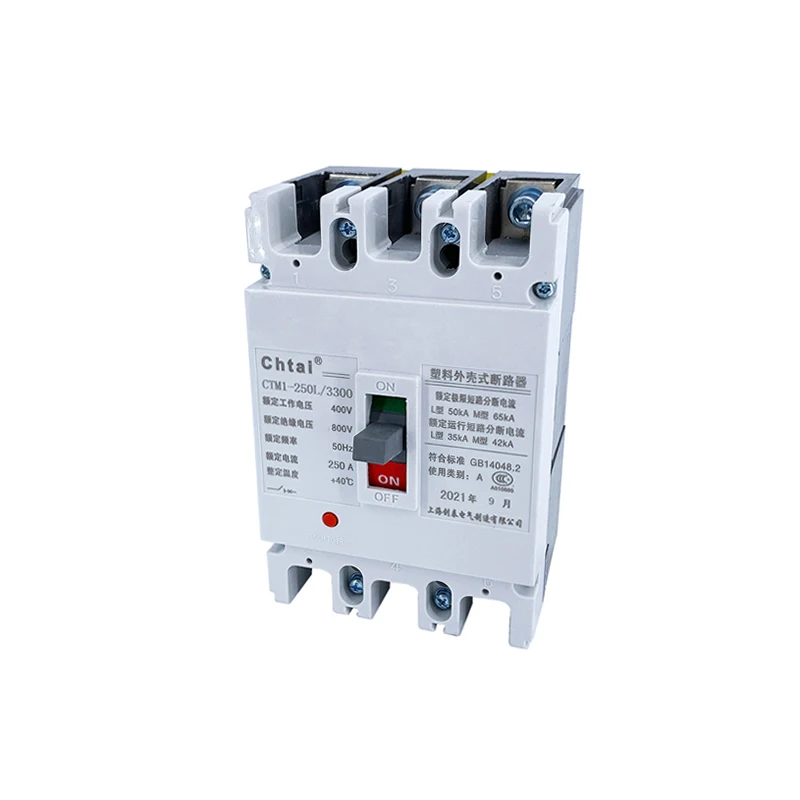

Moulded Case AC Circuit Breaker
Moulded Case Earth Leakage Circuit Breaker
Molded case DC circuit breaker
Model | Poles Rated | L1 | L2 | L3 | L4 |
CTM1-63 | 3 | 76 | 135 | 91 | 71 |
4 | 103 | 98 | 80 | ||
CTM1-125 | 2 | 65 | 150 | 86 | 68 |
3 | 91 | ||||
4 | 120 | ||||
CTM1-250 | 2 | 75 | 165 | 110 | 87 |
3 | 105 | ||||
4 | 140 | ||||
CTM1-400 | 3 | 150 | 257 | 150 | 107 |
4 | 198 | ||||
CTM1L-630 | 3 | 182 | 270.5 | 158 | 112 |
4 | 240 | ||||
CTM1L-800 | 3 | 210 | 280 | 158 | 115 |
4 | 280 |
Application
Certifications
Company Profile
Wenzhou Xinghe Import & Export Co.,Ltd. is a high-tech enterprise that engaged indesigning,developing,manufacturing and selling low-voltage air circuit breaker and socket,Surge protective device and so on. Our products have proven popular all over the world.
Xinghe Company Is a leading supplier of electrical accessories in China.We have our own factory and raw material production base in Zhejiang province. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons,switches, modular sockets,industrial plugs and sockets, and multi-meters.We have a wide range of products, good quality,reasonable price and novel style, at the same time, we can provide fast delivery and efficient after-sales service.
In the fierce market competition, the company adhere to the tenet that "brand is benefit", providing our customers with quality products and enthusiastic service.
We sincerely welcome customers from home and abroad to cooperate with and create a bright future together.
Xinghe Company Is a leading supplier of electrical accessories in China.We have our own factory and raw material production base in Zhejiang province. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons,switches, modular sockets,industrial plugs and sockets, and multi-meters.We have a wide range of products, good quality,reasonable price and novel style, at the same time, we can provide fast delivery and efficient after-sales service.
In the fierce market competition, the company adhere to the tenet that "brand is benefit", providing our customers with quality products and enthusiastic service.
We sincerely welcome customers from home and abroad to cooperate with and create a bright future together.
FAQ
Q1:When can I receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q2: Do you provide samples ? is it free or extra ?
A: Yes,We are honored to provide you with samples of what you need before place order on free but do not pay the cost of freight.
Q3: How can I get some samples?
A: Please contact us and leave detailed contact information, we promise to keep your information confidential.
Q4:What's the delivery time?
A: Samples cost 5-7 days. Bulk order usually takes 7-15days after confirming the payment,but the specific time shall be determined according to the order quantity.
Q5:Do you accept OEM business?
A:Yes, we do.
Q6:Do you have a warranty policy?
A:Our products are warranty for two years and full lifespan aftersales service.
