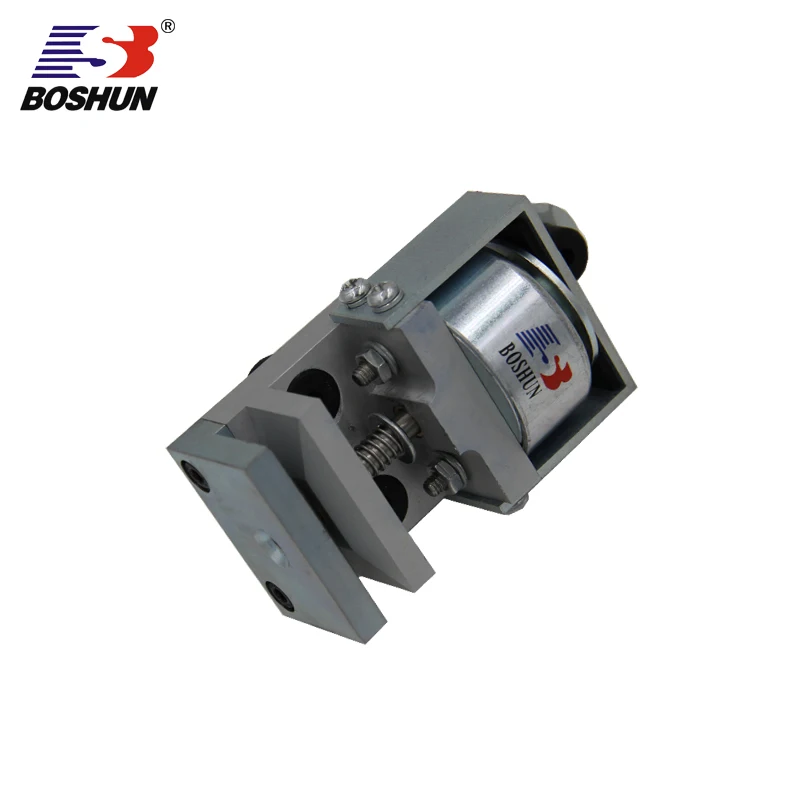

BS-4020TS-10 Top performance design DC/AC linear tubular

BS-4020TS-10 Top performance design DC/AC linear tubular

Категория: Wire and Cables >>>
Поставщик: Dongguan,Boshun,Industry,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.45 $*	0.46 $*
Aug-16-2025	0.16 $*	0.0 $*
Jul-16-2025	0.18 $*	0.17 $*
Jun-16-2025	0.61 $*	0.72 $*
May-16-2025	0.69 $*	0.17 $*
Apr-16-2025	0.42 $*	0.68 $*
Mar-16-2025	0.70 $*	0.42 $*
Feb-16-2025	0.58 $*	0.34 $*
Jan-16-2025	0.52 $*	0.2 $*

Характеристики

Product Description

Ambient temperature:	—20℃~+65℃,5%~95%RH
Relative humidity	—20℃~+45℃,5%~60%RH
OPERATION CYCLE:	on:off = 0.02S:0.28S (by this frequency allows continuous poweron 0.05S )
Appearance (facies):	no damage, crack, rust, surface stains
Insulation resistance	DC500V, ≥50MΩ
DIELECTRIC STRENGTH	DC700V 50/60Hz-1S
Life (biometry):	more than 100,000 times in normal use.

BS-4020T-02(2).jpg BS-4020T-02(3).jpg

Product drawing:

Possible modifications include: modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals.
