DMB-90E плюс мульти-функциональный FTA DVB S2 тюнер для ip-шлюза ИИР кодировщик

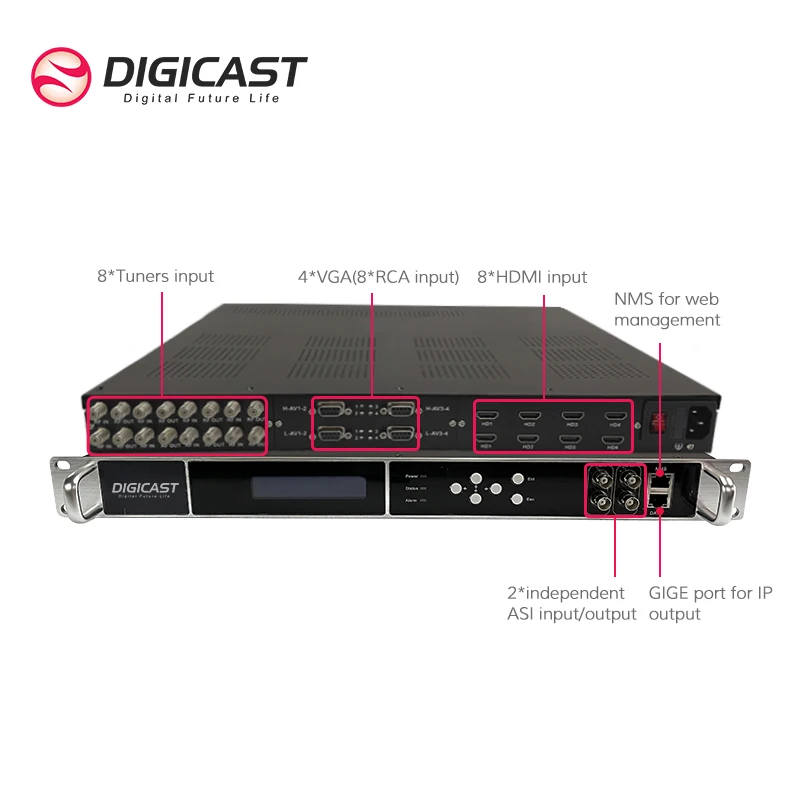

DMB-90E Plus Series 4/8/12/16/20/24 Channels input, free combination by three different signal format input, HDMI,VGA(VGA to 2*RCA/CVBS),Tuners. 8 channels ports per type, Up to 3 types in Back panel.With three kinds of interface boards, the upper and lower layers of each baffle must be the same, and different baffles can be combined arbitrarily. (For example: 8 HDMI+8 AV+8 TUNER input, or 16 HDMI+8 TUNER input.) It is integrated with tuner demodulation, which can demodulate from tuners, meanwhile it support HDMI, CVBS video/audio input use H265 HEVC/H264 encoding, then output the IP package through different IP address and ports. The Tuners support DVB-S/S2/T/T2/C/ISDB-T/ ATSC-T optional input, demodulate to TS and encapsulated output IP packet, IP Output Port by 4*MPTS+480SPTS+N*MPTS/SPTS for mapping tuner/HDMI/CVBS input. Furthermore, it support 2*ASI independent input, 2*ASI output,one for backup.
This is an ideal solution for environments where you have a large number of air Channel and need compression HD,SD video signal that transmission by internet , and widely used in IPTV System, Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of Source signals convert to Cable TV broadcast System, largely cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for FTA (free to air) IP signal source capture from digital tuner.

Multi-channel Tuners input: The Tuners support DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T/Tb,ATSC-T,DTMB input
for option, IP stream output by 480*SPTS or 4*MPTS

Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.

* Tuner input: Up to 24 FTA Tuners HDMI,VGA(VGA to 2*RCA/CVBS)input

* Low cost headend receiver for IPTV OTT System
* Superior Shoulders and Excellent modulation
quality MER
* Easy-to-Use System Management via Web
* PSI/SI editing & inserting
* Low power consumption and high reliability with
MTBF(Mean Time Between Failure) ≦87600 Hours
* Highly compact , High-Integrate
* Support PCR correct and PCR interval adjusting
* 24*7 hours working stable, broadcasting quality
