Башенный кран 8 тонн высокого
- Категория: Tower Cranes >>>
- Поставщик: Shandong,Hanbang,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 33320.4 $* | 34986.91 $* |
| Aug-17-2025 | 33040.83 $* | 34692.71 $* |
| Jul-17-2025 | 27720.58 $* | 29106.39 $* |
| Jun-17-2025 | 32480.84 $* | 34104.30 $* |
| May-17-2025 | 28280.46 $* | 29694.89 $* |
| Apr-17-2025 | 31920.40 $* | 33516.78 $* |
| Mar-17-2025 | 31640.68 $* | 33222.70 $* |
| Feb-17-2025 | 31360.76 $* | 32928.62 $* |
| Jan-17-2025 | 31080.39 $* | 32634.4 $* |
Характеристики
Tower Crane Description
Tower Crane Technical Parameters(6515) | ||||||||||||
Hoisting | Fall | α=2 | α=4 | |||||||||
Speed | M/min | 40 | 80 | 20 | 40 | |||||||
t | 5 | 2.5 | 10 | 5 | ||||||||
Stewing | Stewing Speed | r/min | 0.61 | |||||||||
Derricking | Derricking Speed | m/min | 58.6/29.3/8.79 | |||||||||
Power | Total Power | Kw | 90 | |||||||||
Tower Crane Technical Parameters(6013) | ||||||||||||||||||
Hoisting | Hoisting Speed | Fall | α=2 | α=4 | ||||||||||||||
Speed | m/min | 8.5 | 40 | 80 | 4.25 | 20 | 40 | |||||||||||
Capacity(Max) | t | 3 | 3 | 1.5 | 6 | 6 | 3 | |||||||||||
Power | Kw | 24/24/5.4 | ||||||||||||||||
Stewing | Stewing Speed | r/min | 0.62 | |||||||||||||||
Power | Kw | 3.7×2 | ||||||||||||||||
Derricking | Derricking Speed | m/min | 48/24 | |||||||||||||||
Power | Kw | 3.3/2.2 | ||||||||||||||||
Jacking | Jacking Speed | m/min | 0.55 | |||||||||||||||
Power | Kw | 7.5 | ||||||||||||||||
Power | Total Power | Kw | 36.7 | |||||||||||||||

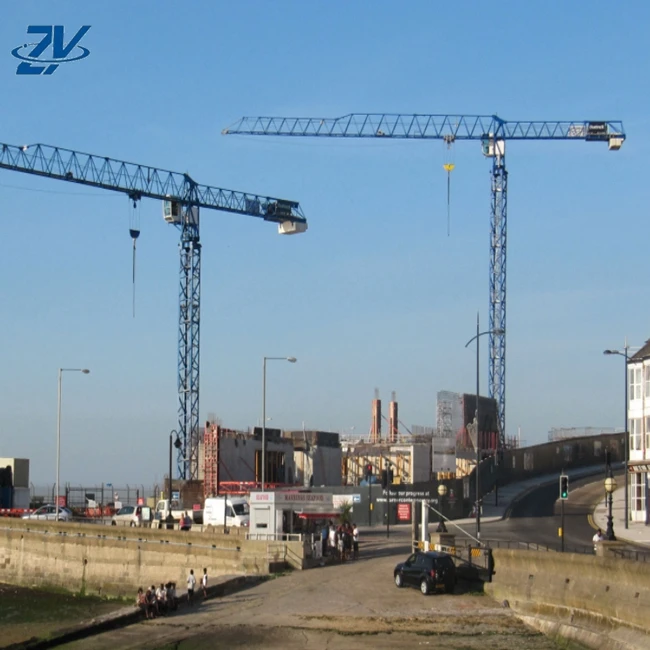

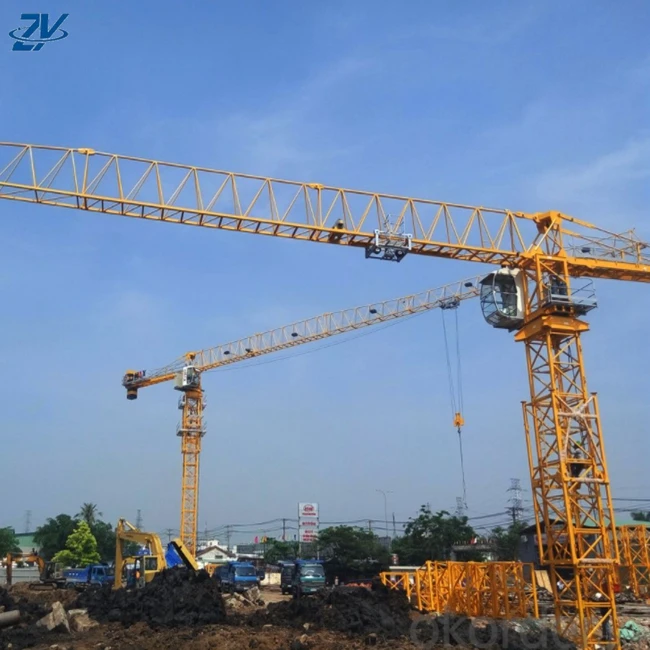

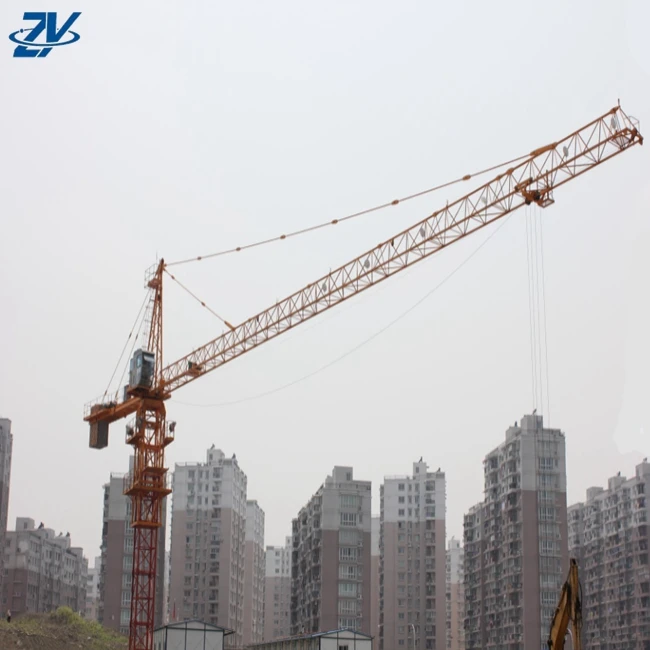

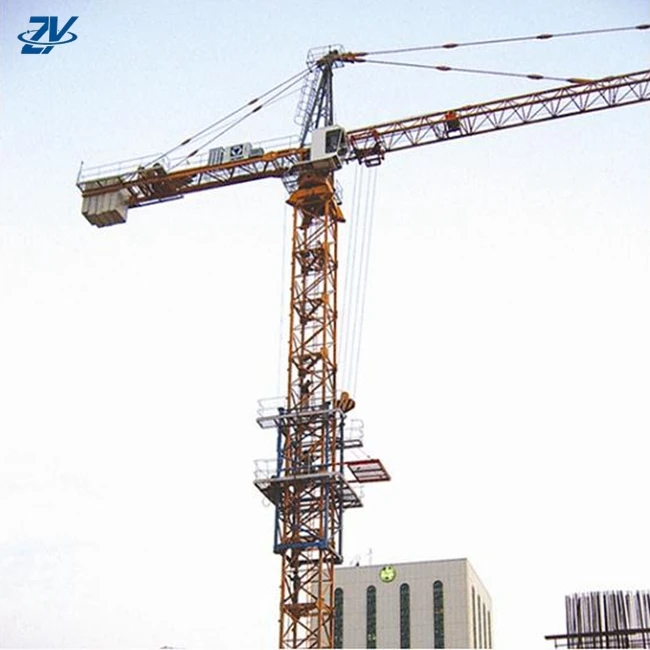

Application Cases

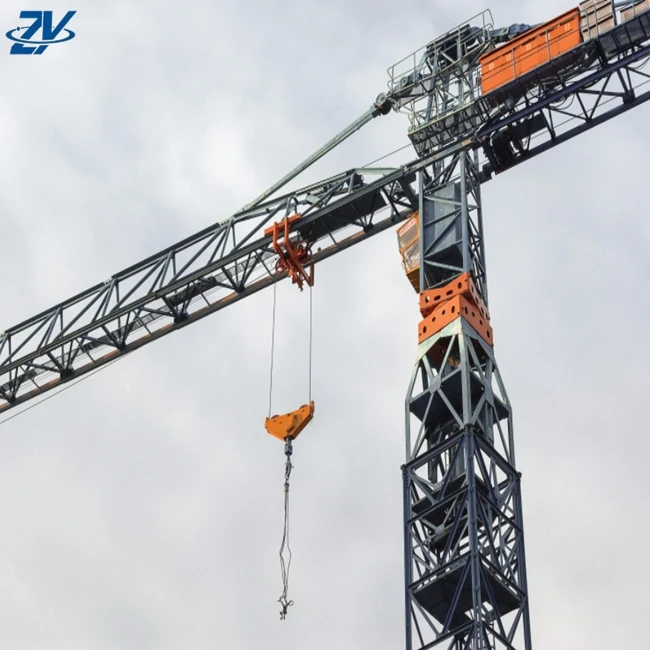

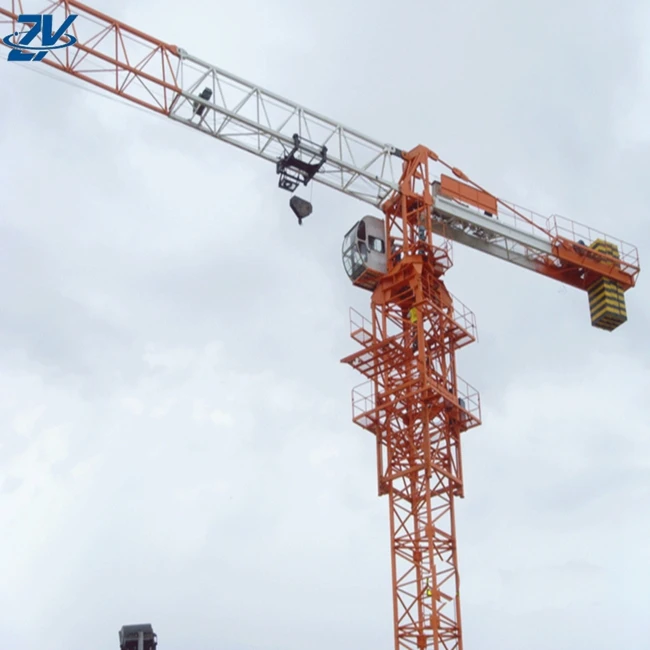

Components Description
Tower cranes are used extensively in construction and other industry to hoist and move materials. There are many types of tower cranes. Although they are different in type, the main parts are the same, as follows:
Mast: the main supporting tower of the crane. It is made of steel trussed sections that are connected together during
installation.
Slewing unit: the slewing unit sits at the top of the mast. This is the engine that enables the crane to rotate.
Operating cabin: on most tower cranes the operating cabin sits just above the slewing unit. It contains the operating controls,load-movement indicator system (LMI), scale, anemometer, etc.
Jib: the jib, or operating arm, extends horizontally from the crane. A "luffing" jib is able to move up and down; a fixed jib has
a rolling trolley that runs along the underside to move goods horizontally.Counter jib: holds counterweights, hoist motor, hoist drum and the electronics.
Hoist winch: the hoist winch assembly consists of the hoist winch (motor, gearbox, hoist drum, hoist rope, and brakes), the hoist motor controller, and supporting components, such as the platform. Many tower cranes have transmissions with two or more speeds.
Hook: the hook (or hooks) is used to connect the material to the crane. It is suspended from the hoist rope either at the tip, for luffing jib cranes, or in the hoist rope belly underneath the trolley for hammerhead cranes.
Weights: Large, moveable concrete counterweights are mounted toward the rear of the counterdeck, to compensate for the weight of the goods lifted and keep the center of gravity over the supporting tower.
Mast: the main supporting tower of the crane. It is made of steel trussed sections that are connected together during
installation.
Slewing unit: the slewing unit sits at the top of the mast. This is the engine that enables the crane to rotate.
Operating cabin: on most tower cranes the operating cabin sits just above the slewing unit. It contains the operating controls,load-movement indicator system (LMI), scale, anemometer, etc.
Jib: the jib, or operating arm, extends horizontally from the crane. A "luffing" jib is able to move up and down; a fixed jib has
a rolling trolley that runs along the underside to move goods horizontally.Counter jib: holds counterweights, hoist motor, hoist drum and the electronics.
Hoist winch: the hoist winch assembly consists of the hoist winch (motor, gearbox, hoist drum, hoist rope, and brakes), the hoist motor controller, and supporting components, such as the platform. Many tower cranes have transmissions with two or more speeds.
Hook: the hook (or hooks) is used to connect the material to the crane. It is suspended from the hoist rope either at the tip, for luffing jib cranes, or in the hoist rope belly underneath the trolley for hammerhead cranes.
Weights: Large, moveable concrete counterweights are mounted toward the rear of the counterdeck, to compensate for the weight of the goods lifted and keep the center of gravity over the supporting tower.
Certifications
According to the requirements of Chinese production, we have passed the following certification：
PRODUCTION LICENSE OF SPECIAL EQUIPMENT PEOPLE'S REPUBLIC OF CHINA
SPECIAL EQUIPMENT TEST CERTIFICATE
If you need other certifications , we will send .
Company Profile
Jinan Hanbang Construction Machinery Co., Ltd. is a professional manufacturer of construction machinery designated by the framework Technical Supervision Bureau. The company is located in the eastern suburb of Jinan, the spring city.
Hanbang company has perfect technical team, advanced process equipment and complete detection means and management system. It mainly produces SC200 / 200 construction elevator, sc120 / 120 material hoist, QTZ63, QTZ80, qtz100 and qtz12 series tower cranes. The product structure is more reasonable and the performance is more reliable. And approved by Shandong Provincial Bureau of technical supervision.
Hanbang company strives to explore and improve the scientific and technological content of products and constantly develop new products to meet the needs of key customers. The company now has perfect service teams in many regions at home and abroad, adheres to the service tenet of "quality and reputation first", and hopes that we can have a good cooperation.
Hanbang company has perfect technical team, advanced process equipment and complete detection means and management system. It mainly produces SC200 / 200 construction elevator, sc120 / 120 material hoist, QTZ63, QTZ80, qtz100 and qtz12 series tower cranes. The product structure is more reasonable and the performance is more reliable. And approved by Shandong Provincial Bureau of technical supervision.
Hanbang company strives to explore and improve the scientific and technological content of products and constantly develop new products to meet the needs of key customers. The company now has perfect service teams in many regions at home and abroad, adheres to the service tenet of "quality and reputation first", and hopes that we can have a good cooperation.
